Compression Load Cells

What Are Compression Load Cells?

Compression load cells measure force applied vertically downward into a sensor. They convert direct load into a proportional electrical signal, enabling real-time force monitoring across hydraulic presses, industrial scales, materials testing equipment, and calibration systems.

Unlike tension cells (which measure pulling force), compression cells are optimized for static and dynamic crushing, pressing, and bearing loads. A strain gauge on the sensor’s internal steel cantilever beam deflects under load, changing electrical resistance in a Wheatstone bridge circuit. This proportional signal is amplified by a load indicator or data acquisition system.

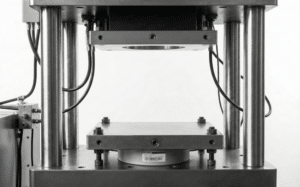

Real-world knowledge: A 50-ton hydraulic bottle jack pressing a composite panel needs real-time load feedback to maintain consistent pressure across the work surface. A compression load cell mounted beneath the panel converts that mechanical force into a 4–20 mA analog signal fed to a pressure-relief valve controller. If load exceeds setpoint, the valve vents pressure automatically—preventing material damage or scrap.

Series Comparison

Each series addresses a specific market requirement. Choose based on capacity, accuracy class, environmental rating, and form factor constraints.

How Compression Load Cells Work

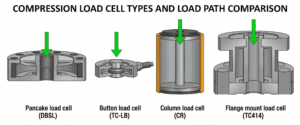

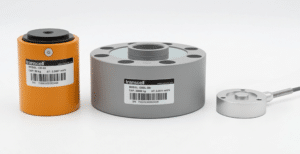

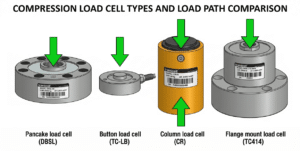

Pancake/Disk Form Factor (DBSL, HAPL)

Pancake cells are the flattest compression option, ideal when headroom is critical. The strain gauge sensing element is housed in a low-profile steel disk. Load enters from the top platen, compresses the internal beam, and signal exits through a connector at the base. DBSL is engineered for heavy tonnage (5–200 t); HAPL for precision metrology (±0.02%). Both support stacked mounting in multi-point weighing applications.

Button/Post Form Factor (TC-LB)

Button cells feature a cylindrical post with a smaller footprint. They thread or bolt into test machine platens and are common in materials testing labs. The TC-LB stainless-steel body resists humidity and light chemical splash, making it suitable for environmental chambers. Capacities range from 100 lbf to 2,000 lbf, and the ±0.25% nonlinearity is acceptable for many OEM integrations where space is premium.

Canister Form Factor (CD, CR)

Canister cells are robust, vertically-oriented cylinders with threaded or flanged bases. The CD series supports massive capacities (500 lbf–100 t) and is the standard for truck scales and NTEP (National Type Evaluation Program) applications. The CR variant is compact and nickel-plated for wet, corrosive environments—parking structures, agricultural scales, chemical processing.

Base-Mount/Flange (TC414)

Flange-mounted cells bolt to scale frames and portable weighing platforms. The TC414 is compact, cost-effective, and integrates easily with indicator electronics. Output is 2.0 mV/V standard. No special mounting jigs required—straightforward bolt-down installation.

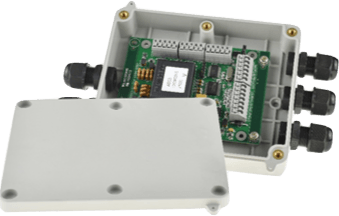

Real-world knowledge: A food processing plant upgrading from mechanical dial scales to electronic weighing installed four DBSL 10-ton pancake cells under a receiving hopper. Because pancake cells are flat, the hopper height decreased by only 2 inches, reducing structural modification cost. Each cell feeds a summing junction in a dedicated junction box before the indicator. This architecture is more flexible and modular than a single large-capacity cell, and any failed cell can be swapped without pulling the entire hopper.

Who These Are For

Selecting Series and Capacity

Step 1: Determine Maximum Force

Identify the peak load your application must measure. Include transient spikes, emergency stops, and worst-case pressure relief settings. For a hydraulic press rated 75 t, choose a cell rated 100 t minimum (provides 33% safety margin).

Step 2: Assess Environmental Conditions

Is the sensor exposed to washdown water, chemical vapor, or temperature extremes? HAPL and DBSL are bare alloy steel—use in clean indoor environments. CR (nickel-plated) handles humidity and light corrosion. TC-LB stainless suits food, beverage, and pharmaceutical bays.

Step 3: Accuracy & Traceability

If your end product’s weight or force specification must be documented for legal or safety compliance (NTEP truck scales, aerospace material certs), use CD series for scales or HAPL for lab standards. ±0.25% (TC-LB) is adequate for process control; ±0.02% (HAPL) is needed for accreditation.

Step 4: Space & Mounting Constraints

Measure available height and footprint. Pancake cells (DBSL, HAPL) are lowest-profile; canister (CD, CR) is vertical; post (TC-LB) is compact but limited capacity; flange (TC414) is mid-range and modular.

Installation by Form Factor

Pancake Cells (DBSL, HAPL)

Mount atop a rigid steel base or scale platform using grade-8 hardware. Ensure both top and bottom platens are parallel and flat to within 0.001 inch per inch of cell width (optical parallax is common in field checks). Use hardened steel or carbide reaction plates to protect the cell’s aluminum alloy head from direct tool marks. Multi-point configurations use summing junction boxes with individual cell trim potentiometers to balance zero and span across cells.

Button Cells (TC-LB)

Thread into tapped holes in test machine platens (standard thread: 1/2″–20 UNF). Apply thread-locking compound (medium strength) to prevent vibration loosening. Ensure the platen face is perpendicular to the test axis; use a dial indicator to verify. The cell’s stainless body is self-sealed; connector orientation is user-configurable (cable gland entry can face forward, rear, or side depending on space).

Canister Cells (CD, CR)

Bolt flange to scale frame, truck bed, or hopper leg using four metric bolts (torque spec in datasheet). The CD and CR have integral cable glands and connector mounting blocks—no external conduit required. Orient the connector downward to prevent water pooling. For truck scales, Transcell provides CAD mounting pads and NTEP design documentation to accelerate certification.

Flange Cells (TC414)

Bolt base directly to scale platform or portable frame. Four mounting holes and a simple strap-and-bolt assembly. Cable routing: run shielded twisted pair through conduit to the indicator, keeping the signal wire at least 6 inches away from 480V three-phase power lines (AC interference risk).

Standards, Certification, and Calibration

Standards Compliance

Transcell’s compression load cells are manufactured under ISO 9001 quality management and tested per IEC 61000-4 electromagnetic immunity (industrial environment). NTEP (National Type Evaluation Program) approval is available for CD series models destined for truck scales and public weighing in the United States. OIML (International Organization of Legal Metrology) variants meet European and Asian regulatory requirements.

MIL-STD-810 Environmental Testing

Selected models undergo shock, vibration, and temperature cycling per military specifications. Confirmation available upon request for aerospace OEM and defense contractor applications.

Calibration & Traceability

All Transcell cells ship with a one-point calibration certificate referencing NIST standards. HAPL and DBSL reference-grade models are traceable through an ISO/IEC 17025 accredited calibration partner. Periodic recalibration (annually or every 5,000 uses—whichever comes first) is recommended for metrology lab applications. For industrial process control, annual visual inspection and spot-check (retest at 25%, 50%, 100% full-scale) is typical.

Legacy Cross-Reference

If you’re retrofitting or upgrading from older equipment, Transcell’s TC-LB series directly replaces Futek LCM300 cells; DBSL replaces Rice Lake RLI-K; TC414 is equivalent to Omega LC414; CD replaces Sensortronics STC canister models. Wiring and mounting interface compatibility confirmed; contact sales for pin-out verification.

How Transcell Compares

Transcell has been manufacturing compression load cells for industrial OEMs since 2002. Our DBSL and CD series are in active service across truck scales, materials testing labs, and hydraulic press lines in North America and Europe.

Accuracy: HAPL achieves ±0.02% nonlinearity—among the best in the sub-5-ton reference-grade segment. CD and DBSL offer ±0.05% for production-grade applications. TC-LB’s ±0.25% is standard for compact OEM cells.

Durability: All cells rated for 150% safe overload and designed for 2–3 million load cycles in typical industrial service. Stainless and nickel-plated variants extend life in corrosive environments (washdown, salt-fog exposure).

Support: NTEP documentation, dimensional drawings, and mounting CAD models are available for all series. Transcell’s application engineers provide free load-cell selection consulting, including multi-point weighing architecture reviews and junction box recommendations.
