Digital Load Cells

What Are Digital Load Cells

A digital load cell combines strain gauge signal detection with integrated electronics to convert mechanical load directly to a RS-485 serial output. Unlike analog mV/V cells that require external amplification and analog-to-digital conversion, the CD-LD builds the A/D converter inside the cell body. This architecture eliminates the need for a separate signal conditioning instrument in applications where digital data is the destination.

When load is applied to the CD-LD’s sensing element, four strain gauges in a full Wheatstone bridge detect the resultant stress. Rather than amplifying and transmitting the tiny differential voltage across long cable runs (where EMI noise accumulates), the CD-LD digitizes the signal at its source. The resulting RS-485 data stream travels noise-free across hundreds of meters to a PLC, weighing terminal, or data logger.

This direct-digital architecture delivers two major operational advantages. First, individual cells retain unique addresses on a single RS-485 bus, enabling multi-cell tank or truck scale systems to report weight from every load cell simultaneously without wiring harnesses or summing cards. Second, the inherent noise immunity of RS-485 allows cable runs to 1200 meters, compared to 10–50 meters maximum for analog mV/V in high-EMI industrial sites.

Digital vs. Analog Load Cells — Key Differences

Both digital and analog cells measure load using strain gauges, but diverge sharply in signal conditioning and EMI resilience. The table below captures the most significant practical distinctions for site engineers and system integrators.

Who These Load Cells Are For

Typical Applications

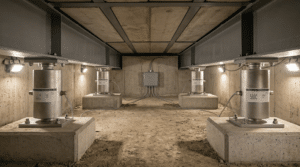

Truck Scales and Axle Weighing

Portable and permanent truck scales with four CD-LD cells (one per wheel group) connect via a single RS-485 cable to the vehicle or scale house. Each cell reports its weight independently, allowing the scale to balance load across the deck and calculate per-axle weight for legal-for-trade compliance. A single twisted shielded pair replaces four separate mV/V bundles, reducing installation labor and cutting spares inventory.

Tank and Hopper Weighing

Storage tanks sitting on three or four CD-LD cells continuously report weight to process control systems. The digital interface supports automatic corner balancing across all cells, eliminating the need for manual load adjustment or periodic recalibration. Remote diagnostics flag cell drift or cable damage before it affects inventory accounting.

Industrial Process Control and Batching

Batching systems for chemicals, food, and pharmaceuticals integrate CD-LD cells directly with PLCs, bypassing separate indicator hardware. Individual cell addressing enables mass balance verification across multiple hoppers on one RS-485 bus. Recorded cell-by-cell data supports regulatory compliance and traceability audits.

Mobile Equipment and Onboard Displays

Agricultural and construction equipment with integrated weighing systems mount CD-LD cells on hoppers or bodies. The built-in A/D converter and RS-485 output eliminate the need for vehicle-mounted amplifier modules, saving weight, space, and power draw. Data streams directly to cabin displays via the main control network.

Aeronautics and Aerospace Testing

Aircraft component testing, thrust measurement rigs, and structural fatigue test stands use digital load cells where long cable runs between test fixtures and control rooms are common. The RS-485 noise immunity is critical in aerospace facilities with high-power hydraulic actuators and electromagnetic interference from test equipment. Digital addressing allows multi-point load monitoring across wing spar test jigs or landing gear qualification fixtures without adding junction boxes at each measurement point.

How to Select the Correct Digital Load Cell

Capacity selection follows the same logic as analog cells: total applied load multiplied by a safety factor of 1.5 to 2.0. For truck scales, divide the legal maximum vehicle weight by four (or eight, for multi-axle configurations) and add 20% margin. For tank weighing, include the empty tank mass, multiply by 2× to account for uneven loading, then select the nearest CD-LD capacity.

The key decision point for digital vs. analog is site environment. If cable runs exceed 50 meters or the facility contains induction furnaces, servo drives, welding equipment, or high-current switchgear, digital cells eliminate noise issues that plague analog systems. Facilities with existing PLC infrastructure benefit from direct RS-485 integration, avoiding the cost of separate analog indicators.

Verify that your weighing terminal, transmitter, or PLC firmware supports RS-485 modbus or CANbus protocols. Transcell provides integration documentation for common platforms. If upgrading from analog to digital cells, confirm that corner correction logic is programmed into your control system; many analog scales rely on mechanical load balancing, while digital systems expect automatic electronic balancing.

Model Specifications & Data Sheets

Transcell manufactures six digital load cell models spanning canister, column, and double-ended configurations. Each model integrates RS-485 digital output with built-in A/D conversion. Select the model that matches your capacity requirement, cable length, and communication protocol.

CD-LD V17.7 — Digital Canister

Download CD-LD V17.7 Data Sheet (PDF)

CD V18.5 — Analog Canister

Download CD V18.5 Data Sheet (PDF)

CD-SD V19.6 — Digital Column

Download CD-SD V19.6 Data Sheet (PDF)

CD-SD2 V19.8 — Digital Column (Rev. 2)

Download CD-SD2 V19.8 Data Sheet (PDF)

DBSQD V18.5 — Double-Ended Digital

Download DBSQD V18.5 Data Sheet (PDF)

DBSQD2 V18.4 — Double-Ended Digital (Rev. 2)

Download DBSQD2 V18.4 Data Sheet (PDF)

Installation & RS-485 Wiring Guidelines

Bus Topology and Termination

Multiple CD-LD cells connect via a single twisted-pair RS-485 bus. The data line (A, B) runs from the master control unit (PLC or terminal) to the most distant slave cell and back. Termination resistors (typically 120 Ω) install at both ends of the cable run to prevent signal reflections. Omitting or misplacing termination resistors causes bit errors, communication timeouts, and loss of weight data in high-speed systems.

Cable Specifications

Use twisted-pair shielded cable rated for industrial RS-485 environments. Solid #18 or #20 AWG conductors support runs to 1200 meters at 9600 baud; thicker wire (stranded #16) resists field flexing if the cable is disturbed during maintenance. Shielding connects to ground at the PLC end only, not at the cell end, to prevent ground loops that amplify 50 Hz hum.

Address Configuration and Diagnostics

Each CD-LD cell ships with a factory-programmed address (typically 01–04 for a four-cell truck scale). Address configuration occurs at the control terminal or PLC before live operation. Remote diagnostics access cell status via RS-485: signal quality, A/D resolution margin, and any fault flags. A common field error involves assigning duplicate addresses to two cells, causing both to respond to queries and corrupt the data stream.

Grounding and Safety Considerations

The CD-LD’s hermetic seal isolates its internal electronics from moisture. However, the RS-485 shield and cell body should connect to the facility ground bus via a single point at the control system to drain any static charge. Do not run RS-485 cabling alongside high-voltage power lines or motor control cables; maintain 150 mm separation where crossing is unavoidable.

Standards & Calibration Considerations

Transcell manufactures the CD-LD series under ISO 9001 quality management. Every cell receives individual NIST-traceable calibration on dead-weight test stands before dispatch, with certificates documenting actual output at zero, 50%, and 100% capacity. This traceability chain is essential for processes governed by FDA 21 CFR Part 11, GMP, or legal-for-trade regulations.

For weighing systems intended as legal-for-trade instruments, the complete assembly (cell + indicator + cabling) must be certified to OIML R60 standards in your jurisdiction. The CD-LD’s high linearity and repeatability support Class C3 equivalent performance, but certification depends on indicator selection and installation quality. Consult Transcell engineering during system design to ensure regulatory compliance.

RS-485 communication conforms to EIA/TIA-485 electrical specifications. The CD-LD’s digital interface is not itself a legal measure; rather, the cell provides accurate weight data to the terminal or system that performs and reports the measurement. Many jurisdictions now accept digital weighing systems if the indicator is NTEP-certified and the load cells provide traceable calibration.

How Transcell Compares

CD-LD cells ship within 3–7 business days from the Illinois warehouse for standard capacities. Comparable imported digital cells quote 8–16 weeks lead time. For truck scale OEMs ramping production or plant engineers managing scheduled equipment replacements, that delivery speed translates to schedule reliability and reduced inventory carrying costs.

Every CD-LD includes NIST-traceable calibration and RS-485 integration documentation at no additional cost. Several competitors charge $300–500 per unit for calibration certificates or require a separate data sheet purchase. Transcell’s application engineering team responds to protocol questions, PLC integration requests, and capacity verification within 24 business hours, at no charge.

The CD-LD occupies a mid-tier price position relative to imported digital cells, with equivalent or superior specifications. Transcell has manufactured force and weight measurement equipment in the same Illinois facility since 1981, ensuring consistent quality and continuity of supply.
