Warehouse & Freight
Verify inbound pallet weights, confirm outbound freight before billing, and conduct receiving audits without routing loads to a fixed scale. Position beams at any dock door, staging area, or storage bay in minutes.
June Promo — Ends June 30, 2026 | 20% Off Guardian Premium & Platform Only | Free Ground Shipping Included | View Sale Prices →
Portable Weigh Beam Scale System
Wireless Weigh Beam Scale
A complete portable weigh beam scale system built for legal-for-trade commercial weighing. Fully wireless via Bluetooth, battery powered, and operational in under 5 minutes with no pit, no installation, and no contractor required. Two weigh beams, indicator, and carry handles included.
Free Ground Shipping

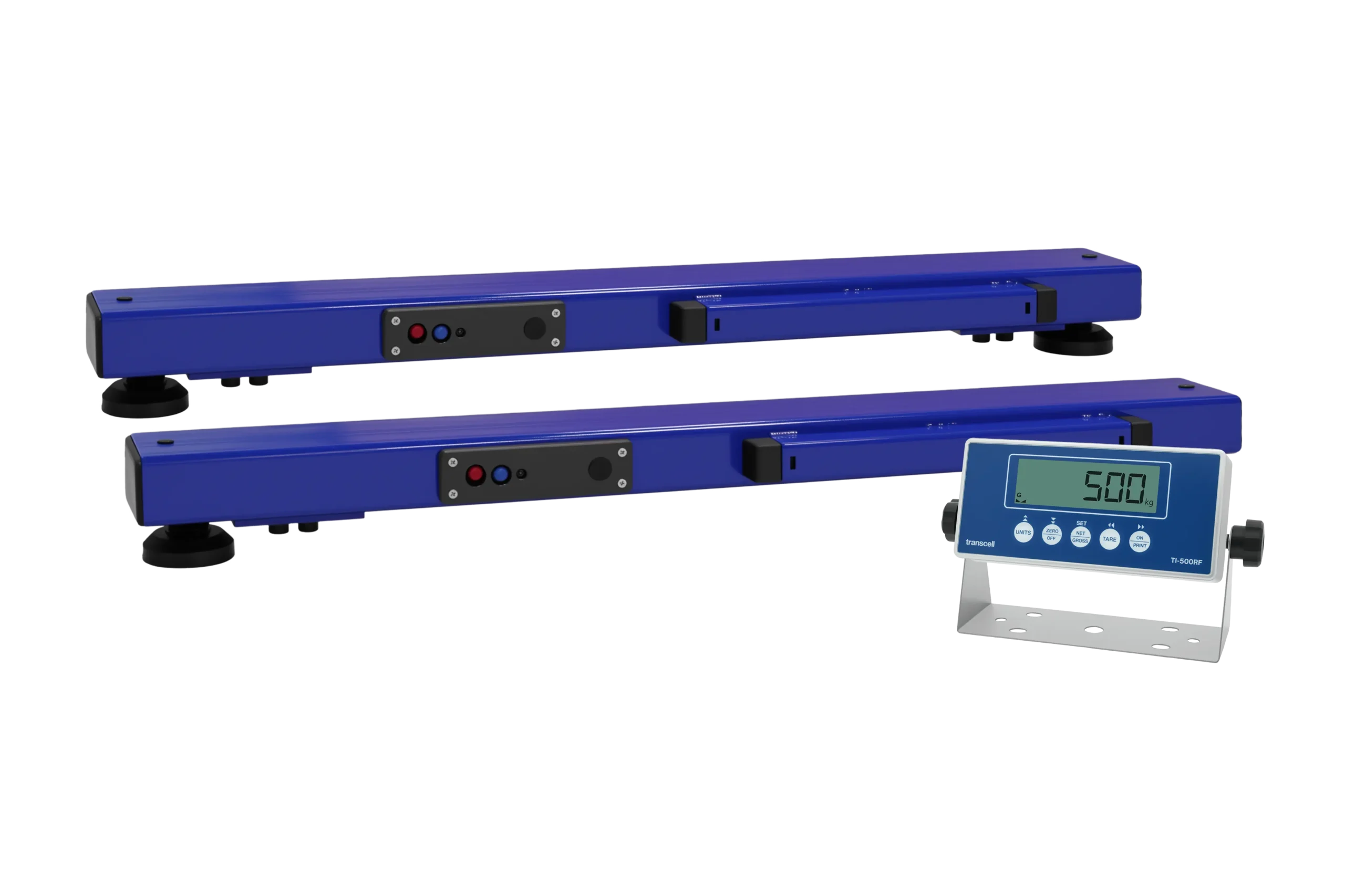

WB5040-AWP 40"
Aluminum Indicator
5,000 lbs Capacity · BT 5.0
$1,950
Free Ground Shipping

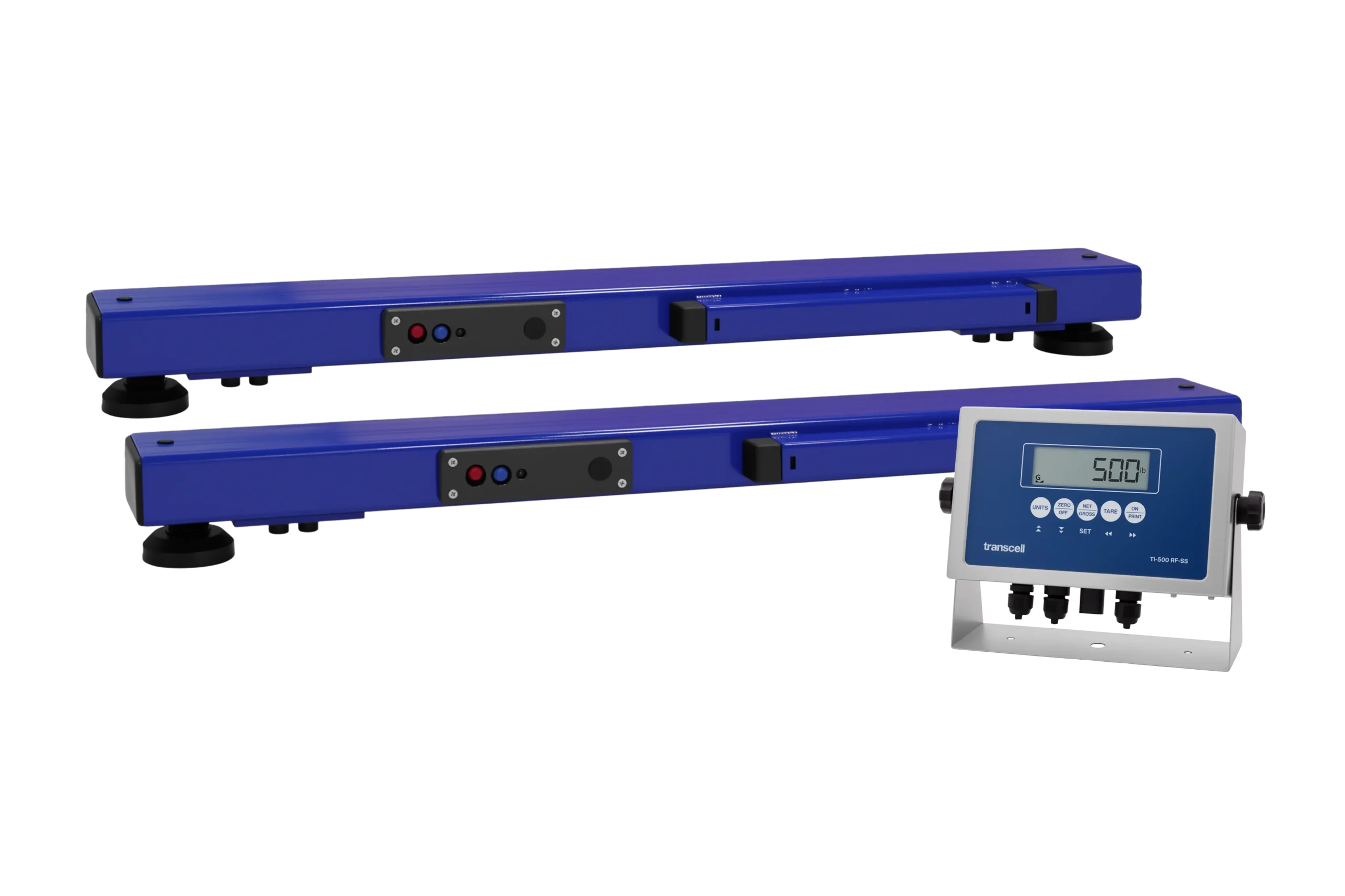

WB5040-SWP 40"
Stainless Steel Indicator
5,000 lbs Capacity · BT 5.0
$2,105
Where It Works
One System. Wherever You Weigh.
The WB5040 deploys across warehouses, manufacturing floors, chemical facilities, farms, and job sites, wherever portability and flexibility are the priority.
Drums & Chemicals
Monitor drum contents, track chemical dosing, and weigh barrels and IBCs in wet or corrosive environments. The SWP model's NEMA 4X stainless indicator is designed for chemical handling, food production, and full washdown.
Tanks & Hoppers
Slide beneath process tanks, silos, hoppers, or conveyor supports for portable process weighing with zero permanent installation. Remove and redeploy anywhere in the facility when the job is complete.
Large & Oversized Objects
Weigh oversized loads that can't be transported to a fixed scale: garage doors, HVAC units, prefabricated panels, steel fabrications, and heavy machinery components. At just 3.7 inches high with feet, the system slides under virtually any load-bearing surface.

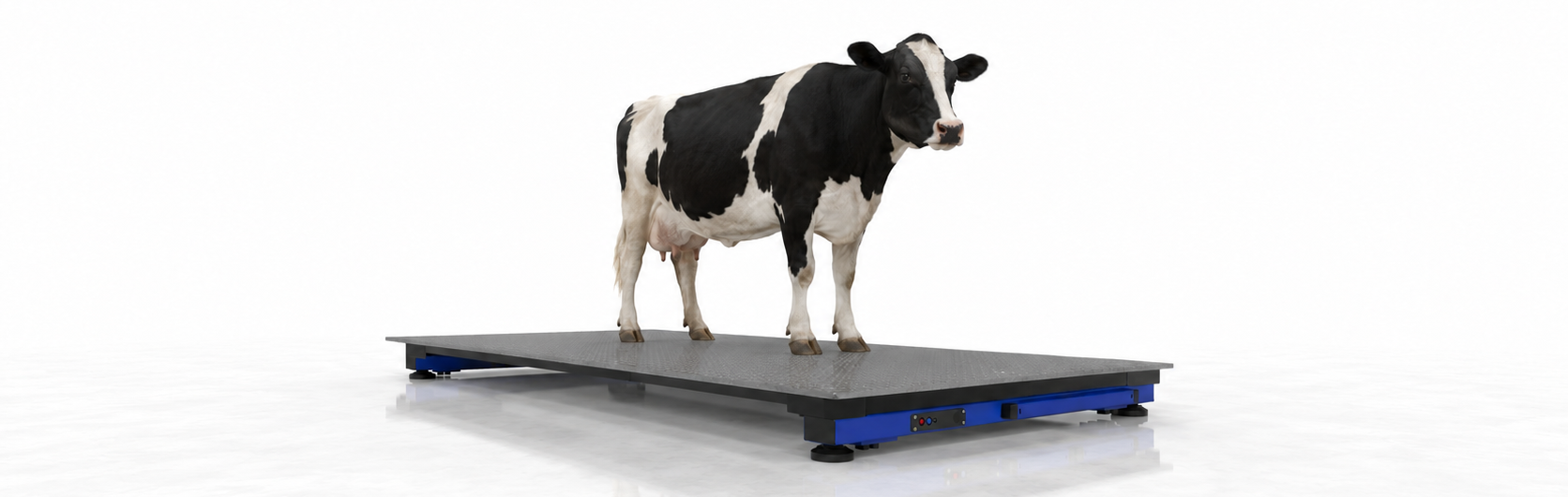

Livestock & Agriculture
Slide beneath an existing cattle chute or squeeze chute in minutes. EID/RFID compatibility automatically associates animal ID tags with weight readings. NTEP-approved load cells ensure legally accurate records.

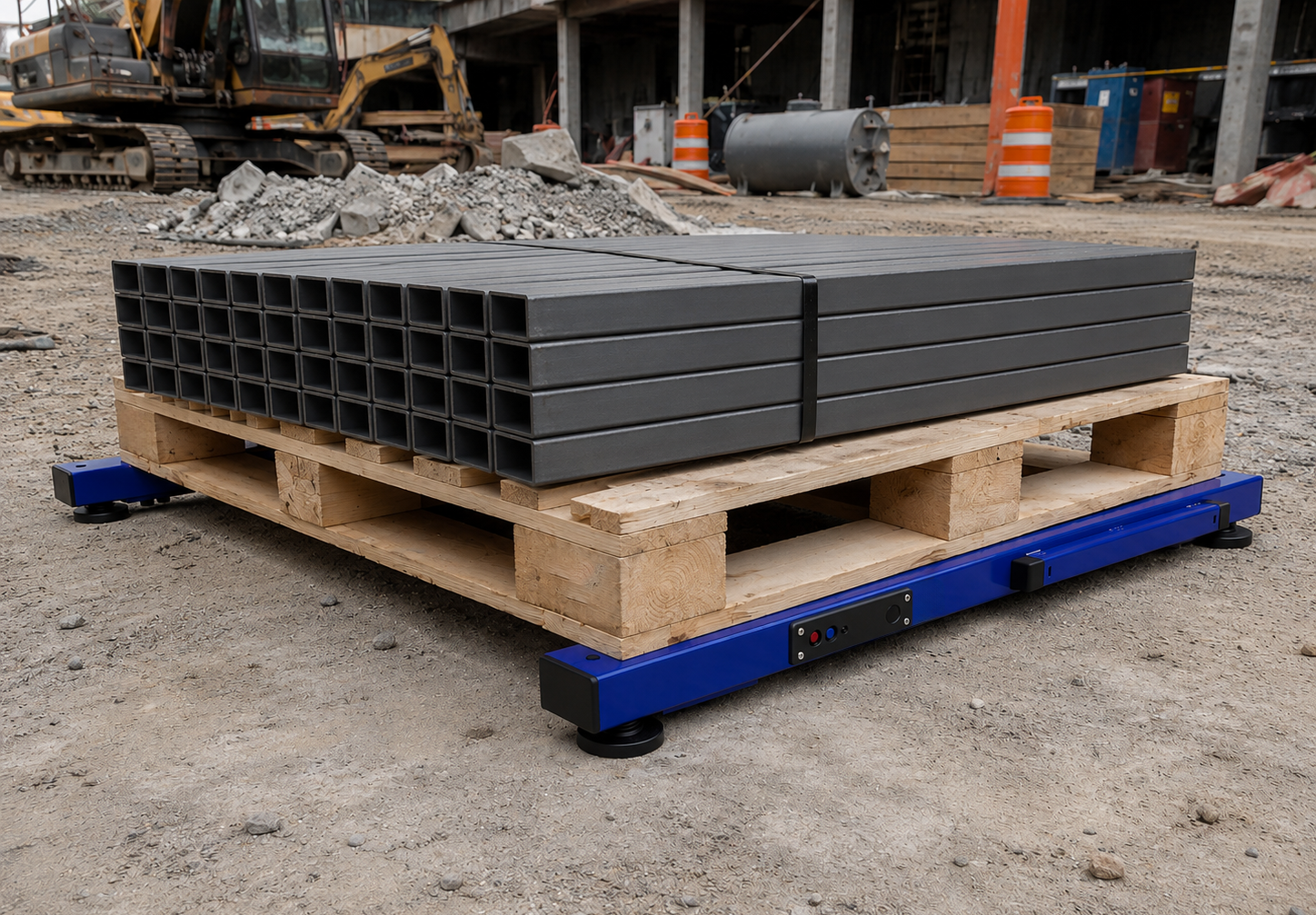

Construction & Job Sites
Weigh concrete blocks, steel fabrications, equipment components, and waste loads directly on-site. No fixed scale required. Position the beams at any staging area, loading zone, or material drop point in minutes.
Is It the Right Fit?
The WB5040 Works Where a Floor Scale Can't
Floor scales are the right tool for fixed, high-volume docks. But if your operation involves multiple locations, immovable loads, leased space, or the need to be weighing today, a portable weigh beam system is likely the better fit.
Weigh the load where it sits
Can't move a 3,000 lb drum or a loaded pallet to a fixed scale? The WB5040 slides under any supported load and delivers a certified reading in place, without moving anything.
Operational in under 5 minutes
Position the beams, connect wirelessly, and you're weighing. No pit, no ramp, no contractor, and no facility downtime. Fully deployed by one person from carry bag to first reading.
One system, multiple locations
Move the WB5040 between facilities, job sites, and staging areas without additional equipment. Built-in carry handles make it a one-person relocation with no tools required.
Commercial accuracy, no infrastructure
NTEP-approved load cells and indicator deliver legally traceable weight records for commercial transactions. No concrete work, no permit, and no electrician required.
System at a Glance
System Capacity5,000 lb (2 × 2,500 lb)
Operating Height3.7 inches (95 mm) with feet
Wireless Range100 m / 330 ft Bluetooth
Setup TimeUnder 5 minutes
Battery LifeExtended, AA or Rechargeable
CertificationNTEP-Approved Load Cells & Indicator
Why Transcell
Built for Industrial Use. Engineered to Last.
Every specification in the WB5040 is chosen to eliminate downtime, simplify deployment, and perform reliably in demanding environments, cable-free and without permanent installation.
100% Wireless Operation
Bluetooth 2.0 Class I with a 100-meter range. No cables to trip over, snag, or replace. Both beams transmit directly to the indicator.
NTEP-Approved Load Cells
Alloy steel shear beam load cells certified under the National Type Evaluation Program. Legal for commercial trade transactions in the US.
NEMA 4X Stainless (SWP)
The SWP indicator is fully washdown rated and corrosion resistant, purpose built for chemical handling, food production, and wet environments.
Battery Powered
No power outlet required. Beams run on C batteries; AWP uses AA, SWP uses a rechargeable pack. Auto-shutoff extends battery life in the field.
Ultra-Low 3.7″ System Profile
At just 3.7 inches high with feet installed, the system slides beneath virtually any supported load: pallets, drums, tanks, and oversized objects, without ramps or risers.
Auto Weight Capture
Configurable motion detection automatically records stable readings, ideal for livestock, batch processing, and high-throughput weighing operations.
Built-In Carry Handles
Each beam includes an integrated carry handle for single-person transport. Deploy at the loading dock, move to a production line, store flat when done.
RS-232 Data Transfer
Full duplex RS-232 for direct connection to PCs, label printers, or WMS/ERP systems. Internal clock transmits time and date stamp with every reading.
Full Specifications
Technical Data
Performance
Capacity5,000 lb × 1 lb (2,500 lb per beam)
Accuracy±0.04% to ±0.1% depending on installation
Overload Protection200% of full scale capacity
Load Cell TypeNTEP approved alloy steel shear beam
Operating Temp14°F to 104°F (−10°C to 40°C)
Connectivity & Data
WirelessBluetooth 2.0, Class I, 100 m range
Serial PortFull duplex RS-232
Optional PortsRS-232C, Bluetooth 2.0 Class I, Wi-Fi 802.11 b/g
Internal ClockTransmits time and date stamp
Physical Dimensions
Beam Length40 in (1,016 mm)
Operating Height3.7 in (95 mm) with feet
Bar Section Width3.9 in (100 mm)
Net Weight (system)65 lbs
Shipping Weight75 lbs
Indicator & Power
Indicator HousingAluminum, NEMA 12
Display6-digit backlit LCD
Keypad5-key tactile
Indicator Power4-AA batteries or AC adapter
Beam Power4-C batteries per beam
Beam ConstructionCarbon steel, high-grade epoxy paint
Performance
Capacity5,000 lb × 1 lb (2,500 lb per beam)
Accuracy±0.04% to ±0.1% depending on installation
Overload Protection200% of full scale capacity
Load Cell TypeNTEP approved alloy steel shear beam
Operating Temp14°F to 104°F (−10°C to 40°C)
Connectivity & Data
WirelessBluetooth 2.0, Class I, 100 m range
Serial PortFull duplex RS-232
Optional PortsRS-232C, Bluetooth 2.0 Class I, Wi-Fi 802.11 b/g
Internal ClockTransmits time and date stamp
Physical Dimensions
Beam Length40 in (1,016 mm)
Operating Height3.7 in (95 mm) with feet
Bar Section Width3.9 in (100 mm)
Net Weight (system)65 lbs
Shipping Weight75 lbs
Indicator & Power
Indicator HousingStainless Steel, NEMA 4X (washdown rated)
Display6-digit backlit LCD
Keypad5-key tactile
Indicator PowerRechargeable battery pack
Beam Power4-C batteries per beam
Beam ConstructionCarbon steel, high-grade epoxy paint
Request a Free Quote
Tell us about your application and we'll confirm the right model, verify NTEP requirements for your state, and send a quote direct from the manufacturer.
