Canister Load Cells
Applications

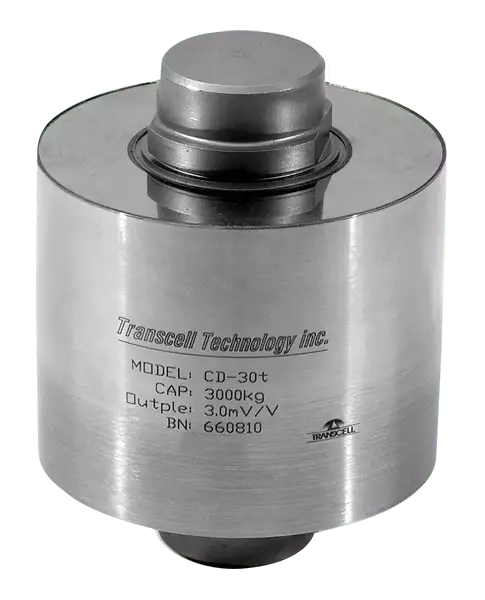

Transcell’s multi-column canister load cells handle high-capacity loads required on industrial scales. These column load cells deliver accurate force measurement for a range of industries and applications, including:
- Trucking and Railway Scales
- Storage Tanks and Silos
- OEM Equipment
- And more
Purchase in Our Store
Need a Custom Solution?
Contact UsFeatures & Benefits
- Hermetically Sealed
- Aluminum or Alloy Steel Construction
- Multi-Column Load Cell
- High Accuracy and Stability
- Digital and RS-485 Output
Technical Specifications
View All Model Details
CD V18.5
CD-GD V19.6
CD-HC V19.5
CD-SD V19.6
CD-SD2 V19.8
CR V18.5
DBSF V18.5
CD V18.5
| Specifications | |
|---|---|
| Rated Output | 2.0mV/V ± 10% |
| Zero Balance | ± 1% of rated output |
| Creep | ± 0.03% of applied load |
| Nonlinearity | ± 0.03% of rated output |
| Hysteresis | ± 0.03% of rated output |
| Repeatability | ± 0.03% of rated output |
| Temp Effect on Output | ± 0.002% of reading/°C |
| Temp Effect on Zero | ± 0.002% of output/°C |
| Cable Length | 6m [20.28ft] |
| Safe Temp Range | -10 to +70°C |
| Temp Comp Range | -10 to +40°C |
| Safe Overload | 150% of capacity |
| Input Impedance | 410 Ω |
| Output Impedance | 350 Ω |
| Insulation Resistance | 5000 MΩ |
| Rated Excitation | 10 V DC/AC |
| Max Excitation | 15 V DC/AC |
CD-GD V19.6
| Specifications | |
|---|---|
| Rated Output | 2.0mV/V ± 0.1% |
| Zero Balance | ± 1% of rated output |
| Creep | ± 0.03% of applied load |
| Nonlinearity | ± 0.03% of rated output |
| Hysteresis | ± 0.03% of rated output |
| Repeatability | ± 0.03% of rated output |
| Temp Effect on Output | ± 0.002% of reading/°C |
| Temp Effect on Zero | ± 0.002% of output/°C |
| Cable Length | 13m [43.94ft] |
| Safe Temp Range | -10 to +70°C |
| Temp Comp Range | -10 to +40°C |
| Safe Overload | 150% of capacity |
| Input Impedance | 1120 Ω |
| Output Impedance | 1000 Ω |
| Insulation Resistance | 5000 MΩ |
| Rated Excitation | 10 V DC/AC |
| Max Excitation | 15 V DC/AC |
CD-HC V19.5
| Specifications | |
|---|---|
| Rated Output | 2.0mV/V ± 0.005mV/V |
| Zero Balance | ± 1.0% of rated output |
| Creep | ± 0.03% of applied load |
| Nonlinearity | ± 0.03% of rated output |
| Hysteresis | ± 0.03% of rated output |
| Repeatability | ± 0.02% of rated output |
| Temp Effect on Output | ± 0.03% of reading/10°C |
| Temp Effect on Zero | ± 0.03% of output/10°C |
| Cable Length | 15m [49.21ft] |
| Safe Temp Range | -20 to +60°C |
| Temp Comp Range | -10 to +50°C |
| Safe Overload | 120% of capacity |
| Input Impedance | 350 Ω |
| Output Impedance | 350 Ω |
| Insulation Resistance | 5000 MΩ |
| Rated Excitation | 10 V DC/AC |
CD-SD V19.6
| Specifications | |
|---|---|
| Zero Balance | ±1.5% of rated output |
| Class of Accuracy | C3 / C6 |
| Data Transmission | RS485 interface with 2 wires Dual communication |
| Communication Protocol | Transcell definition |
| Data Refresh Frequency | 80 Hz/s |
| Rate of Data Signaling | 57600 bps |
| Load Cell Number Range | 1-10 |
| Safe Temp Range | -10 to +70℃ |
| Temp Comp Range | -10 to +40℃ |
| Safe Overload | 150% of capacity |
| Insulation Resistance | 2000 MΩ |
| Rated Excitation | 9-12 V DC/AC |
CD-SD2 V19.8
| Specifications | |
|---|---|
| Zero Balance | ±1.5% of rated output |
| Data Transmission | RS485 interface with 2 wires Dual communication |
| Communication Protocol | Transcell definition |
| Data Refresh Frequency | 80 Hz/s |
| Rate of Data Signaling | 57600 bps |
| Load Cell Number Range | 1-10 |
| Safe Temp Range | -10 to +70℃ |
| Temp Comp Range | -10 to +40℃ |
| Safe Overload | 150% of capacity |
| Insulation Resistance | 2000 MΩ |
| Rated Excitation | 9-12 V DC/AC |
CR V18.5
| Specifications | |
|---|---|
| Rated Output | 2.0mV/V ± 2.5% (<5t) / 3.0mV/V ± 2.5% (≥5t) |
| Zero Balance | ± 0.3% (≤100kg) / ± 1%(200kg-5t) of rated output |
| Creep | ± 0.03% of applied load |
| Nonlinearity | ± 0.03% of rated output |
| Hysteresis | ± 0.03% of rated output |
| Repeatability | ± 0.03% of rated output |
| Temp Effect on Output | ± 0.002% of reading/°C |
| Temp Effect on Zero | ± 0.002% of output/°C |
| Cable Length | 2.76m [9.02ft] |
| Safe Temp Range | -10 to +70°C |
| Temp Comp Range | -10 to +40°C |
| Safe Overload | 150% of capacity |
| Input Impedance | 387 Ω |
| Output Impedance | 350 Ω |
| Insulation Resistance | 5000 MΩ |
| Rated Excitation | 10 V DC/AC |
| Max Excitation | 15 V DC/AC |
DBSF V18.5
| Specifications | |
|---|---|
| Rated Output | 2.0mV/V ± 0.5% (<5t) |
| Zero Balance | ± 0.02% of rated output |
| Creep | ± 0.05% of applied load |
| Nonlinearity | ± 0.3% of rated output |
| Hysteresis | ± 0.3% of rated output |
| Repeatability | ± 0.3% of rated output |
| Temp Effect on Output | ± 0.03% of reading/°C |
| Temp Effect on Zero | ± 0.03% of output/°C |
| Cable Length | 14m (30-100t) / 200m (200t) |
| Safe Temp Range | -10 to +70°C |
| Temp Comp Range | -10 to +40°C |
| Safe Overload | 150% of capacity |
| Input Impedance | 750 Ω |
| Output Impedance | 700 Ω |
| Insulation Resistance | 5000 MΩ |
| Rated Excitation | 10 V DC/AC |
| Max Excitation | 15 V DC/AC |
| CD V18.5 | View Sheet |
| CD-GD_Datasheet_Eng._V19.6 | View Sheet |
| CD-HC_Datasheet_Eng._V19.5 | View Sheet |
| CD-SD_Datasheet_Eng._V19.6 | View Sheet |
| CD-SD2_Datasheet_Eng._V19.8 | View Sheet |
| CR V18.5 | View Sheet |
| DBSF V18.5 | View Sheet |
