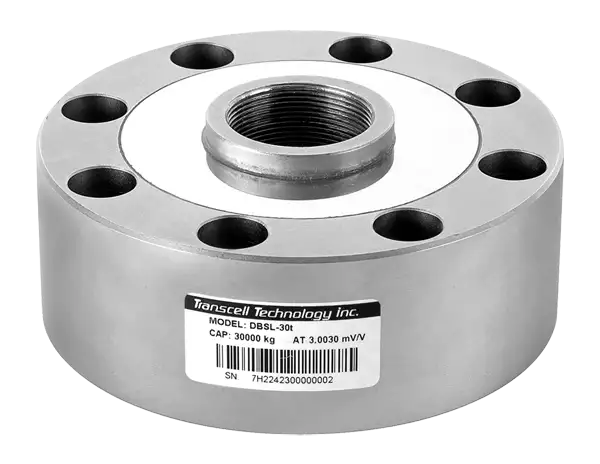

DBSL Pancake Load Cell
Off-axis / eccentric load mitigation, a wide range of capacities, and optional tension base make the DBSL a great all-around performer
Applications
Pancake load cells are known for their strong performance for compression measurements. But, by adding an optional tension base, the DBSL can also measure in tension or bidirectionally.
Purchase in Our Store
Need a Custom Solution?
Contact UsAccurate, Repeatable
Wide Range of Capacities
Technical Specifications
View All Model Details
Insert Schematic Here
| Specifications | |
|---|---|
| Rated Output | 3.0mV/V ± 0.25% |
| Zero Balance | ± 1% of rated output |
| Creep | ± 0.03% of applied load |
| Nonlinearity | ± 0.03% of rated output |
| Hysteresis | ± 0.03% of rated output |
| Repeatability | ± 0.03% of rated output |
| Temp Effect on Output | ± 0.002% of reading/°C |
| Temp Effect on Zero | ± 0.002% of output/°C |
| Cable Length | 6m [19.69ft] / 10m [32.81ft] |
| Safe Temp Range | -10 to +70°C |
| Temp Comp Range | -10 to +40°C |
| Safe Overload | 150% of capacity |
| Input Impedance | 775 Ω / 387 Ω (≤20t) |
| Output Impedance | 700 Ω / 350 Ω (≤20t) |
| Insulation Resistance | 5000 MΩ |
| Rated Excitation | 10 V DC/AC |
| Max Excitation | 15 V DC/AC |
