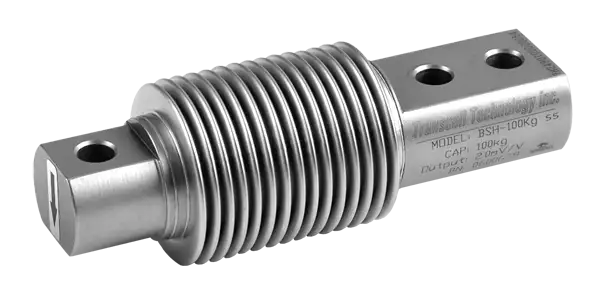

BSH Single-Ended Shear Beam
An economical and accurate load cell designed to survive harsh environments
Applications
Standard IP67 rating (IP68 optional) makes the BSH a strong choice for harsh industrial environments while delivering impressive accuracy.
Purchase in Our Store
Need a Custom Solution?
Contact UsIP67 Standard / IP68 Option
Welded Design Seales Load Cell
Accuracy Meets C3 Class
Technical Specifications
View All Model Details
Insert Schematic Here
| Specifications | |
|---|---|
| Rated Output | 2.0mV/V ± 0.1% |
| Zero Balance | ± 1% of rated output |
| Creep | ± 0.03% of applied load |
| Nonlinearity | ± 0.03% of rated output |
| Hysteresis | ± 0.03% of rated output |
| Repeatability | ± 0.03% of rated output |
| Temp Effect on Output | ± 0.002% of reading/°C |
| Temp Effect on Zero | ± 0.002% of output/°C |
| Cable Length | 3m [10.14ft] |
| Safe Temp Range | -10 to +70°C |
| Temp Comp Range | -10 to +40°C |
| Safe Overload | 150% of capacity |
| Input Impedance | 387 Ω |
| Output Impedance | 350 Ω |
| Insulation Resistance | 5000 MΩ |
| Rated Excitation | 10 V DC/AC |
| Max Excitation | 15 V DC/AC |
