Wireless Load Cells & RF Weighing Systems

What Are Wireless Weighing Systems

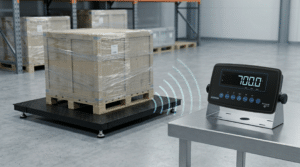

A wireless weighing system combines load cell technology with RF transmission to eliminate the cable connection between the scale platform and the readout indicator. The load cell, integrated with an RF transmitter module, converts mechanical force into a digital weight signal and transmits it over a license-free radio frequency to a receiver inside the indicator. No running cable through walls, across production floors, or through hazardous areas.

Transcell’s wireless offering uses time-tested RF technology (not WiFi or Bluetooth), which was developed for industrial scales decades ago and remains the industrial standard for reliable wireless weighing. The transmission occurs over an ISM band frequency that requires no FCC licensing, no subscription, and no network dependency. The system operates standalone, making it ideal for mobile scales, retrofit installations, and temporary weighing stations where permanent infrastructure isn’t available.

Key System Features

Who These Wireless Systems Are For

Typical Applications

Mobile Crane Scales

A crane operator needs to weigh loads before lifting. A wireless Guardian platform mounts on a cart or temporary frame beneath the crane hook. The operator carries the TI-500 RF indicator, reads the weight at the load position, and communicates the tonnage to the crane. The battery-powered indicator needs no external power lines and operates at temperatures ranging from +10°C to +70°C.

Remote Tank & Silo Weighing

A 50-gallon bulk chemical tank sits 400 feet from the warehouse office. Instead of running a cable that long (signal attenuation, lightning risk, maintenance headaches), a wireless load cell mounts under the tank platform. The RF transmitter broadcasts the weight to a TI-500 indicator in the office. Operators verify tank level without walking to the tank.

Portable Platform Scales for Hazardous Environments

A classified hazardous location (Class I, Division 1 or 2) requires explosion-proof or intrinsically safe equipment. A wireless-equipped load cell transmitter avoids the need for explosion-proof connector housings and lengthy cable entries through the classified boundary. The RF signal carries the weight outside the hazardous zone to a standard indicator.

Construction Site Weighing

A concrete contractor operates a temporary batching plant at three different job sites per month. Instead of purchasing dedicated weighing platforms for each site, the contractor deploys a single wireless Guardian floor scale and battery-powered indicator. Setup time: under 30 minutes. Teardown: roll the platform onto a truck.

Portable Truck & Vehicle Scales

Portable scales that weigh trucks during material delivery mount on temporary concrete pads. Wireless load cells eliminate cable runs across the yard and reduce setup complexity. The operator moves the indicator from truck to truck, each time polling the nearest wireless receiver for updated weight data.

How to Select a Wireless Weighing System

Determine Required Capacity

Estimate the maximum weight to be measured: full tank, loaded truck, suspended crane load. Apply a 1.5× to 2× safety factor to account for impact loading. Transcell’s Guardian Premium scales come in 5,000 lb and 10,000 lb capacities. For applications exceeding 10,000 lb, consult Transcell engineering about custom wireless-equipped load cells paired with your existing scale structure.

Assess the RF Transmission Environment

RF range of 300 feet assumes clear line-of-sight between the scale and the indicator. Concrete walls, metal structures, and dense rebar reduce effective range. If the distance exceeds 300 feet or obstructions block the signal, Transcell offers external antennas and signal boosters to extend coverage. Verify the distance and obstructions at your site.

Choose Power Source

The TI-500 RF indicator operates on rechargeable batteries for up to 200 hours of continuous weighing (fewer hours if the display is backlighted at night). If the indicator stays in one fixed location, an optional AC adapter eliminates battery management. For mobile operations, battery power provides the flexibility to move the indicator to remote scales.

Consider Environmental Conditions

Wireless systems operate in temperatures from +10°C to +70°C. The TI-500 stainless steel enclosure resists splash and humidity (IP67 rated). For extremely corrosive environments (salt air, chemical mist), protective covers over the scale and indicator extend service life.

Verify Certification Requirements

If your weighing system must be legal-for-trade (e.g., selling material by weight, invoicing customers), the system must carry NTEP certification. Transcell’s Guardian Premium scales and TI-500 RF indicator both hold NTEP approval as a combined system. Documentation and periodic recertification requirements depend on your jurisdiction; confirm with local weights and measures authorities.

Installation & Signal Considerations

Line-of-Sight Transmission

RF propagation works best when the transmitter (on the scale) and receiver (in the indicator) have a clear, unobstructed path. Dense metal structures, underground installations, and interior wall penetrations reduce signal strength. If the scale sits indoors and the indicator is outdoors (or vice versa), the signal passes through the walls; test range and signal strength during installation to confirm adequate reception.

Antenna Placement

The RF transmitter module on the load cell and the receiver antenna on the indicator should face each other without major obstructions between them. Raising the indicator antenna to a higher elevation (rooftop, elevated post) improves range. Metal structures near the transmitter or receiver can reflect or absorb RF energy; adjust placement if reception is weak.

RF Interference & Frequency Coordination

Transcell’s wireless systems operate on a license-free ISM frequency band. Other devices using the same band (WiFi, industrial heaters, some cordless phones) may cause interference. If you experience erratic readings or loss of signal, the cause is often RF interference. Transcell engineering can recommend frequency shifts or confirm coexistence with other equipment on site.

Battery Maintenance

The TI-500 indicator uses rechargeable NiMH or lithium-ion batteries. Charge the indicator overnight or weekly, depending on usage hours. Battery performance degrades in cold temperatures; store and operate the indicator above +10°C. Batteries typically last 2–3 years; replacement kits are available from Transcell.

Periodic System Checks

Every month, place a known weight on the scale platform and verify that the indicator displays the correct weight within ±0.05% of the known load. If readings drift, recalibrate the system following the TI-500 user manual. For NTEP-certified systems, annual recertification by an approved scale technician is required in most jurisdictions.

Standards & Certification

Transcell manufactures wireless Guardian platforms and TI-500 indicators under an ISO 9001 quality management system. The Guardian scales carry NTEP certification, meaning they have passed accuracy and metrological testing to be used as legal-for-trade weighing instruments in commerce. The TI-500 RF indicator is also NTEP certified when paired with Guardian scale platforms.

The RF transmitter module inside wireless load cells complies with FCC Part 15 regulations for license-free ISM band operation. No FCC licensing is required to deploy the system. However, confirm that your installation complies with any local frequency-use rules for your country or region.

For systems used in hazardous areas (classified locations), verify that the scale and indicator comply with the appropriate safety standards (e.g., ATEX, IEC Ex, NEC Article 500 in the United States). Transcell can advise on hazardous-area certification options and component selection.

How Transcell Wireless Systems Compare

Transcell integrates load cell technology, RF transmission, and indicator design into a complete system, rather than sourcing separate components from multiple vendors. This integration simplifies compatibility testing, reduces system integration errors, and ensures that all components work together. A customer who assembles wireless systems from independent wireless load cell suppliers and third-party indicators often encounters synchronization issues that consume engineering time to resolve.

Guardian Platform scales are manufactured in-house in Illinois and ship within 5–10 business days for standard capacities. Imported wireless scales typically require 8–16 weeks lead time. For customers who need to deploy a wireless weighing system quickly, Transcell’s domestic manufacturing advantage is substantial.

Every Guardian scale includes a NIST-traceable calibration certificate and NTEP certification documentation. Third-party wireless scales often require additional fees for certification documents. Transcell includes them with every unit. Application engineering support responds to technical questions about RF range, hazardous-area compliance, and system performance within 24 business hours.

Transcell’s wireless systems cost less than systems combining premium wireless load cells with specialized indicators, and more than importing basic RF platforms from overseas. The value proposition centers on integrated design, domestic availability, and engineering support that reduces your project timeline.
