Shear Beam Load Cells for Floor Scales, Tanks & Industrial Platforms
An engineering reference for selecting, specifying, and integrating shear beam load cells in floor scales, tank and hopper weighing, batching systems, conveyors, and heavy-duty industrial platforms.
Browse Single-Ended Beams · Browse Double-Ended Beams · ← Load Cells Guide · All Type Guides
TL;DR — Shear Beam Load Cell Overview
- What: A shear beam load cell — a type of beam load cell, floor scale load cell, or platform scale sensor — is a strain-gauge transducer that measures force through shear strain in a machined metal beam. One end is fixed to the structure; the other end is loaded. The most widely used load cell type in industrial weighing.
- Key advantage over other types: Inherent resistance to side loads and bending errors, rugged construction, and proven stability in multi-cell platform configurations. Shear beams are more tolerant of imperfect load introduction than bending beams, and scale to higher capacities than single-point load cells.
- Primary applications: Floor scales, pallet scales, tank and hopper weighing, batching and dosing systems, belt scales, conveyor weighing, mixer and blender systems, livestock weighing.
- Transcell families: SBS single-ended (alloy steel, 250–20,000 lb), SBS NTEP (certified models), SBSB stainless steel welded seal (1,000–10,000 lb), DBS double-ended (10,000–50,000 lb).
- Key specs: 250 lb to 50,000 lb capacity range, combined error ≤ ±0.02–0.03% F.S., output 2.0–3.0 mV/V, IP67/IP68 (stainless), OIML R60 and NTEP models available.
- When NOT ideal: Compact bench scales within single-point platform size limits (use single-point), tension or hanging loads (use S-type), press-force and low-profile compression (use pancake), ultra-compact fixtures (use button).
- Manufacturer: Transcell Technology, Buffalo Grove, IL — U.S.-based manufacturer with OIML/NTEP certified models, calibration services, OEM integration support, and cross-reference compatibility with Sensortronics, Rice Lake, Tedea, Celtron, Artech, and Revere models.
What Is a Shear Beam Load Cell?
A shear beam load cell is a strain-gauge sensor that measures force through shear stress developed in a machined metal beam. Internally, a pocket or pattern of holes concentrates shear strain in a predictable region. Strain gauges bonded to that region — typically oriented at 45° to the beam axis — detect the shear deformation and convert it into a proportional mV/V output via a Wheatstone bridge circuit.
Engineers and weighing-system designers also refer to these as beam load cells, floor scale load cells, platform scale sensors, or industrial weighing sensors. They are available in single-ended and double-ended configurations, and are used in multi-cell systems with a junction box to sum and trim outputs across three or four cells.
Because shear strain is measured in a region relatively insensitive to pure bending, shear beam load cells are inherently tolerant of side loads and imperfect load introduction — making them the preferred choice for heavy-duty industrial environments where forklift abuse, thermal expansion, vibration, and washdown are common realities.

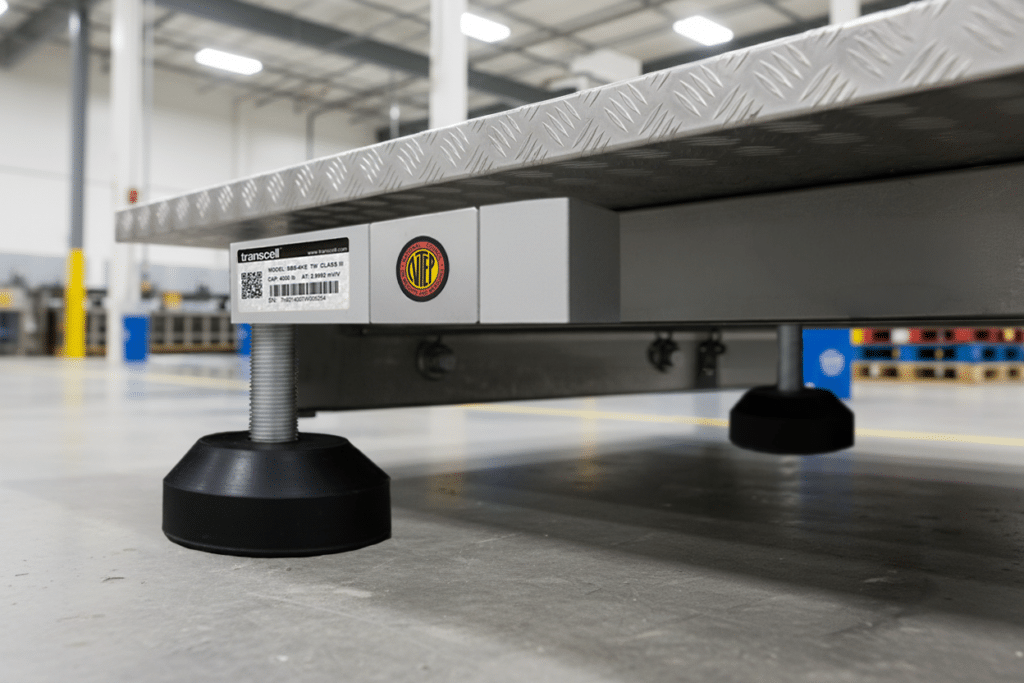

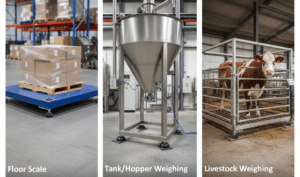

Shear beam load cells in real systems: floor scales, tank/hopper weighing, and livestock weighing.
How Shear Beam Load Cells Work
A shear beam load cell uses a machined pocket or blind hole in the beam to create a defined shear zone. When force is applied to the loading end, the beam deflects and shear stress concentrates at the gauge region. Strain gauges bonded at 45° to the beam axis detect this shear strain and produce a resistance change. Wired into a Wheatstone bridge, the resistance change becomes a differential mV/V output proportional to the applied force.
The key engineering advantage is that the gauges are placed in a pure-shear zone where bending moments have minimal influence. This means the output is relatively insensitive to exactly where on the loading surface the force is applied, and to moderate side loads that would cause significant errors in a simple bending beam design.
In multi-cell systems (typically three or four cells per platform), each cell’s output is summed through a junction box that also provides corner adjustment (trimming) to equalize the contribution of each cell. The combined signal feeds an indicator or signal conditioner for display, control, or data logging.

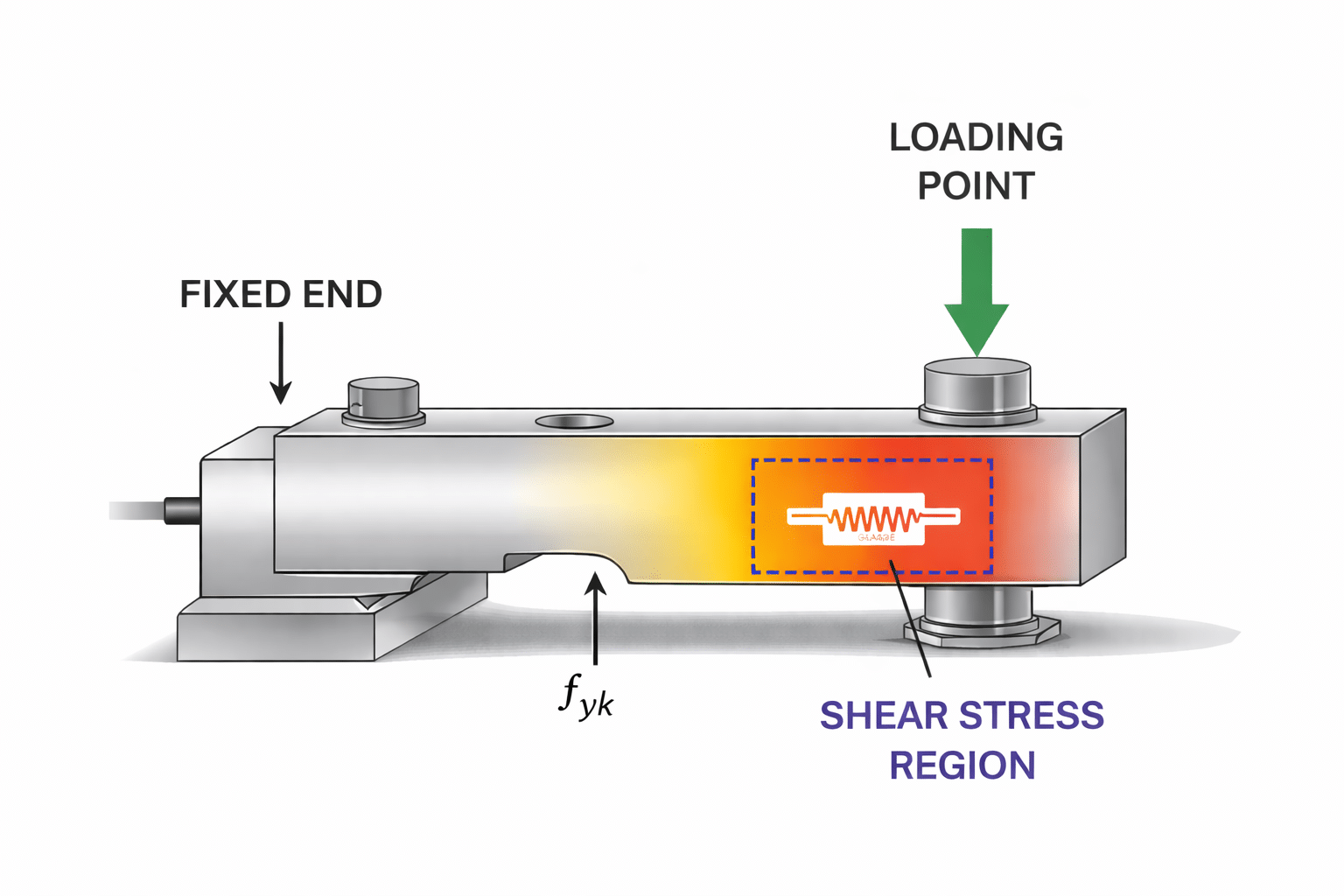

Shear beam concept: one end fixed, one end loaded, strain gauges bonded in the concentrated shear zone.
When Engineers Choose Shear Beam Load Cells
- Floor scales and pallet scales: The default industrial platform sensor. Four single-ended beams with a junction box deliver reliable weighing for logistics, warehousing, and shipping.
- Tank, hopper, and silo weighing: Shear beams in weighing modules monitor vessel contents by weight. Modules include self-checking mounts, thermal expansion allowances, and uplift restraints.
- Batching and dosing systems: Ingredient dispensing, recipe batching, and loss-in-weight control in food, chemical, pharmaceutical, and coatings manufacturing.
- Belt scales and conveyor weighing: Mounted under the conveyor frame to measure material flow rate by weight. Requires mechanical isolation from belt tension and vibration.
- Mixer, blender, and reactor weighing: Dynamic environments with changing loads, vibration, and often chemical exposure. Stainless steel welded-seal models are common.
- Livestock weighing: Outdoor platforms in agriculture environments where animals shift position and weather exposure is constant.
- On-board vehicle weighing: Mounted on truck chassis or trailers for real-time load monitoring during transport.
When Shear Beam Load Cells Are Not Ideal
- Compact bench scales within single-point limits: If the platform fits within a single-point model’s rated size, a single-point load cell is simpler and lower cost.
- Tension or suspended loads: Shear beams are compression-only in standard configurations. Use an S-type load cell for hanging, in-line tension, or bidirectional force measurement.
- Press-force and low-profile compression: Where installation height is limited and axial compression is the primary force, a pancake load cell fits better.
- Ultra-compact tooling and fixtures: Robotics end-effectors, medical devices, and lab fixtures requiring miniaturized form factors are better served by button load cells.
- Very high capacities (>50,000 lb): At extreme capacities, canister or column compression load cells may offer better performance per unit cost.
Single-Ended vs. Double-Ended Shear Beams
| Criterion | Single-Ended (SBS / SBSB) | Double-Ended (DBS) |
|---|---|---|
| Mounting | Fixed at one end; loaded at the free end | Fixed at both ends; loaded in the center |
| Typical capacity | 250 lb to 20,000 lb | 10,000 lb to 50,000 lb |
| Common applications | Floor scales, pallet scales, conveyors, small tanks | Truck scales, weighbridges, large tank systems, heavy-duty platforms |
| Load introduction | Through a loading foot, rocker, or weigh module top plate | Center-loaded through a bearing plate or rocker |
| Side-load tolerance | Good — shear zone is relatively insensitive | Very good — symmetrical support further reduces side-load effects |
| Installation complexity | Simpler — one bolt pattern per cell | Requires center loading alignment and dual support |
| Cost | Lower per cell | Higher per cell, but fewer cells may be needed |
For most floor scales, pallet scales, and process vessels, single-ended beams (SBS or SBSB) in a four-cell configuration are the standard approach. Double-ended beams (DBS) are typically specified for truck scales, heavy-duty weighbridges, and large-capacity platform systems where the center-loaded geometry is mechanically preferred.
Transcell Shear Beam Load Cell Families
Transcell manufactures single-ended and double-ended shear beam load cells to cover a wide capacity range, with options in alloy steel and stainless steel. Many models are dimensionally compatible with industry-standard beams for direct replacement.
SBS Series — Single-Ended Shear Beam (Alloy Steel)
Nickel-plated alloy steel construction. Capacities from 250 lb to 20,000 lb. The most widely used Transcell beam family for floor scales, mixing systems, conveyor weighing, and general industrial platforms. Multiple NTEP-certified models available. Cross-compatible with Sensortronics 65023A, Rice Lake RL30000/RL35023, Tedea 3411, Celtron SQB, and Artech 30310.
SBS Series → · SBS NTEP Models →
SBSB Series — Stainless Steel Welded Seal
Stainless steel construction with welded-seal enclosure for harsh environments. Capacities from 1,000 lb to 10,000 lb. Designed for washdown food processing, chemical exposure, outdoor tank weighing, and environments requiring IP67/IP68 protection. Cross-compatible with Rice Lake RL39123, Revere 9123, Celtron SQB HSS, and Sensortronics 65023 SS.
DBS Series — Double-Ended Beam
Alloy steel double-ended beam for heavy-duty applications. Capacities from 10,000 lb to 50,000 lb. Used in truck scales, weighbridges, and large-capacity platform systems. Cross-compatible with Rice Lake RL75016, RTI 5203, Sensortronics 65016, and Celtron DSR.
SBS Weighing Modules
Integrated assemblies combining the SBS shear beam with a self-checking mount, top plate, and uplift restraint. Simplifies tank, hopper, and vessel weighing by controlling the load path, thermal expansion, and side forces at the mount level.
Browse All Single-Ended Beams → · All Double-Ended Beams →
Key Specifications
The following table summarizes typical specification ranges across Transcell shear beam families. Always consult the model-specific datasheet for exact values.
| Parameter | Typical Range / Options |
|---|---|
| Rated Capacity | 250 lb to 50,000 lb (single-ended to double-ended range) |
| Material | Nickel-plated alloy steel (SBS, DBS) or stainless steel welded seal (SBSB) |
| Rated Output | 2.0–3.0 mV/V nominal |
| Recommended Excitation | 5–15 VDC (model dependent) |
| Combined Error | ≤ ±0.02% to ±0.03% F.S. |
| Repeatability | ≤ ±0.01% F.S. |
| Safe Overload | 150% F.S. typical |
| Ultimate Overload | 300% F.S. typical |
| Sealing / Protection | IP66/IP67 (alloy steel), IP67/IP68 (stainless welded seal) |
| Approvals | OIML R60 C3/C4, NTEP (select SBS models) |
| Cable | 4-wire standard; 6-wire available for long runs |
For exact dimensions, bolt patterns, and load introduction details, see individual product pages or contact Transcell engineering.
Multi-Cell System Design: Junction Boxes & Corner Trimming
Most shear beam installations use multiple cells — typically four for a platform scale or three to four for a tank/hopper system. Each cell’s mV/V output is routed to a junction box, which sums the signals and provides trim pots for corner adjustment.
- Junction box function: Sums individual cell outputs into a single combined signal for the indicator. Trim pots (potentiometers) allow adjustment of each cell’s contribution to equalize readings across the platform.
- Cable matching: Use equal cable lengths from each load cell to the junction box to maintain consistent impedance. If lengths must differ, use sense-line (6-wire) cables and an indicator with sense-line compensation.
- Corner adjustment: After installation, place a known test weight in each corner of the platform and adjust trim pots until all corners read within specification. This ensures accurate weighing regardless of load position.
Browse Junction Boxes → · Digital Indicators →
Mounting, Load Introduction & Installation

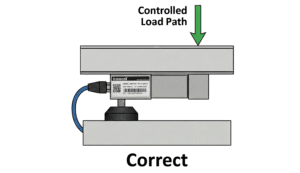

Proper mounting is critical for shear beam accuracy and longevity. Even the best load cell cannot compensate for a platform that twists, binds, or imposes uncontrolled side loads.
- Mounting surface: Flat, rigid, and hardened. Both the base and the cell’s fixed end must be bolted to a solid structure. Use the recommended torque values from the datasheet.
- Load introduction: Force should enter through the intended loading surface — a rocker foot, spherical washer, weigh module top plate, or flat loading pad. Avoid loading directly on the cell body outside the designated area.
- Side loads and check rods: Use mechanical restraints (check rods, bumper bolts, flexures) that allow vertical movement while limiting horizontal travel. Critical for tank/vessel systems where piping forces and thermal expansion generate lateral loads.
- Overload protection: Install mechanical stops or bumpers to prevent overload from forklift impact, sudden load drops, or seismic events.
- Leveling: All cells in a multi-cell system must be on the same plane. An unlevel foundation introduces cross-loading between cells and reduces accuracy.
- Cable routing: Route cables away from heat sources, sharp edges, moving equipment, and power cables. Use conduit or cable trays in industrial environments. Strain relief at the cable exit prevents damage during maintenance.
For tank and vessel systems, Transcell recommends weighing modules that integrate the shear beam with self-checking mounts, expansion allowances, and uplift restraints — simplifying installation and reducing engineering time.
Wiring & Signal Conditioning
Most Transcell shear beam load cells use 4-wire or 6-wire cables. Always confirm color codes with the model-specific datasheet.
| Function | Typical Color (4-wire) | 6-Wire Addition |
|---|---|---|
| Excitation + | Red | — |
| Excitation − | Black | — |
| Signal + | Green | — |
| Signal − | White | — |
| Sense + | — | Blue (typical) |
| Sense − | — | Yellow (typical) |
| Shield / Drain | Bare | Bare |
For cable runs exceeding several meters — common in floor-scale and tank installations — 6-wire cables with sense-line compensation improve accuracy by correcting for voltage drop in the excitation path.
The combined mV/V signal from the junction box connects to an indicator, transmitter, or PLC analog module. For 4–20 mA or 0–10 V output to a PLC, use a signal conditioner or transmitter between the junction box and the controller.

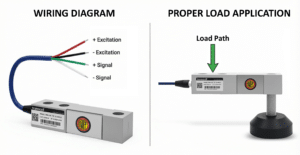

Wiring and load direction for a single-ended shear beam. Confirm colors with the model datasheet.
Applications
Shear beam load cells are the default choice wherever rugged, medium-to-high capacity platform weighing or vessel monitoring is required.
- Floor and pallet scales: Warehousing, shipping, receiving, and production — the most common shear beam application worldwide.
- Tank, hopper, and silo weighing: Real-time contents monitoring, batching control, and level-by-weight in process environments. Weighing modules simplify installation.
- Batching and dosing: Recipe batching, ingredient dispensing, and loss-in-weight feeding in food, pharmaceutical, chemical, and coatings plants.
- Belt and conveyor scales: Bulk material flow measurement mounted under conveyor frames.
- Mixer and blender weighing: Dynamic weighing during mixing where vibration and product impact are constant.
- Livestock weighing: Outdoor agricultural platforms for animal weighing and herd management.
- Truck scales and weighbridges: Double-ended beams (DBS) for high-capacity vehicle weighing.
- On-board vehicle weighing: Chassis-mounted sensors for real-time load monitoring during transport.
Related: Integrated Weighing Systems · Conveyor Weighing · On-Board Weighing · Manufacturing · Agriculture · Logistics
Certifications & Accuracy Classes
Select Transcell SBS models carry OIML R60 and NTEP certifications for legal-for-trade applications.
- OIML R60 C3 / C4: Accuracy classes supporting high-resolution commercial and industrial scales. C3 supports up to 3,000 verification intervals; C4 supports up to 4,000.
- NTEP (U.S.): Certificates of Conformance for legal-for-trade floor scales, pallet scales, and commercial weighing systems. Check individual model pages for NTEP certificate numbers and division limits.
- General purpose: Non-certified models for process weighing, batching, OEM integration, and internal quality control — where trade certification is not required but accuracy specifications are comparable.
Transcell offers calibration services with traceable standards for verification and compliance documentation across all shear beam models.
CAD Files & Engineering Resources
- 2D dimensional drawings (PDF) with mounting bolt patterns and loading surfaces
- 3D CAD models (STEP format) for SBS, SBSB, and DBS series
- Load direction diagrams and recommended support spacing
- Wiring color-code tables per series
CAD files are available on individual product pages or by request from Transcell engineering. For OEM projects requiring family models across multiple capacities, see OEM services.
OEM & Custom Integration
Transcell supports OEM customers embedding shear beam load cells in floor scales, tank systems, batching equipment, conveyor frames, and custom platforms. Engineering scope includes:
- Application review: capacity per cell, number of cells, safety factor, duty cycle, overload exposure
- Weighing module recommendations for tank and vessel systems
- Junction box layout and corner adjustment guidance
- Indicator and transmitter selection for the target control architecture
- Custom cable lengths, connectors, and environmental protection
- Private labeling and branded documentation
- Cross-reference guidance for replacing competitor models (Sensortronics, Rice Lake, Tedea, Celtron, Artech, Revere)
OEM Services → · Engineering Design →
Shear Beam Load Cell FAQs
What is a shear beam load cell?
A strain-gauge transducer that measures force through shear strain in a machined beam. One end is fixed; the other is loaded. The shear zone is insensitive to bending, making these cells stable and tolerant of imperfect load introduction.
Single-ended or double-ended — which do I need?
Single-ended (SBS/SBSB) for floor scales, pallet scales, conveyors, and smaller tank systems — capacities to 20,000 lb. Double-ended (DBS) for truck scales, weighbridges, and heavy-duty platforms — capacities to 50,000 lb.
How many cells do I need for a floor scale?
Typically four cells, one at each corner, connected through a junction box. Divide the total maximum load (live + dead) by four, then add a safety margin when selecting individual cell capacity.
Alloy steel or stainless steel?
Nickel-plated alloy steel (SBS) for indoor industrial use. Stainless steel welded seal (SBSB) for washdown, food processing, outdoor, or chemically aggressive environments.
Do Transcell shear beam load cells have NTEP or OIML approvals?
Select SBS models carry OIML R60 C3/C4 certification and NTEP Certificates of Conformance for legal-for-trade weighing. Check individual product pages for specific approvals.
Can I replace a competitor’s shear beam with a Transcell model?
In many cases, yes. SBS and SBSB series are cross-compatible with popular models from Sensortronics, Rice Lake, Tedea, Celtron, Artech, and Revere. Contact us with the current manufacturer, model, capacity, and bolt pattern for evaluation.
When should I use a weighing module instead of a bare cell?
For tank, hopper, and vessel weighing where you need controlled load introduction, thermal expansion allowance, and uplift restraint. Weighing modules integrate the cell with self-checking mounts.
Are CAD files available?
2D PDF drawings and 3D STEP files are available on product pages or by request from the Transcell engineering team.
Need Help Specifying a Shear Beam System?
To receive a recommendation from the Transcell engineering team, provide:
- Platform or vessel dimensions and total load (live + dead)
- Number of support points and proposed cell layout
- Environment (indoor/outdoor, washdown, temperature range, chemical exposure)
- Required certification (OIML class, NTEP, general purpose)
- Indicator/controller type and output format (mV/V, 4–20 mA, digital)
- Volume and timeline (prototype, production, replacement)
Our engineering team will recommend the appropriate shear beam family, weighing modules, junction box, instrumentation, and mounting hardware for your system.
