TI-500E Basic NTEP Weighing Indicator
In Stock
$300.00
|
NTEP & Canadian certified Legal for trade · COC #94-080A3 · AM-5800C · H-44 Class III |
|
|
Same-day shipping In-stock orders ship the same business day · Free 2-day delivery |
|
|
Manufacturer direct Designed & supported by Transcell in Buffalo Grove, IL since 1981 |
|
|
2-year limited warranty US-based technical support included · repair or replace guarantee |
Product Description

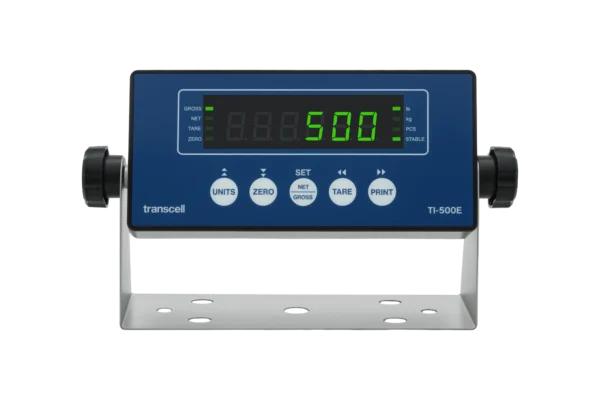

TI-500E weighing indicator overview

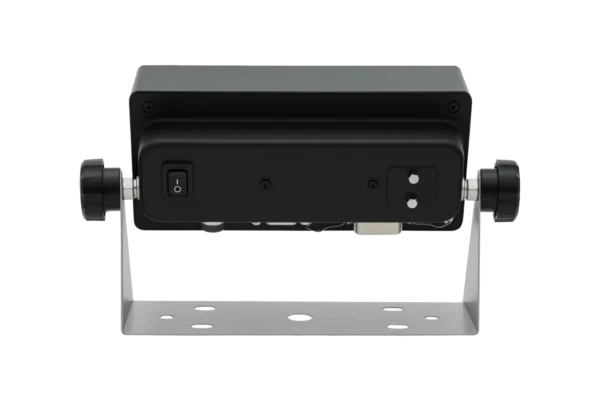

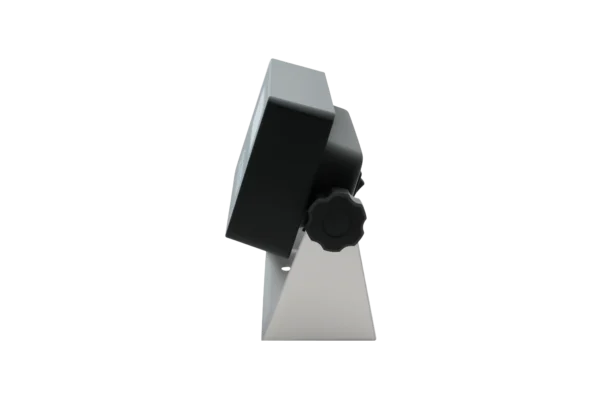

The TI-500E is an NTEP and Canadian certified digital weighing indicator housed in a durable black ABS NEMA 12 enclosure. It features a large, easy-to-read 0.6" 6-digit LED display and is capable of driving up to four 350Ω load cells. Full front panel calibration means setup requires no PC or external tools. All TI-500E calibration is performed directly from the keypad, and parameters are stored in non-volatile memory for long-term retention. A full-duplex RS-232 port enables data transmission on demand or continuously to printers, remote displays, and computers. Setup and calibration parameters are shared across the entire TI series indicator family, making the TI-500E a straightforward, trouble-free choice for commercial and industrial weighing applications. The TI-500E manual and calibration guide are available in the Data Sheets tab above.
|
Display
0.6"
6-digit LED
|
Load cells
4 × 350Ω
max capacity
|
Divisions
5,000
NTEP certified
|
Certifications
NTEP
+ Canadian approved
|
Key features
The TI-500E is designed for straightforward installation and long-term reliable use in a wide range of legal-for-trade weighing environments.
|
|
|||||
|
|
|||||
|
|
Technical notes
|
Installation and wiring
The TI-500E ships with a 15 ft homerun cable and AC adapter (12 VDC). It connects directly to any standard analog load cell or junction box with a mV/V output. The indicator supports up to four 350Ω load cells in parallel. For multi-cell installations, a load cell summing junction box should be used to balance and combine signals before connecting to the indicator. Compatible applications
The TI-500E is suitable for bench scales, floor scales, tank and hopper weighing systems, platform scales, and any application requiring a reliable, cost-effective NTEP-certified indicator. It pairs directly with Transcell S-type, S-beam, shear beam, and single-point load cells. |
Add-on options
The TI-500E Plus variant supports optional add-ons including analog output (0–5 VDC / 4–20 mA), RS-485, Bluetooth, and time/date stamping. If your application requires any of these capabilities, consider the TI-500E Plus. The comparison table below outlines the full TI series differences. Key specifications
|

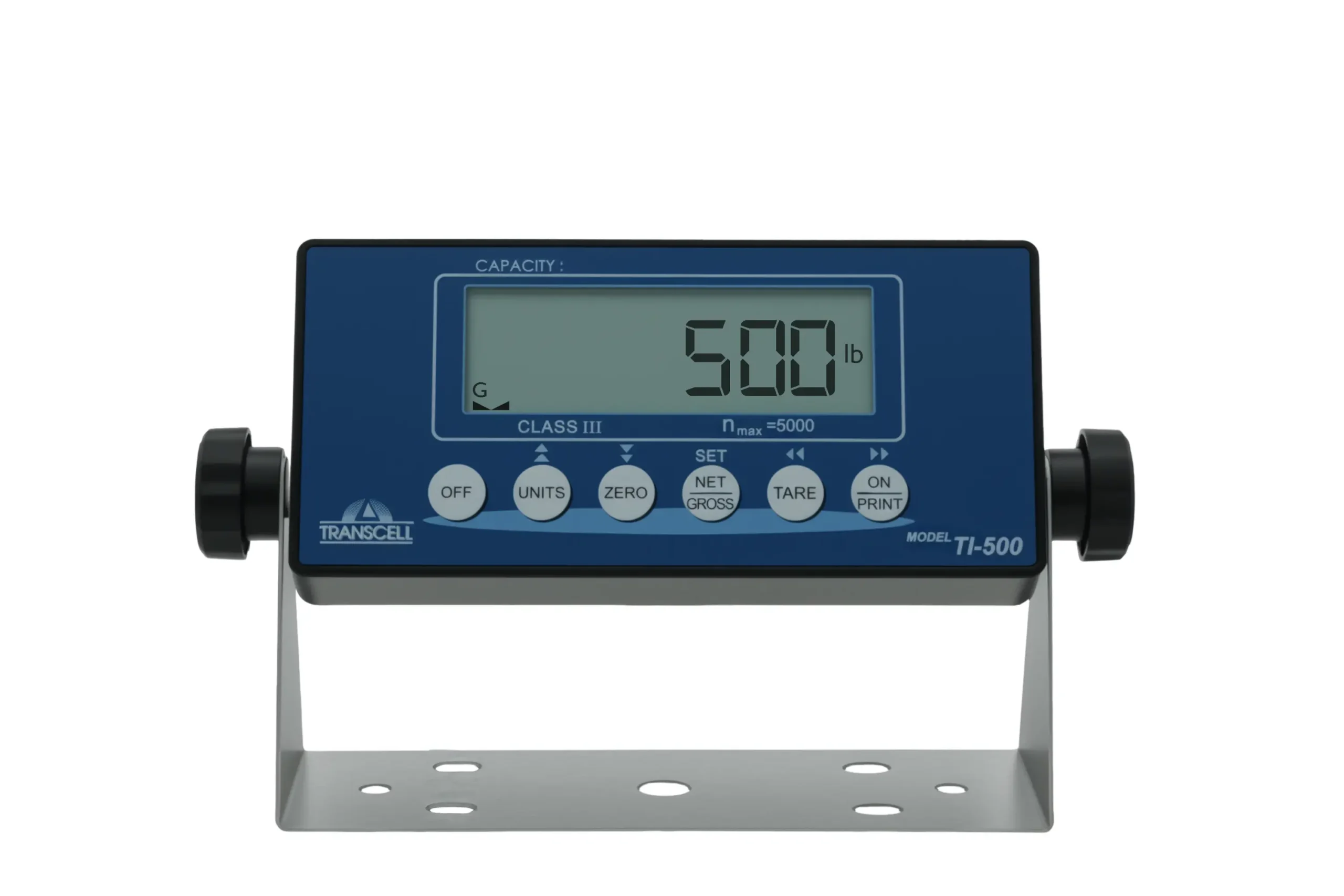

TI series indicator comparison
Compare the TI-500E with other indicators in the TI series to find the right fit for your application.
 |  |  |  |  | |
TI-500E | |||||
Price | $300 | $275 | $350 | $460 | $500 |
Load Cell Current | 4 - 350 Ω | 4 - 350 Ω | 4 - 350 Ω | 4 - 350 Ω | 8 - 350 Ω |
Display | 0.6 in 6-Digit LED | 0.9 in 6-Digit LCD | 0.6 in 6-Digit LED | 0.6 in 6-Digit LED | 0.8 in 6-Digit LCD |
Backlight | ✓ | ✓ | |||
Enclosure | ABS | ABS / Steel | Aluminum / Steel | Stainless Steel | Stainless Steel |
IP Rating | IP54 | IP54 | IP54 | IP65 | IP65 |
Battery | ✓ | ✓ | |||
NTEP | Yes | Yes | Yes | Yes | Yes |
Key Functions | Units, Zero, Net/Gross, Tare, Print | Units, Zero, Net/Gross, Tare, On/Print, Off | Units, Zero, Net/Gross, Tare, Print | Units, Zero, Net/Gross, Tare, Print | Units, Zero/Off, Net/Gross, Tare, On/Print |
|
Accessories & add-ons
Looking for cables, connectors, or indicator accessories? Browse our full accessories catalog for compatible add-ons for the TI-500E and other Transcell indicators. |
Need help or a custom quote?
Our team is available to help with product selection, compatibility questions, and pricing for volume orders. Reach us directly by phone during business hours. |
Dimensions / 3D Drawings
Note: You may need a software that can open/view STEP files.
-
User Guides
Download Now
