TI-500 SL Battery Powered NTEP Weighing Indicator
In Stock
Legal for trade · COC #94-080A3 · AM-5800C · H-44 Class III · NEMA 4X/IP65 rated
In-stock orders ship the same business day · Free 2-day delivery
Designed & supported by Transcell in Buffalo Grove, IL since 1981
US-based technical support included · repair or replace guarantee
Product Description

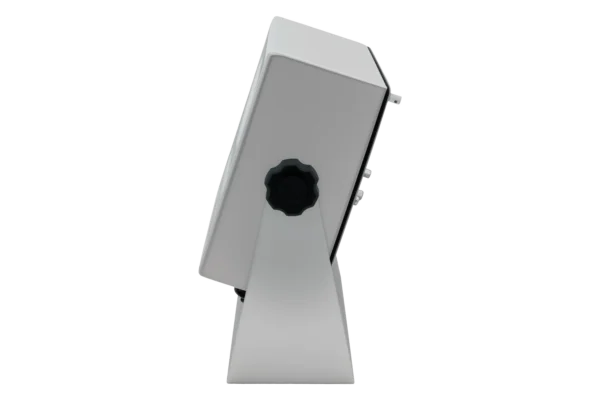

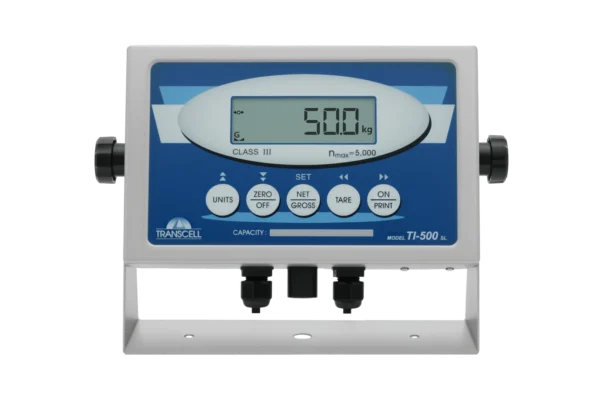

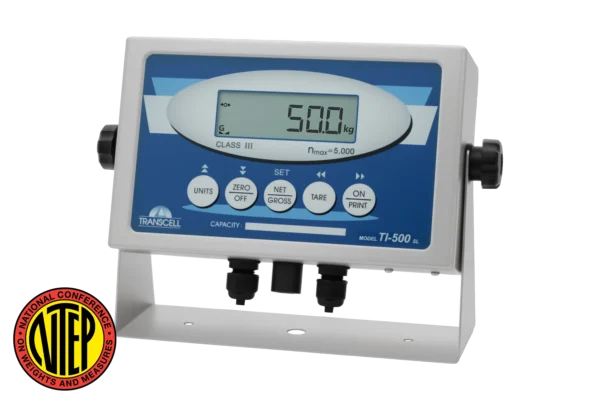

TI-500 SL weighing indicator overview
The TI-500 SL is a rugged, industrial NTEP and Canadian certified digital weighing indicator housed in a stainless steel NEMA 4X/IP65 enclosure. It is one of the only indicators in the TI series to also carry OIML certification, making it suitable for international legal-for-trade applications. The TI-500 SL features a large 0.9" backlit LCD display and is configured with an internal 6-volt 3 Ah rechargeable lead acid battery — with an AC adapter included for continuous power operation and recharging. Auto shutoff extends battery life during idle periods. A selectable 10/80 Hz conversion rate, full front panel calibration, and shared TI series setup parameters make the TI-500 SL a capable and consistent choice for demanding industrial and international weighing environments. The TI-500 SL manual and calibration guide are available in the Data Sheets tab above.
|
Enclosure
SS
NEMA 4X / IP65
|
Certifications
NTEP
+ OIML + Canadian
|
Display
0.9"
backlit LCD
|
Divisions
5,000
NTEP / 3,000 OIML
|
Key features
The TI-500 SL combines stainless steel durability, international certification, and flexible battery or AC power in a single rugged industrial indicator.
|
|
|||||
|
|
|||||
|
|
Technical notes
|
Installation and wiring
The TI-500 SL uses a Quick Disconnect cable connection and operates on its internal rechargeable battery or 12 VDC AC adapter. It connects directly to any standard analog load cell or junction box with a mV/V output and supports up to four 350Ω load cells in parallel. For multi-cell installations, a load cell summing junction box should be used to balance and combine signals before connecting to the indicator. Compatible applications
The TI-500 SL is well suited for food processing, pharmaceutical, chemical, and international industrial weighing environments. Its OIML certification makes it appropriate for export applications and international legal-for-trade use. It pairs with Transcell S-type, S-beam, shear beam, and single-point load cells. |
Power options
Key specifications
|

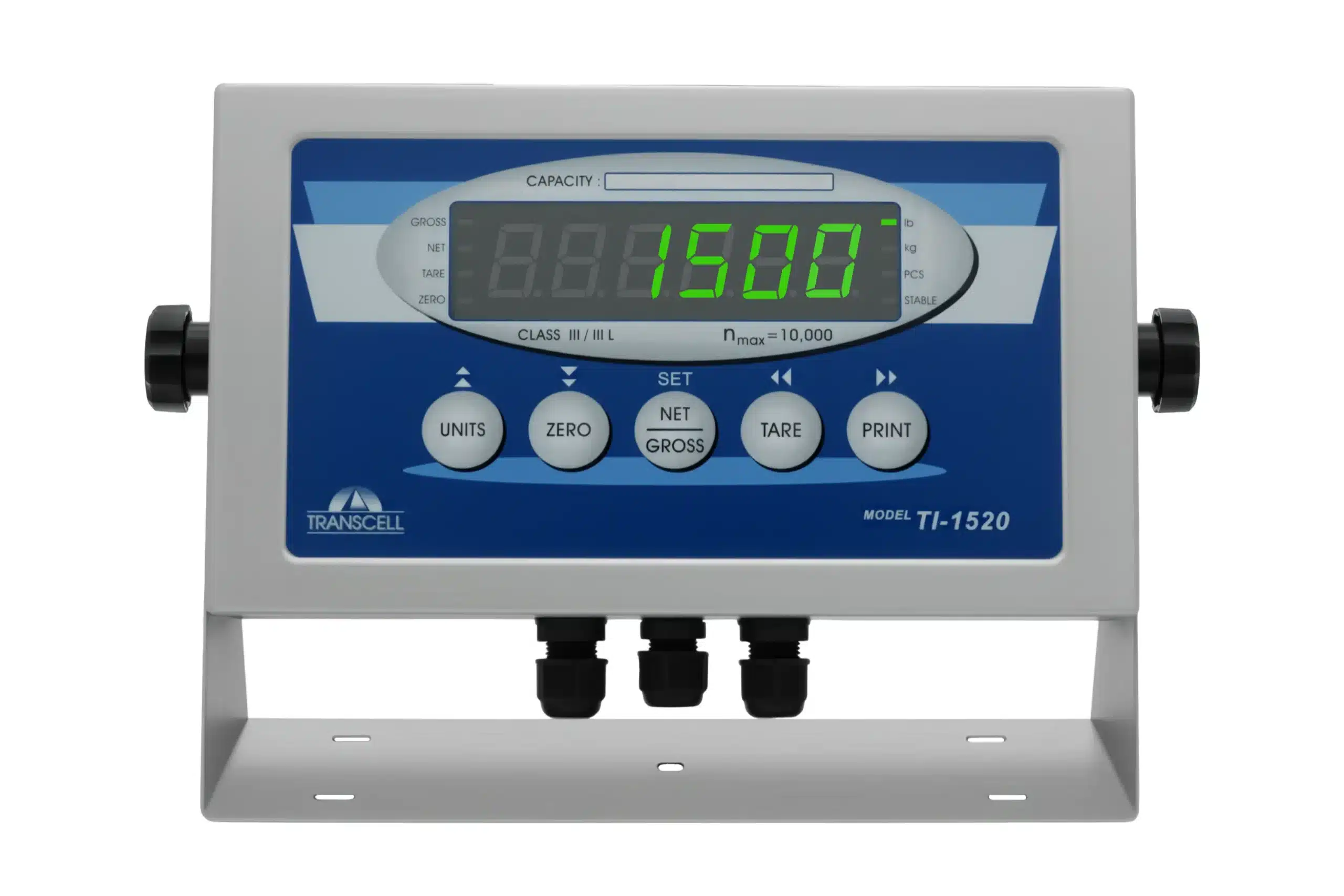

TI series indicator comparison
Compare the TI-500 SL with other indicators in the TI series to find the right fit for your application.
 |  |  |  |  | |
TI-500 SL | |||||
Price | $500 | $460 | $500 | $560 | $610 |
Load Cell Current | 4 - 350 Ω | 4 - 350 Ω | 8 - 350 Ω | 8 - 350 Ω | 8 - 350 Ω |
Display | 0.9 in 6-Digit LCD | 0.6 in 6-Digit LED | 0.8 in 6-Digit LCD | 1.0 in 7-Digit LCD | 1.0 in 6-Digit LED |
Backlight | ✓ | ✓ | ✓ | ||
Enclosure | Stainless Steel | Stainless Steel | Stainless Steel | Polycarbonate / ABS | Stainless Steel |
IP Rating | IP65 | IP65 | IP65 | IP69K | IP65 |
Battery | ✓ | ✓ | Option | ||
NTEP | Yes | Yes | Yes | Yes | Yes |
Key Functions | Units, Zero/Off, Net/Gross, Tare, On/Print | Units, Zero, Net/Gross, Tare, Print | Units, Zero/Off, Net/Gross, Tare, On/Print | Units, Zero, Menu/Off, Net/Gross, Tare, Print, On | Units, Zero/Off, Net/Gross, Tare, On/Print |
|
Accessories & add-ons
Looking for cables, connectors, or indicator accessories? Browse our full accessories catalog for compatible add-ons for the TI-500 SL and other Transcell indicators. |
Need help or a custom quote?
Our team is available to help with product selection, compatibility questions, and pricing for volume orders. Reach us directly by phone during business hours. |
Dimensions / 3D Drawings
Note: You may need a software that can open/view STEP files.
-
