Load Cells for Chatillon DFX and DFX II Force Gauges

Free 2-Day Shipping

$200.00

  • Compatible with the Chatillon DFX / DFX II series force gauges (10lbf, 50lbf, 100lbf, 200lbf capacities)
  • Includes load cell, loading shaft and connection cable

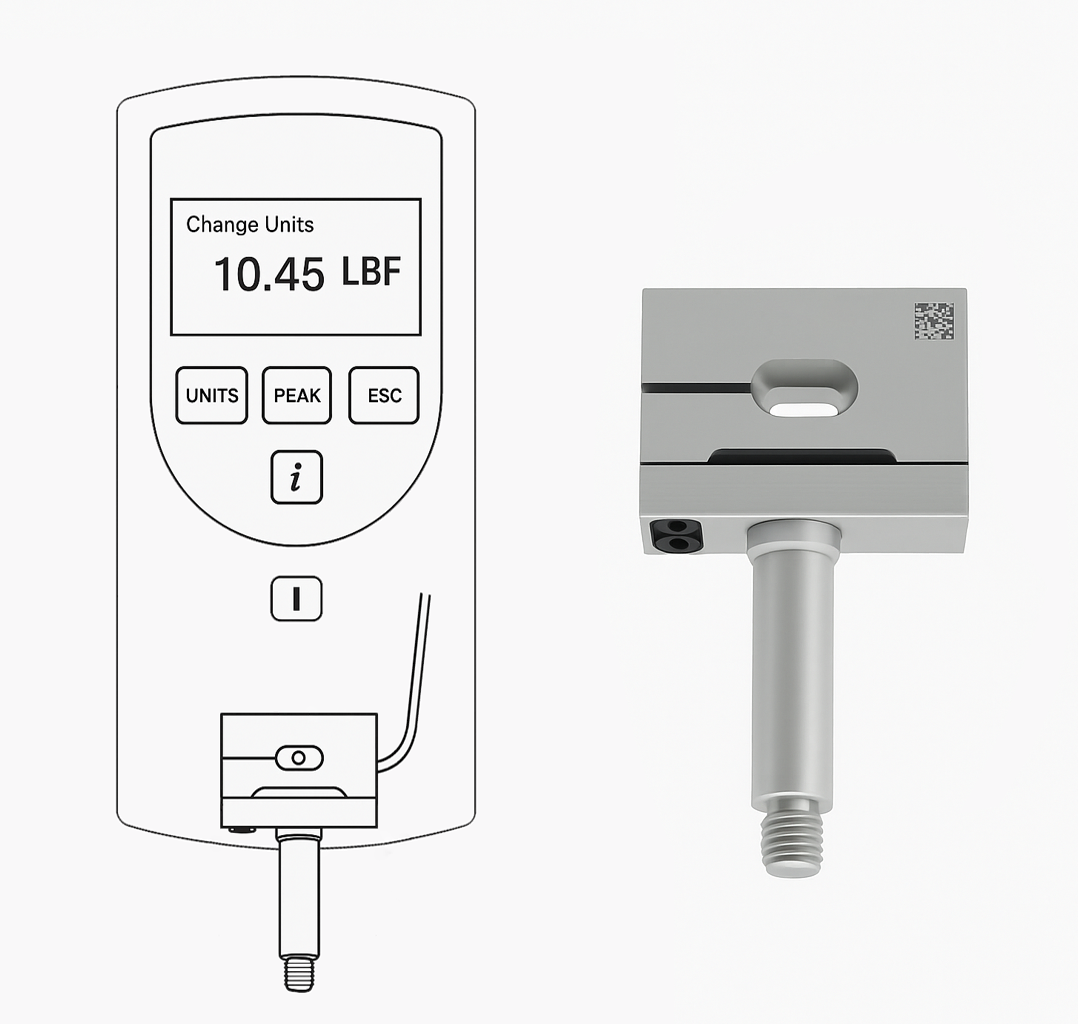

  • Load cell is installed inside the body of the force gauge
  • Designed for both tension and compression loading modes, matching the original gauge’s requirements

Product Description

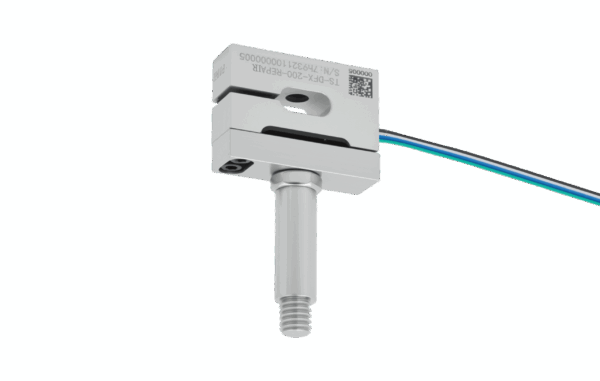

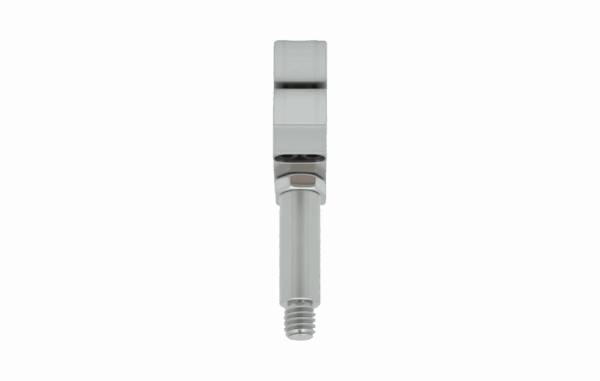

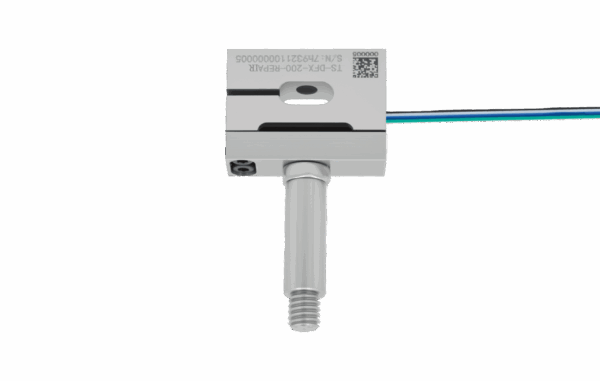

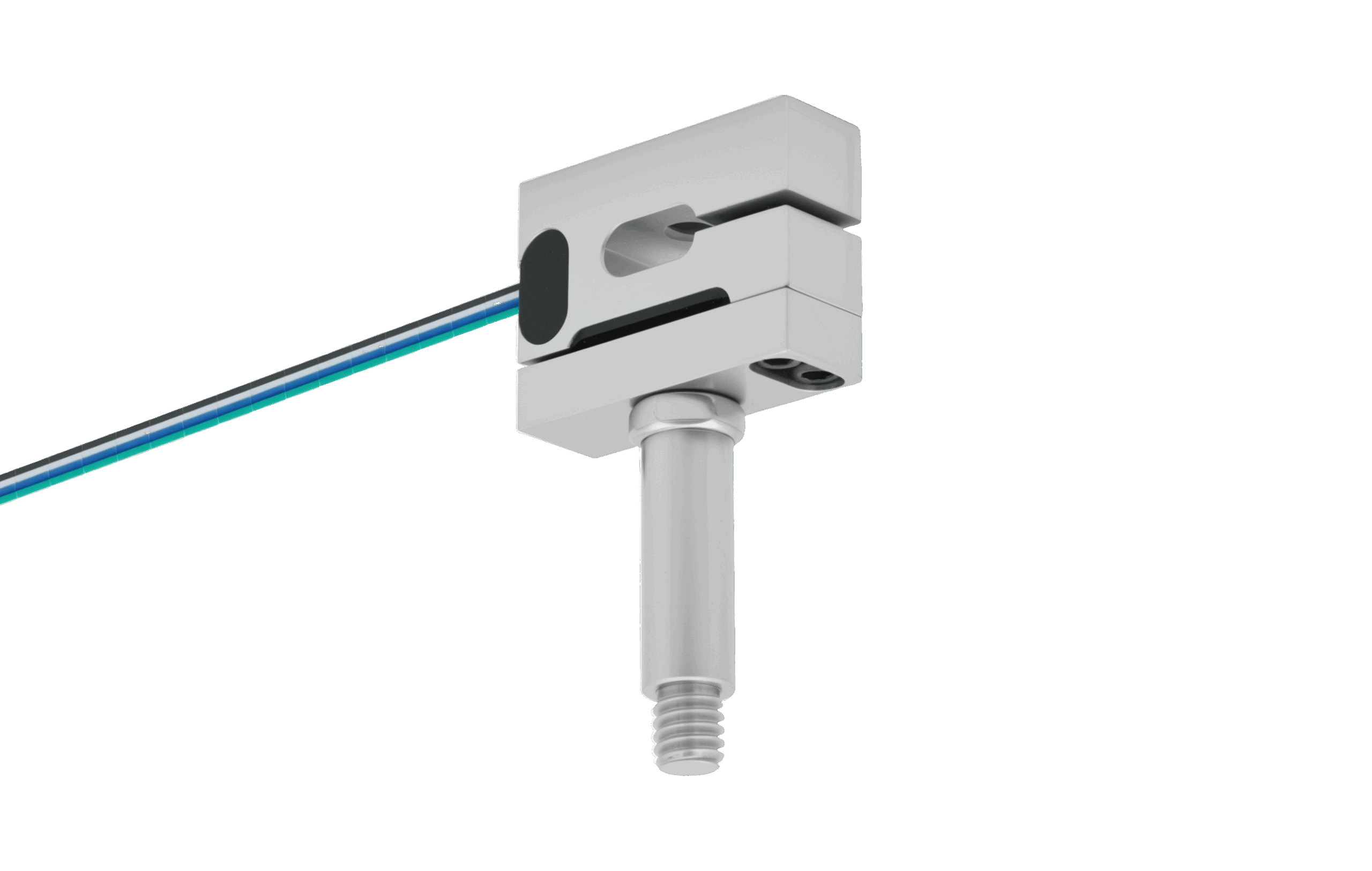

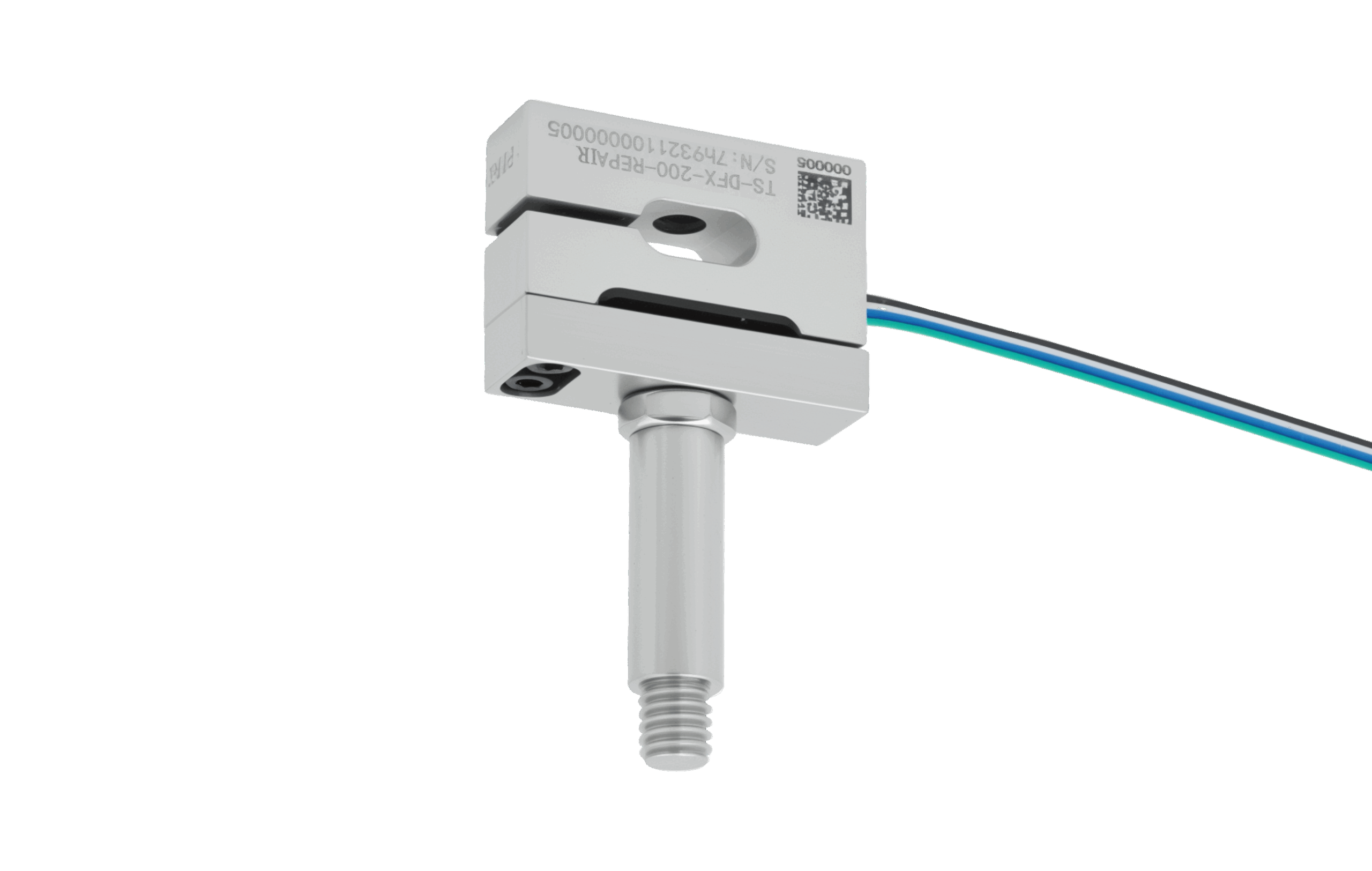

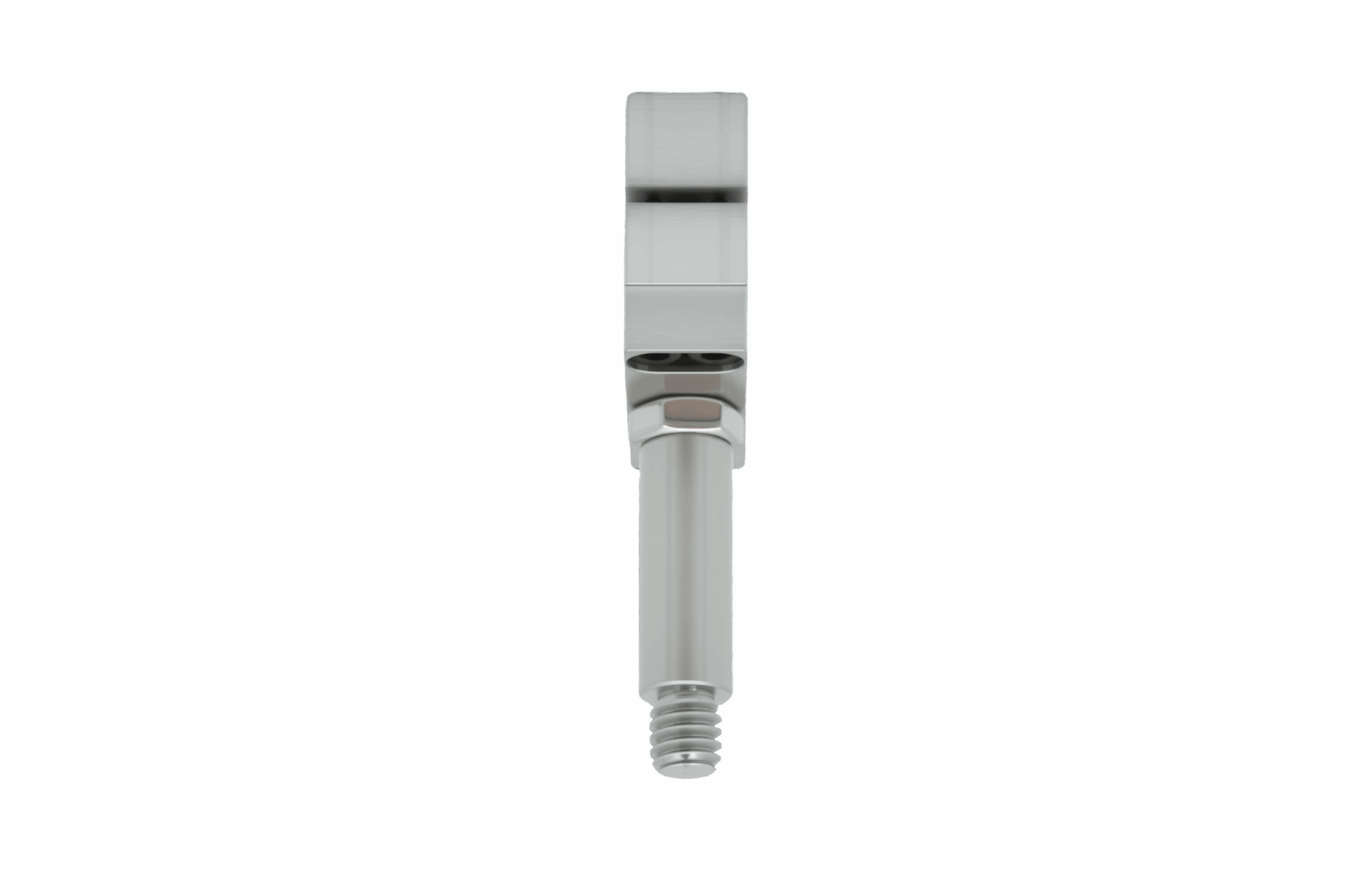

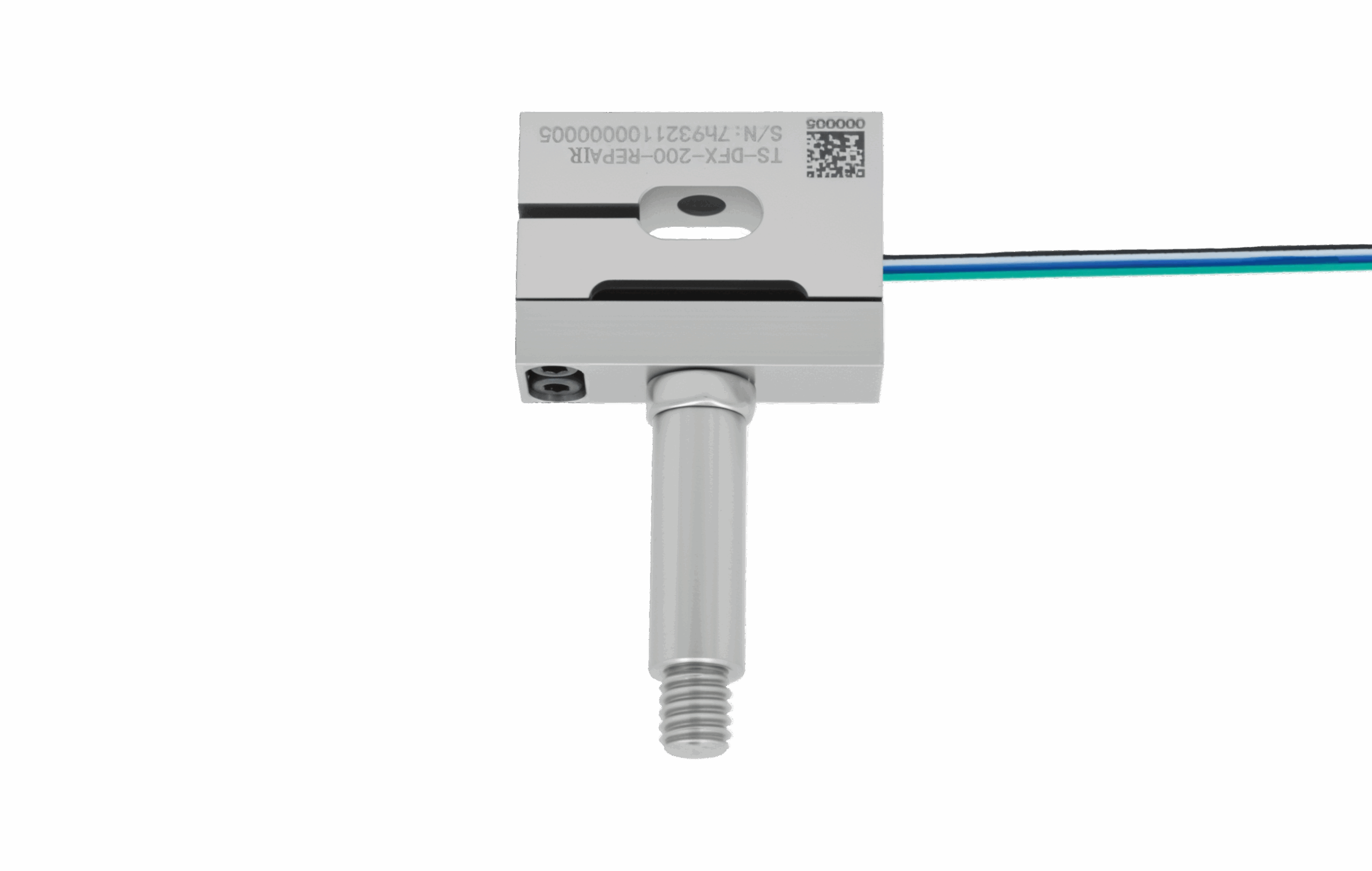

A direct replacement for Chatillon DFX and DFX II series for gauges.  These are drop-in replacements to repair an overloaded force gauge.

  • Part Number: TS-DFX-010-REPAIR
  • Part Number: TS-DFX-050-REPAIR
  • Part Number: TS-DFX-100-REPAIR
  • Part Number: TS-DFX-200-REPAIR



FAQs

Q1: Is this load cell a direct drop-in replacement for Chatillon DFX/DFX II series?
A1: Yes, these load cell match the form-factor, thread size and sensor capacity (10lbf, 50lbf, 100lbf, 200lbf) of the original Chatillon DFX and DFX2 Series force gauges.

Q2: Do I need to recalibrate my gauge after installing the new load cell?
A2: Yes, after replacing the load cell, calibration of the gauge is required.
Q3: Can I use this load cell in both tension and compression?
A3: Yes, the design supports both tension and compression modes consistent with how the original gauge and load cell operate.
Q4: What about overload protection?
A4:  These load cells have the same 150% FS safe overload rating as the original design.
Q5: Who should perform the installation?
A5: It is recommended that a trained technician install the load cell and calibrate the force gauge to maintain accuracy and traceability.
SKU: P2109320050, P2109320250, P2109320500, P2109321100 Categories: , , Tags: ,

Dimensions / 3D Drawings

Note: You may need a software that can open/view STEP files.

Interchangeable

Transcell Part IDTo be used in Chatillon DFXTo be used in Chatillon DFX II
TS-DFX-010-REPAIRDFX-010DFX2-010
TS-DFX-050-REPAIRDFX-050DFX2-050
TS-DFX-100-REPAIRDFX-100DFX2-100
TS-DFX-200-REPAIRDFX-200DFX2-200
