BAB-MT2 Ultra Performance S-Beam with Enhanced Safe Overload Protection (Imperial)

BAB-MT2 ultra performance S-beam overview

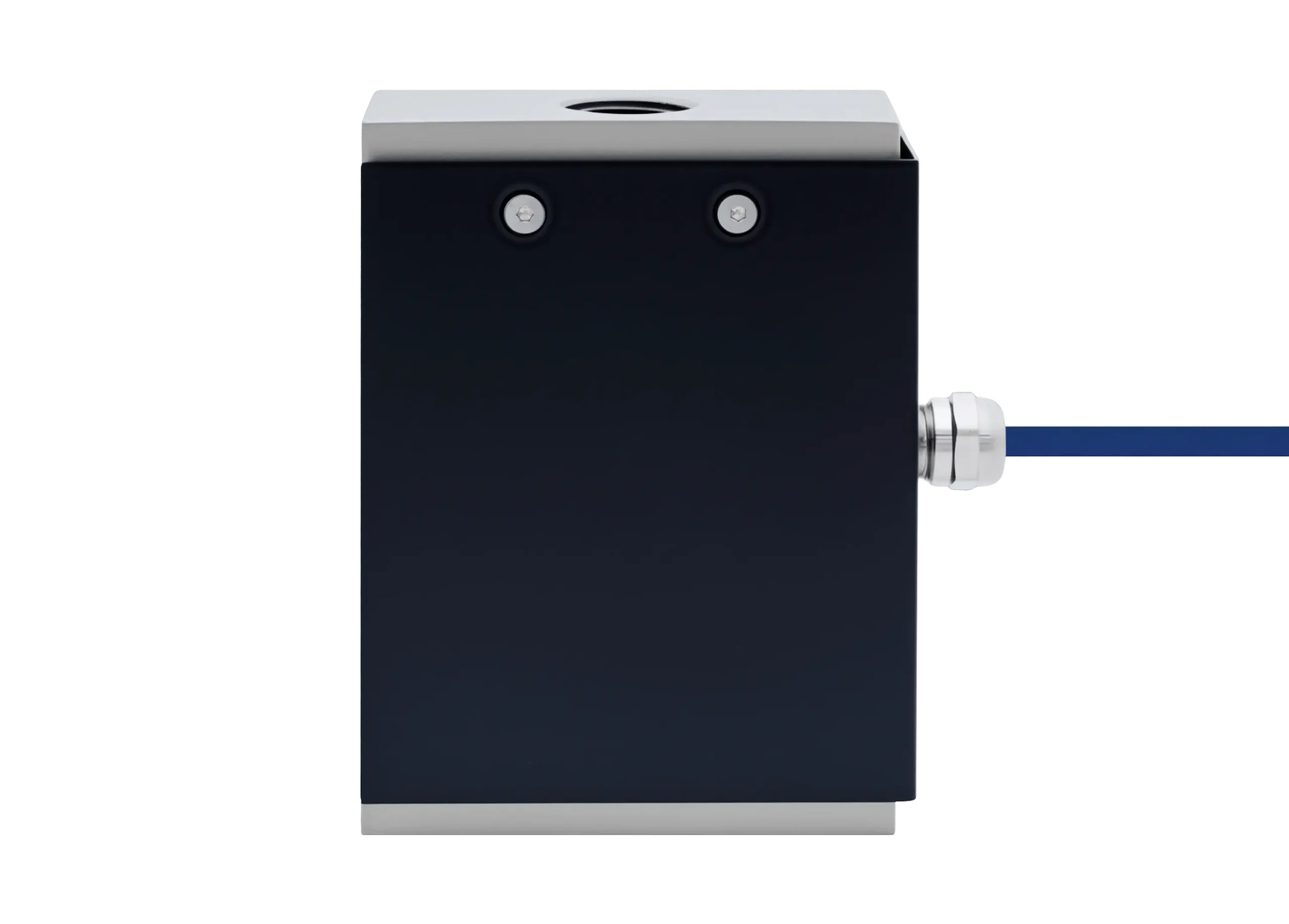

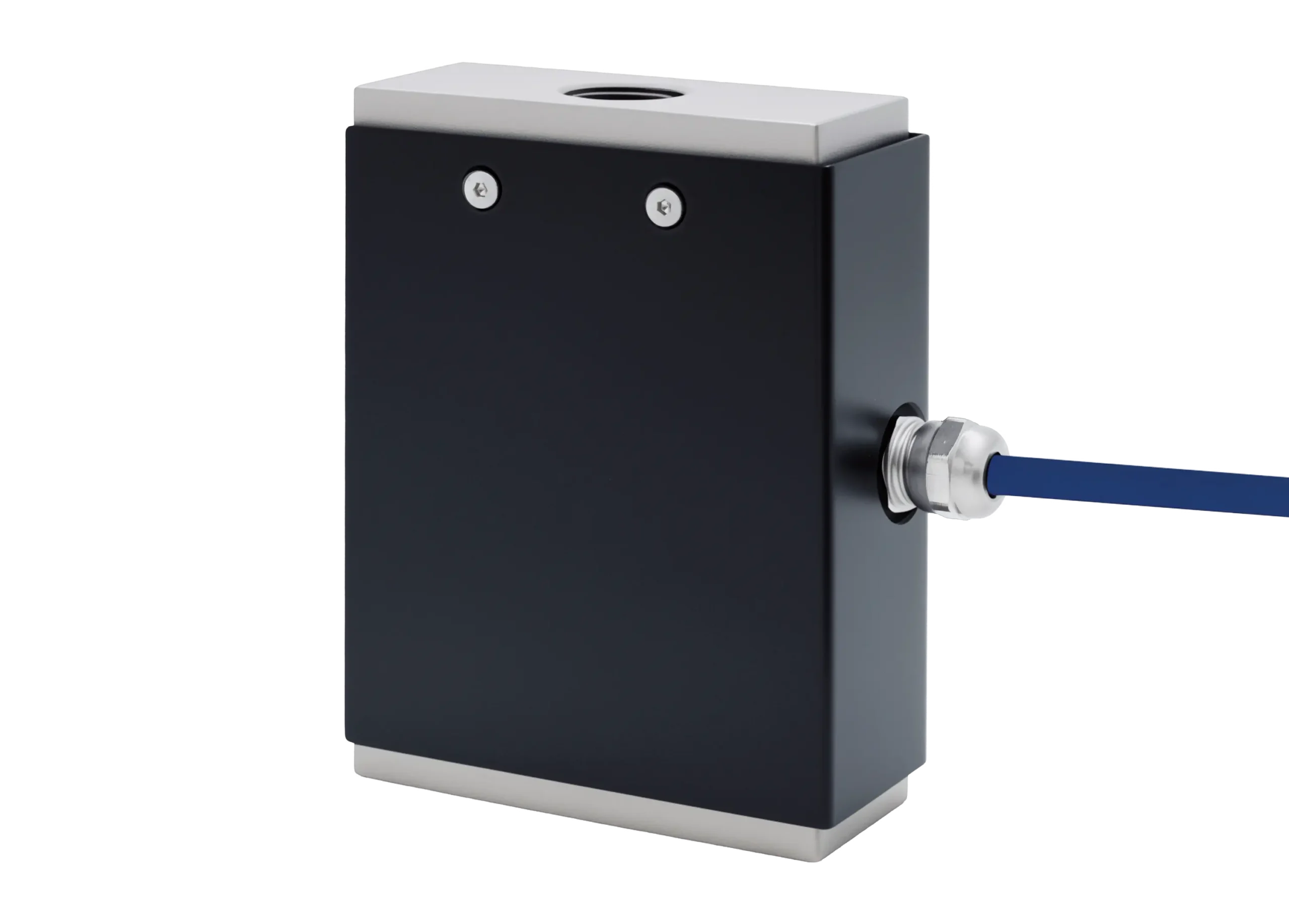

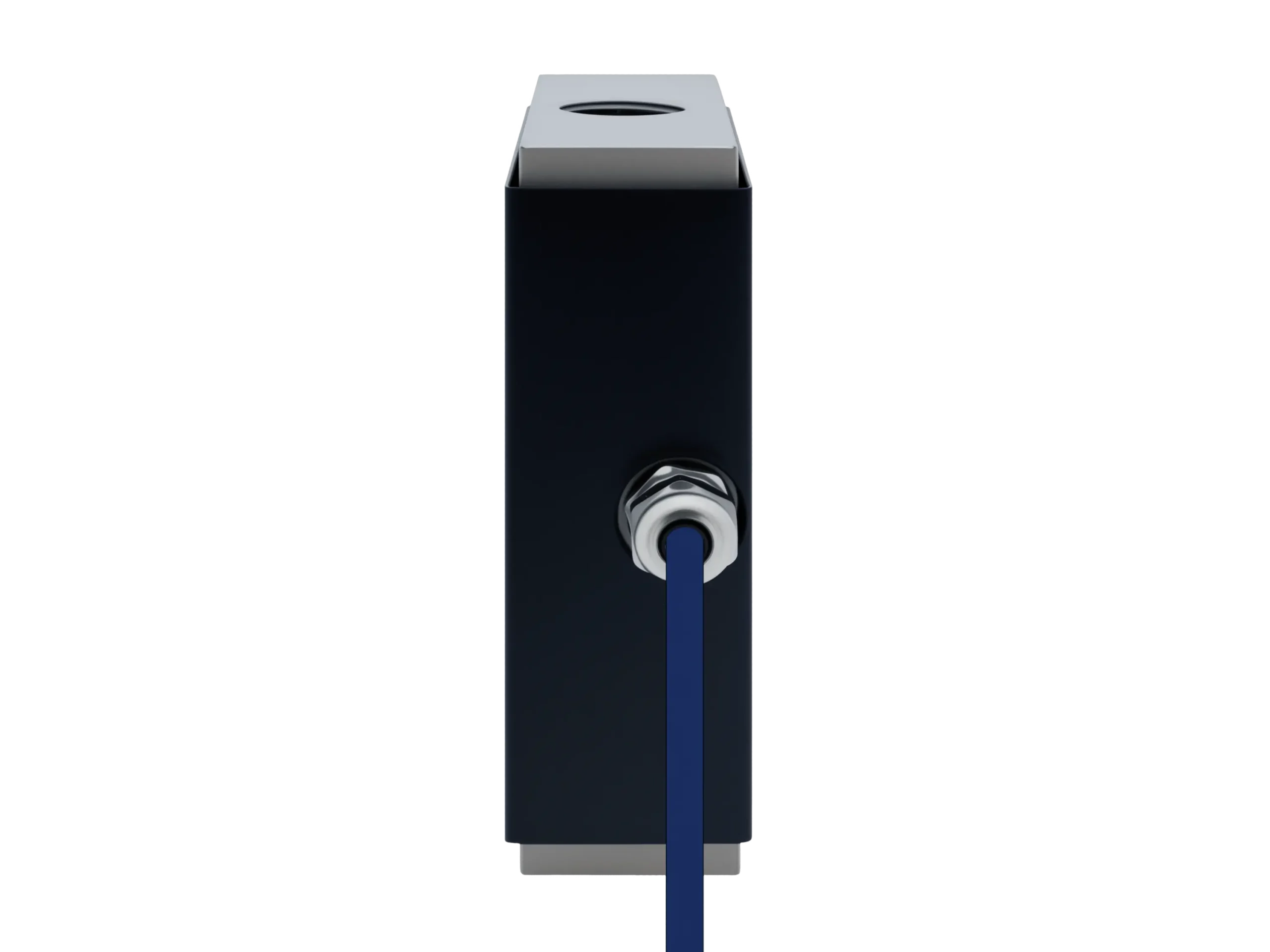

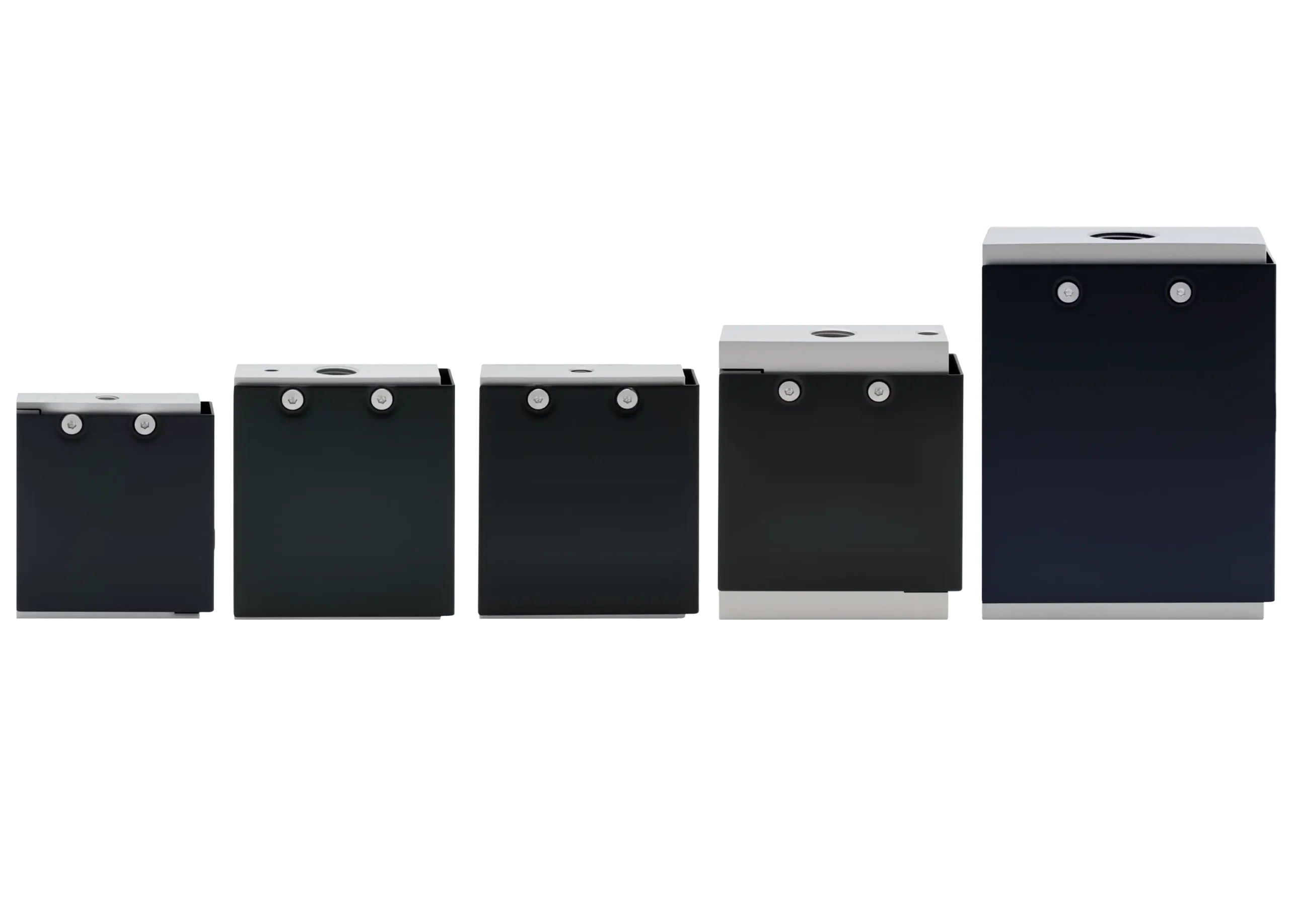

The BAB-MT2 is a high-precision S-beam load cell engineered for accurate tension and compression force measurement across a wide capacity range, from 2 lbf up to 11,000 lbf. Building on the original BAB-MT design, the MT2 delivers improved measurement repeatability and enhanced safe overload protection, even on higher capacity models, making it the preferred choice for demanding test and measurement applications where reliability under overload conditions is critical. A protective cover keeps the overload protection slots clear of debris for long-term dependability. With ±0.03% nonlinearity, IP67 sealing, and thread dimensions that meet major OEM requirements, the BAB-MT2 integrates directly into standard test frames, automated force measurement systems, and OEM equipment without modification.

Typical applications

The BAB-MT2 is commonly specified for precision force measurement in test and measurement environments, OEM equipment, and automated systems requiring reliable performance under repeated or accidental overloads.

Tensile and compression force testing The BAB-MT2's S-beam geometry handles pure axial loading in both tension and compression, making it a reliable sensor for materials testing machines, pull testers, universal test frames, and standalone force test benches requiring certified, traceable measurements.		OEM integration and custom test fixtures Thread dimensions and compact body profile meet major OEM requirements, allowing the BAB-MT2 to drop directly into existing test fixtures, automated assembly equipment, and proprietary force measurement platforms without mechanical modification.
Automated force monitoring and feedback With a 2 mV/V analog output and standard mV/V bridge wiring, the BAB-MT2 integrates directly with PLCs, DAQ systems, and digital indicators for real-time force feedback, overload detection, and closed-loop process control in automated production environments.		Suspended weighing and tension measurement The double-ended threaded design allows the BAB-MT2 to function as an inline tension link in hanging scale assemblies, cable tension monitoring systems, and suspended load applications where space is limited and overload events are common.
Quality control and production testing Widely used in end-of-line quality control stations, insertion force testing, and push/pull validation systems in manufacturing. Improved repeatability versus the original BAB-MT ensures consistent, reliable pass/fail decisions across high-volume production runs.		High-overload and harsh-duty environments The enhanced overload protection mechanism, with a protective cover shielding the overload slots from contamination, makes the BAB-MT2 suitable for applications prone to shock loads, accidental overloads, or operation in dusty and wet environments where long-term sensor integrity is essential.
