TI-1500B General Purpose Indicator
In Stock
$515.00
Product Description

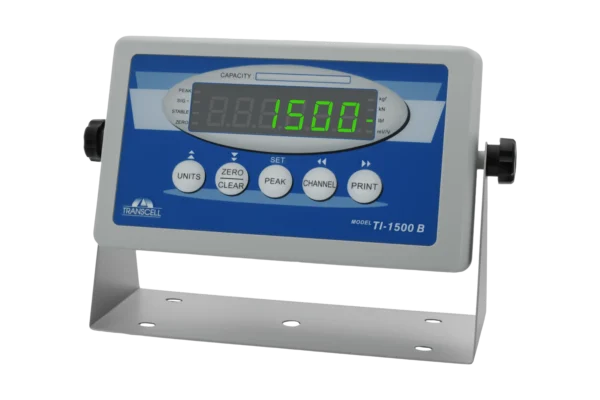

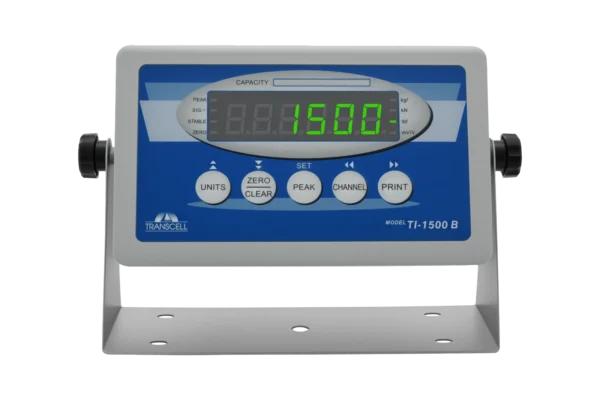

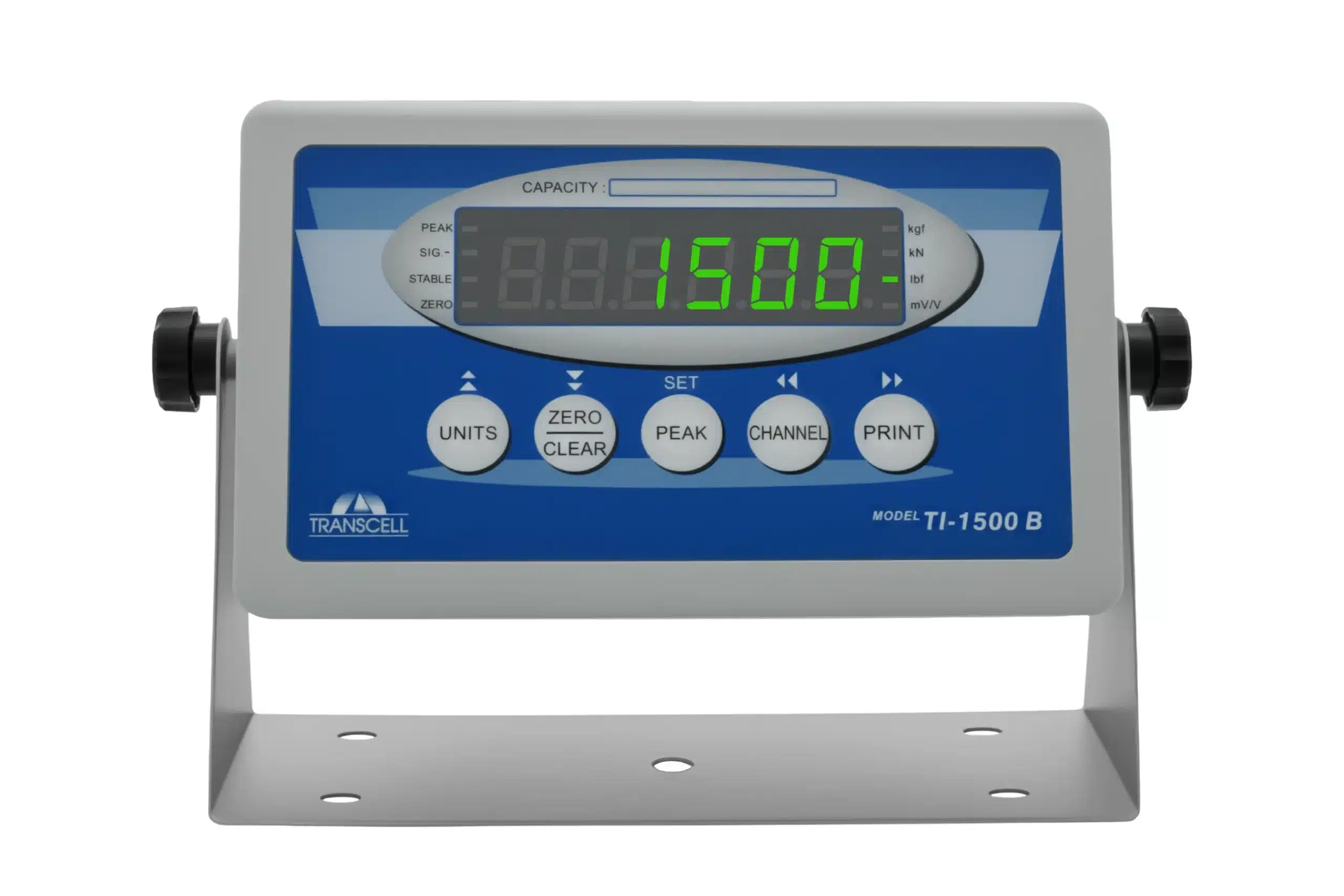

TI-1500B force measuring indicator overview
The TI-1500B is an NTEP certified industrial grade force measuring indicator housed in a durable NEMA 12 ABS enclosure. Unlike general-purpose weighing indicators, the TI-1500B is designed specifically for force measurement applications — including material performance testing, peak value measurement, and strain gage load cell testing. It features an independent 4-channel configuration, a large 1.0" high-brightness 6-digit LED display that is easy to read from a distance, and up to 400,000 internal counts of resolution. Force units include KGF, KN, LBF, and mV/V alongside standard lb and kg. Peak hold is built in as a dedicated front panel function. An internal power supply and full-duplex RS-232C port round out a capable and straightforward force measurement package. The TI-1500B manual is available in the Data Sheets tab above.
Key features
The TI-1500B is purpose-built for force measurement — offering capabilities and force-specific units that go well beyond what a standard weighing indicator can provide.
|
|
|||||
|
|
|||||
|
|
Technical notes
The TI-1500B connects to any standard mV/V load cell or force sensor and drives up to eight 350Ω load cells simultaneously. It operates on 100-230 VAC via its internal power supply. A full-duplex RS-232C serial port supports data output to computers and printers for logging and reporting.
| ➤ | lb (pounds-force) |
| ➤ | kg (kilograms-force) |
| ➤ | KGF (kilogram-force) |
| ➤ | KN (kilonewtons) |
| ➤ | LBF (pounds-force) |
| ➤ | mV/V (direct sensor output) |
Force indicator series comparison
Compare the TI-1500B with other Transcell force measurement indicators to find the right fit for your application.
 |  |  |  |  | |
TI-1500B | |||||
Price | $515 | $560 | $500 | $500 | $460 |
Load Cell Current | 8 - 350 Ω | 8 - 350 Ω | 8 - 350 Ω | 4 - 350 Ω | 4 - 350 Ω |
Display | 1.0 in 6-Digit LED | 1.0 in 7-Digit LCD | 0.8 in 6-Digit LCD | 0.9 in 6-Digit LCD | 0.6 in 6-Digit LED |
Backlight | ✓ | ✓ | ✓ | ||
Enclosure | ABS | Polycarbonate / ABS | Stainless Steel | Stainless Steel | Stainless Steel |
IP Rating | IP54 | IP69K | IP65 | IP65 | IP65 |
Battery | Option | ✓ | ✓ | ||
NTEP | No | Yes | Yes | Yes | Yes |
Key Functions | Units, Zero/Clear, Peak, Channel, Print | Units, Zero, Menu/Off, Net/Gross, Tare, Print, On | Units, Zero/Off, Net/Gross, Tare, On/Print | Units, Zero/Off, Net/Gross, Tare, On/Print | Units, Zero, Net/Gross, Tare, Print |
|
Accessories & add-ons
Looking for cables, connectors, or force measurement accessories? Browse our full accessories catalog for compatible add-ons for the TI-1500B and other Transcell instruments. |
Need help or a custom quote?
Our team is available to help with product selection, compatibility questions, and pricing for volume orders. Reach us directly by phone during business hours. |
Specifications
Dimensions / 3D Drawings
Note: You may need a software that can open/view STEP files.
-
Data Sheets
Download Now
Interchangeable
Ask us about our OEM and Dealer Pricing
