TI-500 RF Basic NTEP Weighing Indicator
In Stock
$350.00
|
NTEP certified Legal for trade · NTEP CC #12-002 · Up to 10,000 divisions |
|
|
Same-day shipping In-stock orders ship the same business day · Free 2-day delivery |
|
|
Manufacturer direct Designed & supported by Transcell in Buffalo Grove, IL since 1981 |
|
|
2-year limited warranty US-based technical support included · repair or replace guarantee |
Product Description

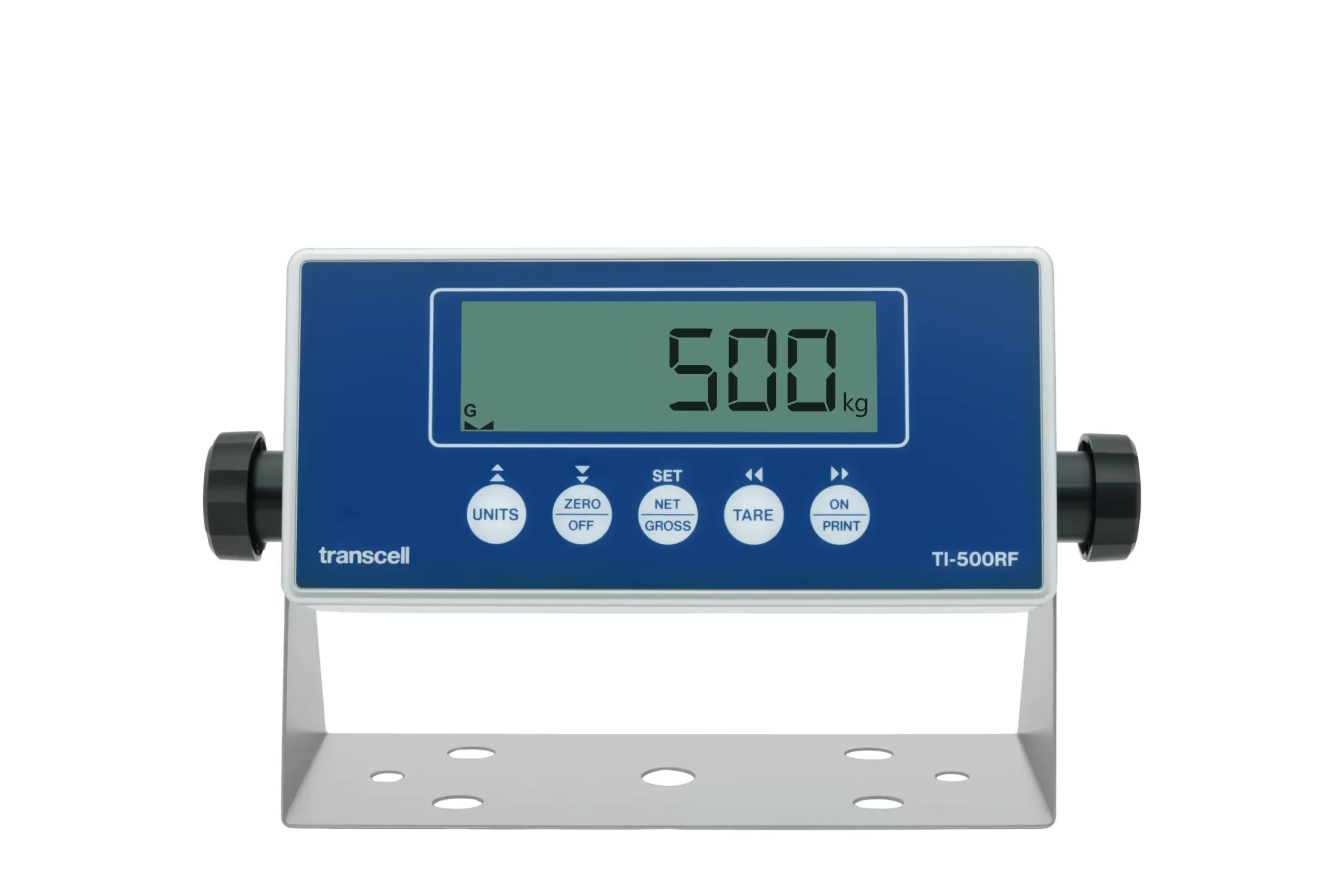

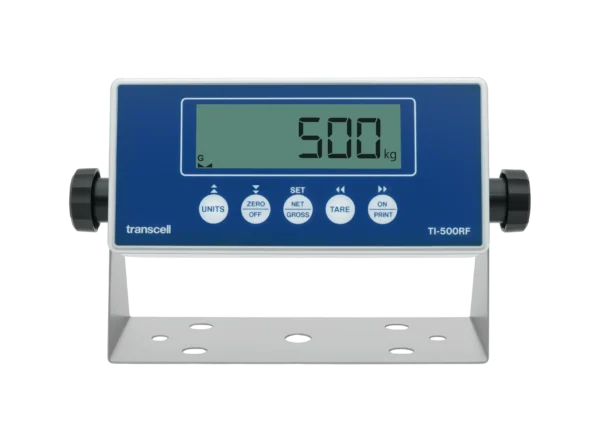

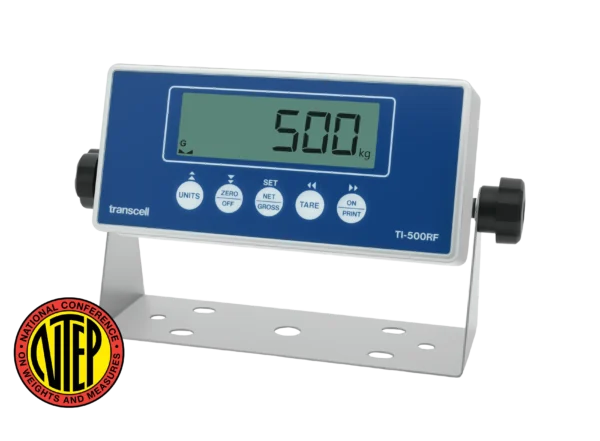

TI-500 RF wireless weighing indicator overview
The TI-500 RF is an NTEP certified wireless-capable digital weighing indicator housed in a compact aluminum/ABS NEMA 12 enclosure. It shares the same wireless platform as the TI-500 RF-SS but in a smaller, lighter form factor — making it the more portable choice for field use, bench applications, and installations where a full stainless steel enclosure is not required. It drives up to eight 350Ω load cells, features a large 0.8" 6-digit backlit LCD display, and runs on 4 AA alkaline batteries for 85+ hours of continuous use. Compatible with the optional TI-500RFTM Bluetooth wireless weighing module, the TI-500 RF can operate entirely cable-free. Selectable 10/80 Hz conversion rate, 10,000 certified divisions, multipoint linearization calibration, and remote serial port configuration round out a highly capable and affordable wireless indicator. The TI-500 RF manual and calibration guide are available in the Data Sheets tab above.
|
Battery life
85+ hrs
4 AA alkaline
|
Load cells
8 × 350Ω
max capacity
|
Divisions
10,000
NTEP certified
|
Enclosure
Al / ABS
NEMA 12
|
Key features
The TI-500 RF delivers full wireless weighing capability in a compact, battery-powered aluminum enclosure suited for portable and standard installation environments.
|
|
|||||
|
|
|||||
|
|
Technical notes
|
Installation and connectivity
The TI-500 RF ships with a 15 ft homerun cable and operates on 4 AA batteries or 4-14 VDC external power. It connects to any standard mV/V load cell or junction box and supports up to eight 350Ω load cells. Standard communications include a full-duplex RS-232C port accessible via an external DSUB9 connector, with optional Bluetooth, WLAN, RS-485, and analog output add-ons available. TI-500 RF vs TI-500 RF-SS
Both models share the same wireless platform and measurement specifications. The key differences are enclosure and battery:
|
Available add-on options
Key specifications
|
TI series indicator comparison
Compare the TI-500 RF with other indicators in the TI series to find the right fit for your application.
 |  |  |  |  | |
TI-500 RF | |||||
Price | $350 | $275 | $300 | $350 | $500 |
Load Cell Current | 8 - 350 Ω | 4 - 350 Ω | 4 - 350 Ω | 4 - 350 Ω | 8 - 350 Ω |
Display | 0.8 in 6-Digit LCD | 0.9 in 6-Digit LCD | 0.6 in 6-Digit LED | 0.6 in 6-Digit LED | 0.8 in 6-Digit LCD |
Backlight | ✓ | ✓ | ✓ | ||
Enclosure | Aluminum / ABS | ABS / Steel | ABS | Aluminum / Steel | Stainless Steel |
IP Rating | IP54 | IP54 | IP54 | IP54 | IP65 |
Battery | ✓ | ✓ | ✓ | ||
NTEP | Yes | Yes | Yes | Yes | Yes |
Key Functions | Units, Zero/Off, Net/Gross, Tare, On/Print | Units, Zero, Net/Gross, Tare, On/Print, Off | Units, Zero, Net/Gross, Tare, Print | Units, Zero, Net/Gross, Tare, Print | Units, Zero/Off, Net/Gross, Tare, On/Print |
|
Accessories & add-ons
Looking for cables, connectors, or indicator accessories? Browse our full accessories catalog for compatible add-ons for the TI-500 RF and other Transcell indicators. |
Need help or a custom quote?
Our team is available to help with product selection, compatibility questions, and pricing for volume orders. Reach us directly by phone during business hours. |
Dimensions / 3D Drawings
Note: You may need a software that can open/view STEP files.
-
Downloads
Download Now -
User Guides
Download Now -
Data Sheets
Download Now
