An engineering reference for selecting, specifying, and integrating S-type (S-beam) load cells in hanging scales, suspended hoppers, test machines, tension monitoring, and OEM force measurement systems.
Browse S-Type Load Cells · ← Load Cells Guide · All Type Guides
TL;DR — S-Type Load Cell Overview
- What: An S-type load cell — also called an S-beam load cell, tension-compression load cell, or in-line force transducer — is a strain-gauge sensor shaped like the letter “S” with threaded connections on both ends. It measures both tension (pulling) and compression (pushing) along a single axis.
- Key advantage over other types: Bidirectional measurement (tension and compression in one sensor), compact in-line profile, and threaded rod ends that insert directly into the load path using shackles, clevises, or rod-end bearings — no platform or base required.
- Primary applications: Crane scales, hanging scales, suspended hopper and bin weighing, material testing machines, cable and chain tension monitoring, in-line force verification, OEM force sensors in automation and robotics.
- Transcell families: BSA (low-capacity, from 50 lb), BSS (250–20,000 lb general purpose, NTEP models available), BAB-MT (enhanced safe overload protection). Also available in kg ratings (200 kg to 2,000 kg).
- Key specs: 50 lb to 20,000 lb (25 kg to 10,000 kg), combined error ≤ ±0.02–0.03% F.S., output 2.0–3.0 mV/V, alloy steel construction, IP65–IP67, NTEP models available.
- When NOT ideal: Platform weighing (use single-point or shear beam), low-profile compression under presses (use pancake), ultra-compact fixtures (use button).
- Manufacturer: Transcell Technology, Buffalo Grove, IL — U.S.-based manufacturer with NTEP-certified models, calibration services, and OEM integration support including cross-reference compatibility with Rice Lake, Sensortronics, RTI, Celtron, and Artech models.
What Is an S-Type Load Cell?
An S-type load cell is a strain-gauge force sensor shaped like the letter “S” with threaded holes on the top and bottom for in-line force application. The S-shaped body creates a defined bending zone where strain gauges are bonded. Because force is applied through the center axis, the sensor measures both tension and compression — making it one of the most versatile load cell configurations for industrial and test applications.
Engineers and integrators also refer to these as S-beam load cells, tension-compression load cells, in-line force transducers, or universal force sensors. The threaded rod ends allow the sensor to be inserted directly into an existing force path — between a hook and a chain, within a test frame, or in a suspended hopper linkage — using shackles, clevises, eye bolts, or rod-end bearings.
Like all strain-gauge load cells, the S-type output is a low-level mV/V signal that requires an indicator or signal conditioner for amplification and conversion to engineering units.
S-type load cells measure both tension (pulling) and compression (pushing) when the load path is aligned through the center axis.
How S-Type Load Cells Work
The S-shaped body is machined from a single block of alloy steel (or stainless steel) with a precision geometry that concentrates bending stress in the center web. Strain gauges bonded to this web detect the micro-deformation as a resistance change and produce a proportional mV/V output through a Wheatstone bridge.
When tension is applied, the center web stretches on one side and compresses on the other. When compression is applied, the stress pattern reverses. The bridge configuration produces a positive output in one direction and a negative output in the other, allowing the indicator to display both tension and compression as signed values.
The critical installation requirement is axial alignment. The load must pass through the center axis of the S-beam with minimal side load, bending, or torsion. Rod ends, clevises, and spherical washers allow slight angular freedom while keeping the primary force on-axis. When aligned correctly, S-type load cells deliver excellent linearity and repeatability for both static and dynamic force measurement.
When Engineers Choose S-Type Load Cells
- Crane and hanging scales: Suspended between the hook and the load for real-time weight readout. The in-line profile and threaded connections integrate directly into rigging hardware.
- Suspended hopper and bin weighing: S-beams replace tension links in hopper suspension systems, providing accurate weight data for batching, level monitoring, and inventory tracking.

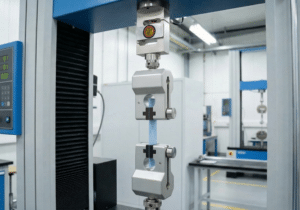

- Material testing and force test stands: Mounted in the crosshead of a test frame for tensile testing, compression testing, and force verification. Bidirectional capability allows push-pull testing in a single setup.
- Cable, chain, and wire tension monitoring: In-line installation measures ongoing tension in cables, mooring lines, lifting slings, and overhead systems.
- In-line force verification: Process force monitoring during assembly, press-fit, and insertion operations where the sensor sits directly in the force path.
- OEM force sensors: Embedded in automation equipment, robotic grippers, filling machines, and custom test fixtures where compact bidirectional measurement is needed.
- Retrofit applications: The threaded connections make S-beams easy to insert into existing mechanical linkages without modifying the surrounding structure.
When S-Type Load Cells Are Not Ideal
- Platform weighing: Bench scales, floor scales, and pallet scales are better served by single-point or shear beam load cells designed for platform mounting.
- Low-profile compression under presses: Where installation height is limited and the sensor sits flat between two surfaces, a pancake load cell is better suited.
- Ultra-compact fixtures: Robotics end-effectors and medical devices requiring miniaturized sensors are better served by button load cells.
- High side-load environments: S-beams are sensitive to off-axis forces. Where significant side loads or bending cannot be controlled, shear beams or weighing modules are more tolerant.
- Very high capacity (>20,000 lb): At extreme loads, canister compression load cells or double-ended shear beams offer higher capacity per unit.
S-Type vs. Other Load Cell Types
| Criterion | S-Type | Single-Point | Shear Beam |
|---|---|---|---|
| Force direction | Tension and compression (bidirectional) | Compression only | Compression only (standard) |
| Mounting | In-line, threaded rod ends | Under a platform | Bolted to structure, loaded at free end |
| Typical capacity | 50 lb to 20,000 lb | 1 kg to 1,000 kg | 250 lb to 50,000 lb |
| Side-load tolerance | Low — requires axial alignment | Moderate — moment compensation | Good — shear zone is insensitive |
| Best for | Hanging, tension, test, in-line force | Bench scales, checkweighers, OEM | Floor scales, tanks, heavy platforms |
| Accessories needed | Rod ends, clevises, shackles | Platform, mounting bolts | Junction box, mounting hardware |
Choose an S-type when the force is in-line (tension or compression) and you can maintain axial alignment. For platform-based weighing, single-point or shear beam designs are better suited.
Transcell S-Type Load Cell Families
Transcell manufactures S-beam load cells in several families to cover different capacity ranges, accuracy requirements, and overload protection needs. All families use alloy steel construction with nickel plating and are available with datasheets, dimensional drawings, and 3D CAD files.
BSA Series — Low-Capacity S-Beam
Alloy steel S-beam load cells starting at 50 lb. Designed for low-force test fixtures, small hanging scales, and precision OEM applications where lower capacity and compact size are needed. Cross-compatible with Rice Lake RL20000, Artech 20210, and RTI 363.
BSS Series — General Purpose S-Beam
The most widely used Transcell S-beam family. Alloy steel construction covering 250 lb to 20,000 lb (also available in 200 kg to 2,000 kg). Used in crane scales, suspended hoppers, test machines, and tension monitoring systems. NTEP-certified models available for legal-for-trade applications. Cross-compatible with Rice Lake RL20001, Sensortronics 60001, RTI 363, and Celtron STC.
BSS NTEP Models → · BSS (kg) →
BAB-MT Series — Enhanced Safe Overload Protection
Standard S-beam accuracy and pricing with enhanced safe overload protection built into the sensor body. Particularly valuable in applications where control systems may overshoot a target or where accidental overloading is a realistic risk — filling systems, automated dosing, and batching operations.
Browse All S-Type Load Cells →
Key Specifications
The following table summarizes typical specification ranges across Transcell S-beam families. Always consult the model-specific datasheet for exact values.
| Parameter | Typical Range / Options |
|---|---|
| Rated Capacity | 50 lb to 20,000 lb (25 kg to 10,000 kg), model dependent |
| Material | Nickel-plated alloy steel |
| Rated Output | 2.0–3.0 mV/V nominal |
| Recommended Excitation | 5–12 VDC (model dependent) |
| Combined Error | ≤ ±0.02% to ±0.03% F.S. |
| Repeatability | ≤ ±0.01% F.S. |
| Safe Overload | 150% F.S. typical (BAB-MT: enhanced) |
| Ultimate Overload | 300% F.S. typical |
| Sealing / Protection | IP65 to IP67 (model dependent) |
| Mounting Threads | Metric or imperial (model dependent) |
| Approvals | NTEP (select BSS models), OIML R60 (select models) |
For exact thread sizes, dimensions, and overload ratings, see individual product pages or contact Transcell engineering.
Mounting, Alignment & Best Practices
S-type load cells are sensitive to off-axis forces. Correct mounting ensures the load passes through the center axis of the sensor, maximizing accuracy and preventing premature fatigue.
- Axial alignment: Use rod ends, clevises, eye bolts, or spherical washers to keep the force aligned through the sensor axis. These fixtures allow slight angular movement while preventing bending and side loads.
- Avoid rigid connections: Do not bolt directly into a rigid structure without articulation. Thermal expansion, structural deflection, and misalignment during loading introduce bending that degrades accuracy and can damage the sensor.
- Clearance: Ensure nothing contacts the S-beam body during loading. The entire center section must deflect freely.
- Overload protection: Install mechanical stops or limit switches to prevent forces exceeding rated capacity, especially in crane, lifting, and automated filling applications. The BAB-MT series includes built-in overload protection for additional safety.
- Cable routing: Route the cable away from moving parts, pinch points, sharp edges, and heat sources. Use strain relief at the cable exit. In hanging applications, allow service loops that do not apply tension to the cable during operation.
- Tension vs. compression orientation: Most S-type load cells are symmetrical and will measure in either direction. Verify the polarity convention with the datasheet — some models may designate a preferred tension or compression direction.
Correct: axial load path with rod ends for angular freedom. Incorrect: rigid connection introducing bending and side load.
Wiring & Signal Conditioning
Most Transcell S-type load cells use a standard 4-wire cable. Always confirm color codes with the model-specific datasheet.
| Function | Typical Color |
|---|---|
| Excitation + | Red |
| Excitation − | Black |
| Signal + | Green |
| Signal − | White |
| Shield / Drain | Bare |
The mV/V output connects to an indicator, signal conditioner, or PLC analog module. For automation, the indicator can provide 4–20 mA, 0–10 V, or digital (Modbus/RS-485) output to a PLC.
In tension-compression applications where the signal polarity reverses, confirm that the indicator supports bipolar input. Most modern indicators handle this natively, but legacy instruments may not display negative (compression) readings without configuration.

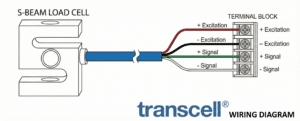

Typical 4-wire wiring for an S-type load cell. Confirm colors with the model datasheet.
Applications
S-type load cells are used wherever in-line tension or compression measurement is needed in a compact, bidirectional form factor.
- Crane and hanging scales: Suspended between the hook and the load for real-time weight readout in material handling, shipping, and logistics.
- Suspended hopper and bin weighing: Replacing tension links in hopper suspensions for batching, level monitoring, and inventory control.
- Material testing: Mounted in tensile/compression test frames for destructive and non-destructive force measurement.
- Cable and chain tension monitoring: Continuous monitoring of tension in lifting slings, guy wires, mooring lines, and overhead rigging systems.
- In-line force verification: Assembly press-fit monitoring, insertion force measurement, and process force control.
- OEM force sensors: Embedded in robotic grippers, filling machines, packaging equipment, and custom test fixtures.
- Retrofit installations: Threaded rod ends allow insertion into existing linkages without structural modification.
Related: Crane & Hoist Weighing · Production Automation · Test & Measurement · Manufacturing · Construction
Certifications & Accuracy Classes
Select Transcell BSS models carry NTEP certification for legal-for-trade applications such as hanging scales and suspended hopper weighing in commercial settings.
- NTEP (U.S.): Certificates of Conformance for legal-for-trade use. Check individual product pages for certificate numbers and division limits.
- OIML R60: Available on select models for international trade compliance.
- General purpose: Non-certified models for test and measurement, process force monitoring, and OEM integration where trade certification is not required.
Transcell provides calibration services with traceable standards for both certified and general-purpose models.
CAD Files & Engineering Resources

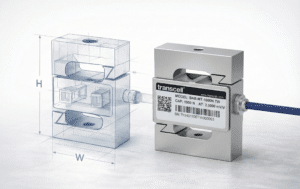

- 2D dimensional drawings (PDF) with thread sizes, mounting dimensions, and overall envelope
- 3D CAD models (STEP format) for BSA, BSS, and BAB-MT series
- Load direction diagrams clarifying tension vs. compression orientation
- Wiring color-code tables per series
CAD files are available on individual product pages or by request from Transcell engineering. For OEM projects requiring simplified family envelopes across multiple capacities, see OEM services.
OEM & Custom Integration
Transcell supports OEMs embedding S-type load cells into crane scales, test machines, filling equipment, automation fixtures, and custom force measurement systems. Engineering scope includes:
- Application review: capacity, duty cycle, tension vs. compression vs. bidirectional, safety factors, overload exposure
- Mounting hardware recommendations (rod ends, clevises, shackles, adapters)
- Indicator and transmitter selection for the target control architecture
- Custom cable lengths, connectors, and environmental protection
- Private labeling and branded documentation
- Cross-reference guidance for replacing competitor models (Rice Lake, Sensortronics, RTI, Celtron, Artech)
OEM Services → · Engineering Design →
S-Type Load Cell FAQs
What is an S-type load cell?
A strain-gauge force sensor shaped like the letter “S” that measures both tension and compression through threaded rod-end connections. Also called an S-beam load cell or tension-compression load cell.
Can an S-type load cell measure both tension and compression?
Yes. Most S-type load cells are bidirectional — they measure tension and compression within rated capacity. The output signal polarity reverses depending on the force direction.
How do I align the load correctly?
Use rod ends, clevises, or spherical washers to keep the force on the center axis. Avoid rigid connections that introduce bending. The entire center section of the S must deflect freely without contact.
What accessories do I need?
Most installations require rod ends, eye bolts, clevises, or custom fixtures to align the load. For overload protection, consider the BAB-MT series with built-in safe overload, or add external mechanical stops.
How do I choose capacity for a crane or hanging scale?
Start with the maximum expected load including dynamic effects (swing, impact, acceleration). Apply a safety factor appropriate to the application — typically 150% or more for lifting and crane use. Choose a capacity that covers the peak load while providing adequate resolution.
Can I replace a competitor’s S-beam with a Transcell model?
In many cases, yes. BSA and BSS series are cross-compatible with popular models from Rice Lake, Sensortronics, RTI, Celtron, and Artech. Contact us with the current manufacturer, model, capacity, and thread size for evaluation.
Do Transcell S-type load cells have NTEP certification?
Select BSS models carry NTEP Certificates of Conformance for legal-for-trade applications. Check individual product pages for specific approvals and division limits.
When should I choose the BAB-MT over the standard BSS?
When accidental overloading is a realistic risk — filling systems, automated dosing, crane applications, or any system where a control loop may overshoot. The BAB-MT includes enhanced safe overload protection built into the sensor body.
Need Help Specifying an S-Type Load Cell?
To receive a recommendation from the Transcell engineering team, provide:
- Maximum expected force (tension, compression, or both)
- Dynamic conditions (static weighing, cyclic testing, impact/shock)
- Mounting method and available thread size
- Environment (indoor/outdoor, temperature range, corrosion exposure)
- Output format and controller type (indicator, PLC, DAQ)
- Certification requirement (NTEP, OIML, general purpose)
Our engineering team will recommend the appropriate S-beam family, mounting hardware, and instrumentation for your application.
