BSS Series S-Beam Load Cell (lb, NTEP)
|
Tension & compression Measures pulling and pushing forces in both directions · IP67 rated · alloy steel |
|
|
Same-day shipping In-stock orders ship the same business day · Free 2-day delivery |
|
|
Manufacturer direct Designed & supported by Transcell in Buffalo Grove, IL since 1981 |
|
|
2-year limited warranty US-based technical support included · repair or replace guarantee |
Product Description

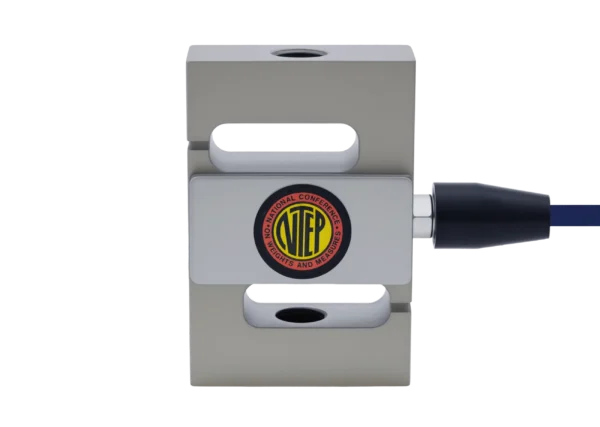

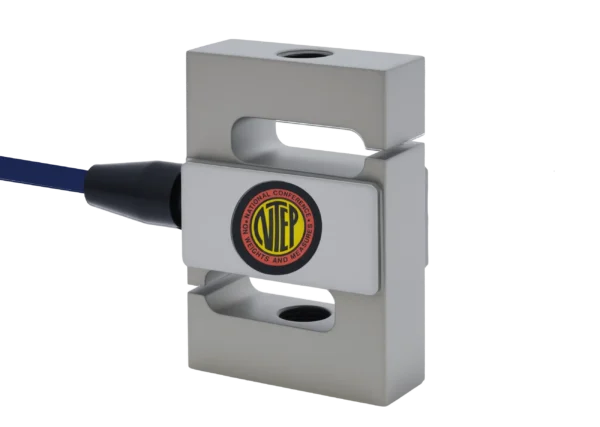

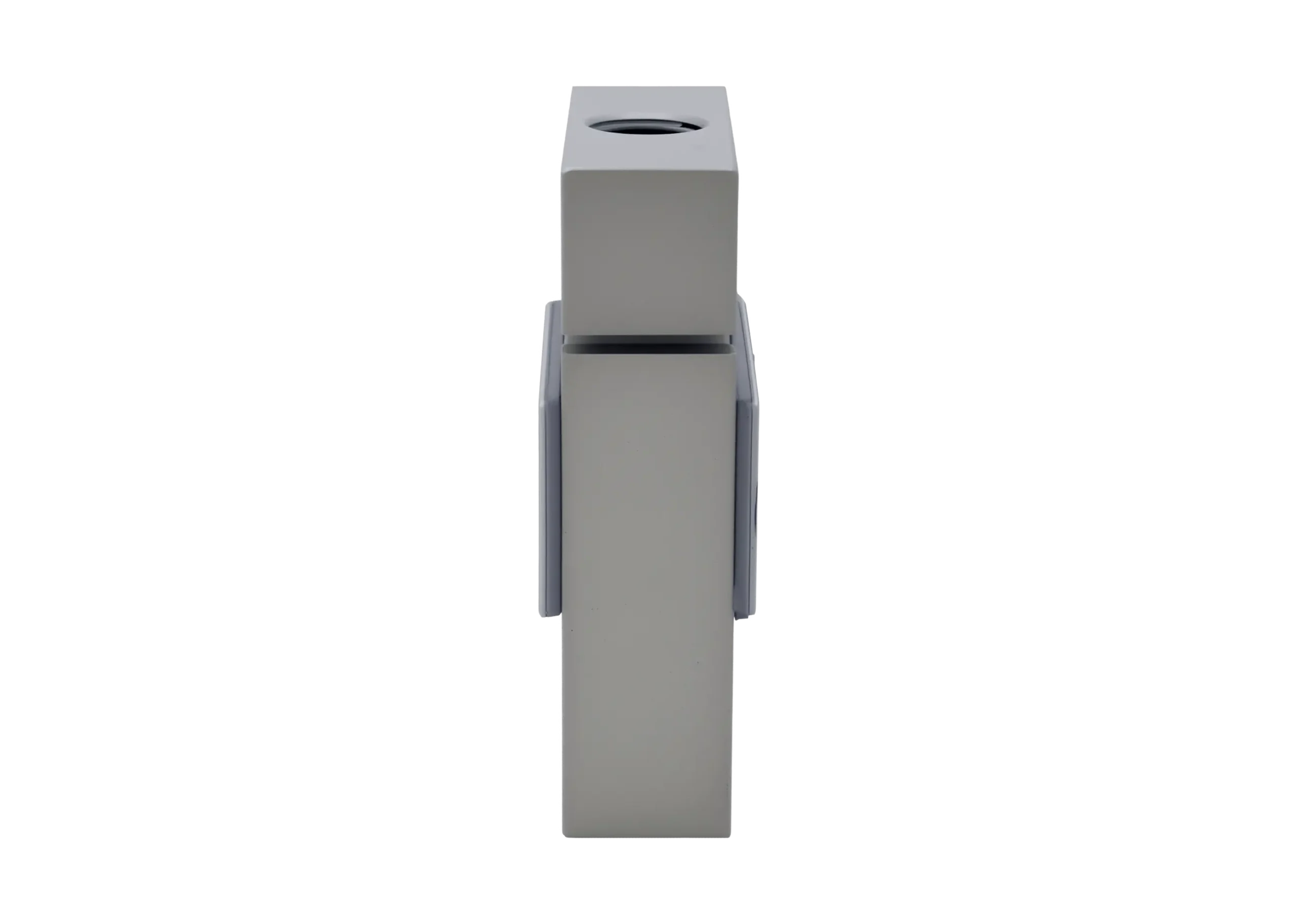

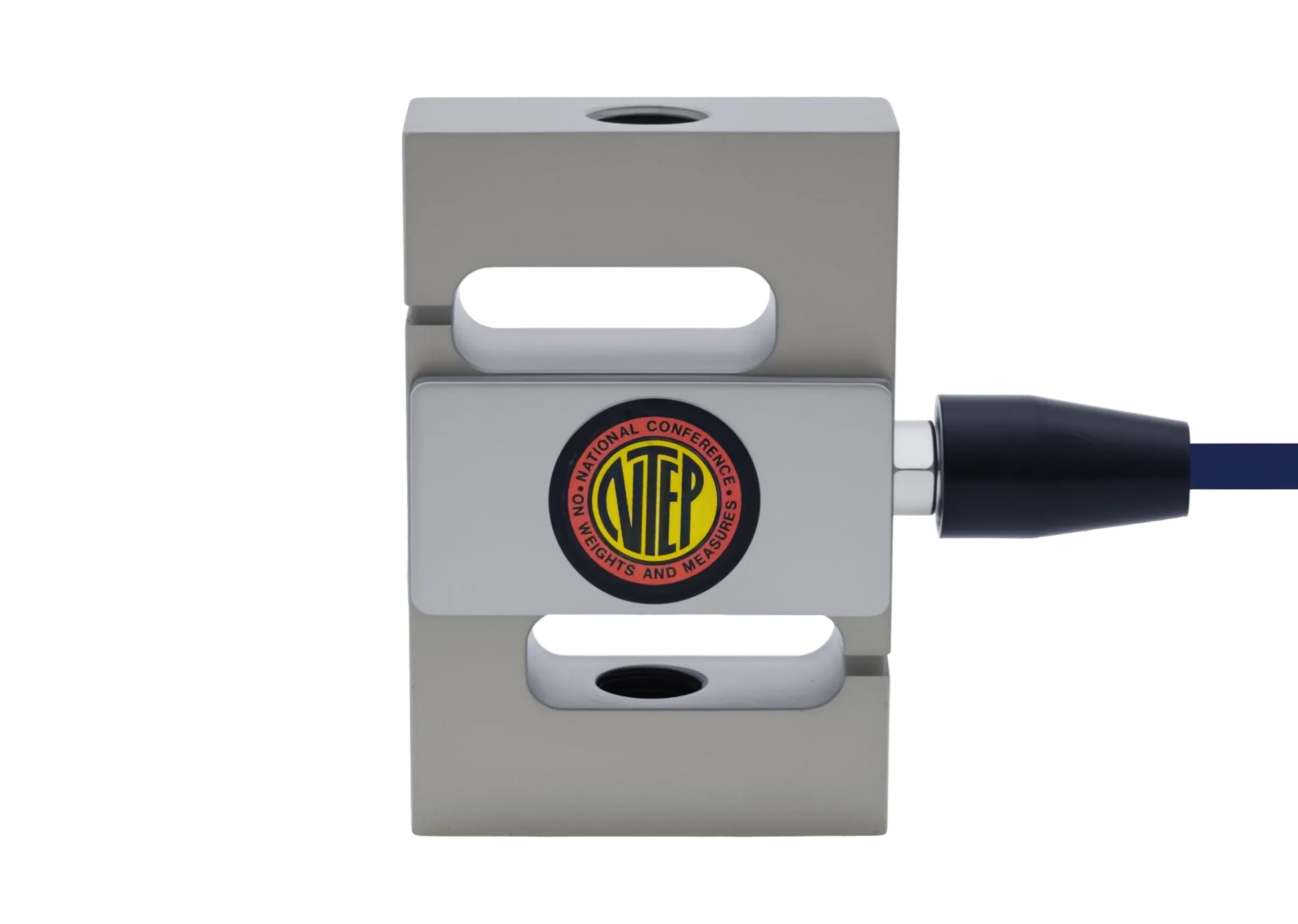

BSS S-type load cell overview
The BSS is an alloy steel S-type load cell engineered for accurate force measurement in both tension and compression. Its inline, double-ended threaded design makes it one of the most versatile S-beam load cell sensors available, well-suited for applications where a load path passes directly through the sensor: hanging scales, tensile test rigs, silo weighing systems, and process control equipment that alternates between pull and push forces. With ±0.02% nonlinearity and a 150% safe overload rating, the BSS S-beam delivers lab-grade accuracy at an aggressive price point. NTEP certification (CoC 97-028) is included on models from 250 lb to 2,500 lb, making it legal-for-trade in commercial weighing applications.
|
Capacity range
250 lb
up to 20,000 lb
|
Nonlinearity
±0.02%
of rated output
|
IP rating
IP67
dust & waterproof
|
Safe overload
150%
of rated capacity
|
Typical applications
The BSS S-beam load cell is commonly specified for applications where forces are applied axially and may alternate between tension and compression.
|
|
|||||
|
|
|||||
|
|
Technical notes
|
Installation and alignment
S-type load cells require axial alignment between the two threaded connections. Off-axis or side loading will degrade accuracy and may cause premature fatigue. For best results, use swivel rod ends or clevis attachments at both connection points to allow self-alignment under load. All threaded rods must be inserted a minimum of one full thread diameter into each end to ensure structural integrity. |
System integration
The BSS S-beam load cell operates at a rated excitation of 10V DC/AC (15V max) and produces a 3.05 mV/V analog output signal. It is compatible with any standard weight indicator, PLC analog input, or load cell conditioner accepting a mV/V bridge input. For multi-cell systems, a load cell summing junction box is used to balance and combine outputs before passing a single signal to the indicator. |
|
Rated output
3.05 mV/V ±1.64%
|
Zero balance
±1% of rated output
|
Nonlinearity / Hysteresis
±0.02% RO each
|
Temp. effect on output
≤0.002% /°C
|
|
Safe temp. range
−10°C to +70°C
|
Insulation resistance
≥5,000 MΩ at 50V DC
|
Input impedance
387 Ω ± 5 Ω
|
Output impedance
350 Ω ± 3 Ω
|
|
Cable wiring
The BSS ships with a 20 ft (6 m) cable. Standard color code:
|
Drop-in replacement for
The BSS is a direct mechanical and electrical substitute for the following S-type load cell models. No wiring or mounting changes are required when upgrading or replacing:
|
Dimensions / 3D Drawings
Note: You may need a software that can open/view STEP files.
-
Data Sheets
Download Now
