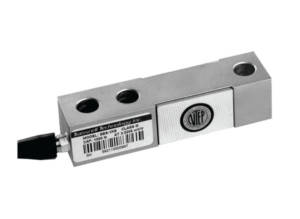

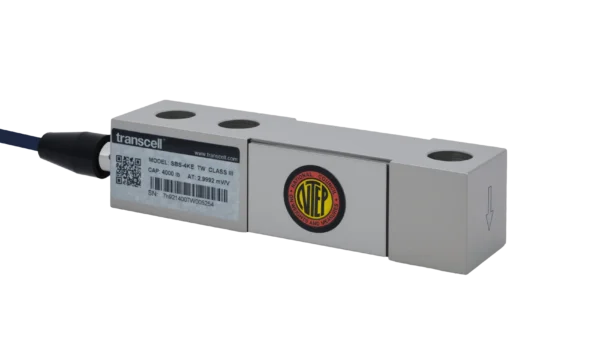

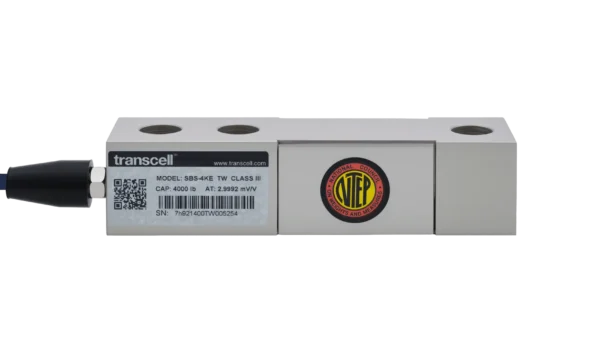

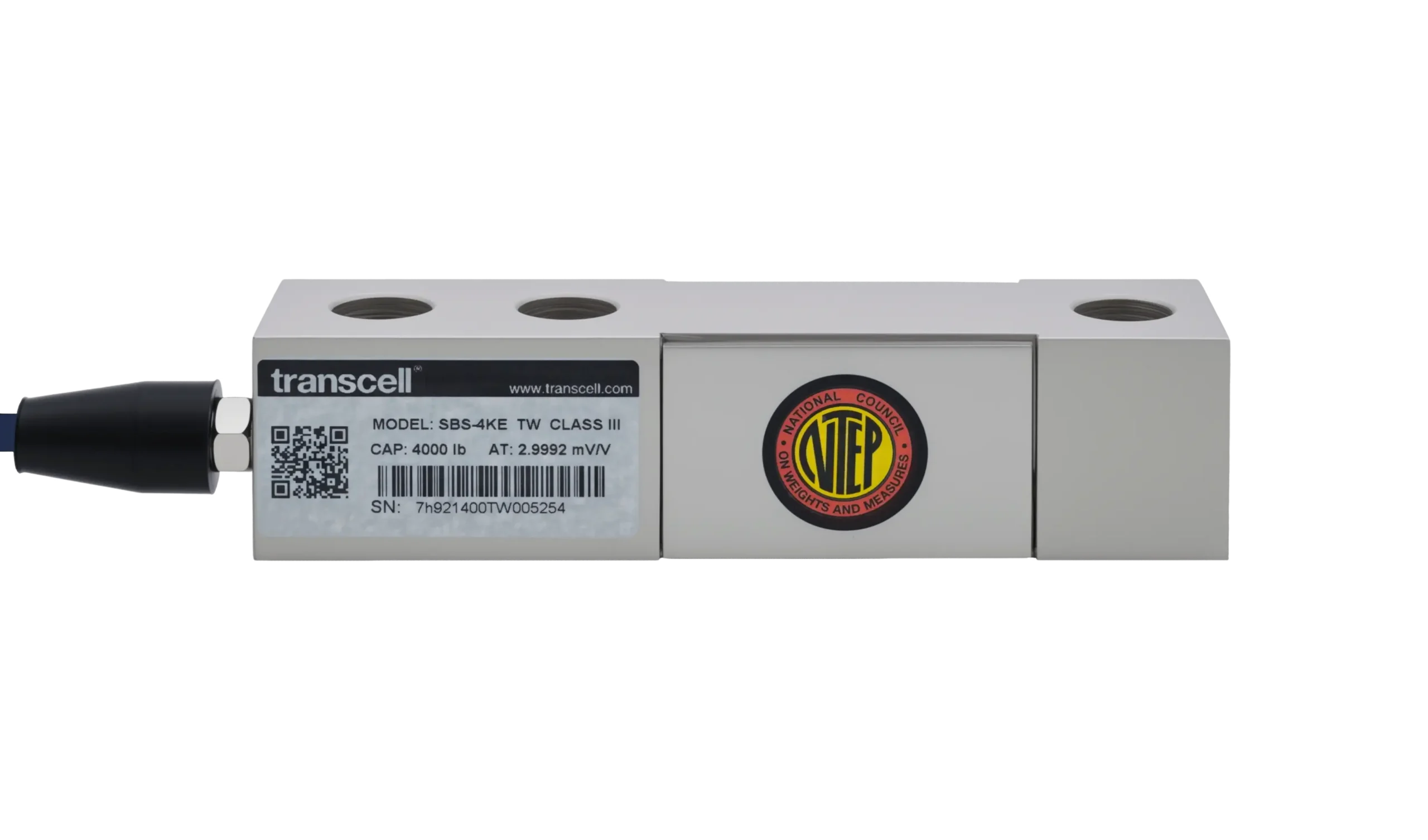

SBS Series Single Ended Shear Beam Load Cell (lb, NTEP)
Product Description

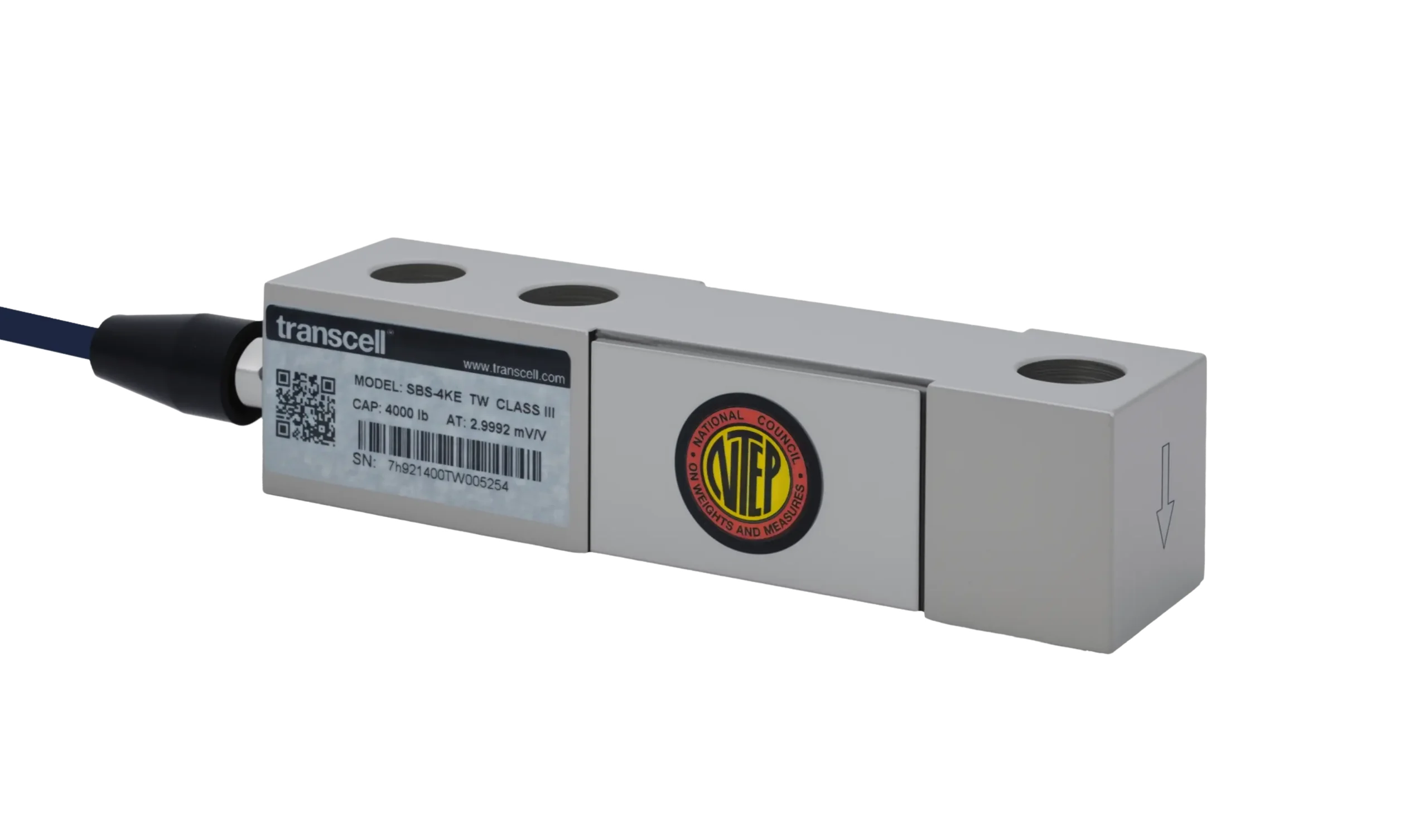

SBS single-ended shear beam load cell overview

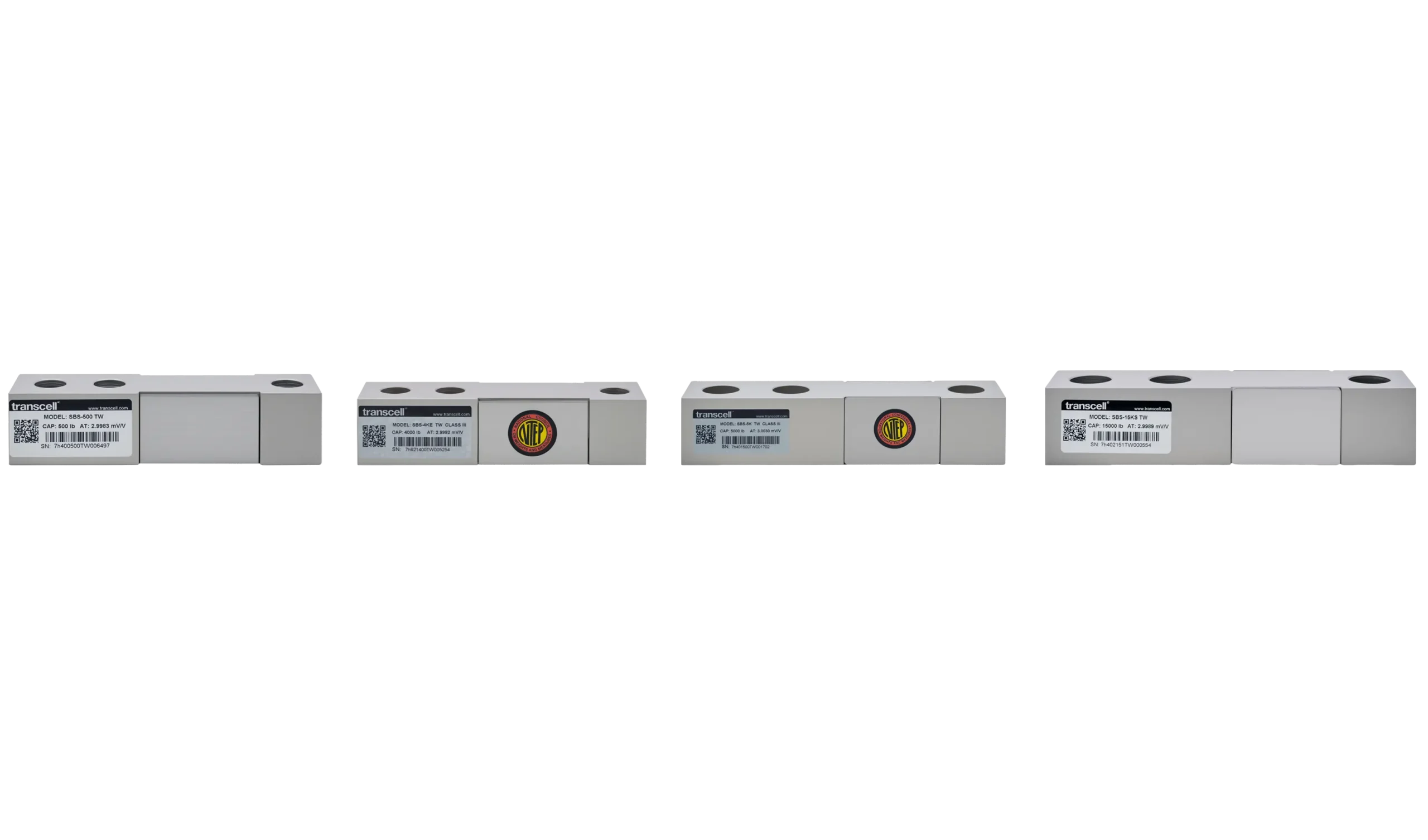

The SBS is an alloy steel single-ended shear beam load cell engineered for compression-only force measurement in floor scales, platform scales, and industrial weighing systems. Its single-ended cantilever design bolts at one end while the platform or load structure bears down on the free end, making it one of the most widely used load cell geometries in commercial weighing. Available from 250 lb up to 20,000 lb, the SBS covers the full range of floor scale, truck scale, and heavy industrial platform applications. With ±0.03% nonlinearity, IP67 environmental protection, and NTEP certification (CoC 95-146) on models from 1,000 lb to 10,000 lb, the SBS delivers reliable legal-for-trade performance at a competitive price point. It is a direct drop-in replacement for several widely used shear beam models from major manufacturers.
Typical applications
The SBS shear beam load cell is commonly specified for compression weighing in platform scales, floor scales, and industrial systems where one end is fixed and the load is applied from above.
Technical notes
The SBS mounts via bolt holes at the fixed end, with the load applied downward at the free (cantilevered) end. The mounting surface must be flat, rigid, and level for accurate readings. Side loading and off-axis forces should be minimized. Use check rods or anti-rotation restraints where horizontal forces or vibration are present. For multi-cell platform scale installations, mount one SBS at each support point and use a summing junction box to balance and combine the outputs before connecting to the indicator.
The SBS operates at a rated excitation of 10V DC/AC (15V max) and produces a 3.0 mV/V analog output signal. It is compatible with any standard weight indicator, PLC analog input, or load cell conditioner accepting a mV/V bridge input. For multi-cell floor scale or platform installations, a load cell summing junction box is used to balance and combine signals from each cell before passing a single output to the indicator.
+70°C

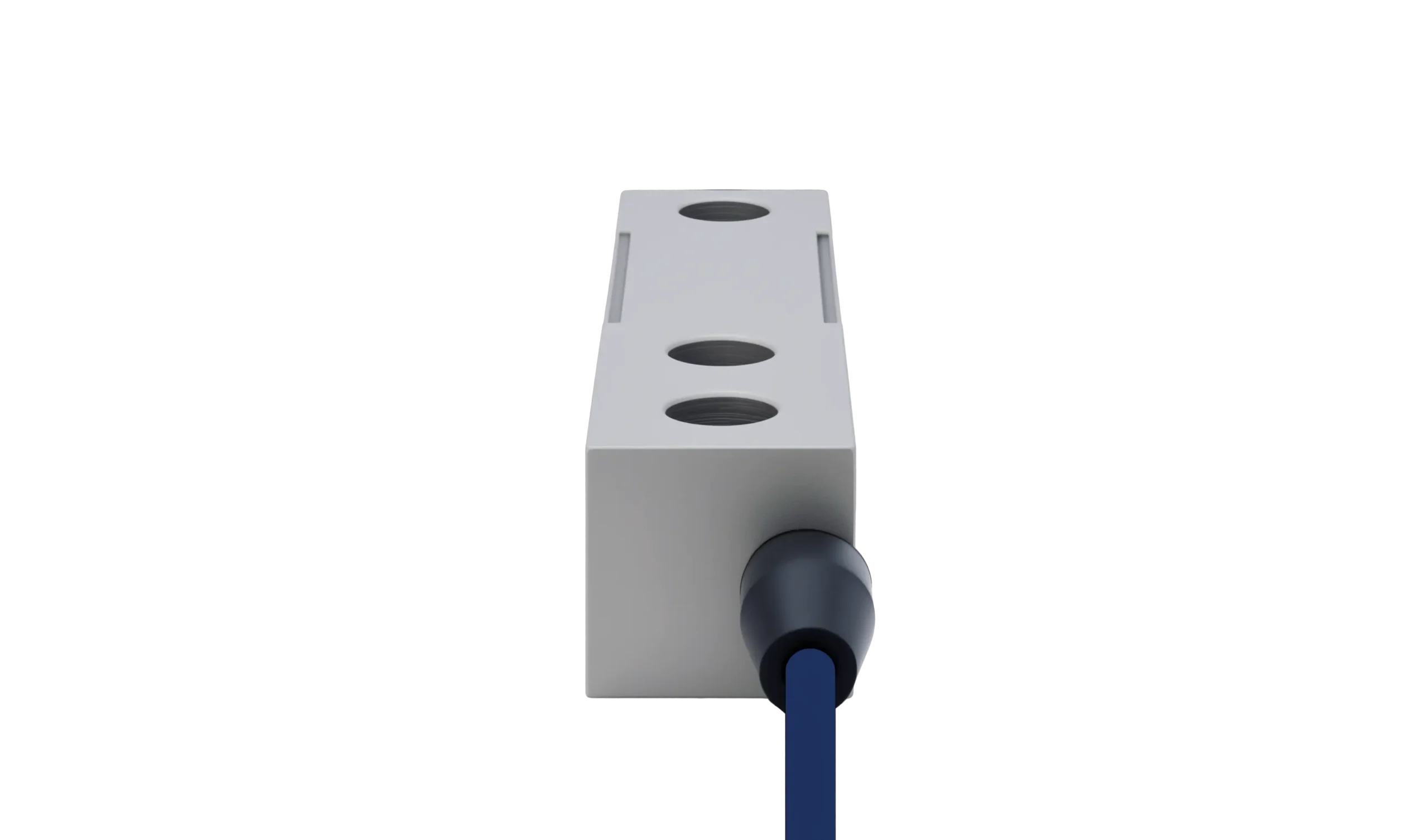

The SBS ships with a 20 ft (6 m) cable. Standard color code:
| ■ RED | +Excitation |
| ■ BLACK | −Excitation |
| ■ GREEN | +Signal |
| ■ WHITE | −Signal |
The SBS is a direct mechanical and electrical substitute for the following shear beam load cell models. No wiring or mounting changes are required when upgrading or replacing:
| ➤ | Sensortronics 65023A |
| ➤ | Rice Lake RL30000 (threaded) |
| ➤ | Rice Lake RL35023 |
| ➤ | Tedea-Huntleigh 3411 |
| ➤ | Celtron SQB |
| ➤ | Artech 30310 |

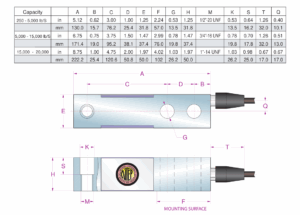

Dimensions / 3D Drawings
Note: You may need a software that can open/view STEP files.
-
Data Sheets
Download Now
Interchangeable
