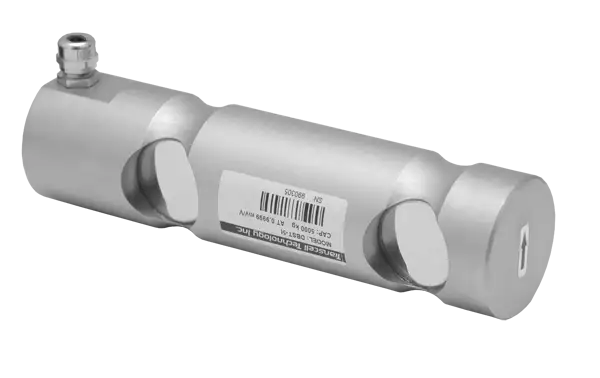

DBST (5t/10t) Load Pin
Easily adds force measurement / feedback to a clevis connection
Applications
Add force measurement / feedback to a clevis or shackle connection. Often used in cranes, lifting systems, or anchoring systems.
Purchase in Our Store
Need a Custom Solution?
Contact UsAggressive Price Point
Nickel-Plated Construction for Harsh Environments
Available in Stainless Steel
Variety of Analog and Digital Signal Outputs Available
Technical Specifications
View All Model Details
Insert Schematic Here
| Specifications | |
|---|---|
| Rated Output | 1.0 ± mV/V 1% |
| Zero Balance | ± 1.0% of rated output |
| Creep | ± 0.02% of applied load |
| Nonlinearity | ± 0.5% of rated output |
| Hysteresis | ± 0.5% of rated output |
| Repeatability | ± 0.5% of rated output |
| Temp Effect on Output | ± 0.02% of reading/°C |
| Temp Effect on Zero | ± 0.02% of output/°C |
| Cable Length | 6m [19.69ft] |
| Safe Temp Range | -10 to +70°C |
| Temp Comp Range | -10 to +40°C |
| Safe Overload | 150% of capacity |
| Ultimate Overload | 200% of capacity |
| Input Impedance | 775 Ω |
| Output Impedance | 700 Ω |
| Insulation Resistance | 5000 MΩ |
| Rated Excitation | 10 V DC |
| Max Excitation | 15 V DC |
