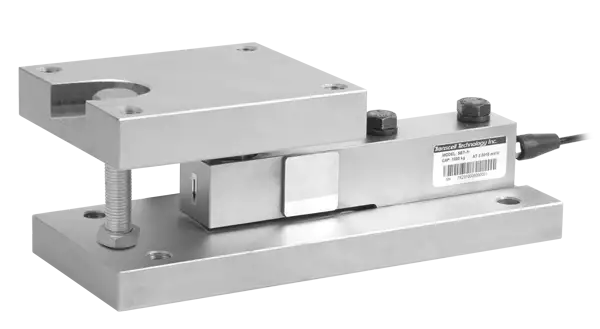

SBT-FW Weighing Module
Weigh Module that includes the SB/SBT (single-ended shear beam) Load Cell
Applications
SBT-FW Weigh Module excels in dynamic weighing applications; well-suited for floor scales or process weighing applications
Purchase in Our Store
Need a Custom Solution?
Contact UsWide Range of Capacities
Nickel Plating Protects Against Corrosion
Cost Effective
Technical Specifications
View All Model Details
Insert Schematic Here
| Specifications | |
|---|---|
| Rated Output | 2.0mV/V ± 0.1% |
| Zero Balance | ± 1% of rated output |
| Creep | ± 0.03% of applied load |
| Nonlinearity | ± 0.03% of rated output |
| Hysteresis | ± 0.03% of rated output |
| Repeatability | ± 0.03% of rated output |
| Temp Effect on Output | ± 0.002% of reading/°C |
| Temp Effect on Zero | ± 0.002% of output/°C |
| Cable Length | 6m [20.28ft] |
| Safe Temp Range | -10 to +70°C |
| Temp Comp Range | -10 to +40°C |
| Safe Overload | 150% of capacity |
| Input Impedance | 387 Ω |
| Output Impedance | 350 Ω |
| Insulation Resistance | 5000 MΩ |
| Rated Excitation | 10 V DC/AC |
| Max Excitation | 15 V DC/AC |
