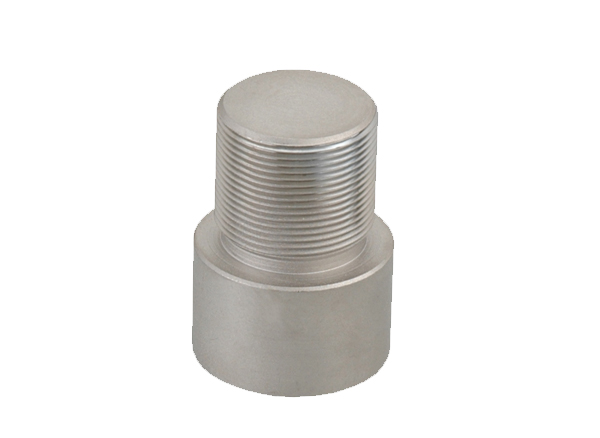

Optional Load Button for DBSL (10t and 20t Capacities)
Optional Load Button for DBSL (10t and 20t Capacities) - Image 2
Optional Load Button for DBSL (10t and 20t Capacities) - Image 3

Optional Load Button for DBSL (10t and 20t Capacities)

Available on backorder

$45.00

  • Optional load button for DBSL load cells with 10t and 20t capacities.
  • Radiused dome on top to align compressive load down centerline of DBSL
  • M32x1.5 male thread for mounting to DBSL

Product Description

A radiused dome that is threaded into the centerline threads of the DBSL.  Improves the quality of compression measurements by concentrically aligning applied loads directly down the loading axis of the DBSL.

SKU: 3112240008 Categories: ,

Dimensions

Interchangeable
