Multi-Column Load Cells

Compact precision force measurement with bidirectional capability. CR series: 50 kgf to 3 t. ±0.25% accuracy. Tension and compression in a single transducer.

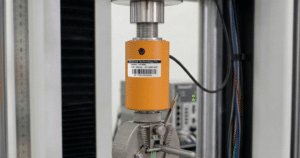

CR series multi-column load cell installed in a compression testing machine measuring force
CR Series multi-column load cell used in precision tension testing applications.



Key Specifications

  • Capacity range: 50 kgf (110 lbf) to 3 t (6600 lbf)
  • Accuracy: ±0.25% FS (nonlinearity & hysteresis), ±0.05% repeatability
  • Bidirectional: Tension and compression measurement without recalibration
  • Material: Alloy steel with compact multi-column internal structure
  • Operating range: -42 to 93°C (compensated 15–72°C)
  • Output impedance: 350Ω; Input: 410±30Ω
  • Excitation: 10V DC/AC (15V maximum)
  • Shielded 4-conductor cable: 28 AWG, 10 ft (3 m) standard
  • Ships from Buffalo Grove, IL

CR Series Quick Specifications

Capacity50 kgf – 3000 kgf
Accuracy±0.25% FS
Repeatability±0.05% FS
MaterialAlloy Steel
Temperature Operating-42 to 93°C
Measurement TypeBidirectional

How Multi-Column Load Cells Work

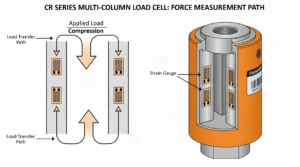

multi-column load cell internal force measurement path showing strain gauge placement and load transfer
CR Series multi-column load cell diagram showing internal load paths and strain gauge configuration for accurate bidirectional force measurement.

The CR series multi-column load cell architecture distributes applied force across multiple internal load-bearing columns. This redundant load path achieves several advantages over single-column designs: higher stiffness in a compact envelope, excellent lateral load rejection, and consistent accuracy across the full measurement range.

When a tensile or compressive force is applied, the columns compress or extend proportionally. Internal strain gauges bonded to each column detect this deformation and generate an electrical signal proportional to the applied load. The multi-column arrangement means that lateral or off-axis loading has minimal effect on the measurement, making these transducers ideal for test fixtures and process equipment where perfect force alignment cannot always be guaranteed.

The bidirectional nature means a single CR series load cell measures both pulling (tension) and pushing (compression) forces without damage or physical repositioning. The alloy steel construction provides mechanical strength and repeatable output over millions of load cycles.

CR Series Model Comparison

CR series multi-column load cell models showing size and capacity differences
CR Series multi-column load cell lineup showing available models and capacity ranges.

Select the CR model that matches your force measurement range. Each model is available with optional calibration and comes with standard 4-conductor shielded cable.

Model Capacity (kgf) Capacity (lbf) Output Impedance Max Excitation Repeatability
CR-50KGF 50 110 350Ω 15V DC/AC ±0.05% FS
CR-200KGF 200 440 350Ω 15V DC/AC ±0.05% FS
CR-2T 2000 4400 350Ω 15V DC/AC ±0.05% FS
CR-3T 3000 6600 350Ω 15V DC/AC ±0.05% FS

Who Uses CR Series Multi-Column Load Cells

Materials Testing Laboratories
Characterize tensile strength, compression resistance, and elastic properties of metals, polymers, composites, and ceramics. The ±0.05% repeatability ensures reproducible test results across multiple specimens and batches.
Force Measurement & Test Equipment Manufacturers
OEM designers integrate CR series load cells into universal testers, hydraulic press fixtures, and adhesion testers. The compact multi-column design allows for space-constrained installations without sacrificing accuracy.
Industrial Weighing & Quality Control
Verify production quality by measuring pull force in fastener testing, adhesive bond strength, or mechanical assembly loads. Bidirectional measurement eliminates the need for separate tension and compression transducers.

Selection Guide

Choosing the correct CR series model requires identifying your maximum force requirement and understanding whether your application involves tension, compression, or both.

Step 1: Determine Maximum Load

Identify the maximum force your application will impose. Include a safety margin (typically 20–30% above the measured peak). Example: if you measure a peak load of 150 kgf, the CR-200KGF provides adequate headroom and improved accuracy linearity.

Step 2: Bidirectional Requirements

Confirm whether your application involves tension, compression, or both. CR series load cells are bidirectional by design, so a single transducer handles both directions. This simplifies test fixture design and reduces inventory.

Step 3: Accuracy & Repeatability Needs

The CR series standard accuracy is ±0.25% FS (nonlinearity and hysteresis) with ±0.05% repeatability. For materials testing and calibration work, this specification is sufficient. For reference-grade applications, consult the engineering team about custom compensation or higher-grade certification.

Step 4: Environmental Conditions

Operating temperature range is -42 to 93°C with full accuracy compensation from 15 to 72°C. If your test environment exceeds the compensated range, temperature drift correction may be needed in your measurement system. Verify cable routing and connector protection for the application environment.

Step 5: Electrical Integration

Standard CR series specifications: 350Ω output impedance, 410±30Ω input impedance, 10V DC/AC excitation (15V maximum). These values are compatible with standard strain gauge signal conditioners, data acquisition modules, and force indicators from Transcell and industry suppliers.

Installation and Cable Management

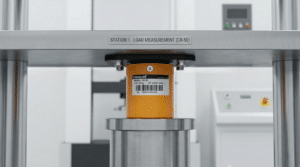

CR series multi-column load cell installed in compression testing frame with proper alignment fixtures
CR Series multi-column load cell mounted in a compression testing frame, demonstrating proper axial alignment and installation setup.

Mounting Orientation

CR series load cells are mounted between the force application point and the measurement structure. Ensure that force flows axially through the transducer. Lateral or bending loads degrade accuracy and can cause mechanical damage. Use appropriate fixtures to center the load.

Cable Specifications

Standard cable is 4-conductor shielded, 28 AWG, polyurethane jacketed, 10 feet (3 meters) in length. For longer cable runs, use low-noise instrumentation cable to minimize noise pickup in sensitive measurement circuits. Shield the cable and ground it at one point only (usually at the signal conditioner).

Connector Protection

CR series load cells ship with standard connectors. In wet or corrosive environments, verify connector material compatibility and consider protective overmolding or sealed conduit. Water ingress can degrade strain gauge performance and create signal noise.

Temperature Compensation

The CR series is temperature compensated across 15–72°C. If operation outside this range is required, a high-precision indicator or data logger with temperature input can apply correction factors. Contact the engineering team for custom temperature compensation strategies.

Full Technical Specifications

Parameter Specification Notes
Measurement Type Bidirectional (Tension & Compression) Single transducer for both load directions
Material Construction Alloy Steel Multi-column internal design for stiffness and accuracy
Nonlinearity ±0.25% FS Best-fit straight line, full measurement range
Hysteresis ±0.25% FS Loading and unloading cycle differential
Repeatability ±0.05% FS Standard deviation across 10 consecutive loads
Output Impedance 350Ω (nominal) At excitation frequency
Input Impedance 410 ± 30Ω Bridge balance point for zero signal
Excitation 10V DC/AC (15V maximum) Compatible with standard strain gauge indicators
Output Range Nominally ±40 mV/V Under rated excitation
Temperature Operating Range -42 to 93°C Full range without damage
Temperature Compensated Range 15 to 72°C Full accuracy specifications maintained
Temperature Coefficient (Zero) <±0.01% FS/°C Within compensated range
Temperature Coefficient (Sensitivity) <±0.02% FS/°C Within compensated range
Humidity Operating 5 to 95% RH (non-condensing) Sealed connector and cable glands
Cable 4-conductor shielded, 28 AWG, polyurethane 10 ft (3 m) standard; custom lengths available
Connector Type Standard industrial connector IP67 rating with sealed mated pair
Weight Varies by model (CR-50KGF ~0.8 kg; CR-3T ~2.1 kg) Contact factory for exact specifications
Certification Optional calibration per NIST traceable schedule RoHS compliant, Made in USA

Standards, Certification & Calibration

Performance Standards

CR series multi-column load cells are designed and manufactured in accordance with industry best practices for strain gauge transducers. The design follows principles established in ASTM E4 (Verification of Force-Measuring Instruments) and ISO 6954 (Industrial Process Measurement and Control – Pressure Transducers).

RoHS & Environmental Compliance

CR series load cells are RoHS compliant. The alloy steel construction is fully recyclable. All electronic components meet restriction-of-hazardous-substances directives.

Calibration & Traceability

Standard CR series transducers ship with basic performance verification. Optional NIST-traceable calibration certificates are available at an additional cost. Calibration is performed on Transcell’s in-house deadweight or force-transfer-standard equipment. Certificate includes: zero-load offset, sensitivity at five points across the measurement range, linearity analysis, and hysteresis measurement.

Recalibration Services

After extended use or suspected damage, CR series load cells can be recalibrated at Transcell’s Buffalo Grove facility. Standard turnaround is 5–7 business days. Contact the engineering team for pricing and scheduling.

View Certification Standards & Documentation

Competitive Advantages

Compact Multi-Column Design

Unlike single-column transducers, the CR series distributes load across multiple columns. This achieves superior stiffness and lateral load rejection in a package 25% smaller than traditional designs.

True Bidirectional Measurement

Measure tension and compression with one transducer. No need for separate devices or fixture modifications. Simplifies test equipment design and reduces inventory costs.

Industrial-Grade Accuracy

±0.25% FS accuracy with ±0.05% repeatability meets the demands of materials testing labs and OEM integration without premium pricing.

Wide Temperature Operating Range

-42 to 93°C operational with compensation across 15–72°C. Handles ambient shifts and process heating without external temperature correction in most applications.

Made in USA

Designed and manufactured at Transcell’s Buffalo Grove, Illinois facility. Fast lead times, responsive engineering support, and consistent quality control.

Standard Integration

10V excitation, 350Ω output, and 4-conductor shielded cable are compatible with any standard strain gauge indicator or data acquisition system.

Frequently Asked Questions

What is a multi-column load cell?
A multi-column load cell uses an internal architecture with multiple load-bearing columns to distribute force evenly. This design achieves high accuracy and stiffness in a compact package, making it ideal for laboratory testing and industrial measurement applications. The CR series uses precision-machined alloy steel columns with bonded strain gauges to detect deformation.
Can the CR series measure both tension and compression?
Yes. The CR series is bidirectional, measuring both tension and compression forces. A single transducer can handle pulling and pushing loads without damage or recalibration. The output signal changes polarity to indicate load direction, making it simple for indicator electronics to distinguish between tension and compression.
What accuracy can I expect from the CR series?
CR series multi-column load cells provide ±0.25% full-scale nonlinearity and hysteresis, with ±0.05% repeatability. These specifications make them suitable for precision materials testing, calibration work, and OEM force measurement. For reference-grade applications requiring better than ±0.1% accuracy, consult the engineering team about custom compensation options.
What temperature range do these load cells operate in?
CR series load cells operate from -42 to 93°C. Full accuracy compensation is maintained across 15 to 72°C. Outside the compensated range, output drift increases gradually at a rate of approximately ±0.01% FS per degree Celsius. For applications requiring operation below -42°C or above 93°C, contact the engineering team for custom specifications.
