Mini S-Beam
Applications

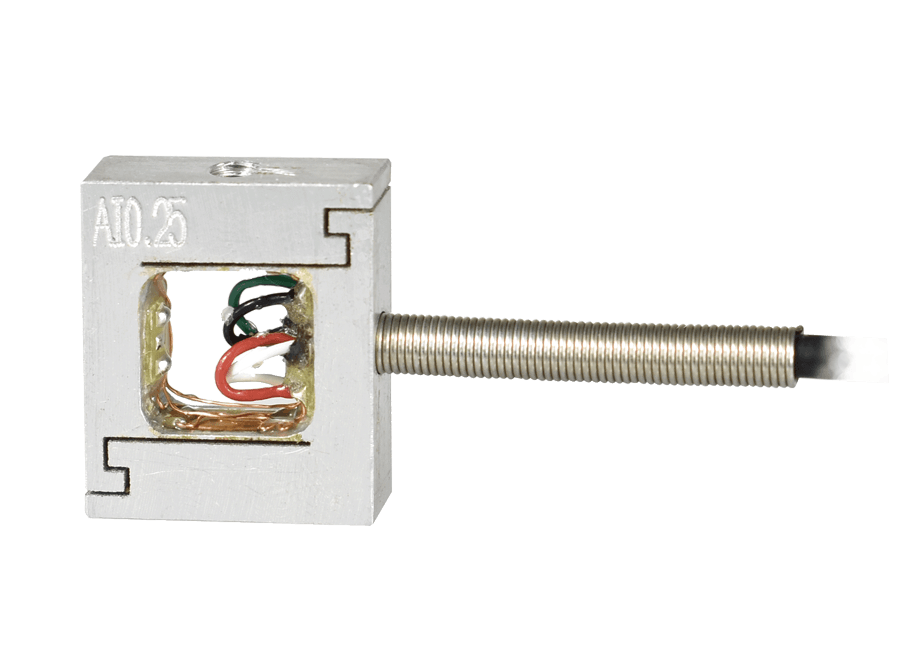

Transcell mini S-Beam load cell comes with a wide range of capacity selection. It is easy to implement and very durable. Suitable for robotics and force measurements.
Purchase in Our Store
Need a Custom Solution?
Contact UsFeatures & Benefits
- S-Type Load Cell
- Easy To Install
- Aluminum Construction (0.25Ib~10Ib)
- Stainless Steel Construction (25Ib~100Ib)
* Suitable for robotics and force measurements, etc.
Technical Specifications
View All Model Details
Everything you need to know about these little
guys in a simple package.
BMF200 V19.11 - Mini S-Beam
| Specifications | |
|---|---|
| Rated Output | 2.0mV/V / 0.5mV/V (0.25lb) / 1mV/V (0.5lb) |
| Zero Balance | ± 0.06mV/V |
| Nonlinearity | ± 0.1% of RO (10-100lb) / ± 0.2% of RO (2-5lb) / ± 0.3% of RO (0.25-0.5lb) |
| Hysteresis | ± 0.1% of RO (10-100lb) / ± 0.2% of RO (2-5lb) / ± 0.3% of RO (0.25-0.5lb) |
| Repeatability | ± 0.1% of rated output |
| Temp Effect on Output | ± 0.036% of reading/°C |
| Temp Effect on Zero | ± 0.018% of output/°C |
| Safe Overload | 1000% of capacity / 200% of capacity (50-100lb) |
| Safe Temp Range | -30 to +70°C |
| Temp Comp Range | -10 to +40°C |
| Bridge Resistance | 1000 Ω (0.25-0.5lb) / 350 Ω (2-100lb) |
| Insulation Resistance | 500 MΩ |
| Rated Excitation | 10 V DC/AC |
| Max Excitation | 20 V DC/AC |
| Cable Length | 1.52m [5.0ft] |
