Product Description

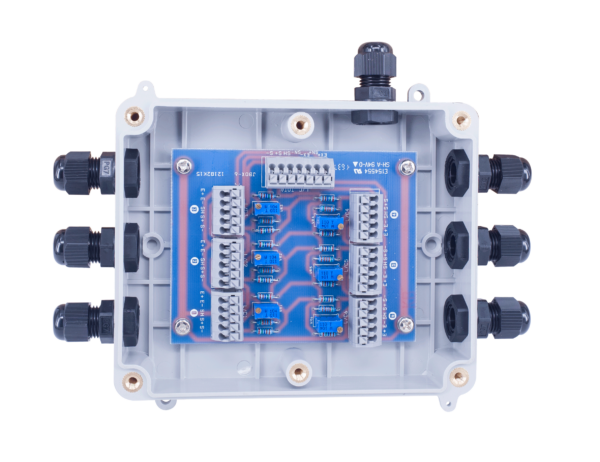

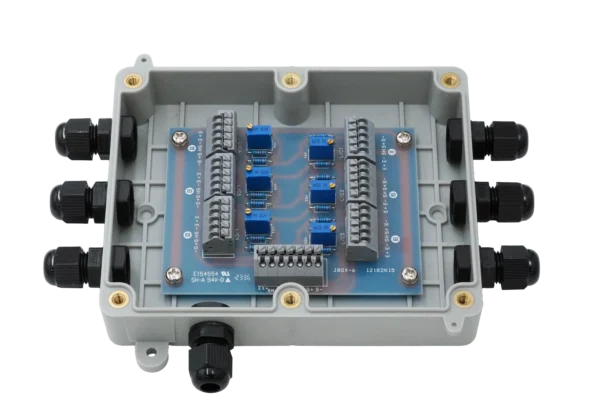

Our JB-FI is a load cell summing card housed in an ABS enclosure. It has six 5-position terminal strips for load cell input and one 7-position terminal strip with internally jumped sense terminals for output to the instrument. The board will sum 2 to 6 load cells and can be daisy-chained to sum up to 12 load cells using 2 summing cards and enclosures. Trimming of signal output is accomplished with six multi-turn trim pots.

SKU: P102000390TW Category:

Dimensions

Ask us about our OEM and Dealer Pricing
