Load Cells for Chatillon DFS-R-ND and DFS II-R-ND Digital Force Gauges
Drop-in replacement for Chatillon DFS-R-ND & DFS II-R-ND · 1000% safe overload protection
In-stock orders ship the same business day · Free 2-day delivery
Designed & supported by Transcell in Buffalo Grove, IL since 1981
US-based technical support included · repair or replace guarantee
Product Description
TC-TLC/SLC Series DFS-R-ND and DFSII-R-ND load cell overview
The TC-TLC/SLC Series are plug-and-play replacement load cells for the Chatillon DFS-R-ND and DFSII-R-ND digital force gauges, designed as direct drop-in upgrades for the Chatillon SLC series remote load cells. Each TC-TLC/SLC load cell connects to the gauge's existing wiring without modification. The TC-TLC/SLC Series improves on the original SLC design with enhanced safe overload protection and improved measurement performance. For best accuracy, each load cell should be calibrated to the specific gauge it will be used with after installation. Capacities range from ±2 lbf to ±10,000 lbf. Models up to ±1,000 lbf include a 15.8 mm (5/8 in) eye-end adapter; the ±2,000 lbf, ±5,000 lbf, and ±10,000 lbf models do not include an eye-end adapter. Each unit ships with the required connector and electronics in a padded carrying case.
Compatible Chatillon force gauges
The TC-TLC/SLC Series has been verified for plug-and-play compatibility with the following Chatillon digital force gauges. Select the model matching your gauge's current SLC load cell capacity.
Technical notes
The TC-TLC/SLC connects to the Chatillon DFS-R-ND or DFSII-R-ND via the included connector with no wiring modification required. Select the model matching your existing SLC load cell capacity. For best measurement accuracy, calibrate the load cell to the specific gauge it will be used with after installation. Models up to ±1,000 lbf include a 15.8 mm stainless or aluminum eye-end adapter. The ±2,000 lbf, ±5,000 lbf, and ±10,000 lbf models do not include an eye-end adapter.
Each TC-TLC/SLC load cell ships complete and ready to install:
| ➤ | Load cell with required connector and electronics |
| ➤ | 15.8 mm eye-end adapter (models up to ±1,000 lbf only) |

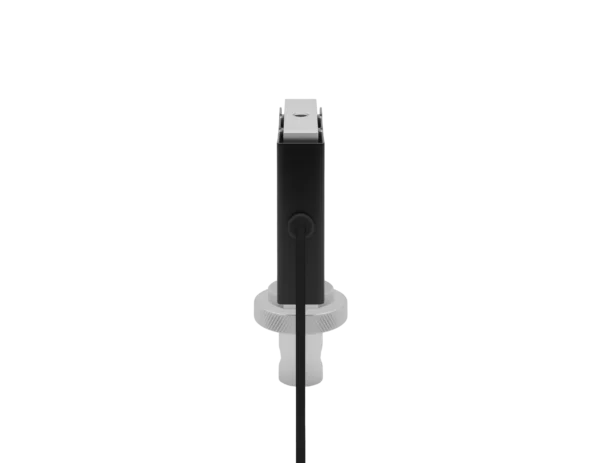

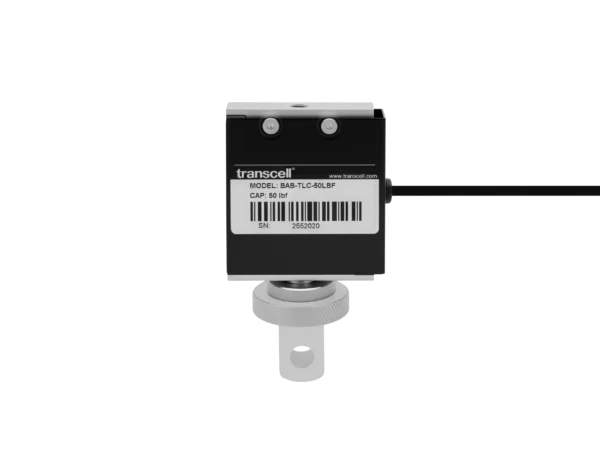

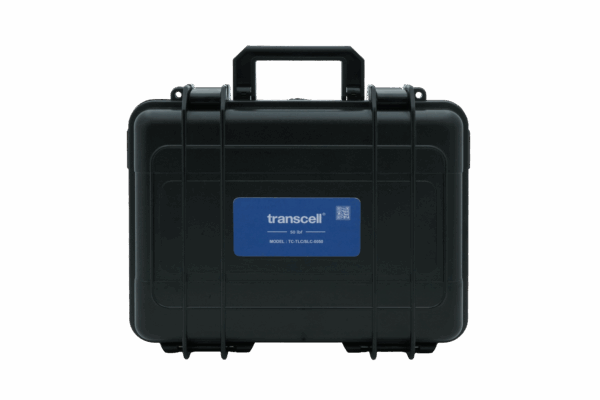

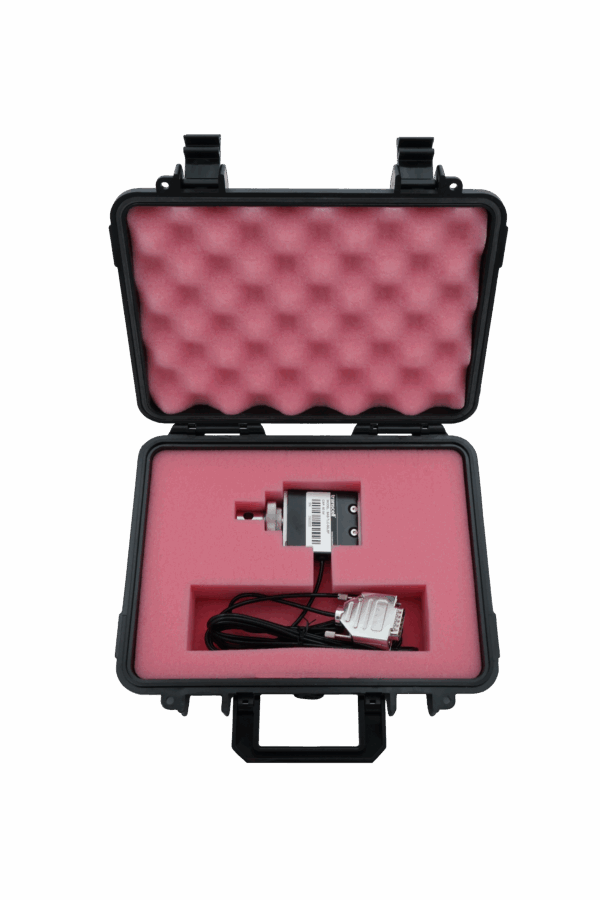

| ➤ | Padded carrying case |
Select the TC-TLC/SLC model matching your existing Chatillon SLC load cell. No wiring or mounting changes are required:
| Model | Capacity | Safe Overload | Thread | Eye-End | Chatillon SLC Crossover |
|---|---|---|---|---|---|
| TC-TLC/SLC-0002 | ±2 lbf | ±20 lbf | 1/4-28F | 15.8mm Aluminum | SLC-0002 |
| TC-TLC/SLC-0010 | ±10 lbf | ±100 lbf | 1/4-28F | 15.8mm Aluminum | SLC-0010 |
| TC-TLC/SLC-0025 | ±25 lbf | ±250 lbf | 1/4-28F | 15.8mm Aluminum | SLC-0025 |
| TC-TLC/SLC-0050 | ±50 lbf | ±500 lbf | 1/4-28F | 15.8mm Stainless | SLC-0050 |
| TC-TLC/SLC-0100 | ±100 lbf | ±1,000 lbf | 1/4-28F | 15.8mm Stainless | SLC-0100 |
| TC-TLC/SLC-0200 | ±200 lbf | ±2,000 lbf | 1/4-28F | 15.8mm Stainless | SLC-0200 |
| TC-TLC/SLC-0500 | ±500 lbf | ±2,500 lbf | 1/2-20F | 15.8mm Stainless | SLC-0500 |
| TC-TLC/SLC-1000 | ±1,000 lbf | ±5,000 lbf | 1/2-20F | 15.8mm Stainless | SLC-1000 |
| TC-TLC/SLC-2000 | ±2,000 lbf | ±10,000 lbf | 1/2-20F | None | SLC-2000 |
| TC-TLC/SLC-5000 | ±5,000 lbf | ±25,000 lbf | 3/4-16F | None | SLC-5000 |
| TC-TLC/SLC-10000 | ±10,000 lbf | ±50,000 lbf | 3/4-16F | None | SLC-10000 |
Looking for cables, connectors, or load cell accessories? Browse our full accessories catalog for compatible add-ons for the TLC/SLC series and other Chatillon machines.
Our team is available to help with product selection, compatibility questions, and pricing for volume orders. Reach us directly by phone during business hours.
Specifications
Comprehensive error: ±0.1% of full scale for dedicated calibration to machine; ±0.25% of full scale without system calibration.
Dimensions / 3D Drawings
Note: You may need a software that can open/view STEP files.
| PART ID | MOUNTING THREAD | EYE-END ADAPTER |
|---|---|---|
| TC-SLC-0002 | 1/4-28F | 15.8mm Aluminum |
| TC-SLC-0010 | 1/4-28F | 15.8mm Aluminum |
| TC-SLC-0025 | 1/4-28F | 15.8mm Aluminum |
| TC-SLC-0050 | 1/4-28F | 15.8mm Stainless |
| TC-SLC-0100 | 1/4-28F | 15.8mm Stainless |
| TC-SLC-0200 | 1/4-28F | 15.8mm Stainless |
| TC-SLC-0500 | 1/2-20F | 15.8mm Stainless |
| TC-SLC-1000 | 1/2-20F | 15.8mm Stainless |
| TC-SLC-2000 | 1/2-20F | None |
| TC-SLC-5000 | 3/4in-16F | None |
| TC-SLC-10000 | 3/4in-16F | None |
-
