BAB-MT2 Ultra Performance S-Beam with Enhanced Safe Overload Protection (Metric)
Tension & compression
Measures pulling and pushing forces in both directions · IP67 rated
Same-day shipping
In-stock orders ship the same business day · Free 2-day delivery
Manufacturer direct
Designed & supported by Transcell in Buffalo Grove, IL since 1981
2-year limited warranty
US-based technical support included · repair or replace guarantee
Product Description

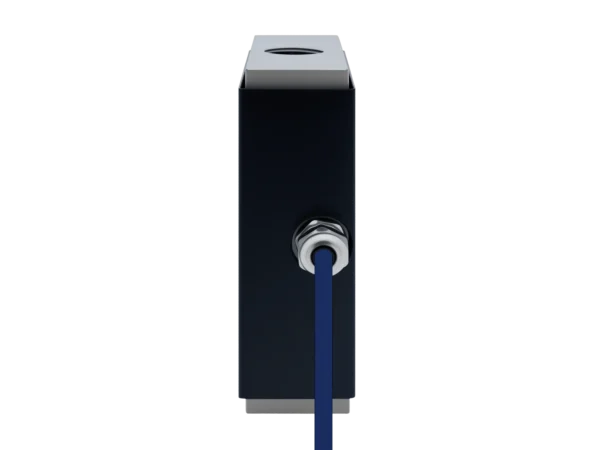

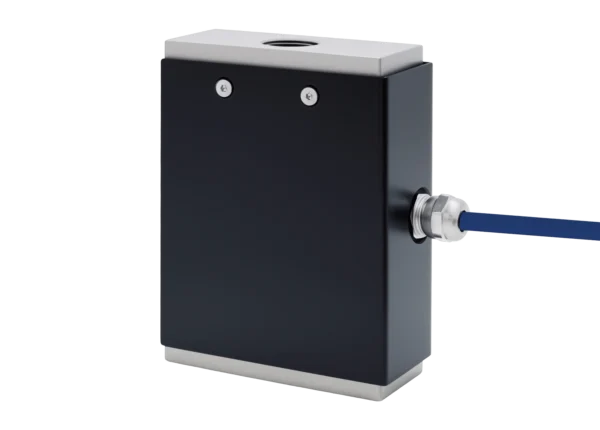

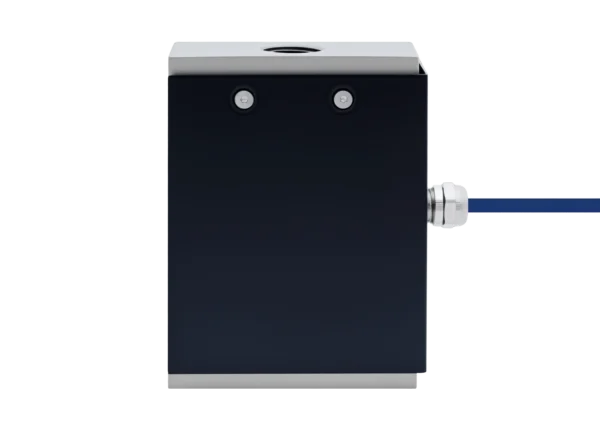

BAB-MT2 ultra performance S-beam overview
The BAB-MT2 is a high-precision S-beam load cell engineered for accurate tension and compression force measurement across a wide capacity range, from 10 N up to 50,000 N. Building on the original BAB-MT design, the MT2 delivers improved measurement repeatability and enhanced safe overload protection, even on higher capacity models, making it the preferred choice for demanding test and measurement applications where reliability under overload conditions is critical. A protective cover keeps the overload protection slots clear of debris for long-term dependability. With ±0.03% nonlinearity, IP67 sealing, and thread dimensions that meet major OEM requirements, the BAB-MT2 integrates directly into standard test frames, automated force measurement systems, and OEM equipment without modification.
Typical applications
The BAB-MT2 is commonly specified for precision force measurement in test and measurement environments, OEM equipment, and automated systems requiring reliable performance under repeated or accidental overloads.
Technical notes
The BAB-MT2 requires axial alignment between its two threaded connection points. Off-axis or side loading will degrade accuracy and may cause premature fatigue failure. For best results, use swivel rod ends or clevis adapters at both ends to allow self-alignment under load. Ensure threaded connections are engaged to at least one full thread diameter. The protective cover over the overload slots should remain in place during normal operation to prevent debris ingress.
The BAB-MT2 operates at a rated excitation of 10V DC/AC (15V max) and produces a 2 mV/V analog output signal via a shielded 28 AWG integrated cable (2.75 m). It is compatible with any standard weight indicator, force display, PLC analog input, or DAQ system accepting a mV/V bridge input. The shielded cable reduces noise susceptibility in electrically demanding test and automation environments.
+70°C
The BAB-MT2 ships with a 2.75 m shielded 28 AWG integrated cable. Standard color code:
| ■ RED | +Excitation |
| ■ BLACK | −Excitation |
| ■ GREEN | +Signal |
| ■ WHITE | −Signal |
The BAB-MT2's enhanced overload protection provides industry-leading protection factors across the capacity range:
| ➤ | 10 – 250 N models: |
| ➤ | 500 N – 1 kN models: |
| ➤ | 2.5 kN – 10 kN models: |
| ➤ | 20 kN – 50 kN models: |
Specifications
| PART ID | CAPACITY (±N) | SAFE OVERLOAD FACTOR | SAFE OVERLOAD (±N) | THREAD |
|---|---|---|---|---|
| BAB-MT2-10N | 10 | 10x | 100 | M6x1 |
| BAB-MT2-25N | 25 | 10x | 250 | M6x1 |
| BAB-MT2-50N | 50 | 10x | 500 | M6x1 |
| BAB-MT2-100N | 100 | 10x | 1000 | M6x1 |
| BAB-MT2-250N | 250 | 10x | 2500 | M6x1 |
| BAB-MT2-500N | 500 | 10x | 5000 | M12x1.75 |
| BAB-MT2-1000N | 1000 | 10x | 10,000 | M12x1.75 |
| BAB-MT2-2500N | 2500 | 10x | 25,000 | M12x1.75 |

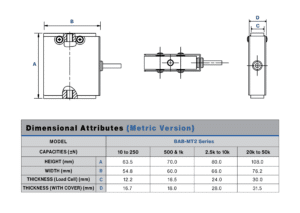

Dimensions / 3D Drawings
Note: You may need a software that can open/view STEP files.
-
