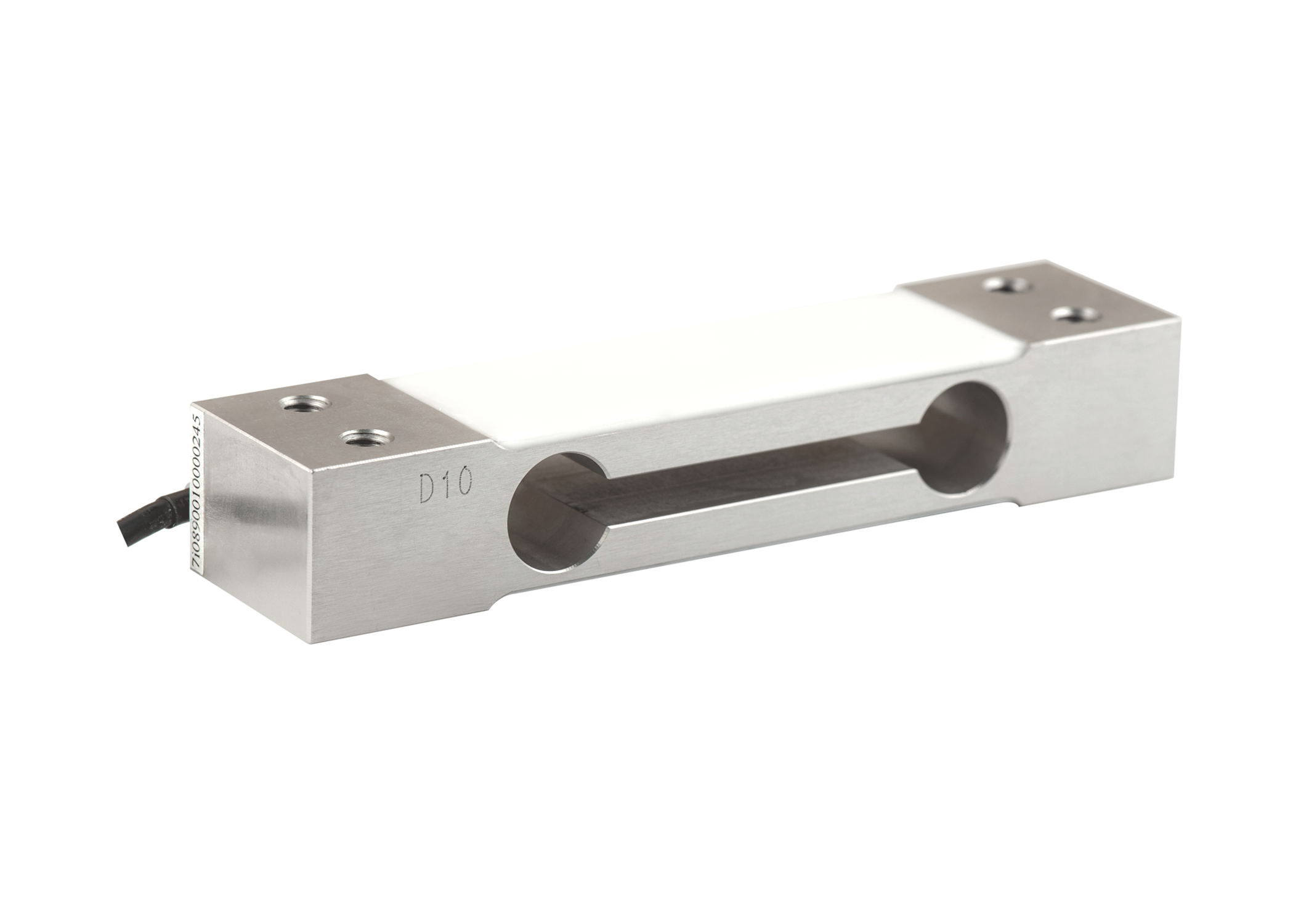

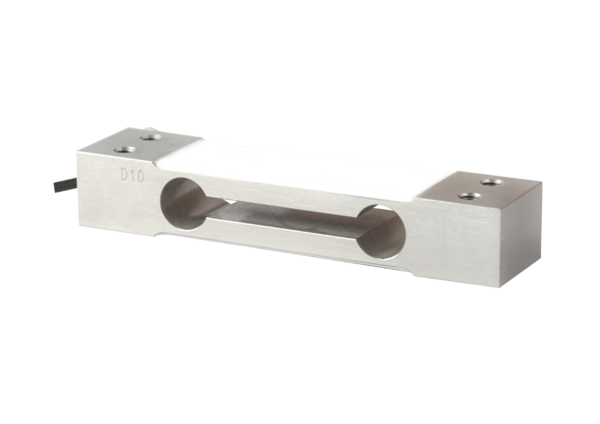

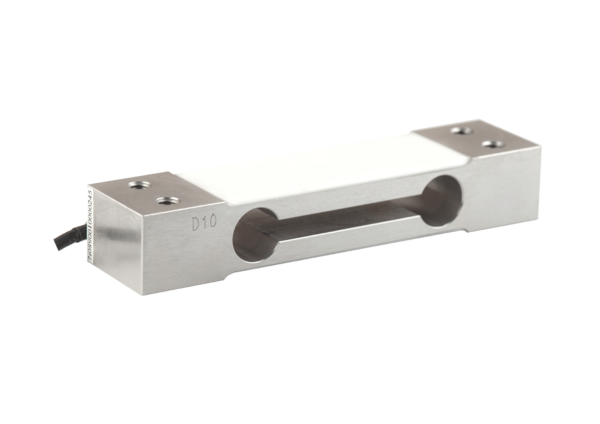

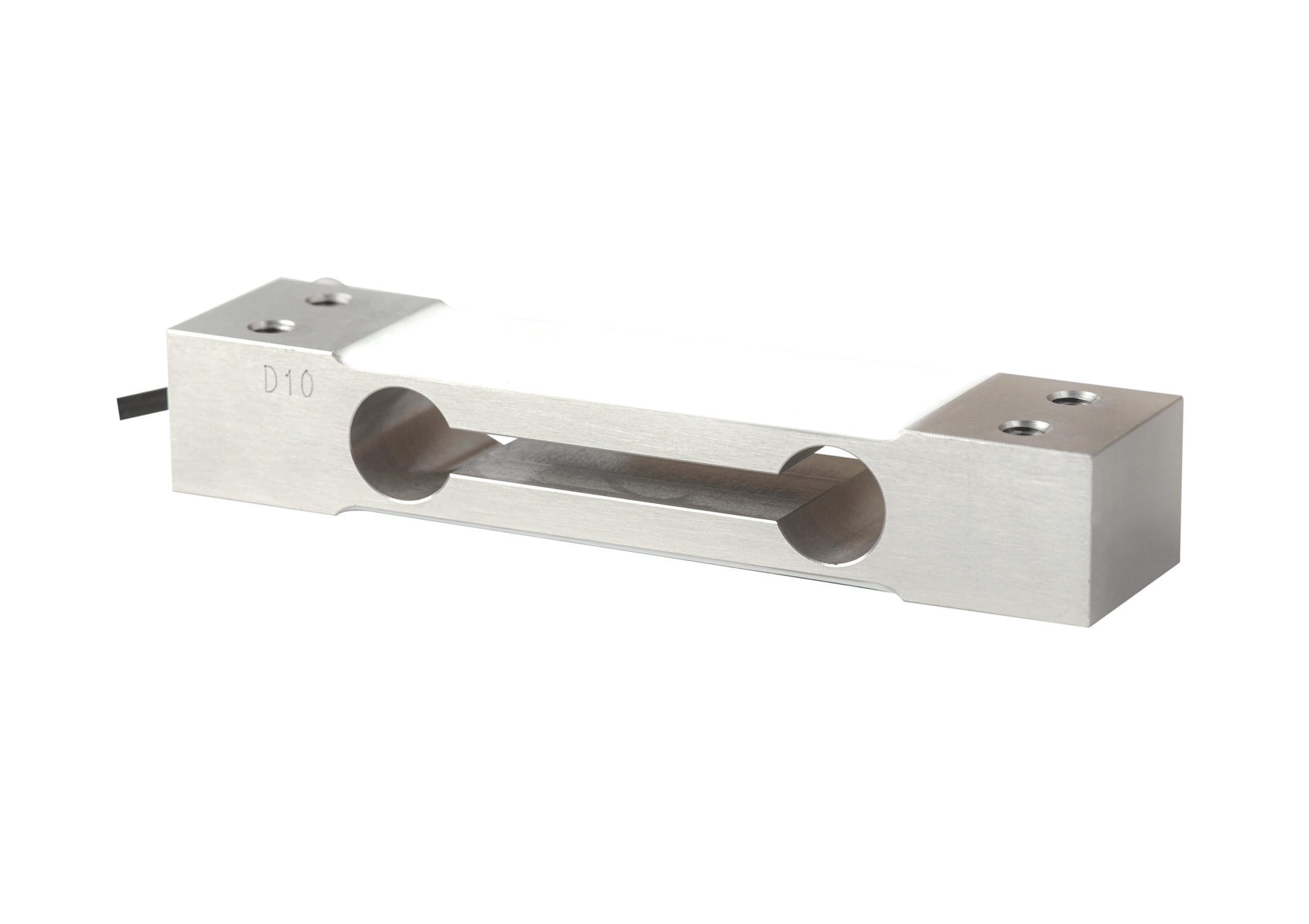

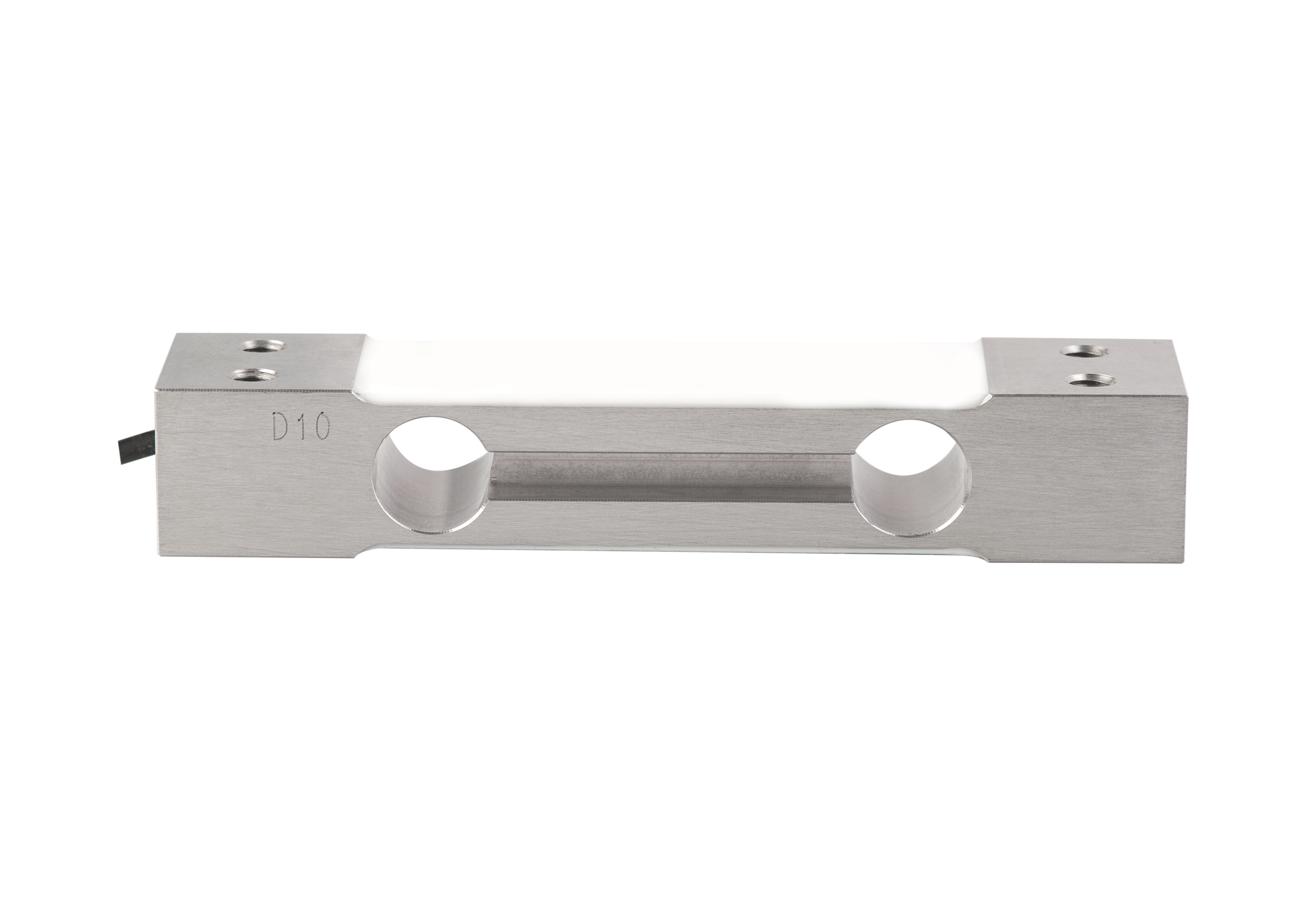

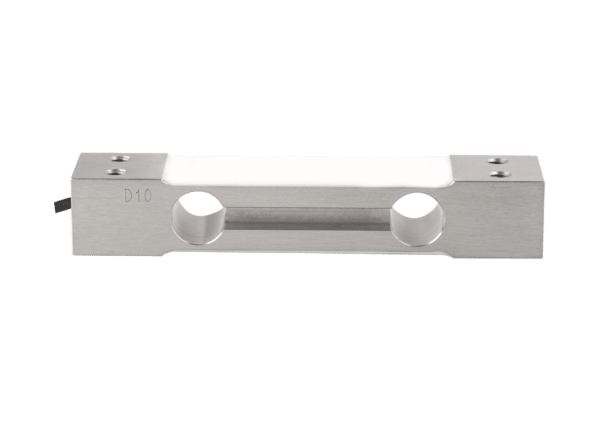

FAK Single Point Load Cell | 10-30 kg

Product Description

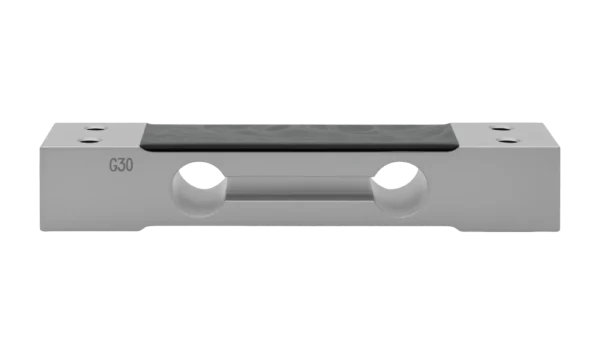

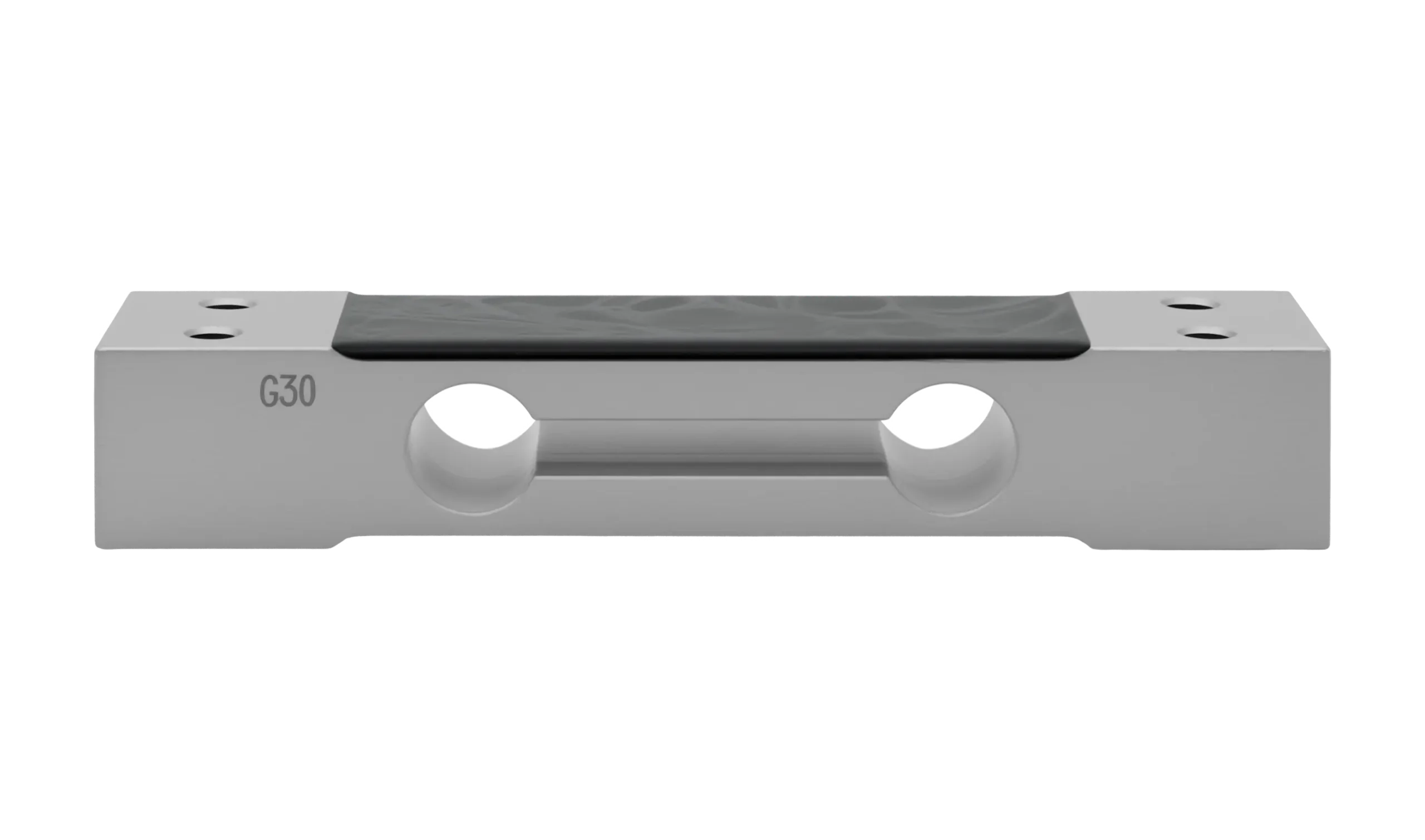

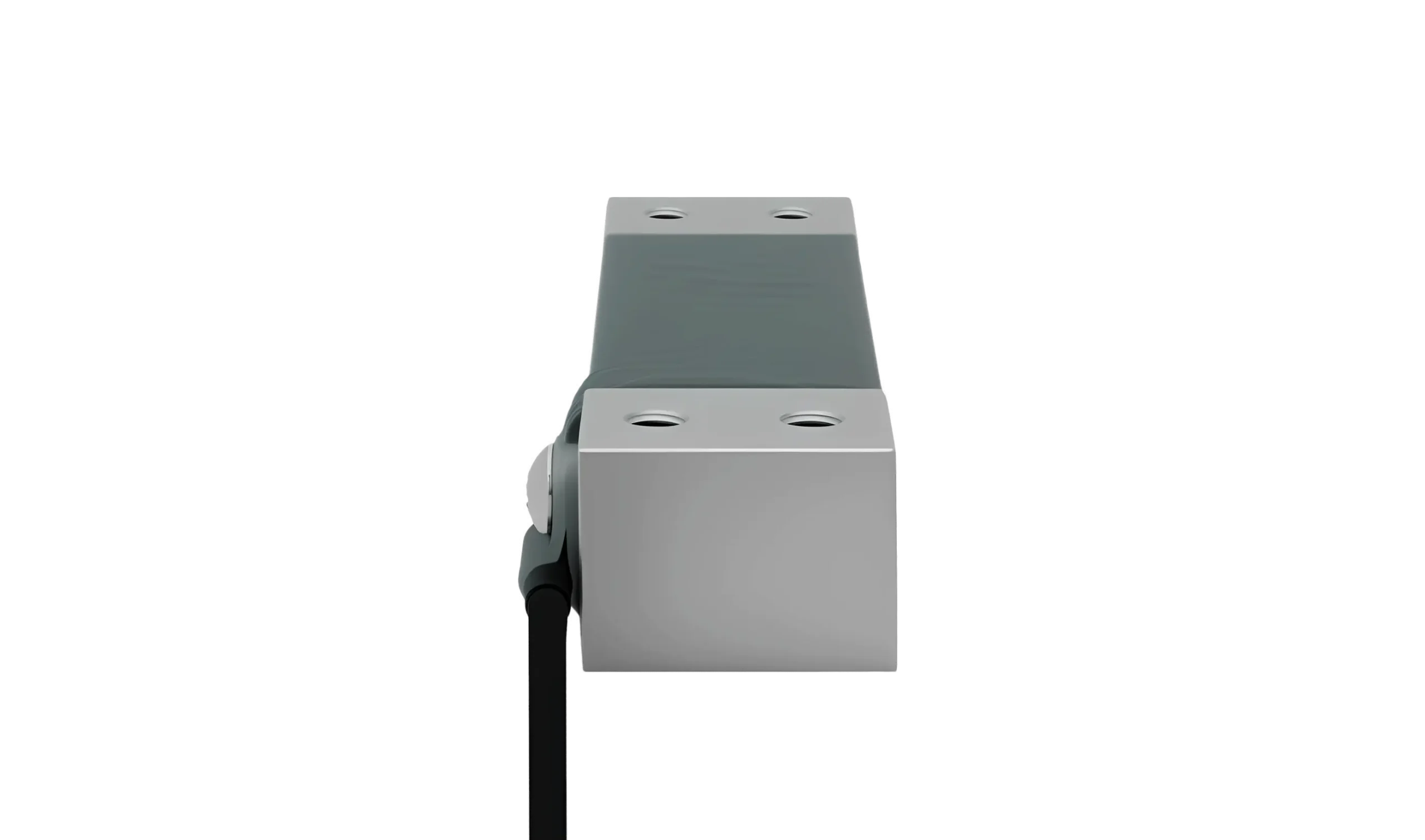

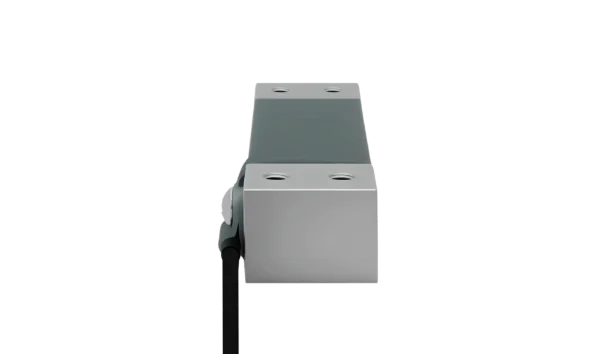

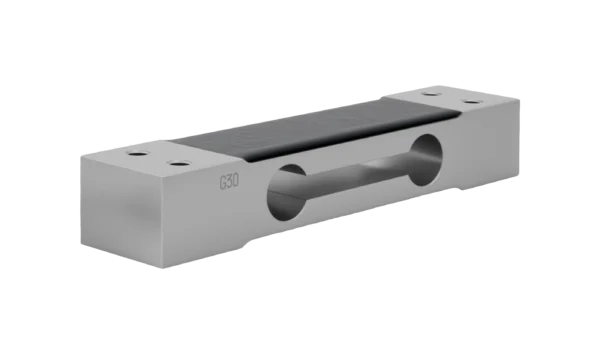

FAK single point load cell overview

The FAK is a compact aluminum single point load cell designed for accurate weight measurement in bench scales, retail scales, postal scales, and small platform weighing systems. As a single point cell, it is engineered so that loads applied anywhere across the platform surface produce an accurate, consistent reading — making it the ideal choice for off-center loading applications where a standard bending beam or shear beam cell would produce errors. The FAK mounts via four M6 threaded holes and supports a maximum platform size of 250 x 300 mm. Available in 10 kg and 30 kg capacities, it is a direct drop-in replacement for the most widely used single point load cells from Rice Lake, Tedea, HBM, and others.

Capacity range

10 kg

and 30 kg

Nonlinearity

±0.03%

of rated output

Construction

Aluminum

M6 mounting threads

Safe overload

150%

of rated capacity

Typical applications

The FAK is commonly specified for light-capacity bench and platform scale applications where the single point design allows accurate measurement regardless of where the load is placed on the platform.

Retail and bench scales

The FAK is the standard choice for small bench scale and retail scale construction, where items are placed anywhere on the platform surface and the single point design ensures accurate readings regardless of load position. Suited for point-of-sale, grocery, deli, and light industrial bench weighing.

Postal and shipping scales

Widely used in postal and parcel weighing applications where parcels and envelopes of varying sizes and shapes are placed on small platforms. The FAK's single point sensing allows consistent measurement without requiring the item to be centered on the scale surface.

Parts counting and check weighing

The FAK's compact footprint and accurate single point output make it well suited for parts counting scales and check weighing systems used in manufacturing and packaging environments, where consistent results across a small platform are required for quality control applications.

Small hopper and filling scales

Used in small hopper, filling, and dispensing scale systems where a compact, single-cell design is preferred over multi-cell arrangements. The FAK supports platforms up to 250 x 300 mm, making it suitable for benchtop filling and dosing applications in food, pharmaceutical, and laboratory settings.

OEM scale and instrument builds

The FAK's standardized M6 mounting pattern and compact dimensions make it a practical choice for OEM scale manufacturers building retail, laboratory, or industrial bench scale products. Its footprint matches widely used competitor models, simplifying drop-in integration into existing scale designs.

System integration and instrumentation

The FAK produces a standard 2.0 mV/V analog output compatible with any weight indicator, PLC analog input, or DAQ system accepting a mV/V bridge signal. Its short cable options (13 cm, 35 cm, or 275 cm) suit compact enclosure builds where cable management space is limited.

Technical notes

Installation and mounting

The FAK mounts via four M6 threaded holes and supports a maximum platform size of 250 x 300 mm. The cell body must be mounted on a flat, rigid surface. The platform attaches to the top face of the cell. For best accuracy, the mounting surface and platform must be flat and parallel — warped or uneven surfaces will compromise the single point correction and degrade off-center load performance. No summing junction box is required since a single FAK cell handles the full platform area.

System integration

The FAK operates at a rated excitation of 10V DC/AC (15V max) and produces a 2.0 mV/V analog output signal. It is compatible with any standard weight indicator, PLC analog input, or load cell conditioner accepting a mV/V bridge input. Cable length options are 13 cm, 35 cm, and 275 cm to suit different enclosure and build configurations.

Key specifications

Rated output

2.0 mV/V

Nonlinearity / Hysteresis

±0.03%

Temp. effect on output

≤0.002%

Safe temp. range

−10°C
+70°C

Insulation resistance

≥5,000 MΩ

Input impedance

410 Ω

Output impedance

350 Ω

Max platform size

250 x 300 mm

Cable wiring

The FAK is available with cable lengths of 13 cm, 35 cm, or 275 cm. Standard color code:

■ RED	+Excitation
■ BLACK	−Excitation
■ GREEN	+Signal
■ WHITE	−Signal

Drop-in replacement for

The FAK is a direct mechanical and electrical substitute for the following single point load cell models. No wiring or mounting changes are required when upgrading or replacing:

➤	Rice Lake RL1521A
➤	Tedea 1022
➤	HBM PW6KRC3
➤	BLH/NMB C2G1
➤	Scaime LP
➤	RTI 640
➤	Celtron LPS
