Load Cells for Chatillon DFE3 Force Gauges
| Tension & compression Complete repair kit for Chatillon DFE3 force gauges · includes load cell, shaft & hardware |
|
| Same-day shipping In-stock orders ship the same business day · Free 2-day delivery |
|
| Manufacturer direct Designed & supported by Transcell in Buffalo Grove, IL since 1981 |
|
| 2-year limited warranty US-based technical support included · repair or replace guarantee |
Product Description

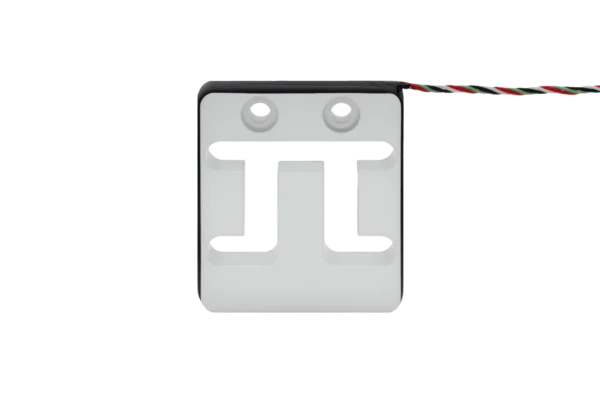

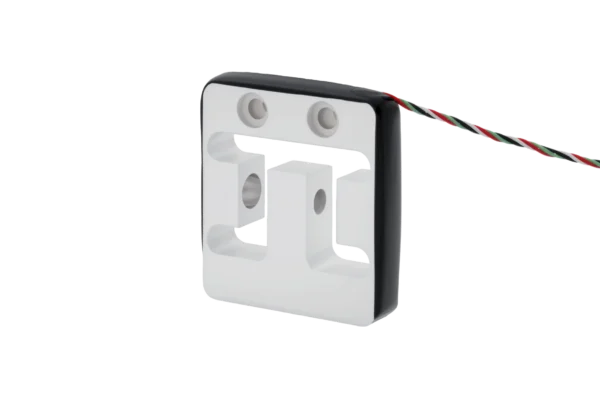

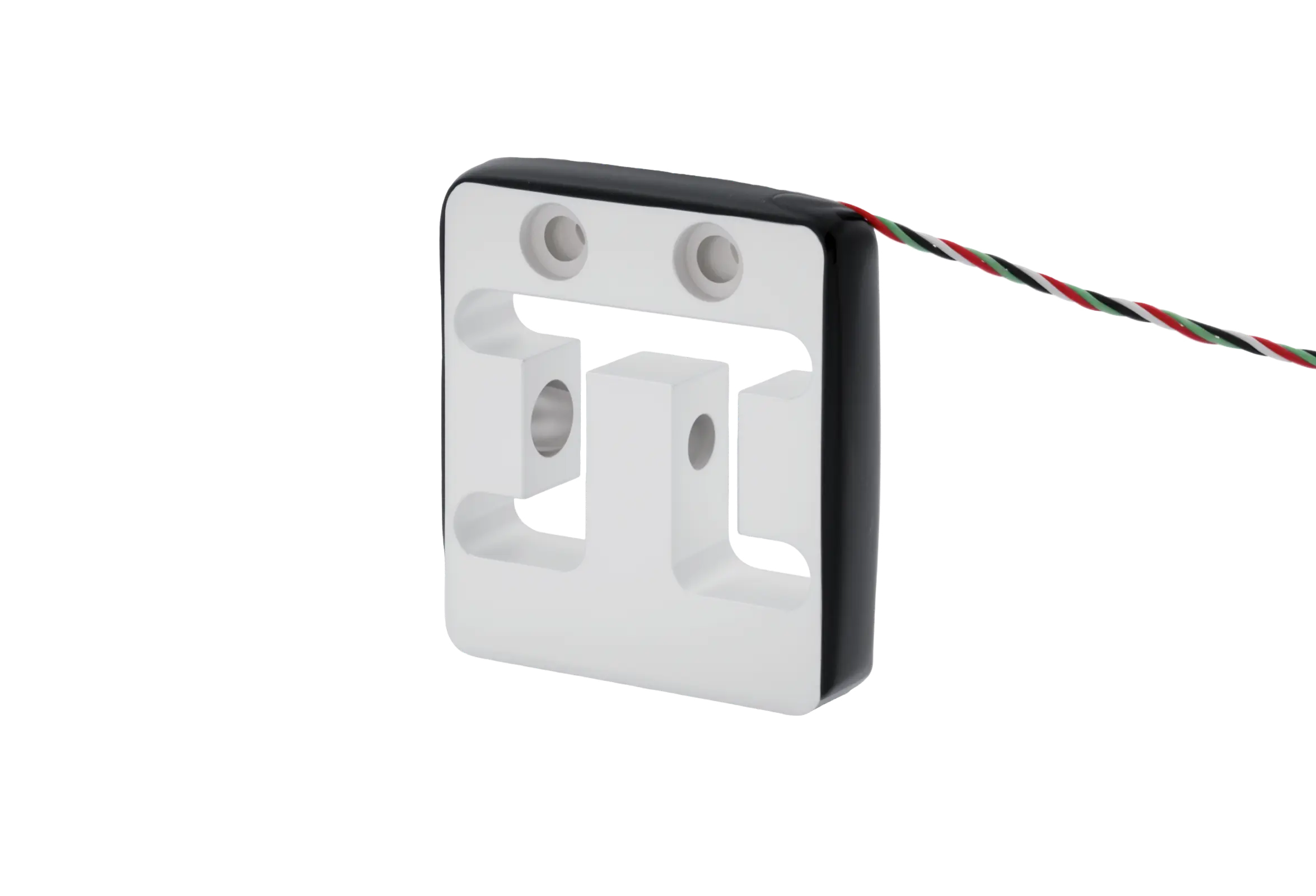

TC-DFS3 Chatillon DFE3 force gauge load cell overview
The TC-DFS3 Series are complete replacement load cell kits for the Chatillon DFE3 handheld digital force gauge. When a Chatillon DFE3 gauge sustains an overload or the internal sensing element degrades over time, the TC-DFS3 kit restores the gauge to full working condition without the cost of a complete gauge replacement. Each kit includes the replacement load cell, the loading shaft, mounting screws, and mounting pins — everything required to complete the repair. Available in capacities from ±2 lbf to ±500 lbf, with shaft thread sizes of #10-32 on smaller models and 5/16-18 on 200 lbf and 500 lbf models. The ±2 lbf model uses an aluminum loading shaft; all other models use steel.
|
Capacity range
±2 lbf
up to ±500 lbf
|
Compatibility
DFE3
Chatillon force gauge
|
Kit includes
Full repair
cell, shaft, screws, pins
|
Safe overload
1.5×
rated capacity
|
Compatible Chatillon force gauges
The TC-DFS3 kit has been verified for compatibility with the following Chatillon DFE3 digital force gauges. Select the TC-DFS3 model matching your gauge's original capacity.
|
Chatillon DFE3 series
DFE3-002 · DFE3-010 · DFE3-025 · DFE3-050 · DFE3-100 · DFE3-200 · DFE3-500
|
Technical notes
|
Installation
The TC-DFS3 kit contains all components needed to replace the load cell inside a Chatillon DFE3 force gauge. The kit includes the replacement load cell, the loading shaft, mounting screws, and mounting pins. Select the kit model matching the original capacity of your gauge. The ±2 lbf model uses an aluminum loading shaft; all other models use a steel shaft. Shaft thread is #10-32 on models up to ±100 lbf and 5/16-18 on the ±200 lbf and ±500 lbf models. |
What's included

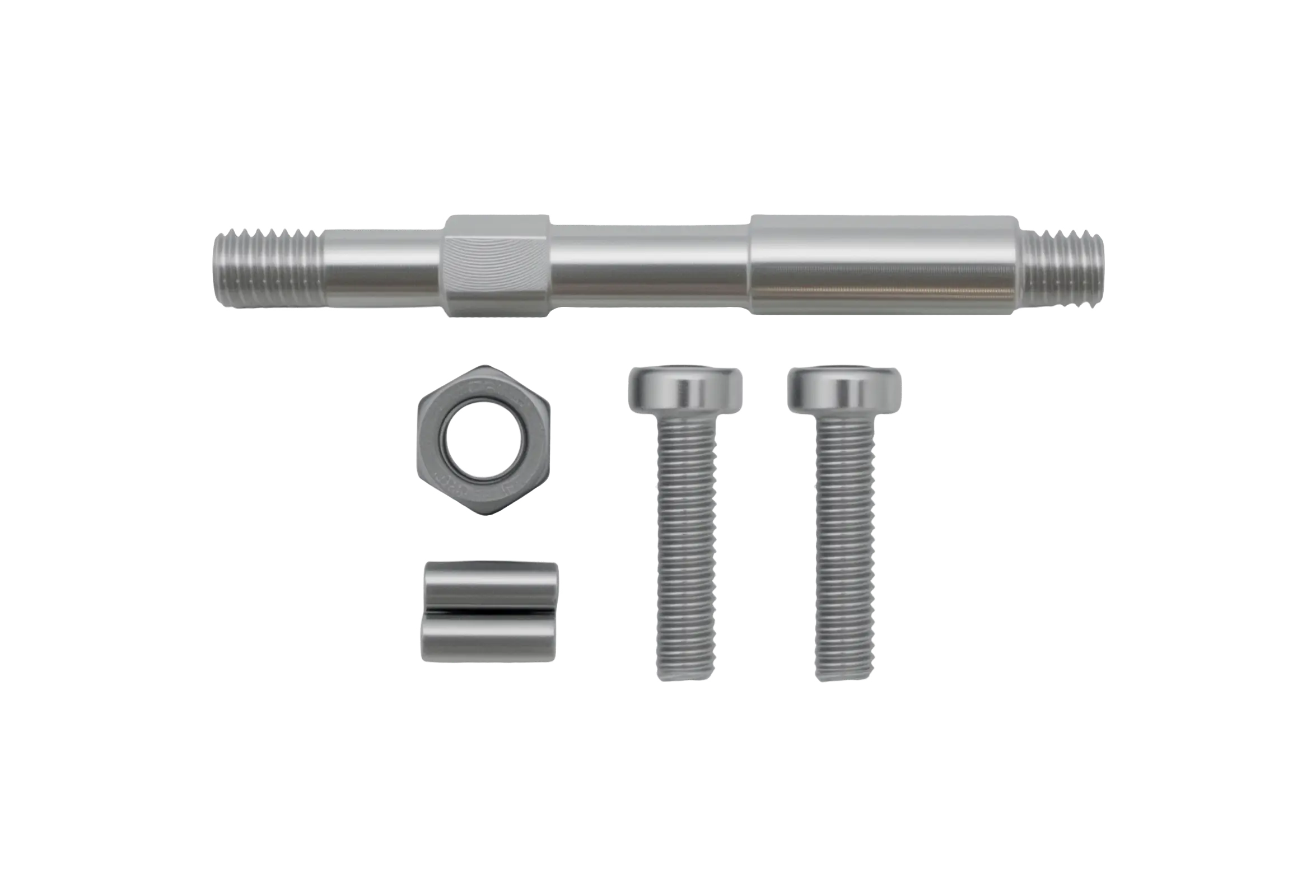

Each TC-DFS3 repair kit ships complete and ready to install:
|
Select the TC-DFS3 kit matching your Chatillon DFE3 or DFS3 gauge capacity:
| Kit Model | Capacity | Safe Overload | Shaft Thread | Gauge Compatibility |
| TS-DFS3-002-REPAIR | ±2 lbf | ±3 lbf | #10-32 (aluminum) | DFE3-002 |
| TS-DFS3-010-REPAIR | ±10 lbf | ±15 lbf | #10-32 (steel) | DFE3-010 |
| TS-DFS3-025-REPAIR | ±25 lbf | ±37.5 lbf | #10-32 (steel) | DFE3-025 |
| TS-DFS3-050-REPAIR | ±50 lbf | ±75 lbf | #10-32 (steel) | DFE3-050 |
| TS-DFS3-100-REPAIR | ±100 lbf | ±150 lbf | #10-32 (steel) | DFE3-100 |
| TS-DFS3-200-REPAIR | ±200 lbf | ±300 lbf | 5/16-18 (steel) | DFE3-200 |
| TS-DFS3-500-REPAIR | ±500 lbf | ±750 lbf | 5/16-18 (steel) | DFE3-500 |
Dimensions / 3D Drawings
Note: You may need a software that can open/view STEP files.
-
Data Sheets
Download Now
Interchangeable
