TCM375 Miniature Threaded In Line Load Cell with M16x2 Male Threads
| Tension & compression Measures pulling and pushing forces in both directions · IP64 rated · 17-4PH stainless steel |
|
| Same-day shipping In-stock orders ship the same business day · Free 2-day delivery |
|
| Manufacturer direct Designed & supported by Transcell in Buffalo Grove, IL since 1981 |
|
| 2-year limited warranty US-based technical support included · repair or replace guarantee |
Product Description
TCM375 miniature threaded inline load cell overview

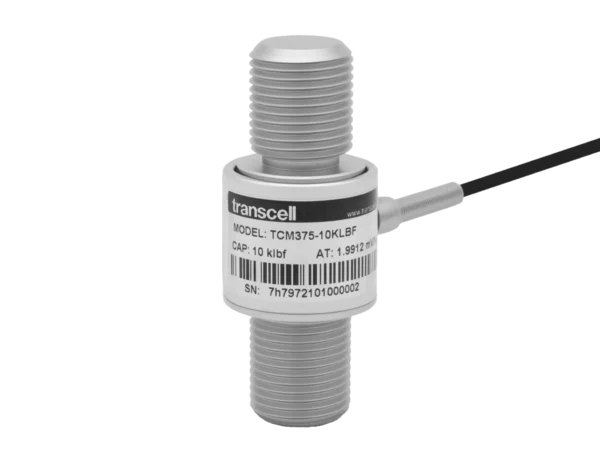

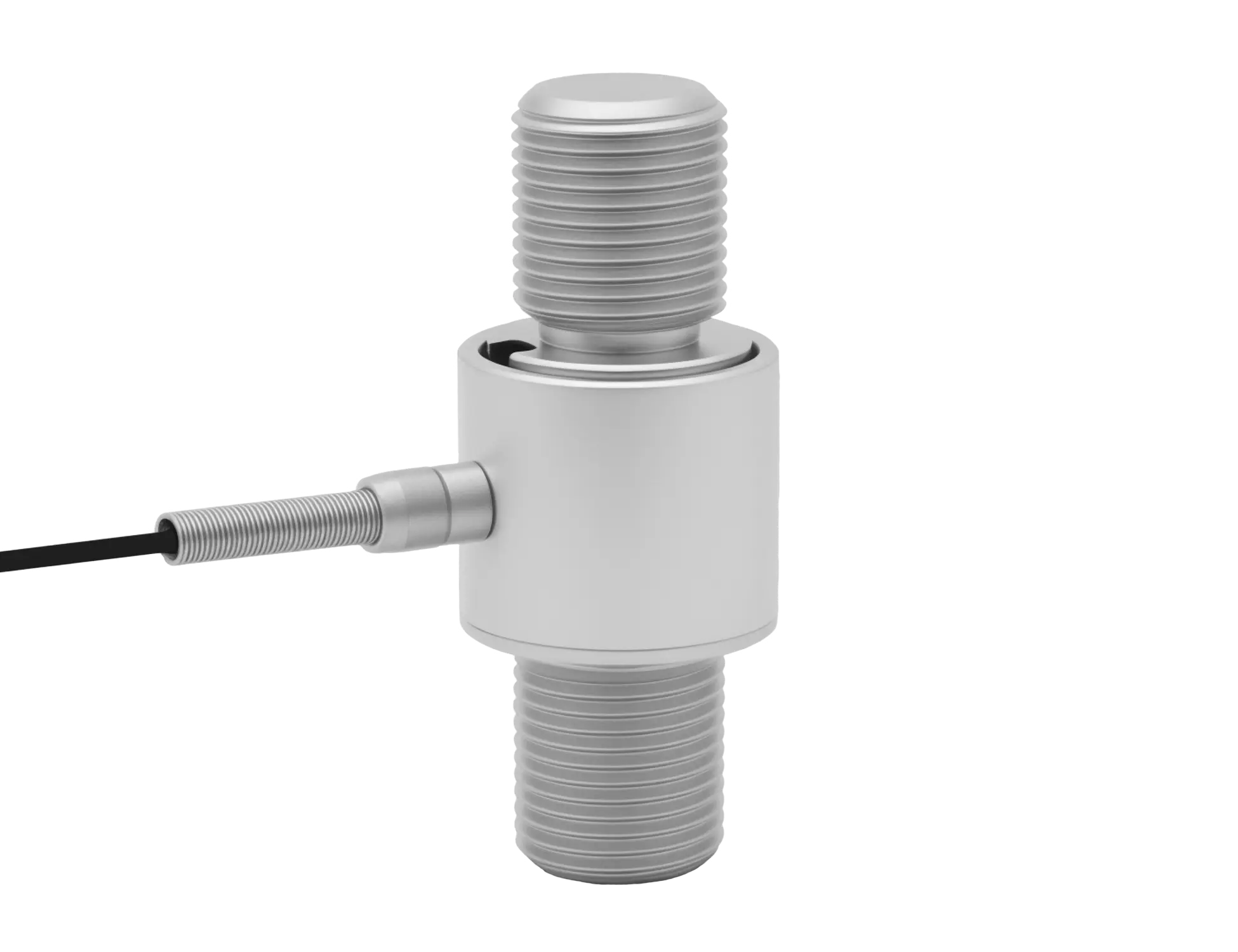

The TCM375 is a compact, 17-4PH stainless steel miniature inline load cell with M16x2 male threads on both the active and fixed ends, designed to measure tension and compression forces in mechanical systems where a traditional load cell simply won't fit. Rather than mounting alongside a structure, the TCM375 threads directly into the load path itself, replacing a bolt, rod end, or structural connector, making it the practical choice when space, packaging, and ease of integration matter more than laboratory-grade accuracy. Available in a single ±45 kN capacity, it is well suited for applications like automotive suspension testing, robotics force feedback, actuator load monitoring, and embedded machine sensing where the sensor needs to disappear into the mechanism. It is a direct improved-accuracy drop-in replacement for the FUTEK FSH04084 (±45 kN).
|
Capacity
±45 kN
single capacity
|
Nonlinearity
±0.25%
of full scale
|
Construction
17-4PH
stainless steel / IP64
|
Thread
M16x2
male both ends
|
Typical applications
The TCM375 is commonly specified for tension and compression force measurement in automated assembly equipment, robotics, and OEM systems where a compact, M16x2 threaded inline sensor is required.
|
|
|||||
|
|
|||||
|
|
Technical notes
|
Installation and alignment
The TCM375 requires precise axial alignment between its two threaded connection points. Off-axis or side loading will degrade accuracy and may cause fatigue damage to the compact sensing element. Threaded rods or adapters must be engaged a minimum of one full thread diameter into each male thread to ensure structural integrity. Apply torque only at the hex body of the load cell using an open-end wrench, never through the sensing element. For best results, use swivel rod ends or spherical bearings to allow self-alignment under load. |
System integration
The TCM375 operates at a rated excitation of 10V DC/AC (15V max) and produces a 2 mV/V analog output signal via a shielded 4-conductor 28 AWG integrated cable (3 ft / 1 m). It is compatible with any standard force indicator, DAQ system, or PLC analog input accepting a mV/V bridge signal. The shielded cable minimizes noise pickup in electrically demanding industrial and test environments. It is a verified improved-accuracy drop-in replacement for the FUTEK FSH04084 (±45 kN). |
|
Rated output
2 mV/V ±1% zero bal.
|
Nonlinearity / Hysteresis
±0.25% FS each
|
Non-repeatability
±0.05% of FS
|
Temp. effect on output
±0.02% RDG/°F
|
|
Operating temp. range
15°F to 160°F
|
Insulation resistance
≥5 GΩ at 50V DC
|
Input impedance
410 Ω ± 30 Ω
|
Output impedance
350 Ω ± 5 Ω
|
|
Cable wiring
The TCM375 ships with a 3 ft (1 m) shielded 4-conductor 28 AWG integrated cable. Standard color code:
|
Drop-in replacement for
The TCM375 is a direct improved-accuracy mechanical and electrical substitute for the following FUTEK load cell model. No wiring or mounting changes are required:
|
Specifications
Dimensions / 3D Drawings
Note: You may need a software that can open/view STEP files.
-
Data Sheets
Download Now
Interchangeable
| Transcell Part ID | Futek Series | Futek Crossover |
|---|---|---|
| TCM325-2KLBF | LCM325 | FSH04009 |
| TCM325-3KLBF | LCM325 | FSH04006 |
| TCM325-13KN | LCM325 | FSH04007 |
| TCM350-5KLBF | LCM350 | FSH04078 |
| TCM350-22KN | LCM350 | FSH04080 |
| TCM375-7.5KLBF | LCM375 | FSH04081 |
| TCM375-10KLBF | LCM375 | FSH04082 |
| TCM375-45KN | LCM375 | FSH04084 |
