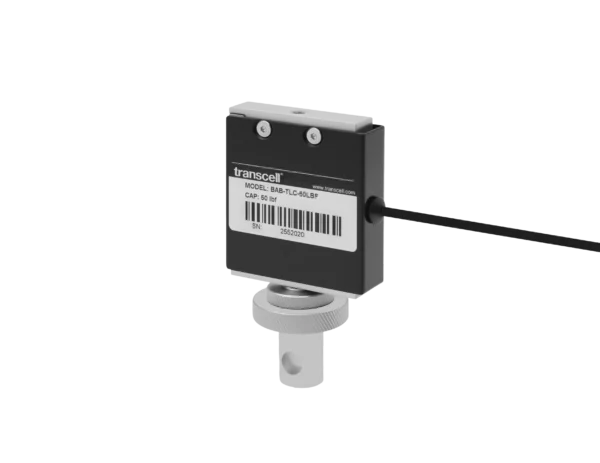

BAB-TLC 50lbf load cell angled view for Chatillon DFS-R-ND, DFS II-R-ND, and TCD systems

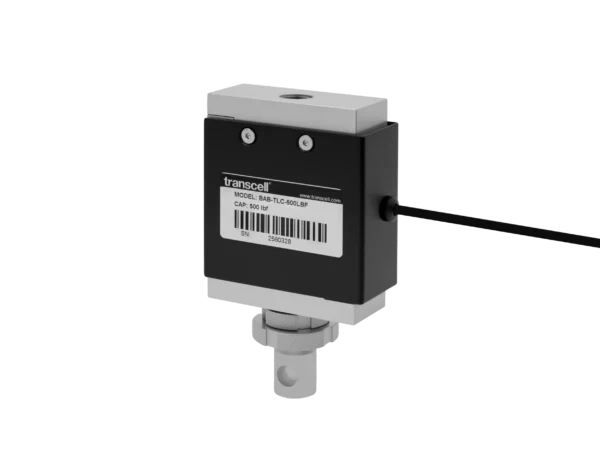

BAB-TLC 500lbf load cell angled view for Chatillon DFS-R-ND, DFS II-R-ND, and TCD systems

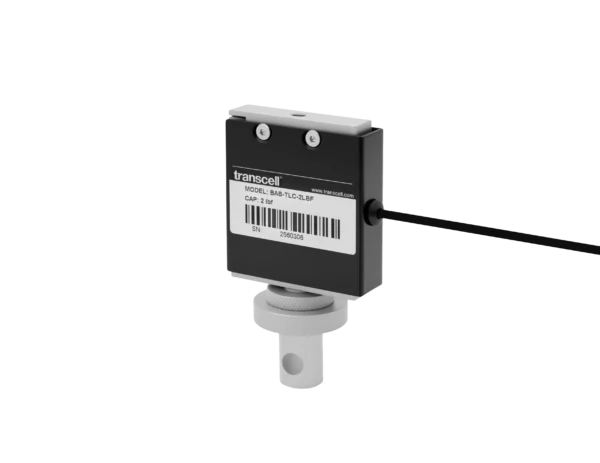

BAB-TLC 2lbf load cell angled view for Chatillon DFS-R-ND, DFS II-R-ND, and TCD systems

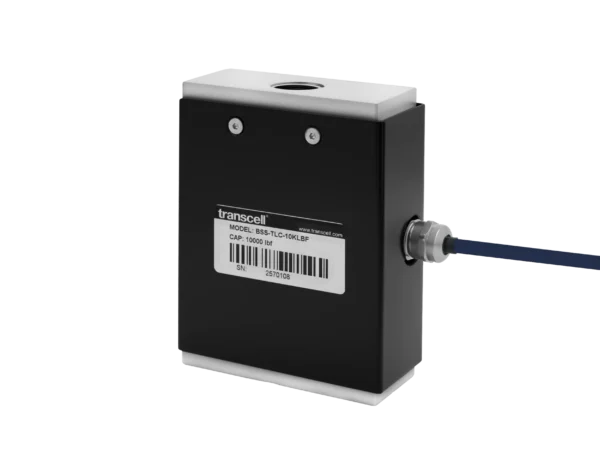

BAB-TLC 10000lbf load cell angled view for Chatillon DFS-R-ND, DFS II-R-ND, and TCD systems

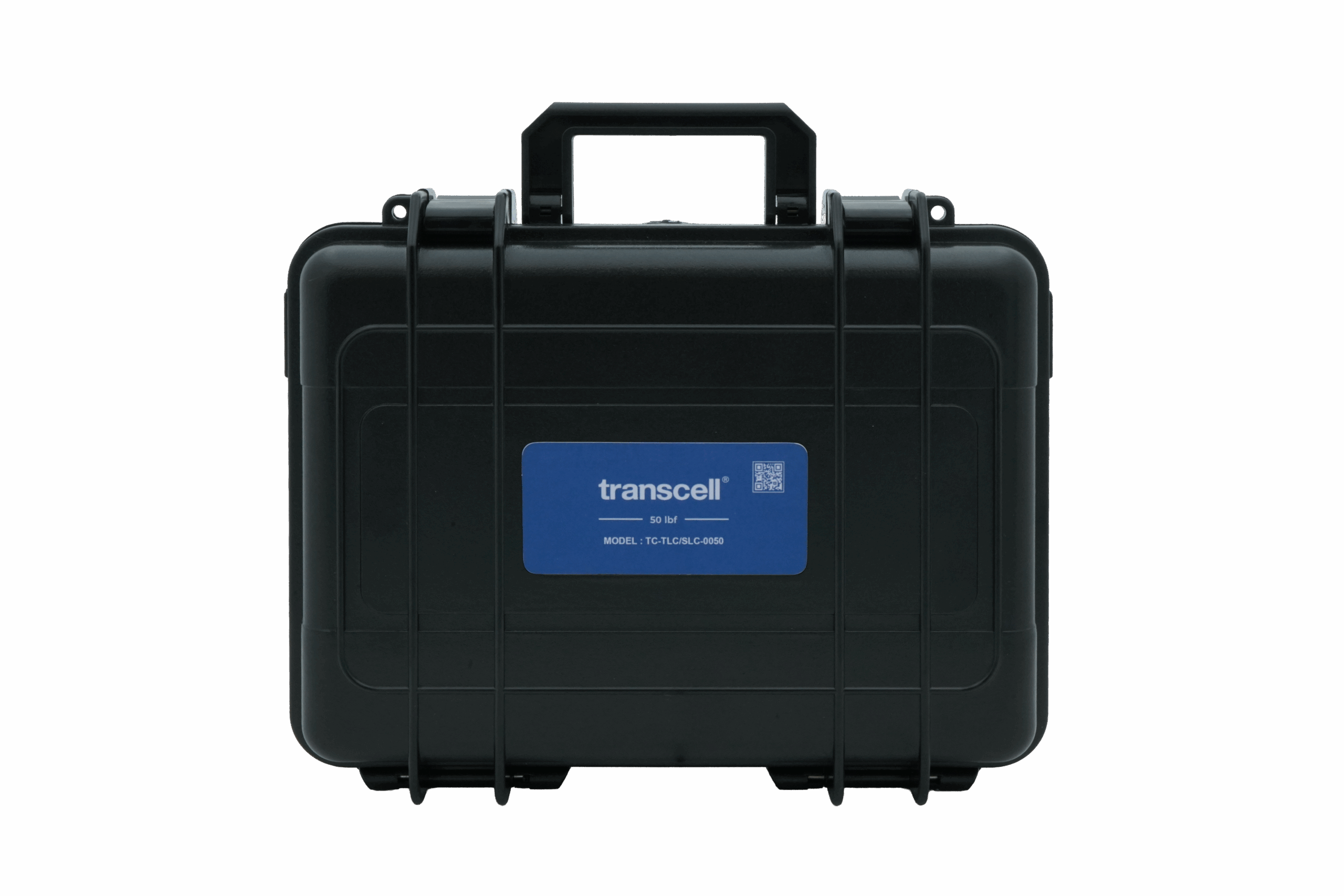

BAB-TLC load cell case for Chatillon DFS-R-ND, DFS II-R-ND, and TCD systems
BAB-TLC load cell in protective carrying case open for Chatillon DFS-R-ND, DFS II-R-ND, and TCD systems
BAB-TLC 50lbf load cell front view for Chatillon DFS-R-ND, DFS II-R-ND, and TCD systems
BAB-TLC 50lbf load cell side view for Chatillon DFS-R-ND, DFS II-R-ND, and TCD systems
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail
Thumbnail

Load Cells for Chatillon TCD Series Digital Force Testers

Free 2-Day Shipping

$1,250.00

 Tension & compression
Drop-in replacement for Chatillon TCD110, TCD225 & TCD1100 · 1000% safe overload protection
Same-day shipping
In-stock orders ship the same business day · Free 2-day delivery
Manufacturer direct
Designed & supported by Transcell in Buffalo Grove, IL since 1981
2-year limited warranty
US-based technical support included · repair or replace guarantee

Product Description

TC-TLC Series Chatillon TCD load cell overview

The TC-TLC Series are plug-and-play replacement load cells for the Chatillon TCD110, TCD225, and TCD1100 Digital Force Testing Machines, designed as direct drop-in upgrades for the Chatillon TLC series load cells. Each TC-TLC load cell connects to the machine's existing wiring via the included 15-pin connector without modification. The TC-TLC Series improves on the original TLC design with enhanced safe overload protection and improved measurement performance. For best accuracy, each load cell should be calibrated to the specific machine it will be used with after installation, to meet the enhanced ±0.1%FS accuracy specification. Capacities range from ±2 lbf to ±1,000 lbf, and all models include a 15.8 mm (5/8 in) eye-end adapter and ship in a padded carrying case.

Capacity range
±2 lbf
up to ±1,000 lbf
Compatibility
Plug-and-play
TCD110, TCD225, TCD1100
Replaces
TLC series
direct drop-in upgrade
Includes
Case + adapter
15-pin connector, eye-end

Compatible Chatillon TCD machines

The TC-TLC Series has been verified for plug-and-play compatibility with the following Chatillon Digital Force Testing Machines. Select the model matching your machine's current TLC load cell capacity.

TCD110
Chatillon TCD110
Digital Force Testing Machine
TCD225
Chatillon TCD225
Digital Force Testing Machine
TCD1100
Chatillon TCD1100
Digital Force Testing Machine

Technical notes

Installation

The TC-TLC connects to the Chatillon TCD110, TCD225, or TCD1100 via the included 15-pin connector with no wiring modification required. Select the model matching your existing TLC load cell capacity. For best measurement accuracy, calibrate the load cell to the specific machine it will be used with after installation, to meet the enhanced ±0.1%FS accuracy specification. All models include a 15.8 mm eye-end adapter.
What's included

Each TC-TLC load cell ships complete and ready to install:

➤ Load cell with required 15-pin connector and electronics
➤ 15.8 mm (5/8 in) eye-end adapter (all models)
➤ Padded carrying case

Chatillon crossover reference

Select the TC-TLC model matching your existing Chatillon TLC load cell. No wiring or mounting changes are required:

Model Capacity Safe Overload Thread Eye-End Chatillon Crossover
TC-TLC/SLC-0002 ±2 lbf ±20 lbf 1/4-28F 15.8mm Aluminum TLC-0002
TC-TLC/SLC-0010 ±10 lbf ±100 lbf 1/4-28F 15.8mm Aluminum TLC-0010
TC-TLC/SLC-0025 ±25 lbf ±250 lbf 1/4-28F 15.8mm Aluminum TLC-0025
TC-TLC/SLC-0050 ±50 lbf ±500 lbf 1/4-28F 15.8mm Stainless TLC-0050
TC-TLC/SLC-0100 ±100 lbf ±1,000 lbf 1/4-28F 15.8mm Stainless TLC-0100
TC-TLC/SLC-0200 ±200 lbf ±2,000 lbf 1/4-28F 15.8mm Stainless TLC-0200
TC-TLC/SLC-0500 ±500 lbf ±2,500 lbf 1/2-20F 15.8mm Stainless TLC-0500
TC-TLC/SLC-1000 ±1,000 lbf ±5,000 lbf 1/2-20F 15.8mm Stainless TLC-1000
SKU: P2079210002, P2079210010, P2079210025, P2079210050, P2079210100, P2079210200, P2079210500, P2079211100 Categories: , , , Tags: , , , ,

Specifications

Comprehensive error: ±0.1% of full scale for dedicated calibration to machine; ±0.25% of full scale without system calibration.

Dimensions / 3D Drawings

Note: You may need a software that can open/view STEP files.

PART IDMOUNTING THREADEYE-END ADAPTER
TC-TLC-00021/4-28F15.8mm Aluminum
TC-TLC-00101/4-28F15.8mm Aluminum
TC-TLC-00251/4-28F15.8mm Aluminum
TC-TLC-00501/4-28F15.8mm Stainless
TC-TLC-01001/4-28F15.8mm Stainless
TC-TLC-02001/4-28F15.8mm Stainless
TC-TLC-05001/2-20F15.8mm Stainless
TC-TLC-10001/2-20F15.8mm Stainless

Interchangeable

Transcell Part IDCHATILLON TLC SERIES COMPATIBILITY
TC-TLC-0002TLC-0002
TC-TLC-0010TLC-0010
TC-TLC-0025TLC-0025
TC-TLC-0050TLC-0050
TC-TLC-0100TLC-0100
TC-TLC-0200TLC-0200
TC-TLC-0500TLC-0500
TC-TLC-1000TLC-1000
