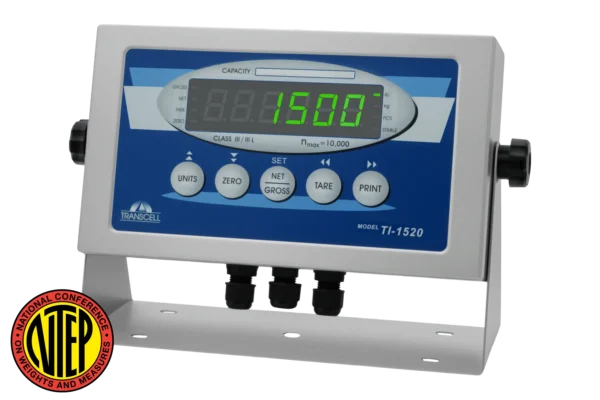

TI-1520 Advanced NTEP Weighing Indicator
In Stock
$610.00
- Certified Accuracy: NTEP and Canadian certified
- Durable stainless steel construction
- Large, easy-to-read LED display
- Equipped with a full-duplex RS-232 port for seamless data communication
- Capable of driving up to eight conventional load cells for accurate weighing
- Includes an internal power supply, time & date functions for enhanced usability
- Expandable Options: Features 2 internal expansion ports
Product Description
TI-1520 weighing indicator overview

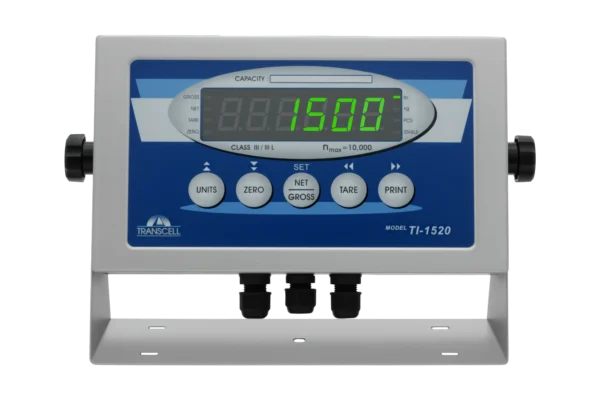

The TI-1520 is an NTEP and Canadian certified digital weighing indicator housed in a stainless steel NEMA 4X/IP65 enclosure, designed for general purpose industrial weighing where wash-down resistance, a large easy-to-read display, and high division count are all required. It features a large 1.0" 6-digit green LED display that is readable from a distance, drives up to eight 350Ω load cells, and is certified for 10,000 divisions in Class III/IIIL environments. Time and date are included as standard — not an add-on — along with an internal power supply, full front panel calibration, and a programmable print format with 6-digit ID number. System linearity is within 0.01% of full scale. Optional add-ons including RS-485, Bluetooth, WLAN, and analog output make the TI-1520 adaptable to a wide range of industrial data collection and process control environments. The TI-1520 manual and calibration guide are available in the Data Sheets tab above.
|

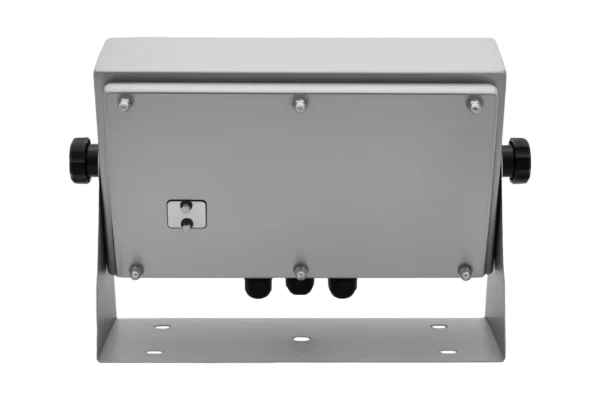

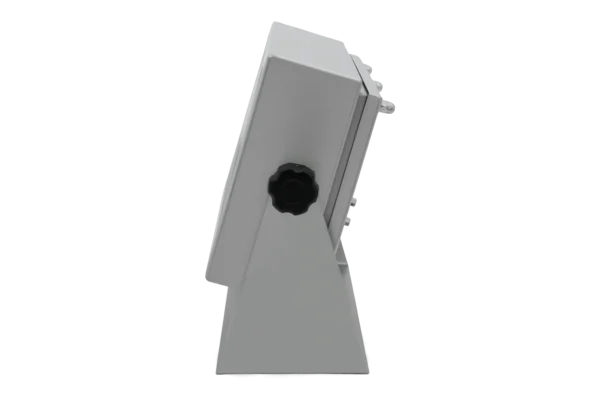

Enclosure
SS
NEMA 4X / IP65
|
Display
1.0"
6-digit green LED
|
Load cells
8 × 350Ω
max capacity
|
Divisions
10,000
NTEP certified
|
Key features
The TI-1520 is built for installers and operators who need a capable, wash-down safe indicator with a large display, high division count, and flexible connectivity.
|
|
|||||
|
|
|||||
|
|
Technical notes
|
Installation and connectivity
The TI-1520 uses a Quick Disconnect cable connection and operates on 100-240 VAC, 50/60 Hz via its internal power supply — no external adapter required. It connects to any standard mV/V load cell or junction box and supports up to eight 350Ω load cells. Standard communications include one full-duplex RS-232C port, with RS-485, Bluetooth, WLAN, and analog output available as add-ons. Compatible applications
The TI-1520 is well suited for large floor scales, platform scales, truck scales, food processing, and industrial weighing environments requiring a wash-down rated stainless steel enclosure with a high-division count and a large, easily readable LED display. It pairs with Transcell S-type, shear beam, and single-point load cells. |
Available add-on options
Key specifications
|
TI series indicator comparison
Compare the TI-1520 with other indicators in the TI series to find the right fit for your application.
 |  |  |  |  | |
TI-1520 | |||||
Price | $610 | $560 | $500 | $500 | $460 |
Load Cell Current | 8 - 350 Ω | 8 - 350 Ω | 4 - 350 Ω | 8 - 350 Ω | 4 - 350 Ω |
Display | 1.0 in 6-Digit LED | 1.0 in 7-Digit LCD | 0.9 in 6-Digit LCD | 0.8 in 6-Digit LCD | 0.6 in 6-Digit LED |
Backlight | ✓ | ✓ | ✓ | ||
Enclosure | Stainless Steel | Polycarbonate / ABS | Stainless Steel | Stainless Steel | Stainless Steel |
IP Rating | IP65 | IP69K | IP65 | IP65 | IP65 |
Battery | Option | ✓ | ✓ | ||
NTEP | Yes | Yes | Yes | Yes | Yes |
Key Functions | Units, Zero/Off, Net/Gross, Tare, On/Print | Units, Zero, Menu/Off, Net/Gross, Tare, Print, On | Units, Zero/Off, Net/Gross, Tare, On/Print | Units, Zero/Off, Net/Gross, Tare, On/Print | Units, Zero, Net/Gross, Tare, Print |
|
Accessories & add-ons
Looking for cables, connectors, or indicator accessories? Browse our full accessories catalog for compatible add-ons for the TI-1520 and other Transcell indicators. |
Need help or a custom quote?
Our team is available to help with product selection, compatibility questions, and pricing for volume orders. Reach us directly by phone during business hours. |
Dimensions / 3D Drawings
Note: You may need a software that can open/view STEP files.
-
Downloads
Download Now -
User Guides
Download Now -
Data Sheets
Download Now
