TI-500 Basic NTEP Weighing Indicator (6 Keys)
In Stock
$275.00
Product Description

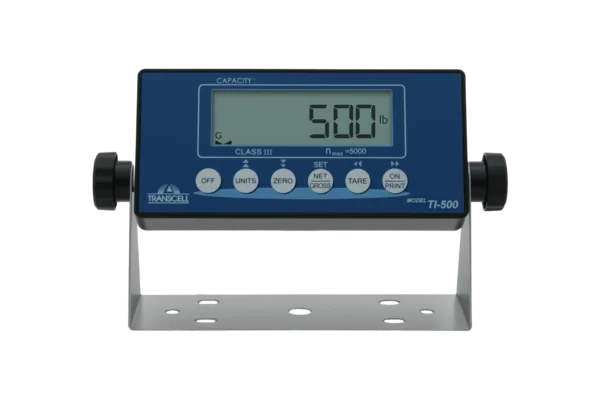

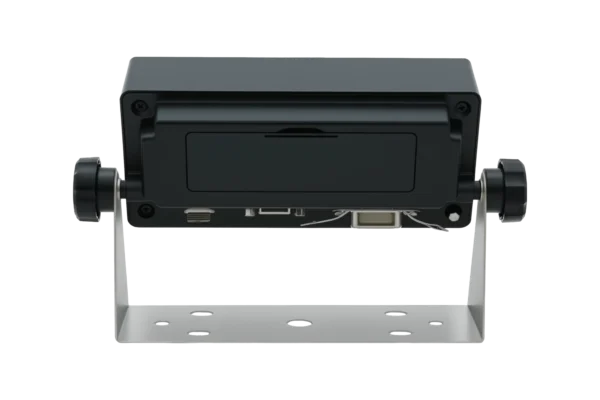

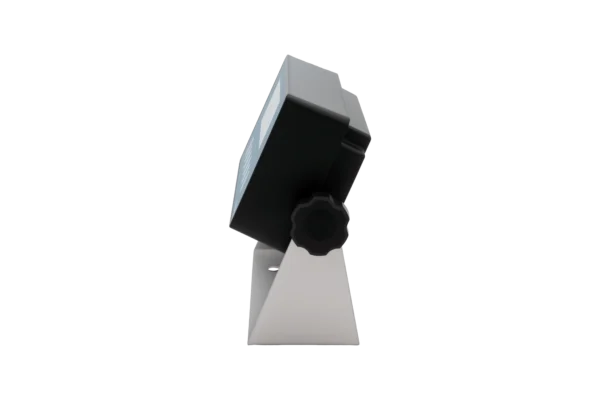

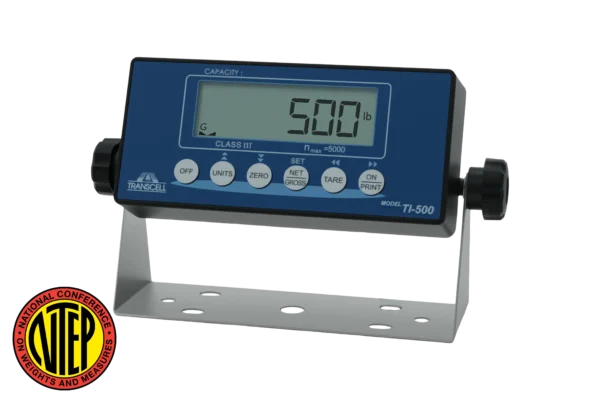

TI-500 weighing indicator overview
The TI-500 is an NTEP and Canadian certified digital weighing indicator offering the largest display in the basic TI series — a 0.9" 6-digit backlit LCD that is easy to read in a wide range of lighting conditions. Housed in an ABS and steel NEMA 12 enclosure with a stainless steel swivel stand, the TI-500 is capable of driving up to four 350Ω load cells. Its most distinctive feature is flexible power: it runs on AA alkaline or rechargeable batteries for approximately 40 hours of continuous use, or on a standard AC adapter, making it the most portable and versatile option in the basic TI series. Auto shutoff extends battery life in low-activity environments. Full front panel calibration and shared TI series setup parameters keep installation and maintenance straightforward. The TI-500 manual and calibration guide are available in the Data Sheets tab above.
Key features
The TI-500 is built for flexibility — equally at home on a fixed bench scale or a portable weighing station away from a power outlet.
|
|
|||||
|
|
|||||
|
|
Technical notes
The TI-500 ships with a 15 ft homerun cable. Power is supplied via AC adapter (6 VDC, 300 mA) or AA batteries. It connects directly to any standard analog load cell or junction box with a mV/V output and supports up to four 350Ω load cells in parallel. For multi-cell installations, a load cell summing junction box should be used to balance and combine signals before connecting to the indicator.
| ➤ | AC adapter: 6 VDC, 300 mA switching wall adapter |
| ➤ | AA alkaline batteries (1.5V) — approx. 40 hrs continuous |
| ➤ | AA rechargeable batteries (1.2V) |
| ➤ | Auto shutoff to extend battery life |
TI series indicator comparison
Compare the TI-500 with other indicators in the TI series to find the right fit for your application.
 |  |  |  |  | |
TI-500 | |||||
Price | $275 | $300 | $350 | $460 | $500 |
Load Cell Current | 4 - 350 Ω | 4 - 350 Ω | 4 - 350 Ω | 4 - 350 Ω | 8 - 350 Ω |
Display | 0.9 in 6-Digit LCD | 0.6 in 6-Digit LED | 0.6 in 6-Digit LED | 0.6 in 6-Digit LED | 0.8 in 6-Digit LCD |
Backlight | ✓ | ✓ | |||
Enclosure | ABS / Steel | ABS | Aluminum / Steel | Stainless Steel | Stainless Steel |
IP Rating | IP54 | IP54 | IP54 | IP65 | IP65 |
Battery | ✓ | ✓ | |||
NTEP | Yes | Yes | Yes | Yes | Yes |
Key Functions | Units, Zero, Net/Gross, Tare, On/Print, Off | Units, Zero, Net/Gross, Tare, Print | Units, Zero, Net/Gross, Tare, Print | Units, Zero, Net/Gross, Tare, Print | Units, Zero/Off, Net/Gross, Tare, On/Print |
|
Accessories & add-ons
Looking for cables, connectors, or indicator accessories? Browse our full accessories catalog for compatible add-ons for the TI-500 and other Transcell indicators. |
Need help or a custom quote?
Our team is available to help with product selection, compatibility questions, and pricing for volume orders. Reach us directly by phone during business hours. |
Dimensions / 3D Drawings
Note: You may need a software that can open/view STEP files.
-
Downloads
Download Now -
User Guides
Download Now -
Data Sheets
Download Now
