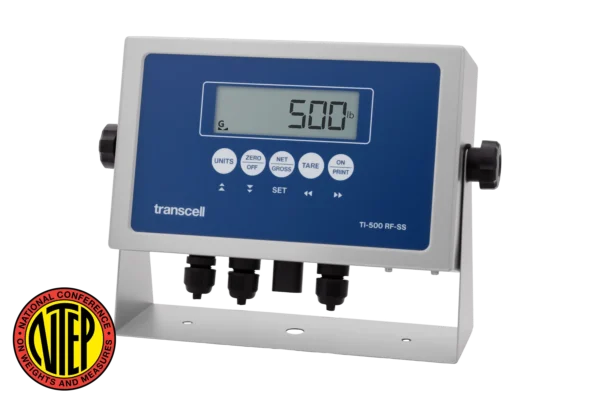

TI-500 RF-SS battery powered wireless-ready NTEP indicator front view

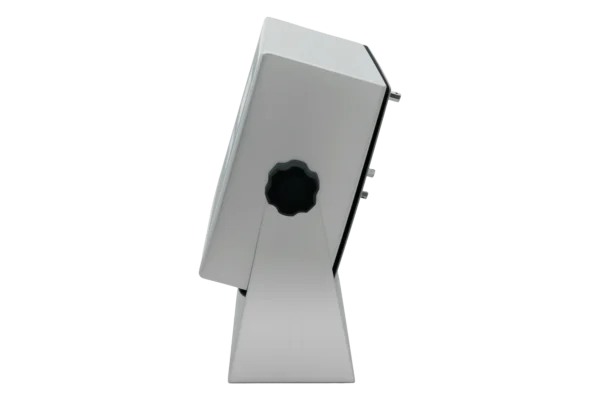

TI-500 RF-SS battery powered wireless-ready NTEP indicator side view

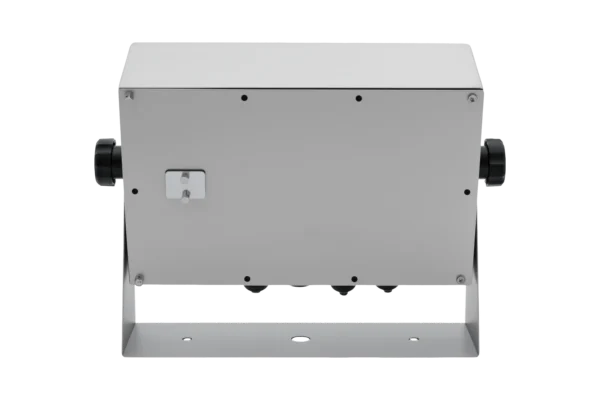

TI-500 RF-SS battery powered wireless-ready NTEP indicator back view
Thumbnail
Thumbnail
Thumbnail
Thumbnail

TI-500 RF-SS Battery Powered, Wireless-Ready NTEP Indicator

Free 2-Day Shipping

In Stock

$500.00

  • Expansion Port 1 Options:

    *Expansion port 1 will accept ONE of the following:

    Expansion Port 2 Options:

    *Expansion port 2 will accept ONE of the following:

    Expansion Port 3 Options:

    *Expansion port 3 will accept ONE of the following:

    Spare Parts & Accessories:

  • Transcell Exclusive Upgraded keypad design
  • NTEP certified with wireless options for the TI-500RFTM module and other devices
  • Stainless steel NEMA 4X enclosure for robust protection
  • Clear Display: 0.8” LCD screen, readable up to 50,000 divisions
  • Drives up to 8-350Ω load cells
  • Full-duplex RS-232 port for seamless data communication
  • Setup via front panel keys; shared calibration with other TI series indicators
  • Three internal expansion ports with various options
  • Comes with an adapter and load cell cable

Product Description

TI-500 RF-SS wireless stainless steel indicator overview

The TI-500 RF-SS is an NTEP certified wireless-capable digital weighing indicator housed in a stainless steel NEMA 4X enclosure. It combines the rugged corrosion resistance of a stainless steel housing with the flexibility of wireless operation via an optional TI-500RFTM Bluetooth weighing module, making it one of the most versatile indicators in the TI series. It drives up to eight 350Ω load cells, features a 0.8" 6-digit backlit LCD display, and runs on an internal 6-volt 3 Ah rechargeable lead acid battery with over 115 hours of continuous operation per charge. The selectable 10/80 Hz conversion rate, 10,000 certified divisions, multipoint linearization calibration, and a broad add-on ecosystem round out a highly capable package suited for industrial, food processing, and portable wireless weighing applications. The TI-500 RF-SS manual and calibration guide are available in the Data Sheets tab above.

Enclosure
SS
NEMA 4X stainless
Battery life
115+ hrs
rechargeable
Load cells
8 × 350Ω
max capacity
Divisions
10,000
NTEP certified

Key features

The TI-500 RF-SS is built for applications that demand both stainless steel durability and the freedom of wireless operation.

1
Stainless steel NEMA 4X enclosure
Housed in a stainless steel NEMA 4X enclosure with a stainless steel swivel stand, the TI-500 RF-SS withstands wash-down, corrosion, and harsh industrial environments where standard aluminum or ABS indicators are not appropriate.
2
115+ hour rechargeable battery
Powered by an internal 6-volt 3 Ah rechargeable lead acid battery providing over 115 hours of continuous operation per charge. Supports completely cable-free, portable weighing when paired with the optional TI-500RFTM wireless module.
3
Wireless capability via Bluetooth
Compatible with the optional TI-500RFTM wireless weighing module for fully cable-free scale operation. Optional Bluetooth Class I module also enables wireless data transmission directly to computers, printers, and mobile devices up to 100 meters unobstructed.
4
Drives up to eight 350Ω load cells
Powers up to eight 350Ω load cells simultaneously — twice the capacity of most basic indicators — making it suitable for large platform scales, multi-cell floor scales, and heavy industrial weighing systems requiring stainless steel construction.
5
Multipoint linearization calibration
Supports multipoint calibration with linearization for improved accuracy across the full measurement range. The selectable 10/80 Hz conversion rate allows tuning for stable static weighing or faster dynamic applications.
6
Advanced application modes
Supports Remote Display, Peak Hold, Checkweighing, Accumulation, Piece Counting, and Self-diagnostics modes. Time/date stamping and programmable print formats are also included for traceability and reporting.

Technical notes

Installation and connectivity

The TI-500 RF-SS uses a Quick Disconnect cable connection and operates on its internal 6V rechargeable battery or 4-14 VDC external power. It connects to any standard mV/V load cell or junction box and supports up to eight 350Ω load cells. Standard communications include a full-duplex RS-232C port, with Bluetooth, WLAN, RS-485, and analog output available as add-ons.

Compatible applications

The TI-500 RF-SS is well suited for food processing, pharmaceutical, outdoor, and portable industrial weighing applications requiring stainless steel durability and wireless flexibility. It pairs with Transcell S-type, shear beam, and single-point load cells, and integrates with the TI-500RFTM wireless module for fully cable-free operation.
Available add-on options
➤ Bluetooth Class I wireless module
➤ WLAN / Wi-Fi connectivity
➤ RS-485 for multi-drop network installations
➤ Analog output: 16-bit, 0-5 VDC (active) / 4-20 mA (passive)
➤ Ethernet connectivity
➤ USB connectivity
➤ Built-in relays (6V or 12V)
➤ TI-500RFTM wireless A/D module
Key specifications
➤ Input range: ±3 mV/V
➤ A/D resolution: 200,000 internal counts at 3 mV/V
➤ Conversion rate: 10 Hz / 80 Hz selectable
➤ Operating temp: −10°C to 40°C (14°F to 104°F)
➤ Dimensions: 8.9" × 5.5" × 2.9" (231 × 140 × 72 mm)
➤ NTEP CoC: 12-002

TI series indicator comparison

Compare the TI-500 RF-SS with other indicators in the TI series to find the right fit for your application.

Demo Image
Demo Image
Demo Image
Demo Image
Demo Image
TI-500 RF-SS

Price

Load Cell Current


8 - 350 Ω


8 - 350 Ω


8 - 350 Ω


4 - 350 Ω


8 - 350 Ω


Display


0.8 in
6-Digit LCD


0.9 in

6-Digit LCD



1.0 in

7-Digit LCD



0.6 in

6-Digit LED



0.8 in

6-Digit LCD



Backlight

✓

✓

✓

✓

Enclosure

Stainless Steel


Stainless Steel


Polycarbonate / ABS


Stainless Steel


Aluminum / ABS


IP Rating

IP65


IP65


IP69K


IP65


IP54


Battery

✓


✓


Option


✓


NTEP

Yes


No


Yes


Yes


Yes


Key Functions

Units, Zero/Off, Net/Gross, Tare, On/Print


Units, Zero, Peak, On/Off


Units, Zero, Menu/Off, Net/Gross, Tare, Print, On


Units, Zero, Net/Gross, Tare, Print


Units, Zero/Off, Net/Gross, Tare, On/Print

Accessories & add-ons

Looking for cables, connectors, or indicator accessories? Browse our full accessories catalog for compatible add-ons for the TI-500 RF-SS and other Transcell indicators.

View accessories
Need help or a custom quote?

Our team is available to help with product selection, compatibility questions, and pricing for volume orders. Reach us directly by phone during business hours.

Call 847-419-9180
SKU: ID001034 Categories: , Tags: , , ,

Dimensions / 3D Drawings

Note: You may need a software that can open/view STEP files.
