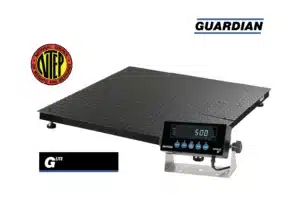

Wireless Guardian Floor Scale 4′ x 5′ with TI-500 RF Indicator

Choose a model

5,000 lbs
10,000 lbs

Clear

$2,480.00

	NTEP certified Legal for trade · factory calibrated · 5,000 & 10,000 lb capacities
	Free ground shipping In-stock orders ship the same business day · free nationwide delivery
	Manufacturer direct Designed & supported by Transcell in Buffalo Grove, IL since 1981
	3-year structural warranty 3-year warranty on scale structure · 2-year on electronics · US-based support

Product Description

Guardian Series • 4′ × 5′ • GRD5545-5k / GRD5545-10k

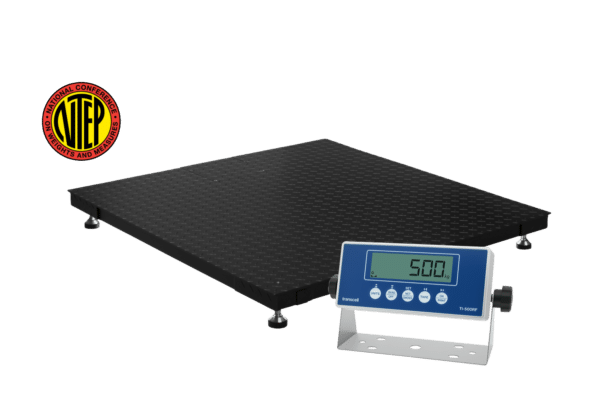

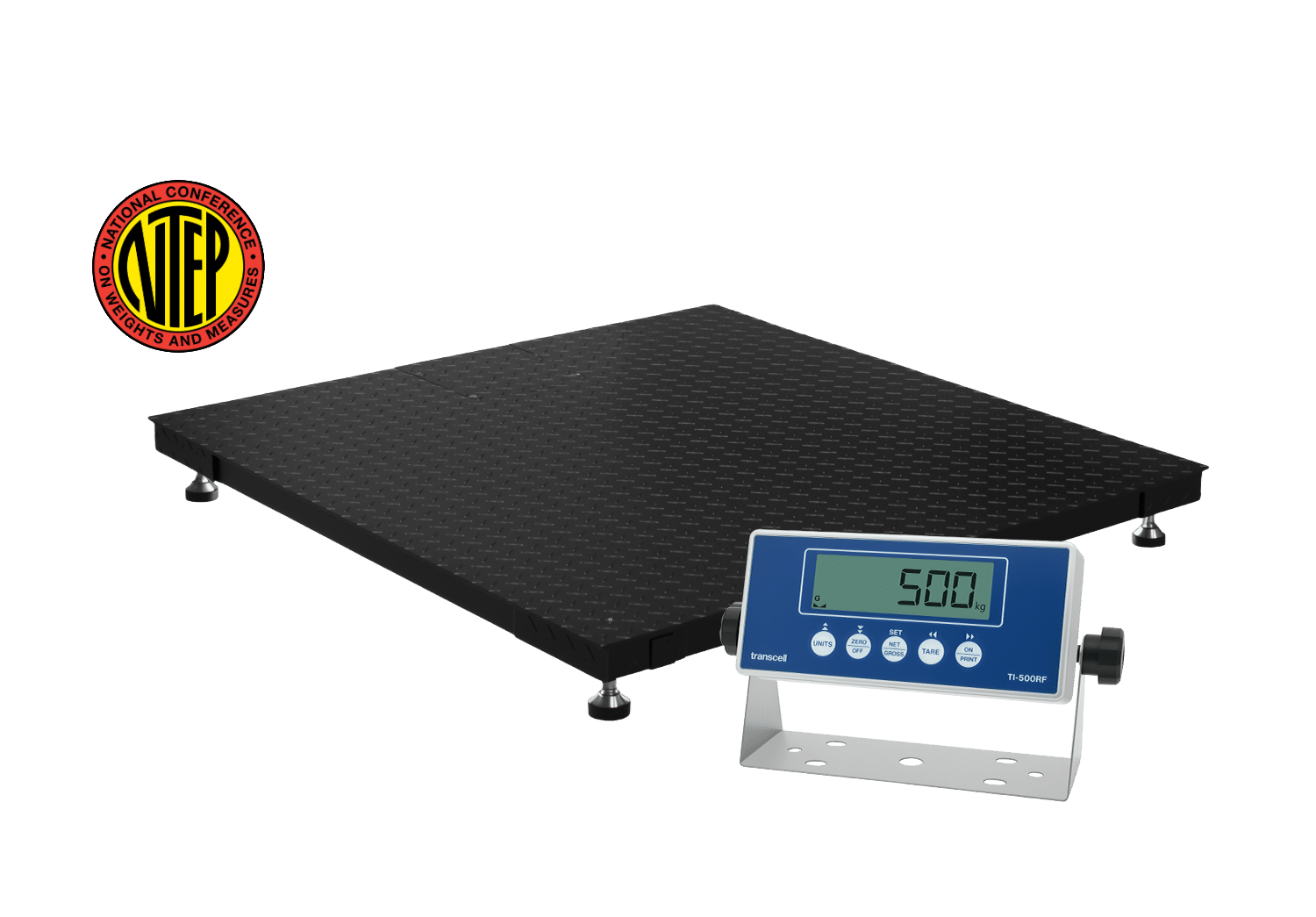

4′ x 5′ Wireless Industrial Floor Scale with TI-500 RF Indicator

The Guardian is Transcell's original industrial floor scale, trusted in warehouses, manufacturing facilities, and shipping docks since 2003. This NTEP-certified wireless platform scale is available in 5,000 lb and 10,000 lb capacities, legal for trade and factory calibrated, ready to use the moment it arrives on your dock.

Every Guardian 4x5 wireless floor scale ships as a complete, ready-to-use system. The RF transceiver module provides a wireless link between the platform and the TI-500 RF indicator, eliminating the need for floor cable runs. The TI-500 RF is NTEP certified, battery powered, and equipped with a bright 6-digit LCD display, full duplex RS-232 output, and peak hold, checkweighing, and accumulation functions. A 20 ft cable is also included for wired operation when preferred.

The platform is built for demanding industrial use. A 1/4 in diamond plate deck sits on a heavy duty welded channel undercarriage, adjustable alloy steel ball-foot leveling feet compensate for uneven floors, and a top-access junction box keeps installation and service straightforward. Backed by a 3-year structural warranty and 2-year electronics warranty, with US-based support from Transcell's facility in Buffalo Grove, IL since 1981.

5,000 / 10,000 lbs

Rated Capacity

Both NTEP certified

RF Wireless

Platform to Indicator

No floor cable required

4.3 in

Overall Height

Low-profile design

3 yr

Structural Warranty

+ 2 yr electronics

NTEP Certified

Legal for Trade

NIST H-44 Class III

Platform Features

Built for Industrial Use

NTEP Certified at Both Capacities

Legal for commercial trade at 5,000 lb and 10,000 lb. NIST H-44 Class III compliant, NTEP CC 06-084.

RF Wireless Kit: No Floor Cable

RF transceiver module provides a wireless link between the platform and TI-500 RF indicator. Place the indicator anywhere within range without running floor cables.

1/4 in Diamond Plate Steel Deck

Thick diamond safety tread deck on a heavy duty welded channel undercarriage. Built to handle demanding industrial loads.

Low-Profile: 4.3 in Overall Height

Rolls on with pallet jacks and forklifts. Compatible with in-floor pit frame installations for flush-to-floor weighing.

Heavy-Duty Powder Coat Finish

Resists chipping, corrosion, and chemical exposure. Maintains appearance and structural integrity under daily industrial use.

Integrated Lifting Points

Four threaded top-access eyebolt holes for safe repositioning with a crane or overhead hoist.

Included with Every Scale

TI-500 RF Wireless Indicator

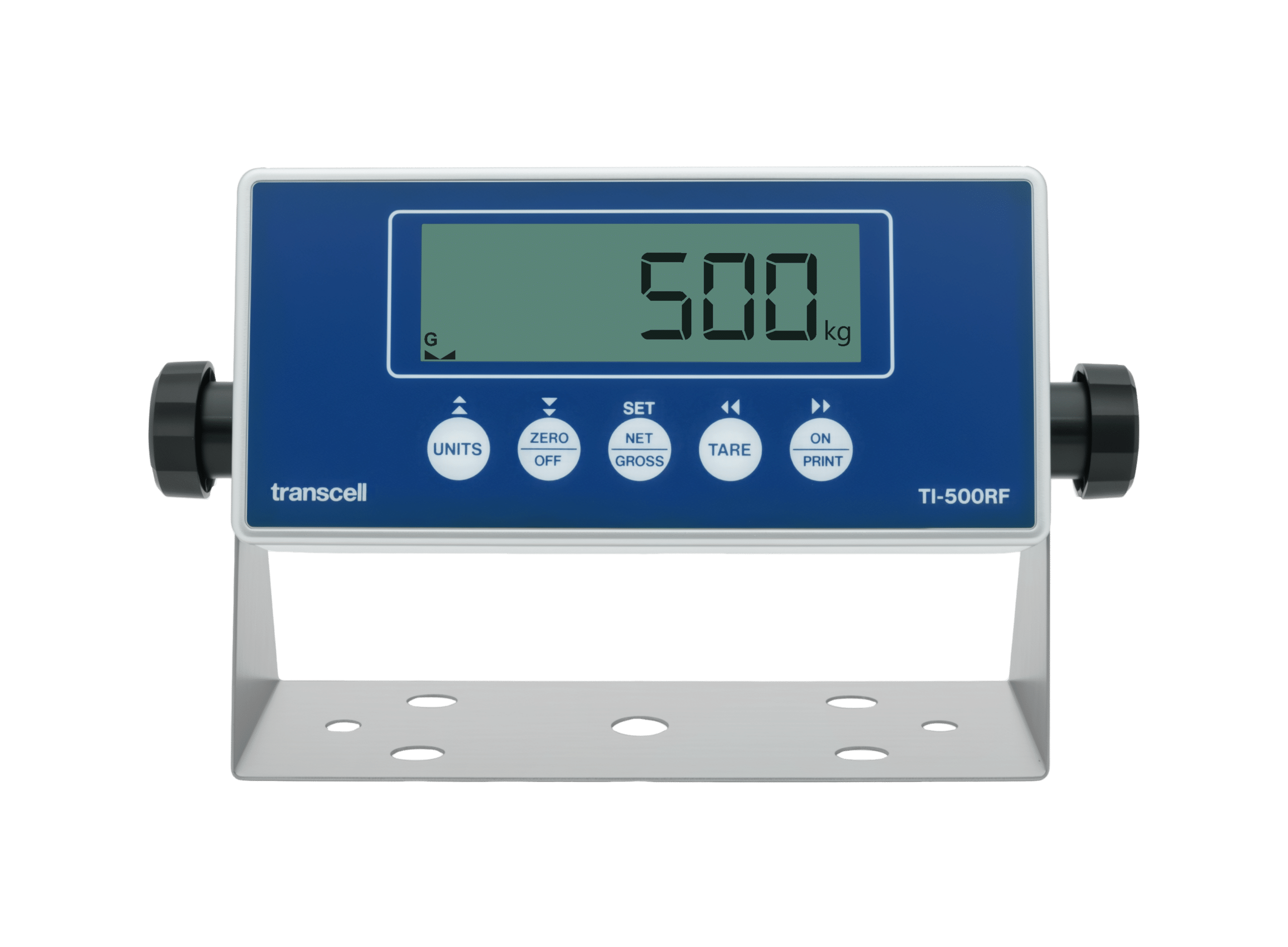

Transcell TI-500 RF NTEP certified wireless weighing indicator

NTEP certified, wireless capable. Aluminum/ABS NEMA 12 enclosure with 0.8 in 6-digit LCD display with LED backlight. Battery powered with 85+ hours of continuous operation. Wireless link to platform via RF transceiver module. Standard RS-232 with optional Bluetooth.

Key Specifications

EnclosureAluminum / ABS NEMA 12

Display0.8″ 6-digit LCD

Max Divisions50,000

NTEP Divisions10,000

Serial OutputRS-232 (standard)

Battery4 AA alkaline, 85+ hr

Built-In Functions

Wireless to PlatformRF transceiver module

Peak HoldIncluded

CheckweighingIncluded

AccumulationIncluded

Time / DateIncluded

BluetoothOptional module

TI-500 RF Communication

Connect to Any System

Included

RF Wireless Kit

Wireless link between platform and indicator: no floor cables

Standard

RS-232

Full duplex serial output for wired operation when preferred

Optional

Bluetooth

Pairs to mobile devices and peripherals wirelessly

Optional

Remote Display

Drive a remote scoreboard or display via RS-232 output

Additional options include RS-485, 0-5 VDC analog output (active), and 4-20 mA analog output (passive) for process control integration.

Deployment

Installation Options

Above-Ground Freestanding

Place on any flat surface and level with the adjustable ball feet. The RF wireless link means the indicator can be positioned anywhere within range with no cable routing. Ramp accessories available in 4x3 ft, 4x4 ft, and 5x4 ft configurations for roll-on pallet jack or cart access.

In-Floor / Pit Frame Mount

Compatible with in-floor pit frame installations for flush-to-floor weighing. The wireless RF link is especially valuable in pit installations where running a floor cable to the indicator is difficult or impractical. Pit frames available as a special order.

Where It Works

Common Applications

Shipping & Receiving

Manufacturing

Logistics & Freight

Waste & Recycling

Barrel & Drum Weighing

Industrial Floor Weighing

Technical Data

Key Specifications

Specification	GRD5545-5k	GRD5545-10k
Rated Capacity	5,000 lbs	10,000 lbs
Platform Size	4 ft x 5 ft (48 in x 60 in)
Overload Protection	7,500 lbs (150%)	15,000 lbs (150%)
Ending Load	5,000 lbs (100%)	10,000 lbs (100%)
Deck Thickness	1/4 in Diamond Plate Steel
Frame Material	Mild Steel, welded channel
Overall Height	4.3 in (110 mm)
Load Cell Construction	Alloy tool steel potted, IP65
Load Cell Output	3 mV/V, 350 ohm
Junction Box	ABS plastic, top access
Wireless Kit	RF transceiver module included
Cable	20 ft included (wired backup)
Leveling Feet	Adjustable alloy steel captured ball foot, 2.25 in dia.
Finish	Powder Coat
NTEP Certification	5,000 divisions, Class III, CC 06-084
Indicator	TI-500 RF (NEMA 12, 50,000 divisions, RS-232, wireless)
Indicator NTEP CC	12-002
Platform Warranty	3 years structural
Electronics Warranty	2 years

NTEP Certified

Legal for commercial trade at both capacities. NIST H-44 Class III compliant. Factory calibrated before shipping.

3-Year Structural Warranty

3 years on platform structure. 2 years on electronics including the TI-500 RF. US-based support from Buffalo Grove, IL.

Free Ground Shipping

Free to the contiguous 48 states. Ships within 2 to 3 business days. Dock delivery required.

Freight delivery: Receiving location must have dock hours of 8 am to 5 pm, or liftgate / residential / military delivery must be arranged at time of order. Free shipping to contiguous 48 states only. Alaska and Hawaii excluded. Illinois residents subject to 8% sales tax.

Dimensions / 3D Drawings

Note: You may need a software that can open/view STEP files.

Data Sheets

GUARDIAN-2.pdf
