Guardian Lite Floor Scale 4′ x 4′ 5,000 lbs with G-500E Indicator
In Stock
| NTEP certified Legal for trade · factory calibrated · 5,000 lb capacity |
|
| Free ground shipping In-stock orders ship the same business day · free nationwide delivery |
|
| Manufacturer direct Designed & supported by Transcell in Buffalo Grove, IL since 1981 |
|
| 3-year structural warranty 3-year warranty on scale structure · 2-year on electronics · US-based support |
Product Description

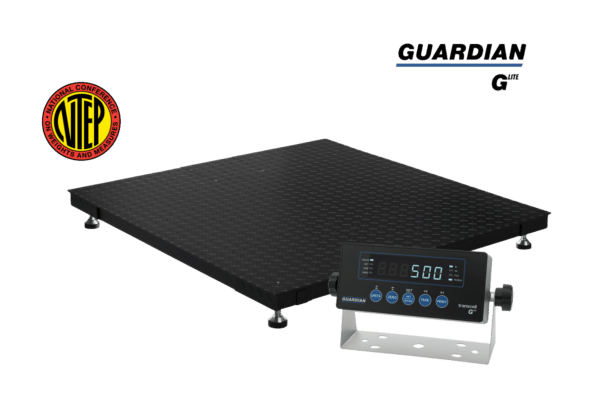

4′ x 4′ Industrial Floor Scale with G-500E Indicator
The Guardian Lite is Transcell's high-value industrial floor scale, built on the same proven Guardian platform that has been trusted in warehouses and manufacturing facilities since 2003. This NTEP-certified platform scale is available in a 5,000 lb capacity, legal for trade and factory calibrated, ready to use the moment it arrives on your dock.
Every Guardian Lite 5,000 lb floor scale ships as a complete, ready-to-use system. The structural steel platform pairs with the G-500E indicator: NTEP certified, equipped with a bright 6-digit LED display, full duplex RS-232 output, and basic piece counting. A 15 ft homerun cable is included.
The platform shares the same heavy-duty construction as the Guardian Premium. An ultra-thick diamond plate deck sits on a ribbed A36 structural steel undercarriage, self-articulating leveling feet compensate for uneven floors, and an IP67-rated top-access junction box means maintenance never requires taking the scale out of service. Backed by a 3-year structural warranty and 2-year electronics warranty, with US-based support from Transcell's facility in Buffalo Grove, IL since 1981.
Built for Heavy Industrial Use
Ultra-Thick Diamond Plate Deck
1/4-inch diamond plate steel on a ribbed A36 structural steel undercarriage. No flex, no deformation under repeated heavy loads.
Self-Articulating Leveling Feet
Proprietary ball-and-cup technology compensates for uneven floors automatically. Adjustable from the top: no lifting required.
JB-FI-4 Signal Trim Junction Box
IP67-rated, 4-channel signal trim junction box. Individual potentiometers for precise corner adjustment without external instruments.
Top-Access Junction Box
Junction box accessible from a hatch on top of the platform. No need to lift or flip the scale for trimming or maintenance.
Every Detail Engineered

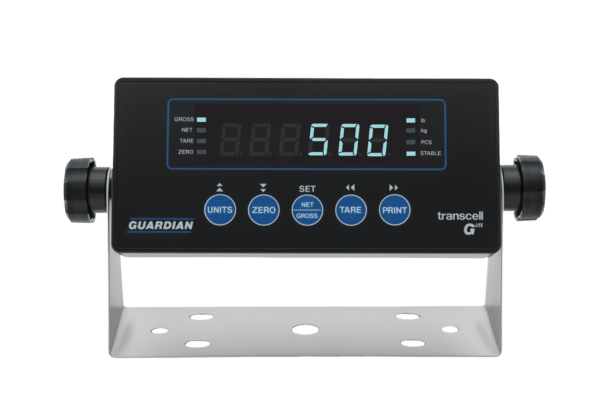

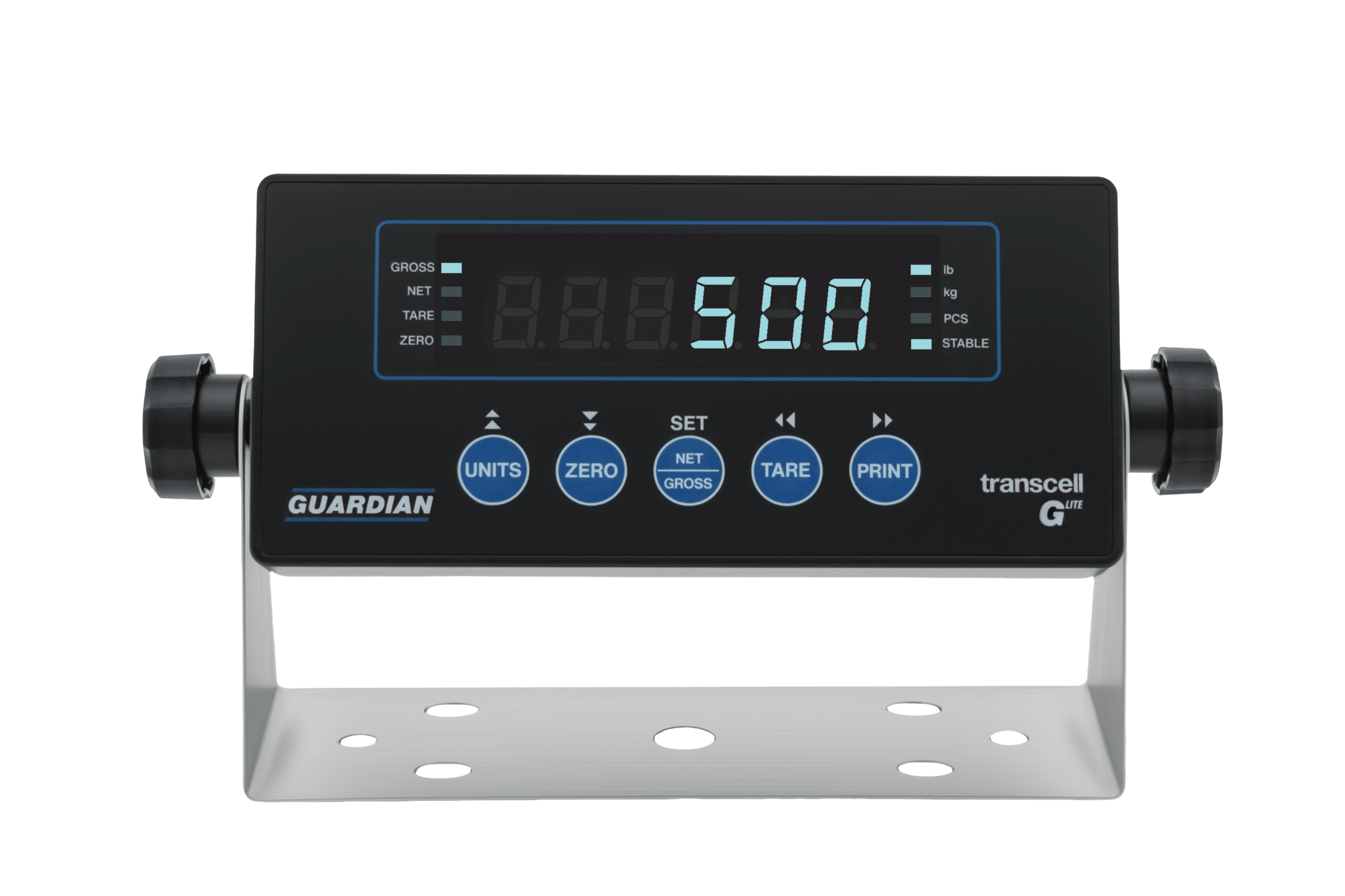

G-500E Indicator
NTEP and Canadian certified. ABS NEMA 12 enclosure with bright 0.6 in 6-digit LED display and full front panel configuration. Ships with a 15 ft homerun cable. Standard RS-232 with optional Bluetooth and RS-485.
Connect to Any System
The G-500E RS-232 port transmits data on demand or continuously, compatible with printers, remote displays, and computers.
Installation Options
Common Applications
Key Specifications
| Specification | GRDLITE5544-5K |
|---|---|
| Rated Capacity | 5,000 lbs |
| Platform Size | 4 ft x 4 ft (48 in x 48 in) |
| Safe Overload (Corner) | 3,750 lbs |
| Safe Overload (Edge) | 7,500 lbs |
| Deck Thickness | 1/4 in Diamond Plate Steel |
| Frame Material | A36 Structural Steel |
| Overall Height | 4.3 in (110 mm) |
| Load Cell Design | Zemic H8C-2.5K High-Durability |
| Junction Box | JB-FI-4, IP67, 4-Channel Signal Trim |
| Homerun Cable | 15 ft included |
| Leveling Feet | Self-Articulating Ball-and-Cup, 2.25 in dia. |
| Finish | Powder Coat |
| NTEP Certification | 5,000 lbs, legal for trade |
| Indicator | G-500E (NEMA 12, 50,000 divisions, RS-232) |
| Platform Warranty | 3 years structural |
| Electronics Warranty | 2 years |
Freight delivery: Receiving location must have dock hours of 8 am to 5 pm, or liftgate / residential / military delivery must be arranged at time of order. Free shipping to contiguous 48 states only. Alaska and Hawaii excluded. Illinois residents subject to 8% sales tax.
