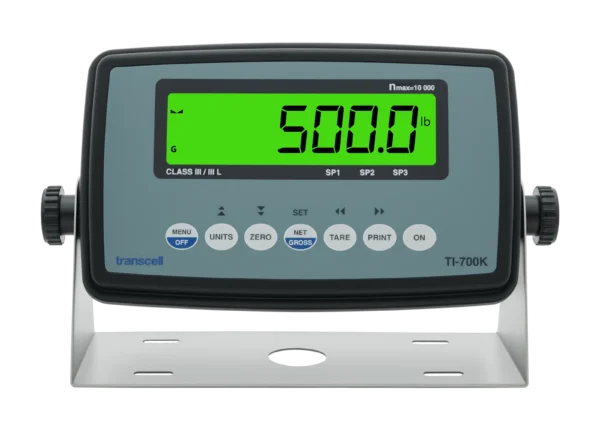

TI-700K IP69K waterproof NTEP weighing indicator front view

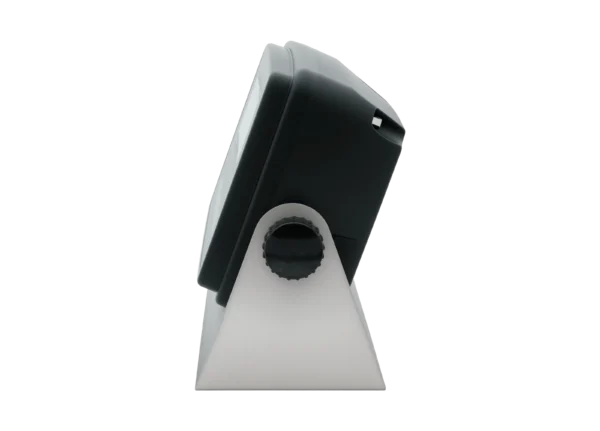

TI-700K IP69K waterproof NTEP weighing indicator side view

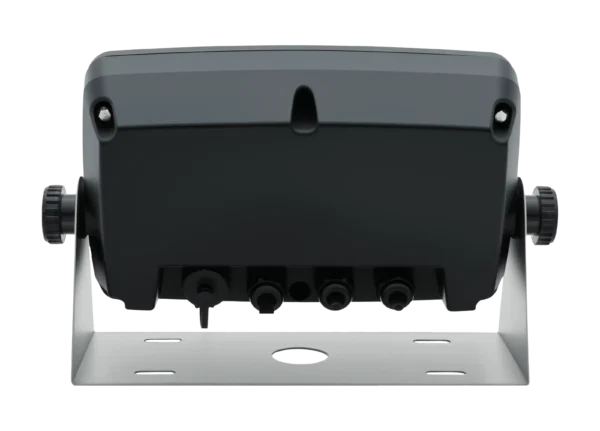

TI-700K IP69K waterproof NTEP weighing indicator back view
Thumbnail
Thumbnail
Thumbnail
Thumbnail

TI-700K IP69K Waterproof NTEP Weighing Indicator

Free 2-Day Shipping

In Stock

  • Expansion Port 1 Options:

    *Expansion port 1 will accept ONE of the following:

    Expansion Port 2 Options:

    *Expansion port 2 will accept ONE of the following:

    Expansion Port 3 Options:

    *Expansion port 3 will accept ONE of the following:

    Spare Parts & Accessories:

NTEP & Canadian certified
Legal for trade · NTEP CC #16-086 · AM-6038C · H-44 Class III/IIIL · IP69K rated
Same-day shipping
In-stock orders ship the same business day · Free 2-day delivery
Manufacturer direct
Designed & supported by Transcell in Buffalo Grove, IL since 1981
2-year limited warranty
US-based technical support included · repair or replace guarantee

Product Description

TI-700K waterproof weighing indicator overview

The TI-700K is an NTEP and Canadian certified IP69K waterproof weighing indicator built for demanding outdoor and industrial environments. Its polycarbonate front and waterproof ABS rear enclosure withstand high-pressure wash-down, dust, and moisture. This standard LCD version features a large 1.0" 7-digit multi-color LCD with a green backlight, optimized for readability in bright outdoor lighting and direct sunlight conditions. A capacitive touch keypad, ARM microprocessor, and selectable 10 Hz to 960 Hz A/D conversion rate give the TI-700K performance well beyond basic weighing indicators. It drives up to eight 350Ω load cells, supports wireless operation via the optional TI-500RFTM module, and handles Peak, Totalizing, Hold, Checkweigher, Piece Counting, and Live Weight applications. The TI-700K manual and calibration guide are available in the Data Sheets tab above.

IP rating
IP69K
wash-down rated
Load cells
8 × 350Ω
max capacity
Divisions
10,000
NTEP certified
Display
1.0"
7-digit color LCD

Key features

The TI-700K standard LCD is designed for outdoor and high-ambient-light environments where display visibility in sunlight is a priority.

1
Standard LCD — optimized for outdoor use
The standard LCD version features a green backlit display designed for excellent readability in bright outdoor lighting and direct sunlight. Ideal for outdoor scales, agricultural weighing, and any application where the indicator is exposed to natural light.
2
IP69K wash-down rated enclosure
The sealed polycarbonate and ABS enclosure is rated IP69K — the highest standard for waterproofing — protecting against high-pressure, high-temperature wash-down in food processing, outdoor, and industrial environments.
3
Drives up to eight 350Ω load cells
Capable of powering up to eight 350Ω load cells simultaneously — double the capacity of most basic indicators — making the TI-700K suitable for large platform scales, floor scales, and multi-cell industrial weighing systems.
4
Capacitive touch keypad with 6-color backlight
Features a sealed capacitive touch keypad with a user-selectable backlight color from 6 available options. Tare weight and APW are stored in non-volatile memory, and a programmable print format supports custom ticket output.
5
Multi-function application modes
Supports Peak Hold, Totalizing (Accumulation), Checkweigher, Piece Counting, Animal Weighing, Remote Display, and Live Weight modes. Self-diagnostics, RF signal strength meter, and battery capacity meter are also built in.
6
Wireless capability and rich add-on options
Compatible with the optional TI-500RFTM wireless weighing module for cable-free operation. Add-on options include a 2nd RS-232, RS-485, Bluetooth, 0-10V output, 4-20 mA, Wi-Fi, and a rechargeable Li-Ion battery for 85+ hours of portable use.

Technical notes

Installation and connectivity

The TI-700K ships with a 15 ft homerun cable and operates on 100-240 VAC (50/60 Hz) standard power, or optionally on 5-15 VDC. It connects to any standard mV/V load cell or junction box. Standard communications include one full-duplex RS-232C port and one USB port. A USB driver download is required for USB connectivity — see the USB Driver section below.

Compatible applications

The TI-700K is well suited for floor scales, platform scales, truck scales, outdoor weighing stations, agricultural weighing, food processing, and any industrial application requiring an IP69K waterproof indicator with advanced functionality. It pairs with Transcell S-type, shear beam, and single-point load cells.
Available add-on options
➤ 2nd RS-232 serial port
➤ RS-485 for multi-drop network installations
➤ Bluetooth wireless communication
➤ 0-10V analog output
➤ 4-20 mA analog output
➤ Wi-Fi connectivity
➤ Rechargeable Li-Ion battery (85+ hrs)
Key specifications
➤ Input range: ±3.125 mV/V
➤ A/D resolution: 260,000 internal counts at 2 mV/V
➤ Conversion rate: 10 to 960 Hz selectable
➤ Operating temp: −20°C to 40°C (−4°F to 104°F)
➤ NTEP CoC: 16-086 | Canadian: AM-6038C

USB driver download

A USB driver is required to connect the TI-700K to a PC via USB. Click below to download the driver from the Silicon Labs website.

Download USB driver

TI-700K series comparison

Compare the TI-700K with other premium indicators to find the right fit for your application.

Demo Image
Demo Image
Demo Image
Demo Image
Demo Image
TI-700K

Price

Load Cell Current


8 - 350 Ω


12- 350 Ω


8 - 350 Ω


4 - 350 Ω


4 - 350 Ω


Display


1.0 in

7-Digit LCD



1.0 in

6-Digit LED



0.8 in

6-Digit LCD



0.9 in

6-Digit LCD



0.6 in

6-Digit LED



Backlight

✓

✓

✓

Enclosure

Polycarbonate / ABS


Stainless Steel


Stainless Steel


Stainless Steel


Stainless Steel


IP Rating

IP69K


IP65


IP65


IP65


IP65


Battery

Option


✓


✓


NTEP

Yes


Yes


Yes


Yes


Yes


Key Functions

Units, Zero, Menu/Off, Net/Gross, Tare, Print, On


Units, Zero, Mode, Tare, Print, C/CE, F1, Set Point, Under/Over, ID, Enter, Dec.Pt, *, 0-9


Units, Zero/Off, Net/Gross, Tare, On/Print


Units, Zero/Off, Net/Gross, Tare, On/Print


Units, Zero, Net/Gross, Tare, Print

Accessories & add-ons

Looking for cables, connectors, or indicator accessories? Browse our full accessories catalog for compatible add-ons for the TI-700K and other Transcell indicators.

View accessories
Need help or a custom quote?

Our team is available to help with product selection, compatibility questions, and pricing for volume orders. Reach us directly by phone during business hours.

Call 847-419-9180
SKU: P104210511TW Categories: , , Tags: , , , ,

Dimensions / 3D Drawings

Note: You may need a software that can open/view STEP files.
