FAS Single Point Load Cell | 30-50 kg

Product Description

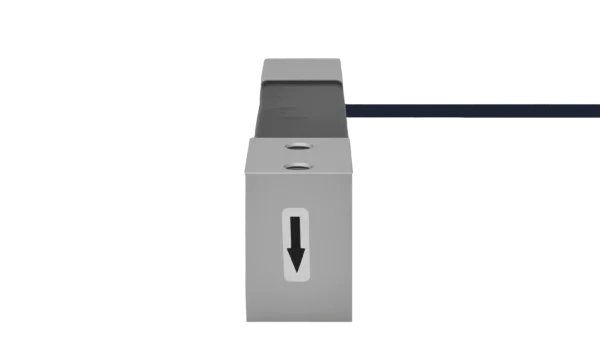

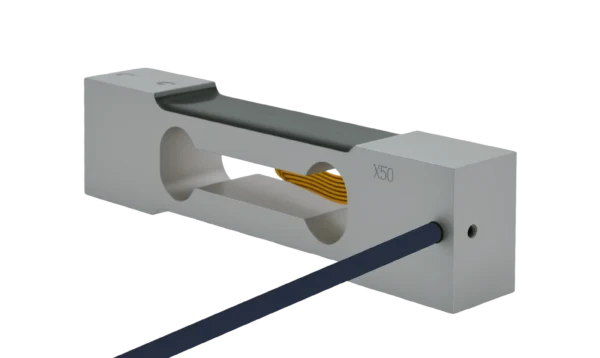

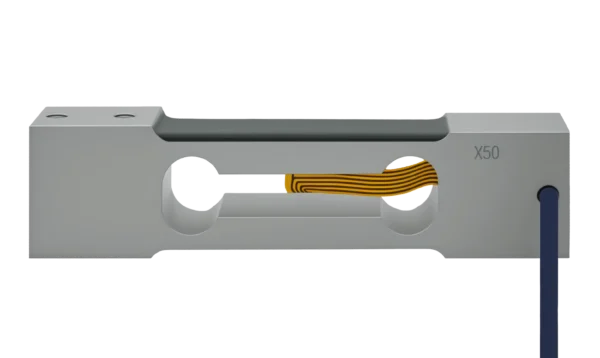

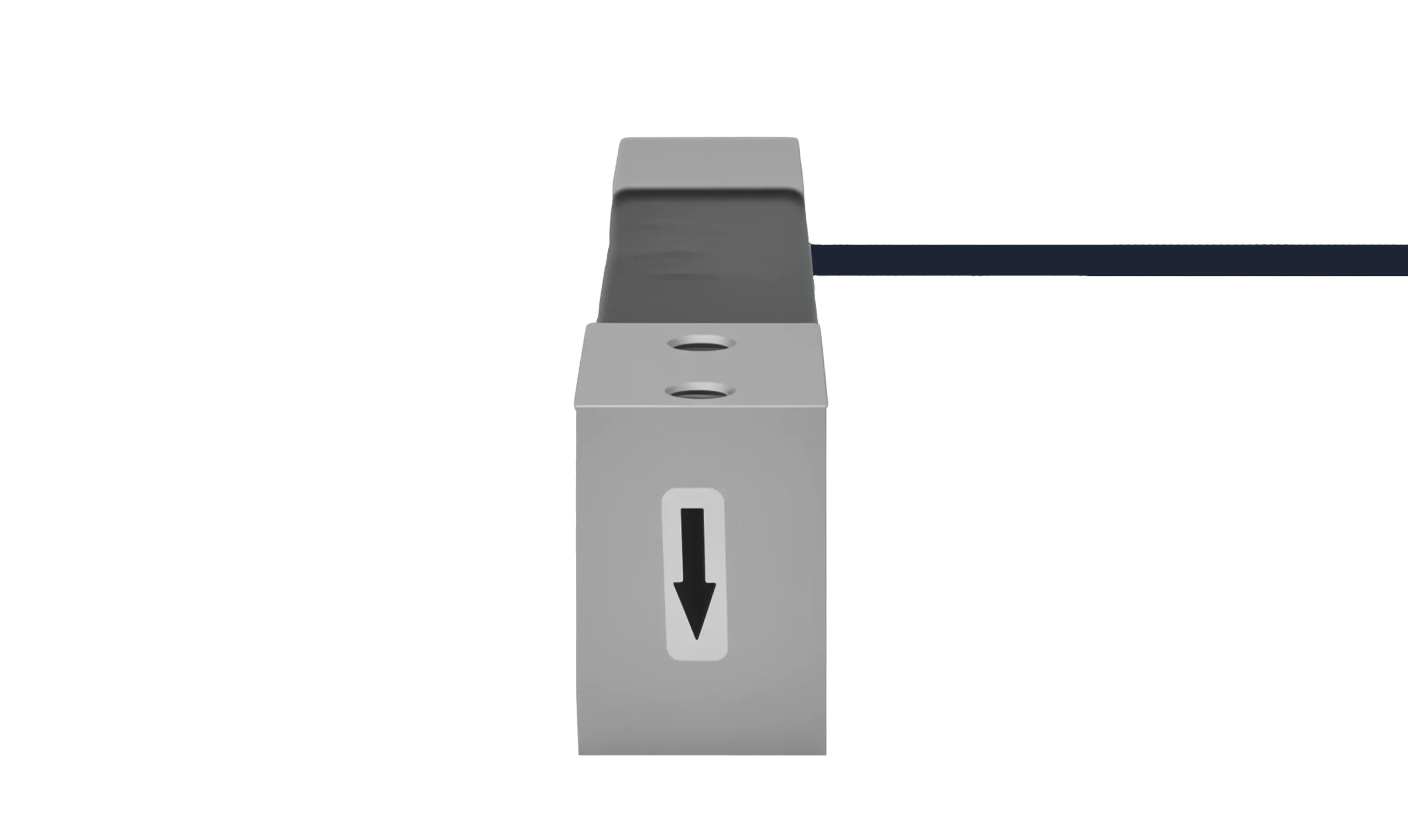

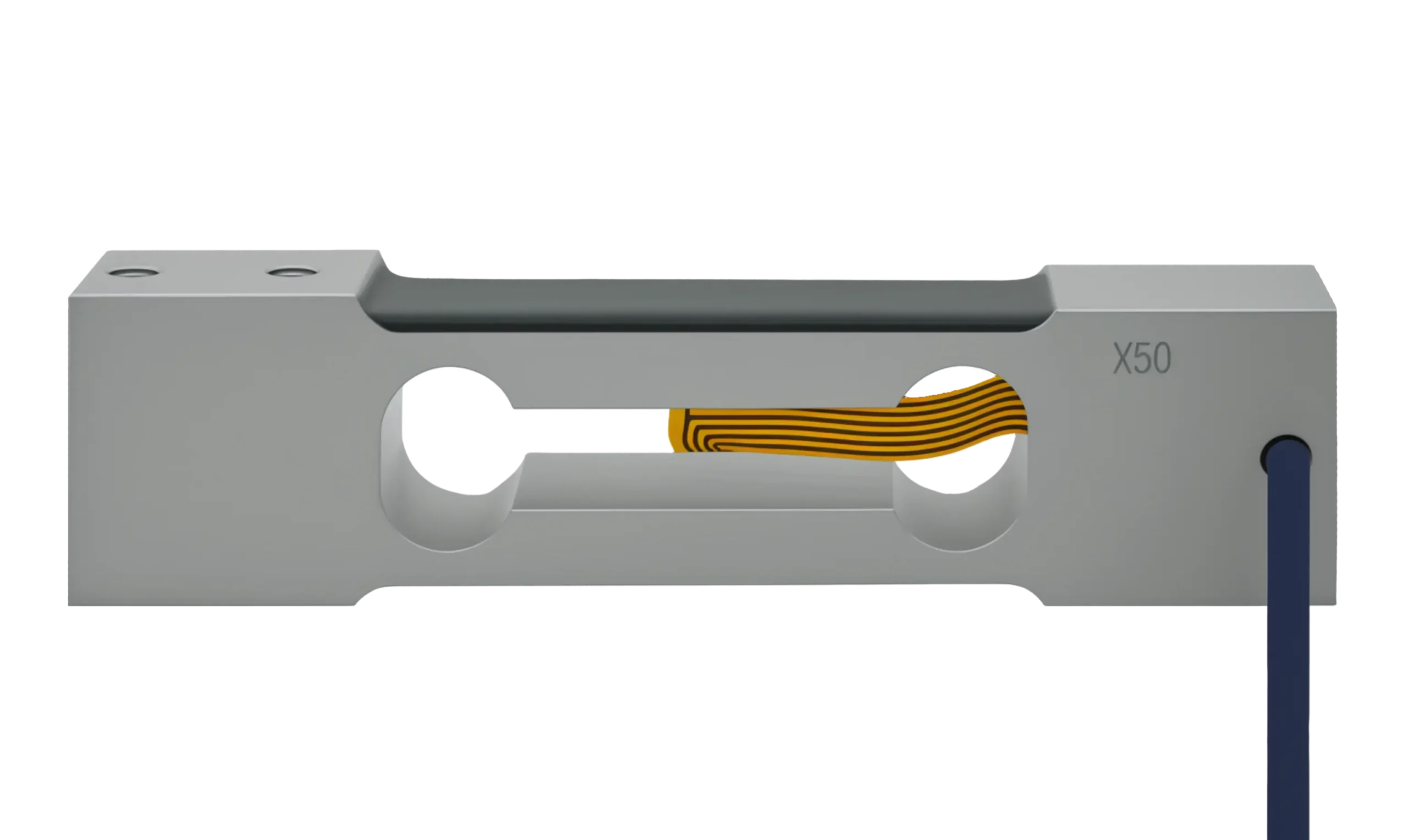

FAS single point load cell overview

The FAS is an aluminum single point load cell designed for accurate weight measurement in bench scales, retail scales, postal scales, and small platform weighing systems. As a single point cell, it is engineered so that loads applied anywhere across the platform surface produce an accurate, consistent reading — making it the ideal choice for off-center loading applications where a standard bending beam or shear beam cell would produce errors. The FAS mounts via four 1/4"-20 UNC threaded holes and ships with a 2.75 m cable. Available in 30 kg and 50 kg capacities, it is a direct drop-in replacement for the most widely used single point load cells from Rice Lake, Tedea, HBM, and others.

Capacity range

30 kg

and 50 kg

Nonlinearity

±0.03%

of rated output

Construction

Aluminum

1/4"-20 UNC threads

Safe overload

150%

of rated capacity

Typical applications

The FAS is commonly specified for light-capacity bench and platform scale applications where the single point design allows accurate measurement regardless of where the load is placed on the platform.

Retail and bench scales

The FAS is the standard choice for small bench scale and retail scale construction, where items are placed anywhere on the platform surface and the single point design ensures accurate readings regardless of load position. Suited for point-of-sale, grocery, deli, and light industrial bench weighing.

Postal and shipping scales

Widely used in postal and parcel weighing applications where parcels and envelopes of varying sizes and shapes are placed on small platforms. The FAS's single point sensing allows consistent measurement without requiring the item to be centered on the scale surface.

Parts counting and check weighing

The FAS's compact footprint and accurate single point output make it well suited for parts counting scales and check weighing systems used in manufacturing and packaging environments, where consistent results across a small platform are required for quality control applications.

Small hopper and filling scales

Used in small hopper, filling, and dispensing scale systems where a compact, single-cell design is preferred over multi-cell arrangements. The FAS supports platforms up to 250 x 300 mm, making it suitable for benchtop filling and dosing applications in food, pharmaceutical, and laboratory settings.

OEM scale and instrument builds

The FAS's standardized M6 mounting pattern and compact dimensions make it a practical choice for OEM scale manufacturers building retail, laboratory, or industrial bench scale products. Its footprint matches widely used competitor models, simplifying drop-in integration into existing scale designs.

System integration and instrumentation

The FAS produces a standard 2.0 mV/V analog output compatible with any weight indicator, PLC analog input, or DAQ system accepting a mV/V bridge signal. Its short cable options (13 cm, 35 cm, or 275 cm) suit compact enclosure builds where cable management space is limited.

Technical notes

Installation and mounting

The FAS mounts via four 1/4"-20 UNC threaded holes. The cell body must be mounted on a flat, rigid surface. The platform attaches to the top face of the cell. For best accuracy, the mounting surface and platform must be flat and parallel — warped or uneven surfaces will compromise the single point correction and degrade off-center load performance. No summing junction box is required since a single FAS cell handles the full platform area.

System integration

The FAS operates at a rated excitation of 10V DC/AC (15V max) and produces a 2.0 mV/V analog output signal. It is compatible with any standard weight indicator, PLC analog input, or load cell conditioner accepting a mV/V bridge input. Ships with a 2.75 m cable.

Key specifications

Rated output

2.0 mV/V

Nonlinearity / Hysteresis

±0.03%

Temp. effect on output

≤0.002%

Safe temp. range

−10°C
+70°C

Insulation resistance

≥5,000 MΩ

Input impedance

410 Ω

Output impedance

350 Ω

Mounting thread

1/4"-20 UNC

Cable wiring

The FAS ships with a 2.75 m cable. Standard color code:

■ RED	+Excitation
■ BLACK	−Excitation
■ GREEN	+Signal
■ WHITE	−Signal

Drop-in replacement for

The FAS is a direct mechanical and electrical substitute for the following single point load cell models. No wiring or mounting changes are required when upgrading or replacing:

➤	Rice Lake RL1042
➤	Tedea 1042
➤	HBM SP4
➤	RTI 624
➤	Scaime AG
