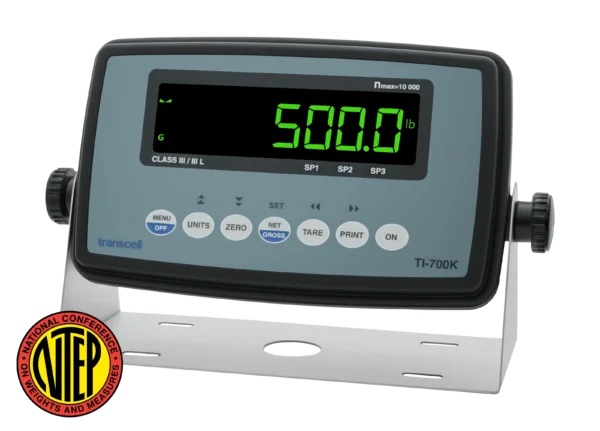

TI-700K IP69K waterproof NTEP weighing indicator reverse LCD angled view

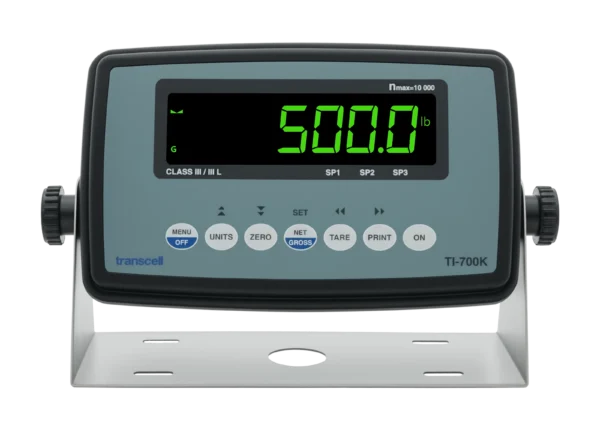

TI-700K IP69K waterproof NTEP weighing indicator reverse LCD front view
TI-700K IP69K waterproof NTEP weighing indicator side view
TI-700K IP69K waterproof NTEP weighing indicator back view
Thumbnail
Thumbnail
Thumbnail
Thumbnail

TI-700K IP69K Waterproof NTEP Weighing Indicator (Reverse LCD)

Free 2-Day Shipping

In Stock

$560.00

  • Expansion Port 1 Options:

    *Expansion port 1 will accept ONE of the following:

    Expansion Port 2 Options:

    *Expansion port 2 will accept ONE of the following:

    Expansion Port 3 Options:

    *Expansion port 3 will accept ONE of the following:

    Spare Parts & Accessories:

NTEP & Canadian certified
Legal for trade · NTEP CC #16-086 · AM-6038C · H-44 Class III/IIIL · IP69K rated
Same-day shipping
In-stock orders ship the same business day · Free 2-day delivery
Manufacturer direct
Designed & supported by Transcell in Buffalo Grove, IL since 1981
2-year limited warranty
US-based technical support included · repair or replace guarantee

Product Description

TI-700K waterproof weighing indicator (Reverse LCD) overview

The TI-700K Reverse LCD is an NTEP and Canadian certified IP69K waterproof weighing indicator sharing the same proven platform as the standard TI-700K, but fitted with a reverse LCD display where the backlight is black and the digit segments are illuminated in your choice of color. This display style provides exceptional contrast and readability in indoor, low-light, and controlled-lighting environments such as warehouses, processing facilities, and laboratories. All other specifications are identical to the standard model: polycarbonate and waterproof ABS enclosure, capacitive touch keypad, ARM microprocessor, 10 Hz to 960 Hz selectable A/D conversion, and support for up to eight 350Ω load cells. The TI-700K manual and calibration guide are available in the Data Sheets tab above.

IP rating
IP69K
wash-down rated
Load cells
8 × 350Ω
max capacity
Divisions
10,000
NTEP certified
Display
Reverse
indoor optimized LCD

Key features

The TI-700K Reverse LCD is designed for indoor and controlled-lighting environments where high contrast and visual comfort are priorities.

1
Reverse LCD — optimized for indoor use
The reverse LCD display uses a black backlight with illuminated color segments, delivering superior contrast and reduced eye fatigue in warehouse, laboratory, and facility environments. Segment color is user-selectable from 6 available options.
2
IP69K wash-down rated enclosure
The sealed polycarbonate and ABS enclosure is rated IP69K, protecting against high-pressure, high-temperature wash-down in food processing, pharmaceutical, and industrial facility environments where sanitation is critical.
3
Drives up to eight 350Ω load cells
Powers up to eight 350Ω load cells simultaneously, making the TI-700K suitable for large platform scales, multi-cell floor scales, and industrial weighing systems that exceed the 4-cell limit of basic indicators.
4
Capacitive touch keypad
Sealed capacitive touch keypad with no physical gaps or crevices to harbor contaminants. Tare weight and APW are stored in non-volatile memory, and a programmable print format supports custom ticket output with a 6-digit ID number.
5
Multi-function application modes
Supports Peak Hold, Totalizing (Accumulation), Checkweigher, Piece Counting, Animal Weighing, Remote Display, and Live Weight modes. Self-diagnostics, RF signal strength meter, and battery capacity meter are all built in.
6
Wireless capability and rich add-on options
Compatible with the optional TI-500RFTM wireless weighing module. Add-on options include a 2nd RS-232, RS-485, Bluetooth, 0-10V output, 4-20 mA, Wi-Fi, and a rechargeable Li-Ion battery providing 85+ hours of portable operation.

Technical notes

Installation and connectivity

The TI-700K ships with a 15 ft homerun cable and operates on 100-240 VAC (50/60 Hz), or optionally on 5-15 VDC. It connects to any standard mV/V load cell or junction box. Standard communications include one full-duplex RS-232C port and one USB port. A USB driver download is required for USB connectivity — see the USB Driver section below.

Compatible applications

The TI-700K Reverse LCD is well suited for indoor warehouses, food processing and pharmaceutical facilities, laboratories, and controlled production environments. It pairs with Transcell S-type, shear beam, and single-point load cells.
Available add-on options
➤ 2nd RS-232 serial port
➤ RS-485 for multi-drop network installations
➤ Bluetooth wireless communication
➤ 0-10V analog output
➤ 4-20 mA analog output
➤ Wi-Fi connectivity
➤ Rechargeable Li-Ion battery (85+ hrs)
Key specifications
➤ Input range: ±3.125 mV/V
➤ A/D resolution: 260,000 internal counts at 2 mV/V
➤ Conversion rate: 10 to 960 Hz selectable
➤ Operating temp: −20°C to 40°C (−4°F to 104°F)
➤ NTEP CoC: 16-086 | Canadian: AM-6038C

USB driver download

A USB driver is required to connect the TI-700K to a PC via USB. Click below to download the driver from the Silicon Labs website.

Download USB driver

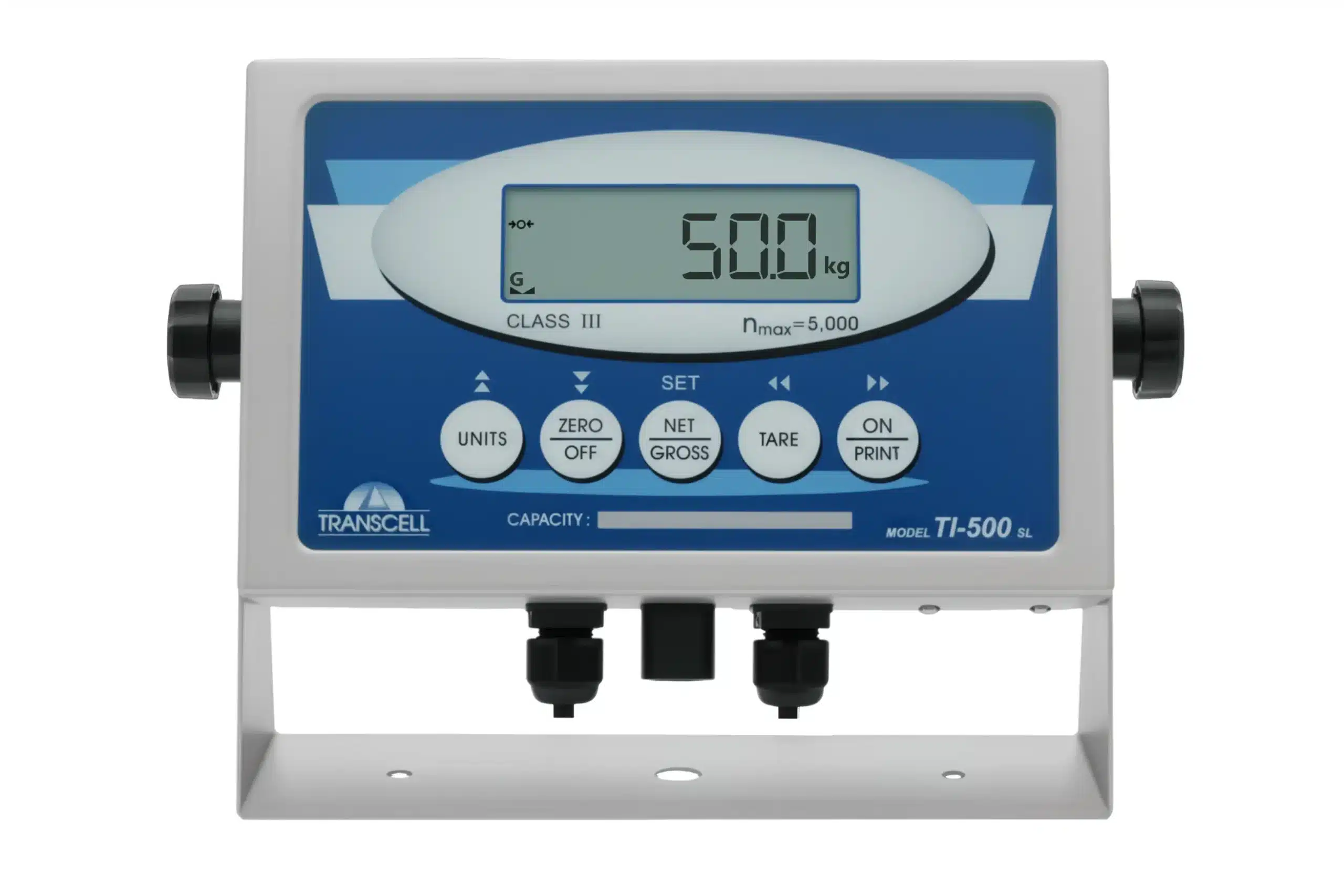

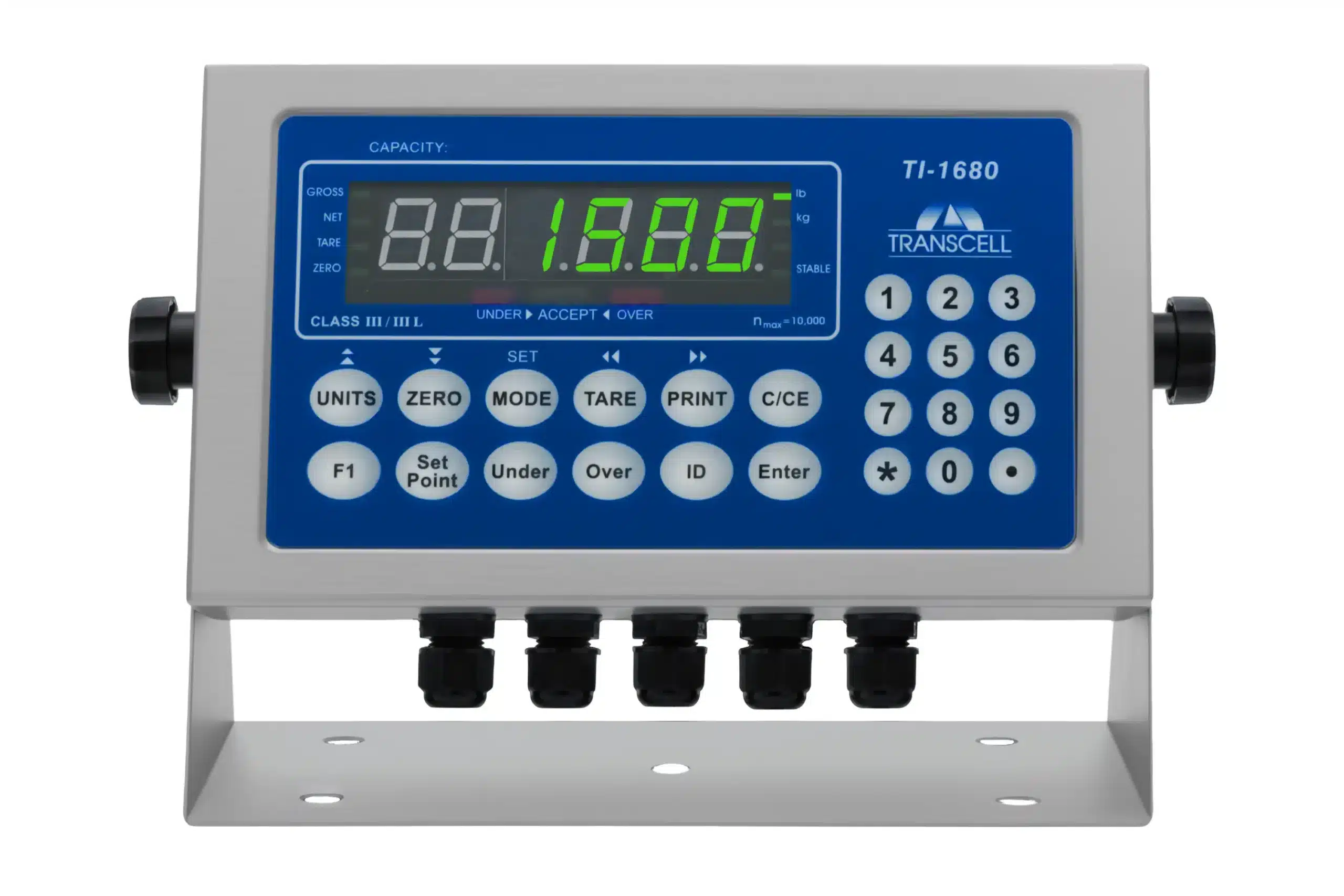

TI-700K series comparison

Compare the TI-700K Reverse LCD with other premium indicators to find the right fit for your application.

Demo Image
Demo Image
Demo Image
Demo Image
Demo Image
TI-700K

Price

Load Cell Current


8 - 350 Ω


12- 350 Ω


8 - 350 Ω


4 - 350 Ω


4 - 350 Ω


Display


1.0 in

7-Digit LCD



1.0 in

6-Digit LED



0.8 in
6-Digit LCD


0.9 in

6-Digit LCD



0.6 in

6-Digit LED



Backlight

✓

✓

✓

Enclosure

Polycarbonate / ABS


Stainless Steel


Stainless Steel


Stainless Steel


Stainless Steel


IP Rating

IP69K


IP65


IP65


IP65


IP65


Battery

Option


✓


✓


NTEP

Yes


Yes


Yes


Yes


Yes


Key Functions

Units, Zero, Menu/Off, Net/Gross, Tare, Print, On


Units, Zero, Mode, Tare, Print, C/CE, F1, Set Point, Under/Over, ID, Enter, Dec.Pt, *, 0-9


Units, Zero/Off, Net/Gross, Tare, On/Print


Units, Zero/Off, Net/Gross, Tare, On/Print


Units, Zero, Net/Gross, Tare, Print

Accessories & add-ons

Looking for cables, connectors, or indicator accessories? Browse our full accessories catalog for compatible add-ons for the TI-700K and other Transcell indicators.

View accessories
Need help or a custom quote?

Our team is available to help with product selection, compatibility questions, and pricing for volume orders. Reach us directly by phone during business hours.

Call 847-419-9180
SKU: P104210540 Categories: , Tags: , , ,

Dimensions / 3D Drawings

Note: You may need a software that can open/view STEP files.
