TI-1680 Advanced NTEP Weighing Indicator
In Stock
$750.00
Product Description

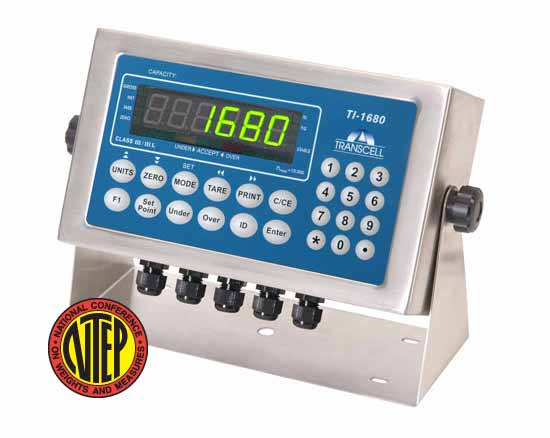

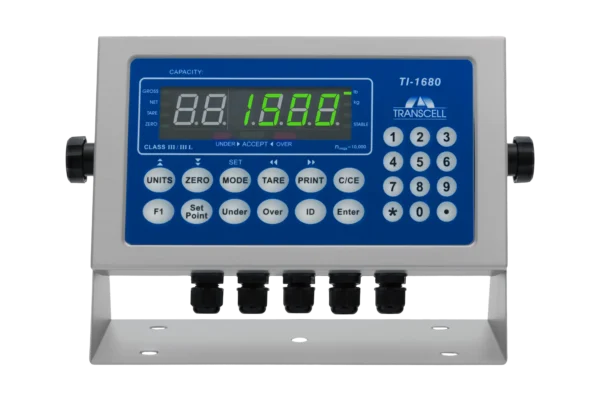

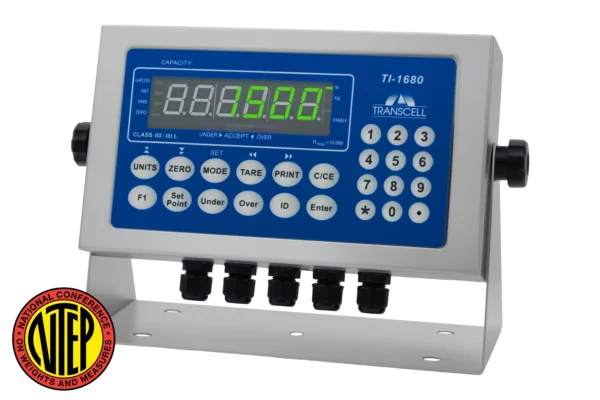

TI-1680 advanced weighing indicator overview
The TI-1680 is an NTEP and Canadian certified advanced industrial weighing indicator housed in a stainless steel wash-down safe enclosure. It is the most capable indicator in the Transcell TI series, designed for installers who need maximum flexibility and operators who need a clean, intuitive interface. The TI-1680 drives up to twelve 350Ω load cells, features a large 1.0" 6-digit green LED display with a tri-color LED bar graph for checkweighing, and includes a full 24-key numeric keypad for direct tare and ID entry. Two full-duplex RS-232C serial ports are standard — one configurable to USB — along with time and date, four cutoff outputs for batch weighing, one logic level input for remote control, 256 truck ID storage, and a programmable print format with 6-digit ID number. Vehicle weigh-in/weigh-out, piece counting, accumulation, peak hold, checkweighing, and batching are all supported. The TI-1680 manual and calibration guide are available in the Data Sheets tab above.
Key features
The TI-1680 is built for advanced industrial applications requiring batch control, checkweighing, vehicle weighing, and multi-cell installations in a single rugged stainless steel indicator.
|
|
|||||
|
|
|||||
|
|
Technical notes
The TI-1680 uses a Quick Disconnect cable connection and operates on 100-240 VAC, 50/60 Hz via its internal power supply, or optionally on 12 VDC. It connects to any standard mV/V load cell or junction box and supports up to twelve 350Ω load cells. Two RS-232 ports and one USB port are standard, with RS-485, Bluetooth, WLAN, analog output, Ethernet, and USB available as add-ons. Four cutoff outputs and one logic level input are also built in for batch and remote control applications.
| ➤ | Analog output: 16-bit, 0-5 VDC (active) / 4-20 mA (passive) |
| ➤ | Bluetooth wireless communication |
| ➤ | RS-485 for multi-drop network installations |
| ➤ | WLAN / Wi-Fi connectivity |
| ➤ | Ethernet connectivity |
| ➤ | Additional RS-232 port |
| ➤ | USB connectivity |
TI series indicator comparison
Compare the TI-1680 with other indicators in the TI series to find the right fit for your application.
 |  |  |  |  | |
TI-1680 | |||||
Price | $750 | $560 | $500 | $500 | $460 |
Load Cell Current | 12 - 350 Ω | 8 - 350 Ω | 8 - 350 Ω | 4 - 350 Ω | 4 - 350 Ω |
Display | 1.0 in 6-Digit LED | 1.0 in 7-Digit LCD | 0.8 in 6-Digit LCD | 0.9 in 6-Digit LCD | 0.6 in 6-Digit LED |
Backlight | ✓ | ✓ | ✓ | ||
Enclosure | Stainless Steel | Polycarbonate / ABS | Stainless Steel | Stainless Steel | Stainless Steel |
IP Rating | IP65 | IP69K | IP65 | IP65 | IP65 |
Battery | Option | ✓ | ✓ | ||
NTEP | Yes | Yes | Yes | Yes | Yes |
Key Functions | Units, Zero, Mode, Tare, Print, C/CE, F1, Set Point, Under/Over, ID, Enter, Dec.Pt, *, 0-9 | Units, Zero, Menu/Off, Net/Gross, Tare, Print, On | Units, Zero/Off, Net/Gross, Tare, On/Print | Units, Zero/Off, Net/Gross, Tare, On/Print | Units, Zero, Net/Gross, Tare, Print |
|
