Guardian Premium Floor Scale 5′ x 5′ 5,000 lbs/ 10,000 lbs with G-700K Indicator
| NTEP certified Legal for trade · factory calibrated · 5,000 & 10,000 lb capacities |
|
| Free ground shipping In-stock orders ship the same business day · free nationwide delivery |
|
| Manufacturer direct Designed & supported by Transcell in Buffalo Grove, IL since 1981 |
|
| 3-year structural warranty 3-year warranty on scale structure · 2-year on electronics · US-based support |
Product Description

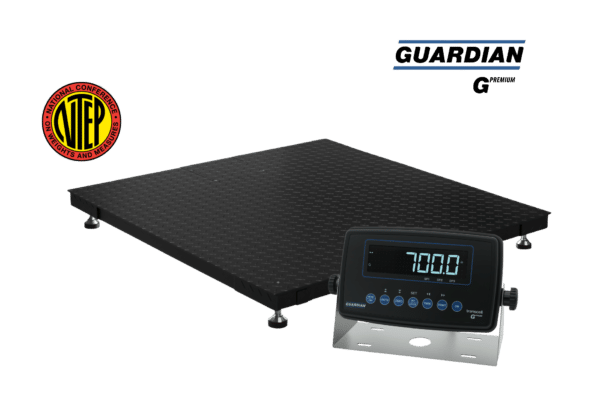

5′ x 5′ Industrial Floor Scale with G-700K Indicator
The Guardian Premium is Transcell's most capable industrial floor scale, engineered for demanding manufacturing, shipping, and warehouse environments where accuracy and legal-for-trade compliance are non-negotiable. This NTEP-certified platform scale is available in 5,000 lb and 10,000 lb capacities, factory calibrated and ready to use the moment it arrives on your dock.
Every Guardian Premium ships as a complete, ready-to-use system. The structural steel platform pairs with the G-700K waterproof indicator: NTEP certified, IP69K-rated, and equipped with built-in piece counting, accumulation, peak hold, and checkweighing. A 15 ft homerun cable is included. Optional Bluetooth, Wi-Fi, and RF wireless modules allow seamless integration with mobile devices, WMS platforms, and industrial networks.
The platform is engineered to outlast the application. An ultra-thick diamond plate deck sits on a ribbed A36 structural steel undercarriage, self-articulating leveling feet compensate for uneven floors, and an IP67-rated top-access junction box means maintenance never requires taking the scale out of service. Backed by a 3-year structural warranty and 2-year electronics warranty, with US-based support from Transcell's facility in Buffalo Grove, IL since 1981.
Built for Heavy Industrial Use

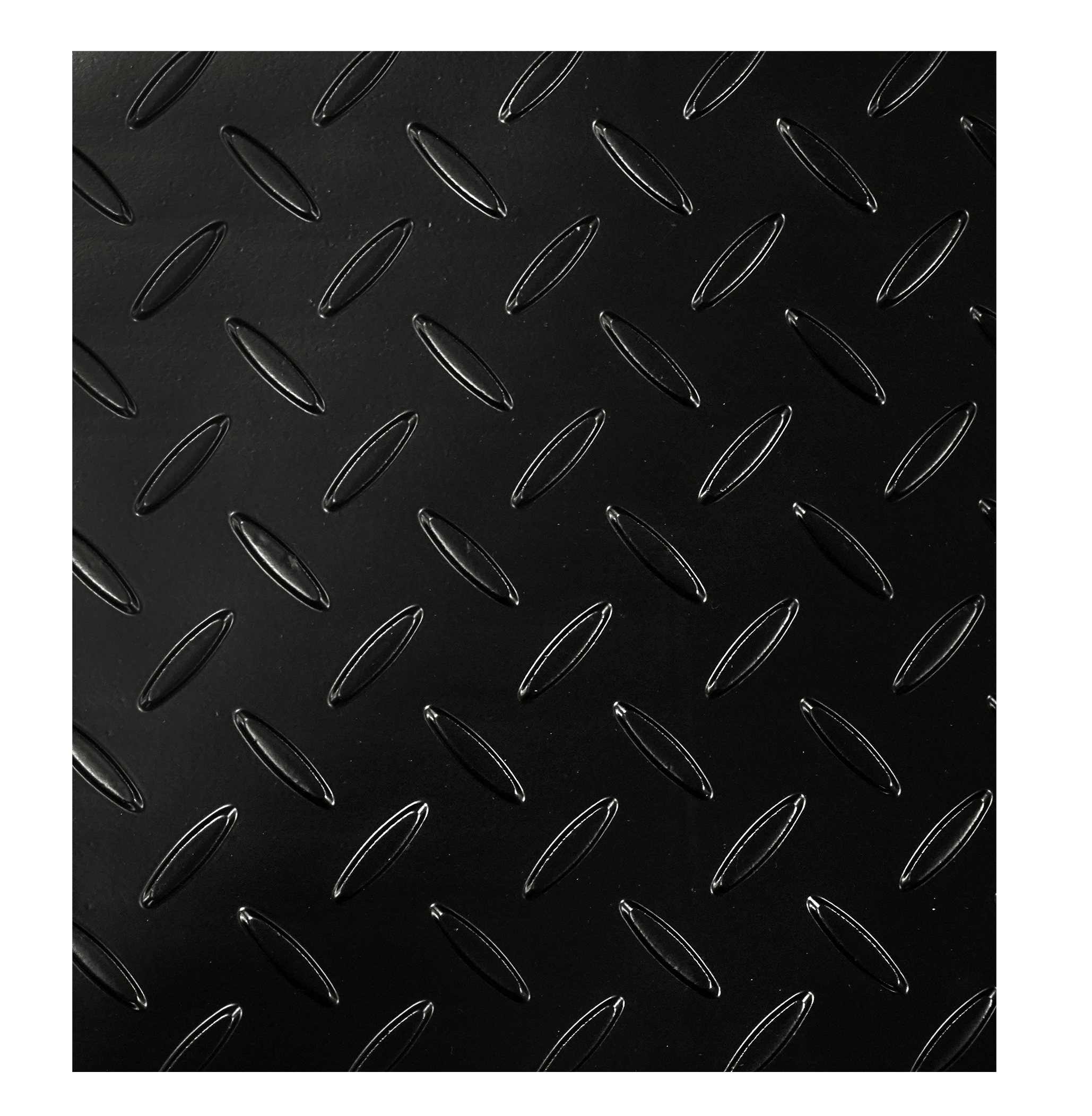

Ultra-Thick Diamond Plate Deck
1/4-inch diamond plate steel on a ribbed A36 structural steel undercarriage. No flex, no deformation under repeated heavy loads.
Self-Articulating Leveling Feet
Proprietary ball-and-cup technology compensates for uneven floors automatically. Adjustable from the top: no lifting required.

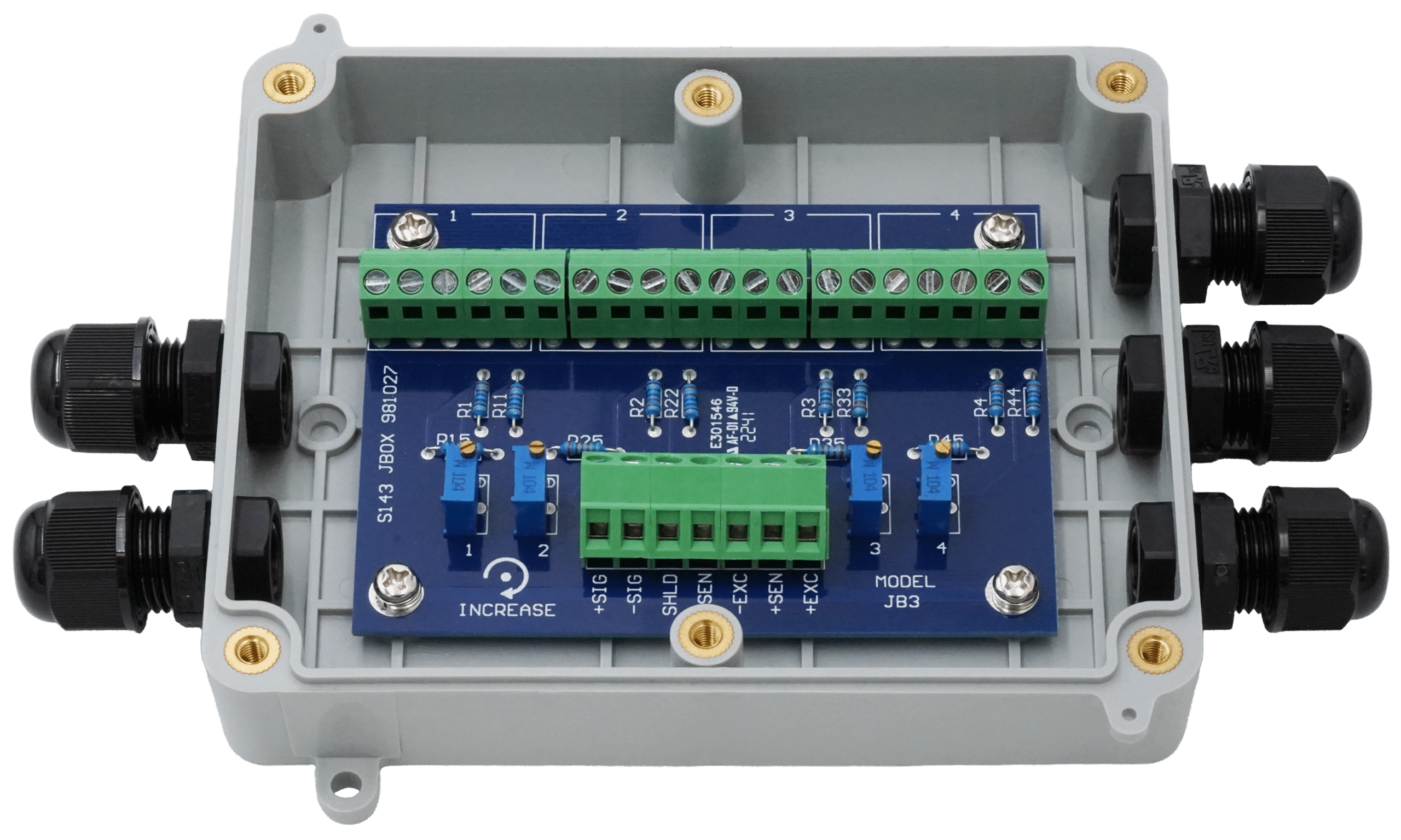

JB-FI-4 Signal Trim Junction Box
IP67-rated, 4-channel signal trim junction box. Individual potentiometers for precise corner adjustment without external instruments.

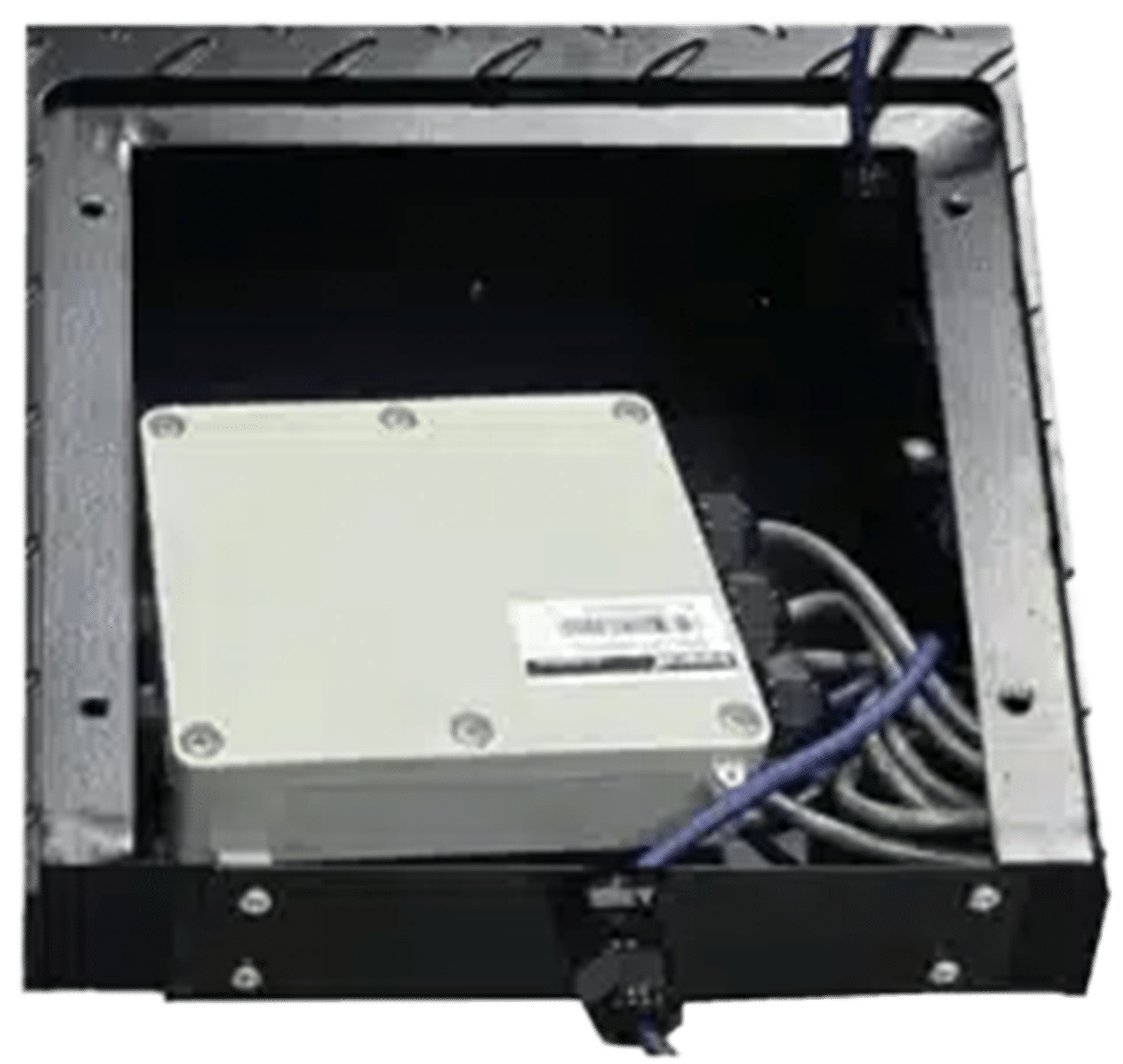

Top-Access Junction Box
Junction box accessible from a hatch on top of the platform. No need to lift or flip the scale for trimming or maintenance.
Every Detail Engineered
G-700K Waterproof Indicator
NTEP and Canadian certified. IP69K-rated ABS enclosure with large multi-color LCD and capacitive touch keypad. Ships with a 15 ft homerun cable. Standard RS-232 with optional Wi-Fi, Bluetooth, and RF wireless modules.
Connect to Any System
Additional options include RS-485 for multi-drop networks, 4-20mA analog output, and 0-10V analog output for direct PLC integration.
Installation Options
Common Applications
Key Specifications
| Specification | G-PREM-5x5-5K | G-PREM-5x5-10K |
|---|---|---|
| Rated Capacity | 5,000 lbs | 10,000 lbs |
| Platform Size | 5 ft x 5 ft (60 in x 60 in) | |
| Safe Overload (Corner) | 7,500 lbs | |
| Safe Overload (Edge) | 15,000 lbs | |
| Deck Thickness | 1/4 in Diamond Plate Steel | |
| Frame Material | A36 Structural Steel | |
| Overall Height | 4.3 in (110 mm) | |
| Load Cell Design | Transcell SBS High-Durability | |
| Junction Box | JB-FI-4, IP67, 4-Channel Signal Trim | |
| Homerun Cable | 15 ft included | |
| Leveling Feet | Self-Articulating Ball-and-Cup, 2.25 in dia. | |
| Finish | Powder Coat | |
| NTEP Certification | Both capacities, legal for trade | |
| Indicator | G-700K (IP69K, 100,000 divisions, RS-232) | |
| Platform Warranty | 3 years structural | |
| Electronics Warranty | 2 years | |
Freight delivery: Receiving location must have dock hours of 8 am to 5 pm, or liftgate / residential / military delivery must be arranged at time of order. Free shipping to contiguous 48 states only. Alaska and Hawaii excluded. Illinois residents subject to 8% sales tax.
