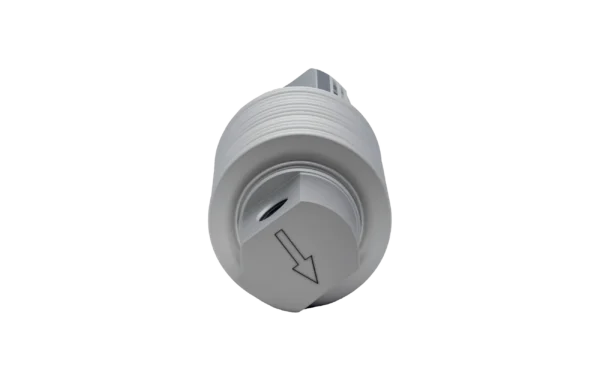

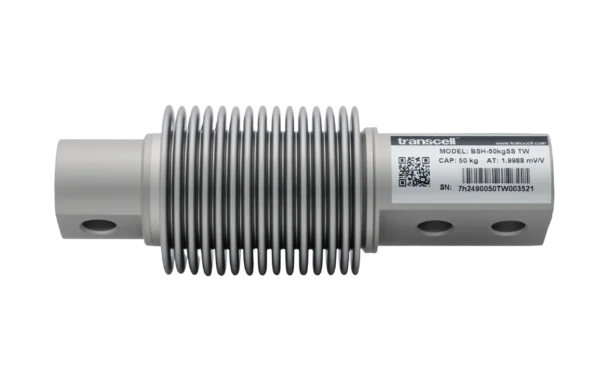

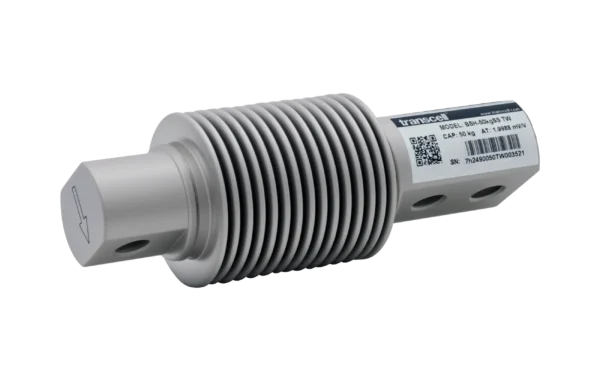

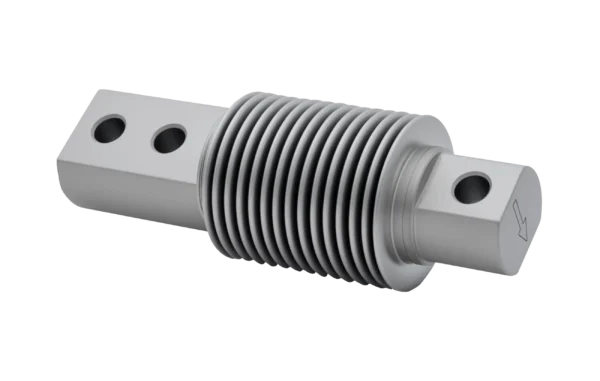

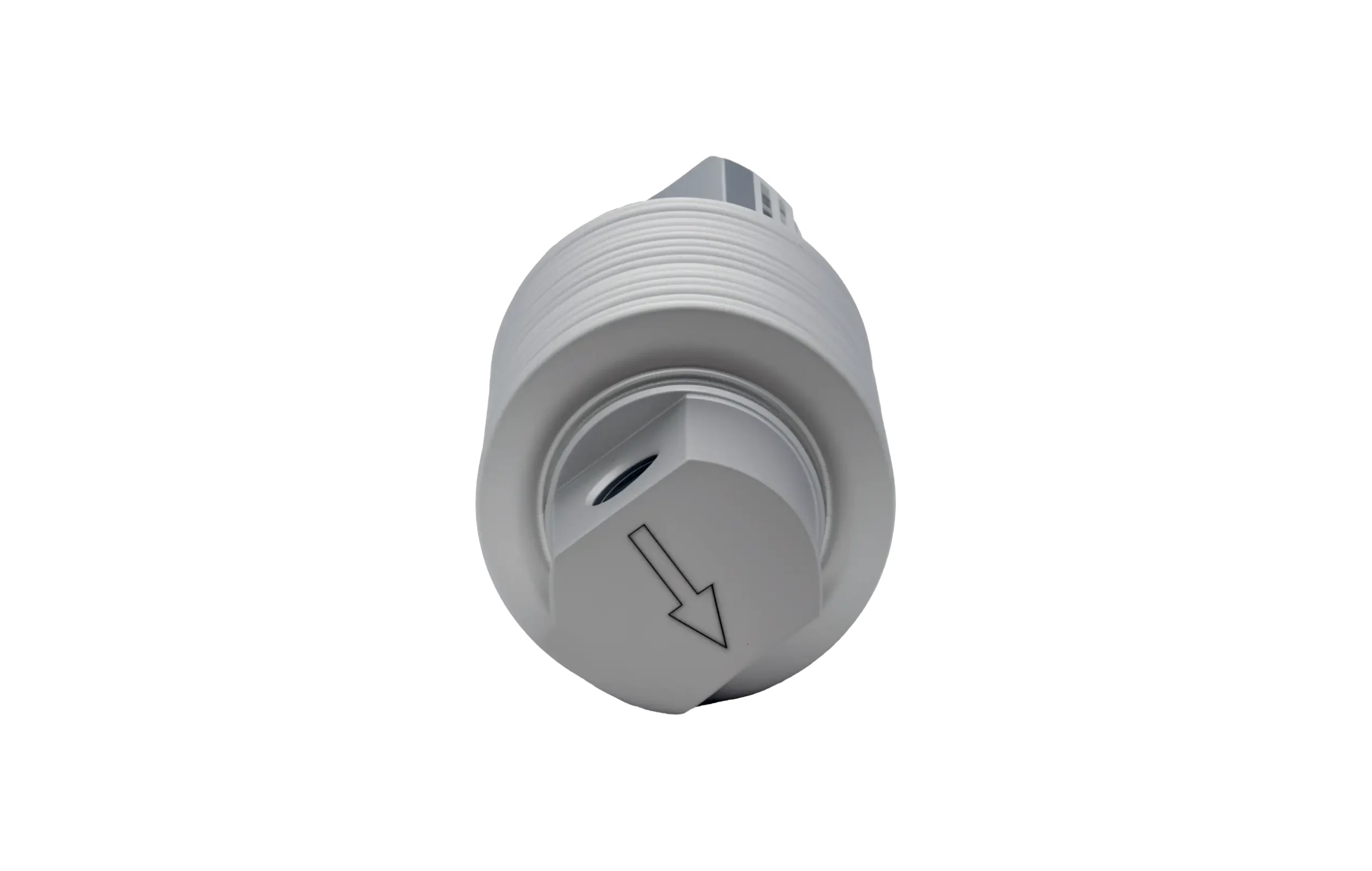

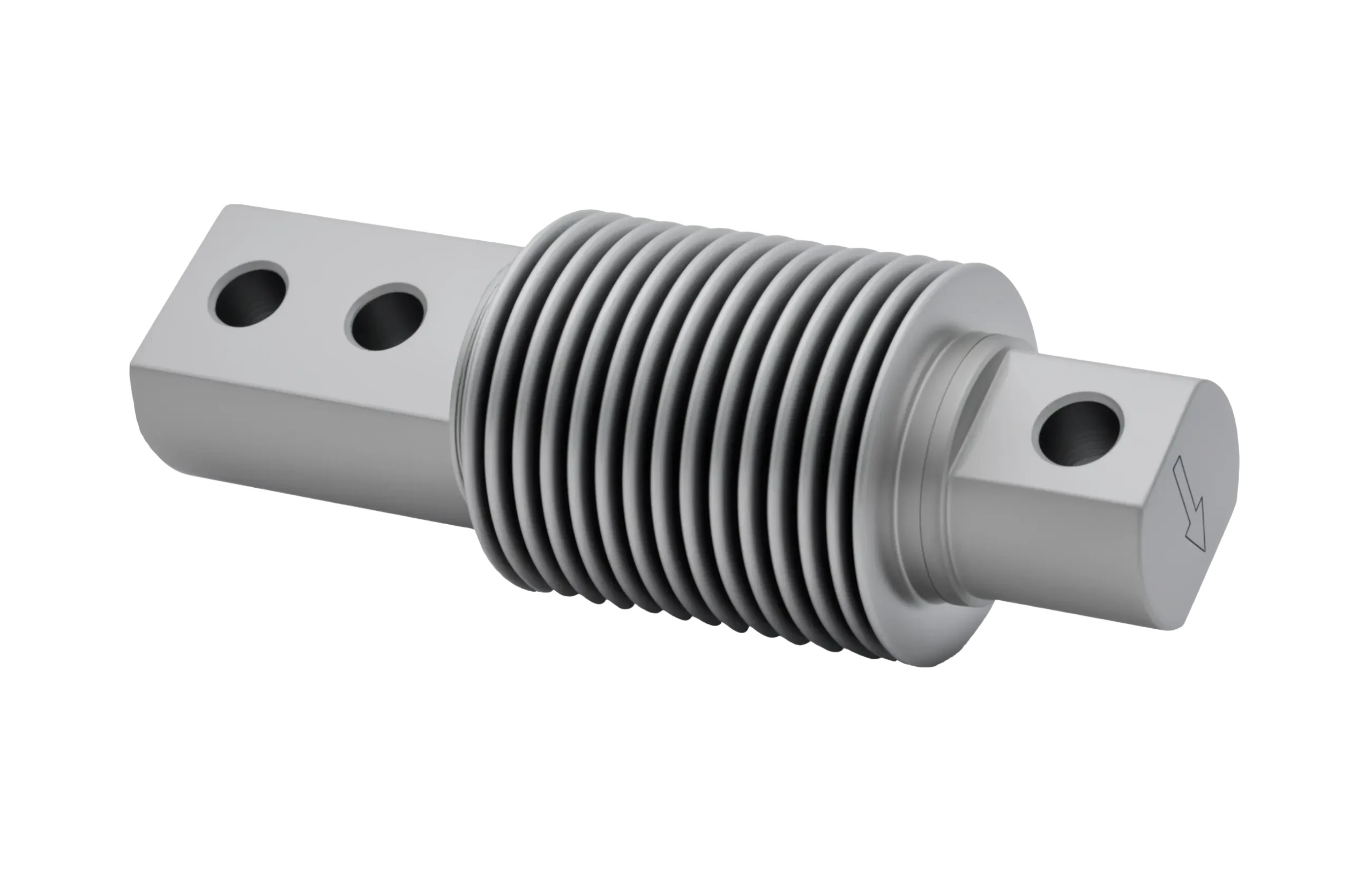

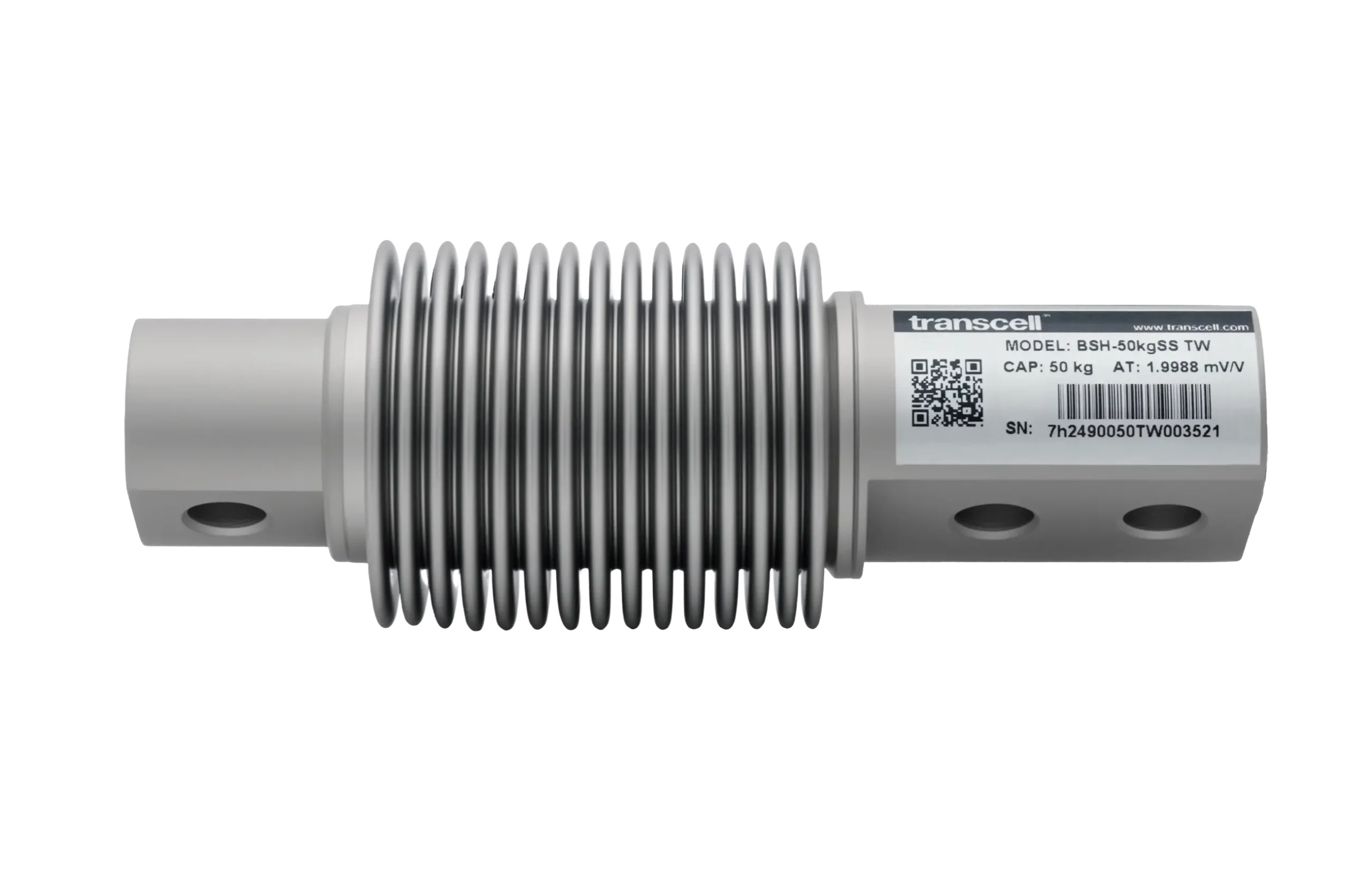

BSH Series Bending Beam Load Cell
| Compression only Designed for pushing force measurement · hermetically sealed · stainless steel construction |
|
| Same-day shipping In-stock orders ship the same business day · Free 2-day delivery |
|
| Manufacturer direct Designed & supported by Transcell in Buffalo Grove, IL since 1981 |
|
| 2-year limited warranty US-based technical support included · repair or replace guarantee |
Product Description
BSH bending beam load cell overview
The BSH is a stainless steel single-ended shear beam load cell designed for compression-only force measurement in demanding industrial environments. Its cantilever bending beam construction allows the sensor to be bolted at one end while the load is applied at the free end, making it one of the most common load cell geometries used in platform and bench scale platforms, filling and packing machines, and process weighing systems. With ±0.03% nonlinearity, hermetic welded sealing, and a 150% safe overload rating, the BSH delivers high stability and repeatable performance in wet, washdown, and chemically aggressive conditions where a fully sealed stainless steel sensor is required. Available in capacities from 10 kg to 500 kg.
|
Capacity range
10 kg
up to 500 kg
|
Nonlinearity
±0.03%
of rated output
|
Construction
SS
hermetically sealed
|
Safe overload
150%
of rated capacity
|
Typical applications
The BSH bending beam load cell is commonly specified for single-point compression weighing in platform scales, filling machines, and process systems requiring a compact, sealed sensor.
|
|
|||||
|
|
|||||
|
|
Technical notes
|
Installation and mounting
The BSH mounts via bolt holes at the fixed end, with the load applied downward at the free (cantilevered) end. For accurate readings, the mounting surface must be flat, rigid, and level. Side loading and off-axis forces should be minimized — use check rods or anti-rotation devices in applications subject to horizontal forces or vibration. For multi-cell platform scale configurations, mount one BSH at each support point and use a summing junction box to balance and combine the outputs. |
System integration
The BSH operates at a rated excitation of 10V DC/AC (15V max) and produces a 2.0 mV/V analog output signal. It is compatible with any standard weight indicator, PLC analog input, or load cell conditioner accepting a mV/V bridge input. For multi-cell platform scale installations, a load cell summing junction box is used to balance and combine the signals from each corner cell before passing a single output to the indicator. |
|
Rated output
2.0 mV/V ±0.1%
|
Zero balance
±1% of rated output
|
Nonlinearity / Hysteresis
±0.03% RO each
|
Temp. effect on output
≤0.002% /°C
|
|
Safe temp. range
−10°C to +70°C
|
Insulation resistance
≥5,000 MΩ at 50V DC
|
Input impedance
387 Ω ± 20 Ω
|
Output impedance
350 Ω ± 5 Ω
|
|
Cable wiring
The BSH ships with a 3 m (10 ft) cable. Standard color code:
|
Drop-in replacement for
The BSH is a direct mechanical and electrical substitute for the following bending beam load cell models. No wiring or mounting changes are required when upgrading or replacing:
|
Dimensions / 3D Drawings
Note: You may need a software that can open/view STEP files.
-
